K series helical bevel gear motor right angle gearbox speed reducer is one kind of Helical Bevel type gearbox , High-stainless cast iron case . ,it is designed based on modularization , which bring many difference kinds of combinations ,mounting types ,and structure designs .The detail classification of ratio can meet various of working condition .High Transmission efficiency ,Low energy consumption, superior performance . The hard tooth surface gear use the high quality alloy steel , the process of carburizing and quenching, grinding ,which give it follow characters : Stable transmission , low noise and temperature ,high loading ,long working life. which widely use for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW
4) Mounted form: foot-mounted and flange-mounted mounting
Product Name | K series helical bevel gear motor right angle gearbox speed reducer |
Gear Material | 20CrMnTi |
Case Material | HT250 |
Shaft Material | 20CrMnTi |
Gear Processing | Grinding finish by HOFLER Grinding Machines |
Color | Customized |
Noise Test | 65~70dB |
Efficiency | 94%~98% (depends on the transmission stage) |
Lubricating oil | Shell Omala synthetic oil or mineral oil , or similar brand |
Heat treatment | tempering, cementiting, quenching,etc. |
Brand of bearings | C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on |
Brand of oil seal | NAK or other brand |
Temp. rise (MAX) | 40 ° |
Temp. rise (Oil)(MAX) | 50 ° |
Vibration | ≤20µm |

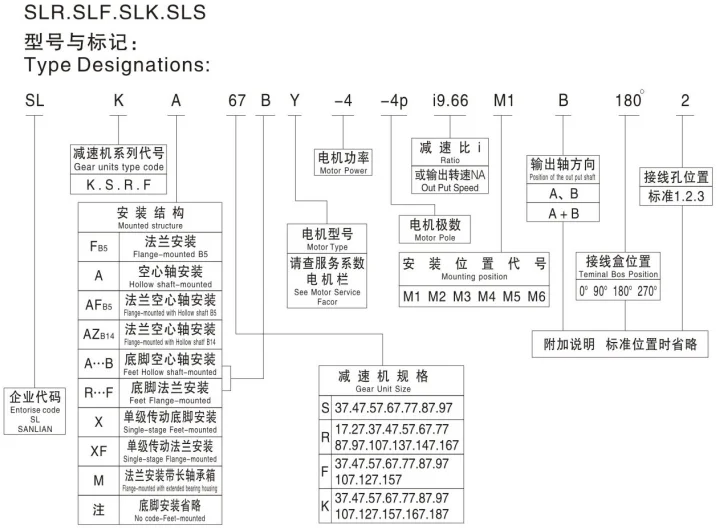

Model: | K Series - Foot-mounted, solid shaft output KAB Series - Foot-mounted, hollow shaft output KA Series – Keyed hollow shaft output KF Series – B5 Flange-mounted, solid shaft output KAF Series – B5 Flange-mounted, hollow shaft output KAZ Series – B14 Flange-mounted, hollow shaft output KAT Series – Hollow shaft output, torque arm KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input |
Housing | Cast Iron |
Input power | 0.12-200kw |
Output torque | 10-61900N.m |
Output speed | 0.08-261rpm |
Bearing | C&U Bearing,NSK,SKF or on request |
Ratio | 5.36~178.37 |
Installation Form | Foot, Flange, Shaft Mounted |
Seal | SKF,CTY,CFW or on request |
Gears | Helical-bevel Gears |
Input Configurations | Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange |
Applicable Motors | Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor |
Output Configurations | Solid Shaft Output Hollow Shaft Output |
Installation | Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted |
Lubrication | Oil-bath and Splash Lubrication |

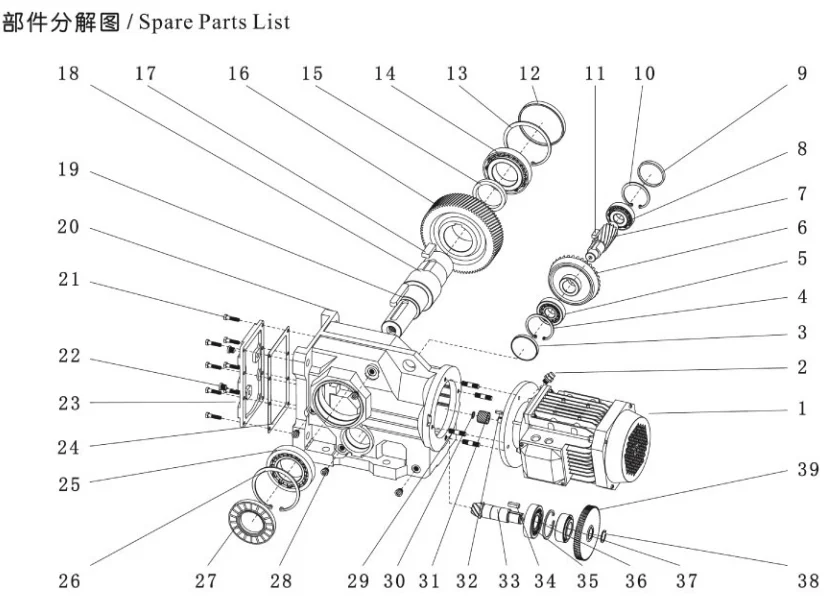

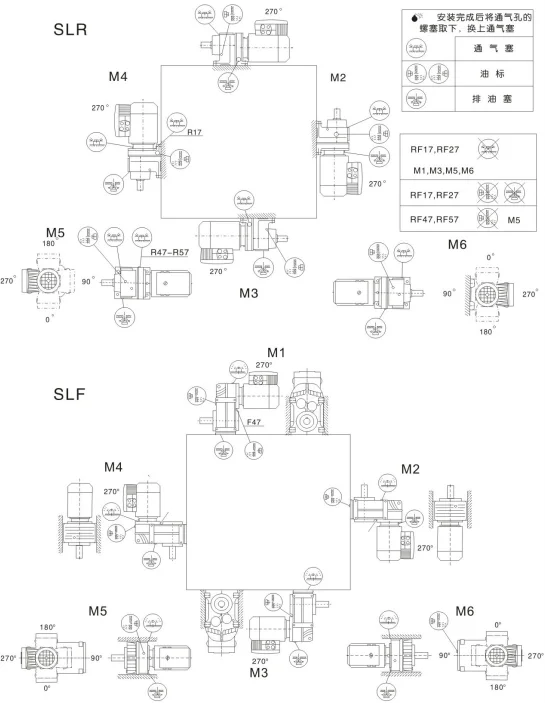

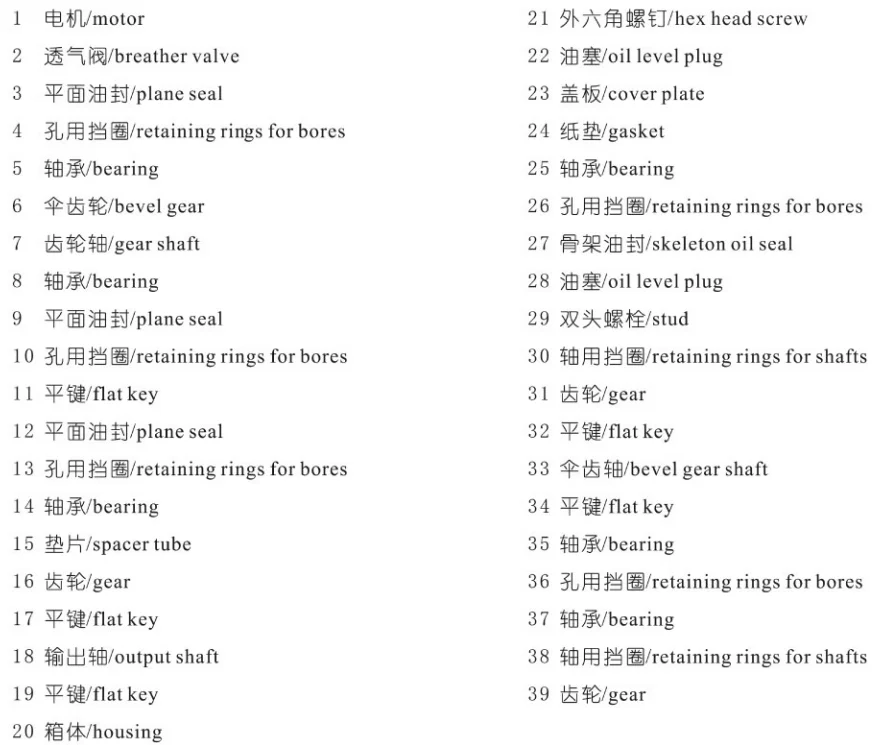

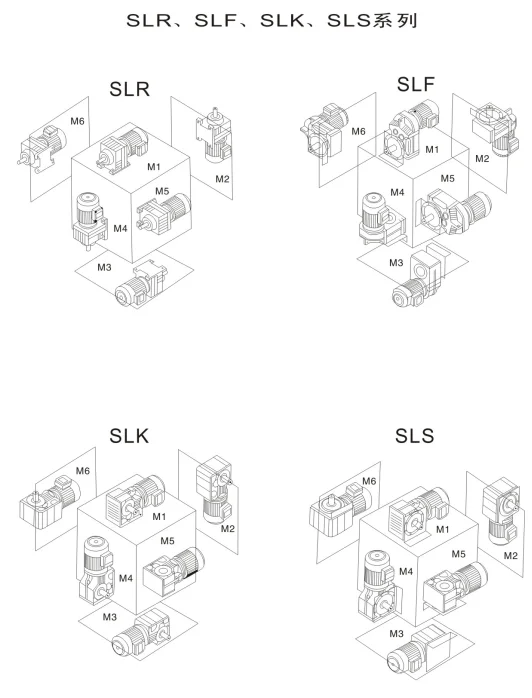

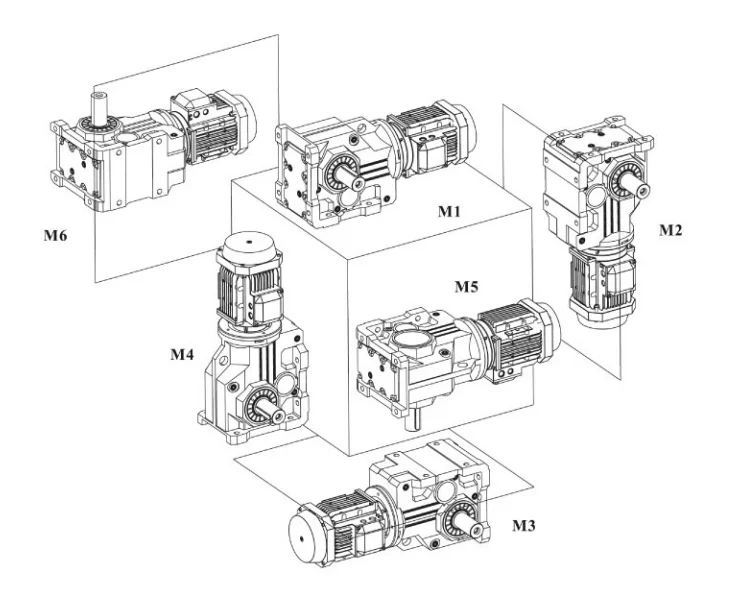

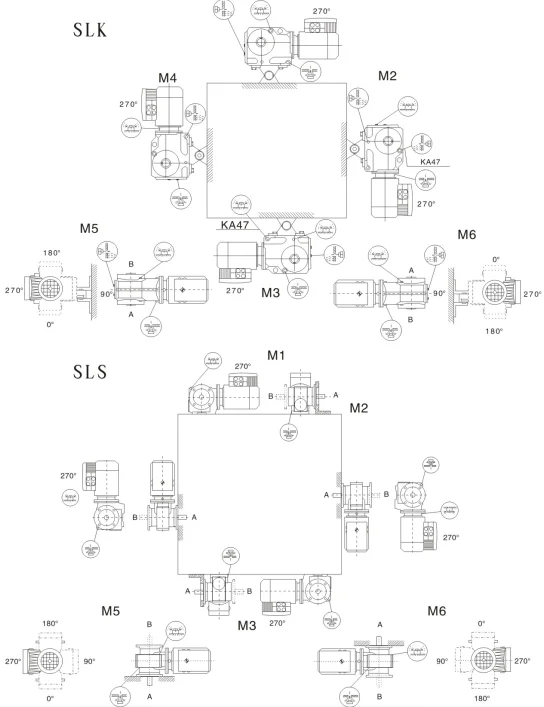

Installation Method
Related product

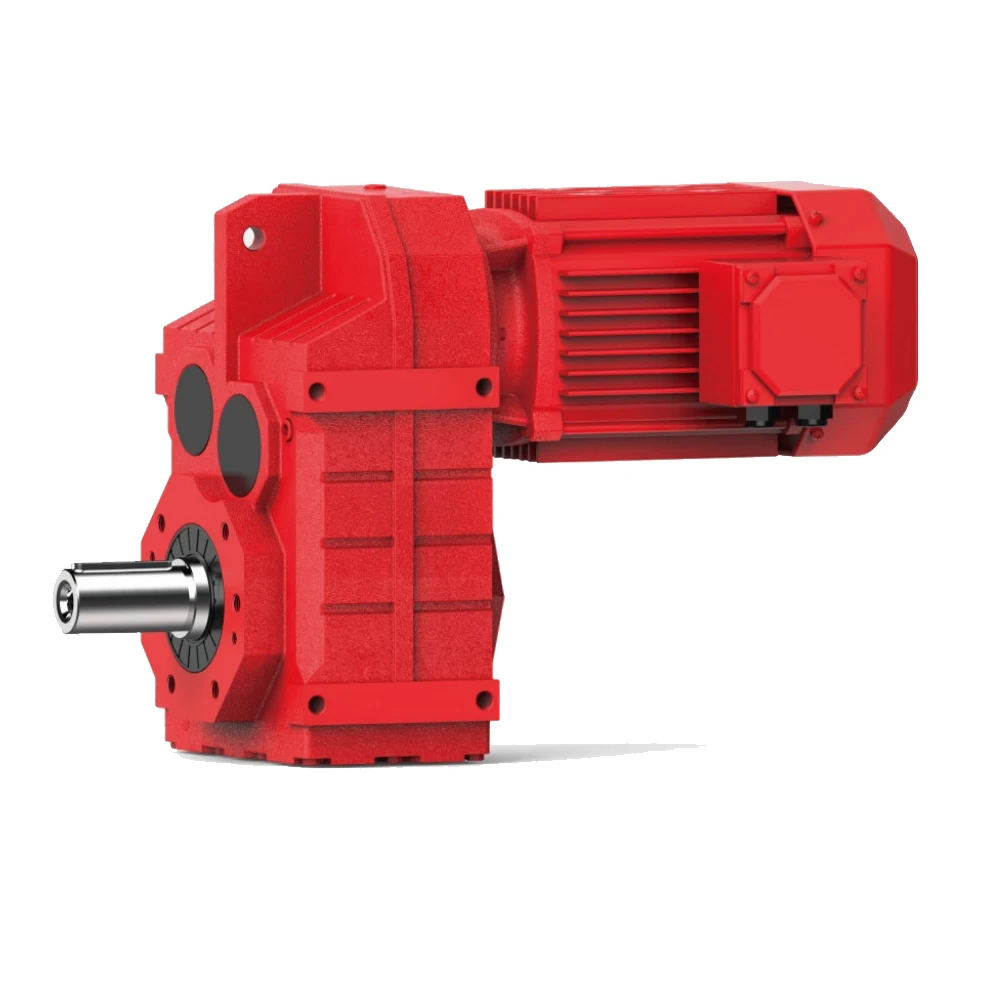

F helical gear reducer
◆ Parallel output, compact structure, large transmission torque, stable operation, low noise and long life.
◆ Installation method: base installation, flange installation, torque arm installation.
◆ Reduction ratio: basic type two level 4.3-25.3, three level 28.2-273, combined to 18509.
◆ The rotation direction of the input and output of the basic two-stage is the same, and the three-stage is opposite; please consult when combining.
◆ Output mode: hollow shaft output or solid shaft output.
◆ Average efficiency: Level 2 96%, Level 3 94%, F/CR average efficiency 85%.
◆ Installation method: base installation, flange installation, torque arm installation.
◆ Reduction ratio: basic type two level 4.3-25.3, three level 28.2-273, combined to 18509.
◆ The rotation direction of the input and output of the basic two-stage is the same, and the three-stage is opposite; please consult when combining.
◆ Output mode: hollow shaft output or solid shaft output.
◆ Average efficiency: Level 2 96%, Level 3 94%, F/CR average efficiency 85%.

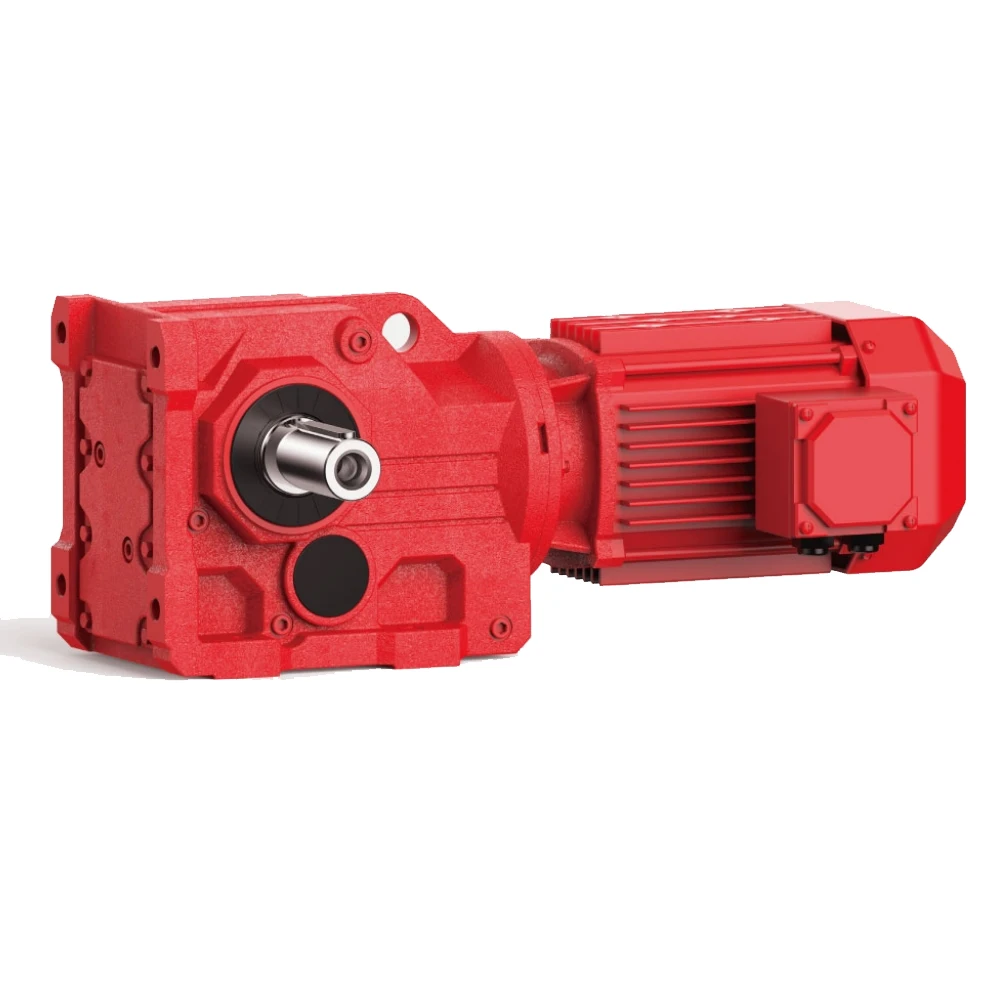

K helical bevel gear reducer
◆ Vertical output, compact structure, hard tooth surface transmission torque, high-precision gears ensure stable work, low noise and long life.
◆ Installation method: base installation, flange installation, torque arm installation, small flange installation.
◆ Input mode: motor direct connection, motor belt connection or input shaft, connection flange input.
◆ Output mode: hollow shaft output or solid shaft output, the average efficiency is 94%.
◆ Reduction ratio: basic type 8.1-191, combined to 13459.
◆ Installation method: base installation, flange installation, torque arm installation, small flange installation.
◆ Input mode: motor direct connection, motor belt connection or input shaft, connection flange input.
◆ Output mode: hollow shaft output or solid shaft output, the average efficiency is 94%.
◆ Reduction ratio: basic type 8.1-191, combined to 13459.

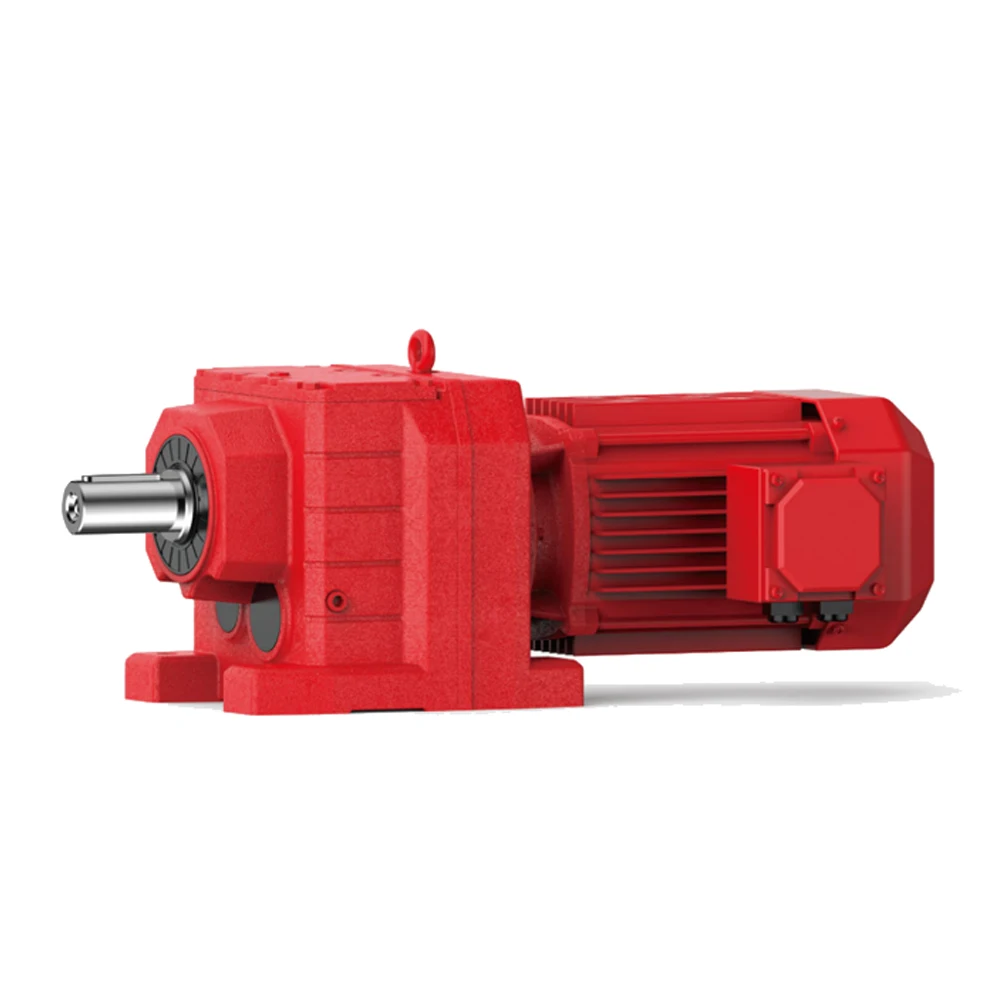

R helical gear reducer
◆Small bias output, compact structure, maximum use of cabinet space, the second and third levels are in the same cabinet.
◆Using an integral cast box, the box structure has good rigidity, which is easy to improve the strength of the shaft and the life of the bearing.
◆Installation method: pedestal installation, flanges with large and small flanges are easy to choose.
◆Solid shaft output, the average efficiency is 96% in the second stage, 94% in the third stage, and 85% in CR/CR. The CRM series specially designed for mixing can carry large axial and radial forces.
◆Using an integral cast box, the box structure has good rigidity, which is easy to improve the strength of the shaft and the life of the bearing.
◆Installation method: pedestal installation, flanges with large and small flanges are easy to choose.
◆Solid shaft output, the average efficiency is 96% in the second stage, 94% in the third stage, and 85% in CR/CR. The CRM series specially designed for mixing can carry large axial and radial forces.
S series helical gear worm reducer
1. The S series helical gear worm gear motor has a high technological content. It has a helical gear and a worm gear combined with an integrated transmission to improve the torque and efficiency of the machine. This series of products have complete specifications, wide speed range, good versatility, adapt to various installation methods, safe and reliable performance and long life, and have implemented international standards.
2. The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise.
3. The machine has good sealing performance and strong adaptability to the working environment.
4. The machine has high transmission accuracy, and is especially suitable for working in occasions with frequent starting. It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position.
5. The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.
6. The reducer can be equipped with various types of motors, forming a mechatronics, which fully guarantees the quality characteristics of the product.
2. The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise.
3. The machine has good sealing performance and strong adaptability to the working environment.
4. The machine has high transmission accuracy, and is especially suitable for working in occasions with frequent starting. It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position.
5. The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.
6. The reducer can be equipped with various types of motors, forming a mechatronics, which fully guarantees the quality characteristics of the product.
