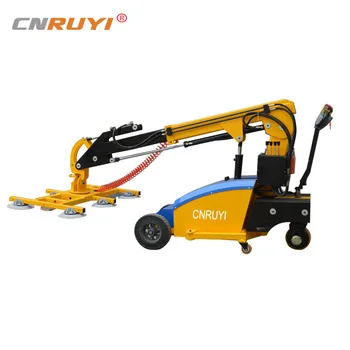

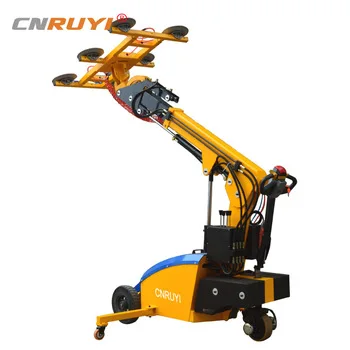

Rotatable glass automatic lifting transport vacuum robot lifter/glass lifting machine

Product Overview

Description



Whether you need to tackle a floor to ceiling installation or wall to wall, RuyiLift has the glass lifting machine to perfectly match your job requirements. Choose from a variety of indoor and heavy-duty outdoor machines that allow you the flexibility and precision to conquer even the toughest job.

CE approved Glass transporter building glass vacuum lifter

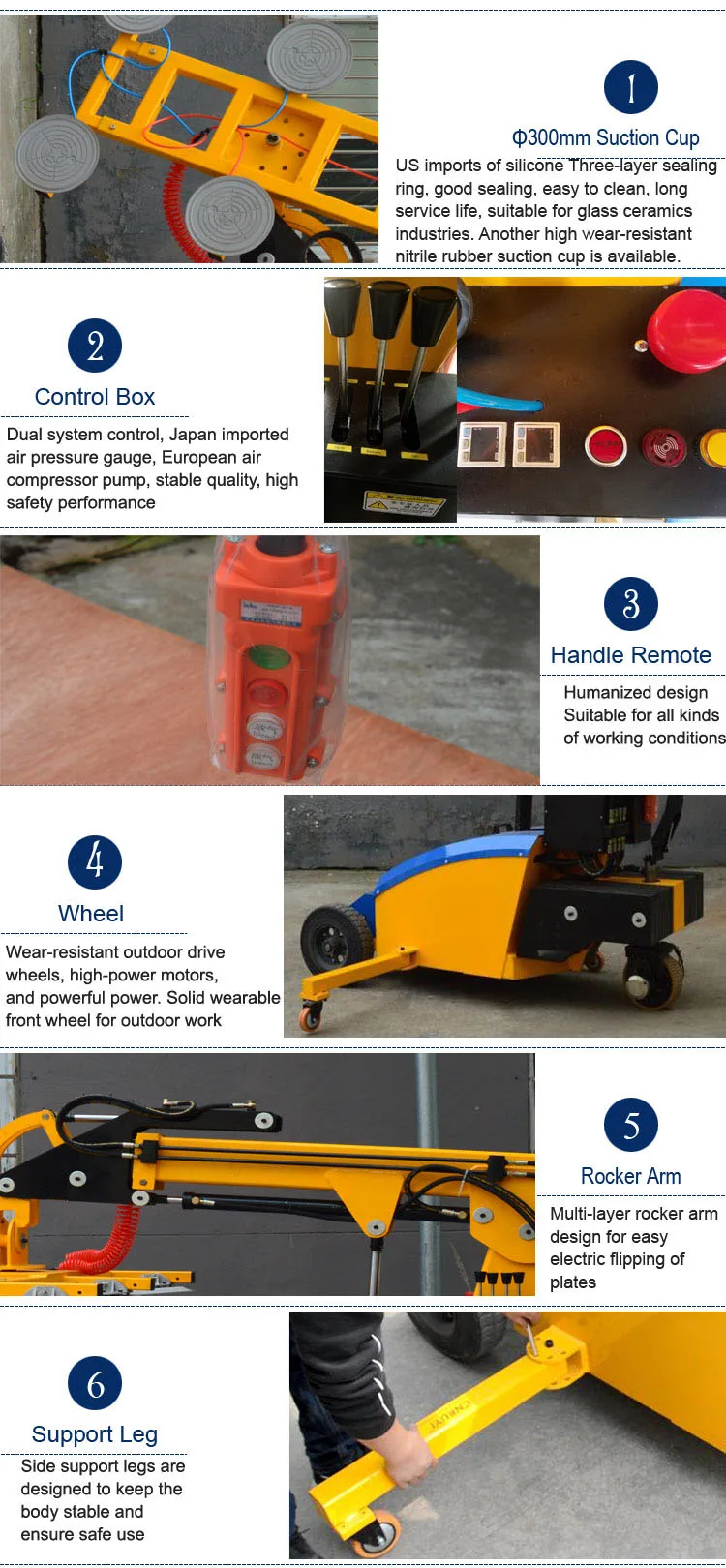

Suitable for smooth surfaces such as glass, ceramics, stone, and sheet. Imported suction cup, three-layer sealing ring, good sealing, soft and environmentally friendly material. Double system control, Japan imported air pressure gauge, European imported air pressure pump, stable quality and high safety performance. Easily handle lifting, moving and spinning with vacuum chucks and powerful drive systems.





500kg glass lifter, glass robot vacuum lifters for your individual application



Electric Glass Lifter	Unit	CDD-L
Rated load capacity	kg	300	350	400	500
Manual rotating	deg	270	270	270	270
lifting height	mm	3500	3500	3500	3500
Manipulation	/	Walkie Type	Walkie Type	Walkie Type	Walkie Type
Battery	V/A	2x12/40	2x12/40	2x12/45	2x12/60
Charger	V/A	24/12	24/12	24/12	24/15
Drive motor	V/W	24/750	24/750	24/750	24/1200
Lift motor	V/W	24/2000	24/2000	24/2000	24/2200
Overall Width	mm	840	840	840	840
Overall Length	mm	2760	2760	2760	2760
Overall Height		1800
Driving wheel dimension	mm	250*80	250*80	250*80	250*80
Suckers diameter	mm	300	300	300	300
The glass size	mm	3660*2440	3660*2440	3660*2440	3660*2440



Acition:

1.Electric lifting and electric walking.

2.Manual 270 degree rotation.

3.Electric positioning.

4.Glass sucker cup for lifting glass.



How to place an order?

A:Tell us your detailed requirements of CE approved Glass transporter building glass vacuum lifter (material, dimension,weight and function you need),we will send you offer soon. If OK, send us PO,or we send you the PI



What’s your price term?

A: FOB,FCA,CIF,CFR,EXW and DDU price terms.



How could I pay them?

A:We accept Western Union; T/T; L/C;Alibaba trade assurance



How long could I get my order?

(1) Standard metal vacuum lifter, usually in stock, deliver within 24 hours.

(2) Customized order, don’t have items in stock, then need to check.



About warranty:

A:Our machines carry a full 1 year warranty.



Mode of transport:

A:Sea, air, railway and express transport



About package:

Standard exported packing(plywood case)
