Product Overview

Description
















Product Description

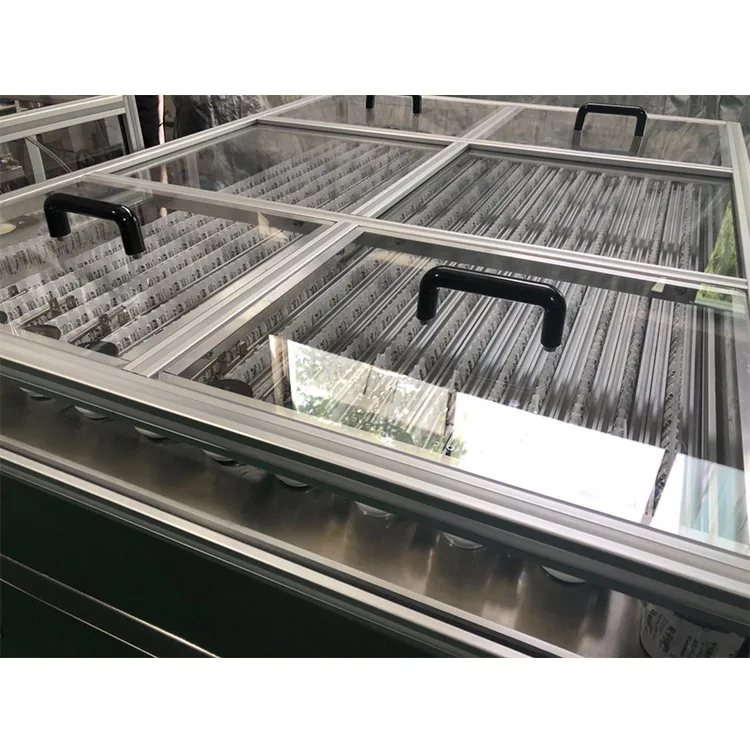

Suppository filling machine

Function description:
SINO-3L Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torped shape ,oval and duck bill, to meet the production of your suppository. (according to the specifications of your specifications).

Working principle of the machine:
SINO-3L Full-automatic Suppository Production Line has a stable and efficient manufacturing process, filling, freezing,
sealing and other production processes to complete the whole process, and the production capacity is 5,000-6,000 grain/hour.

Manufacturing Principle:

SINO-3L Full-automatic Suppository Production Line is welded flat, with no edge, slag and splash. The whole machine is treated with reliable rust. The surface of the equipment is 304 stainless steel. It is smooth and easy to clean. Components, accessories and motors and so on should adopt domestic and foreign premium brands.
Ensure the appearance of the equipment and smooth operation.

Safety of Equipment:
SINO-3L Full-automatic Suppository Production Line has sufficient safety equipment to guarantee that operators will not be harmed
in the operation. The equipment running noise is less than 70 dB (A).

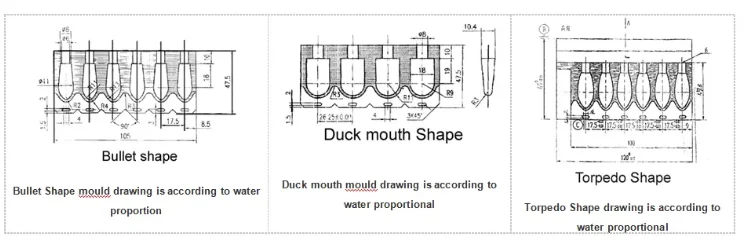

Suppository Shapes:























Technical parameters:


































































Commodity


Full automatic suppository production line


Model


SJ-3L


Output


5,000—6,000 pcs/h


single dosage


0.5—5g


Dosage allowed





Packaging Film


PVC\\PE (thickness0.15mm)


Stirring tank capacity


30L


Air pressure


≥0.7Mpa


Air consumption/min


1.5m3


Water consumption/h


50kg (recycling)


Working voltage


3 phase 380V


total power


5KW


Adopt forming shapes


Bullet, torpedo and duck shapes and other shapes


Machine Weight


600KG


Adapt Material


Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc


Each distance of suppository


17.4mm


Overall dimensions


L3,270mm×W1,400mm×H1,760mm
