China top sale 7 inch HMI display free software IP65 touch screen panel
- Category: >>>
- Supplier: Shenzhen Coolmay Technology Co. Ltd.
Share on (1600192554277):
Product Overview
Description
Product Description

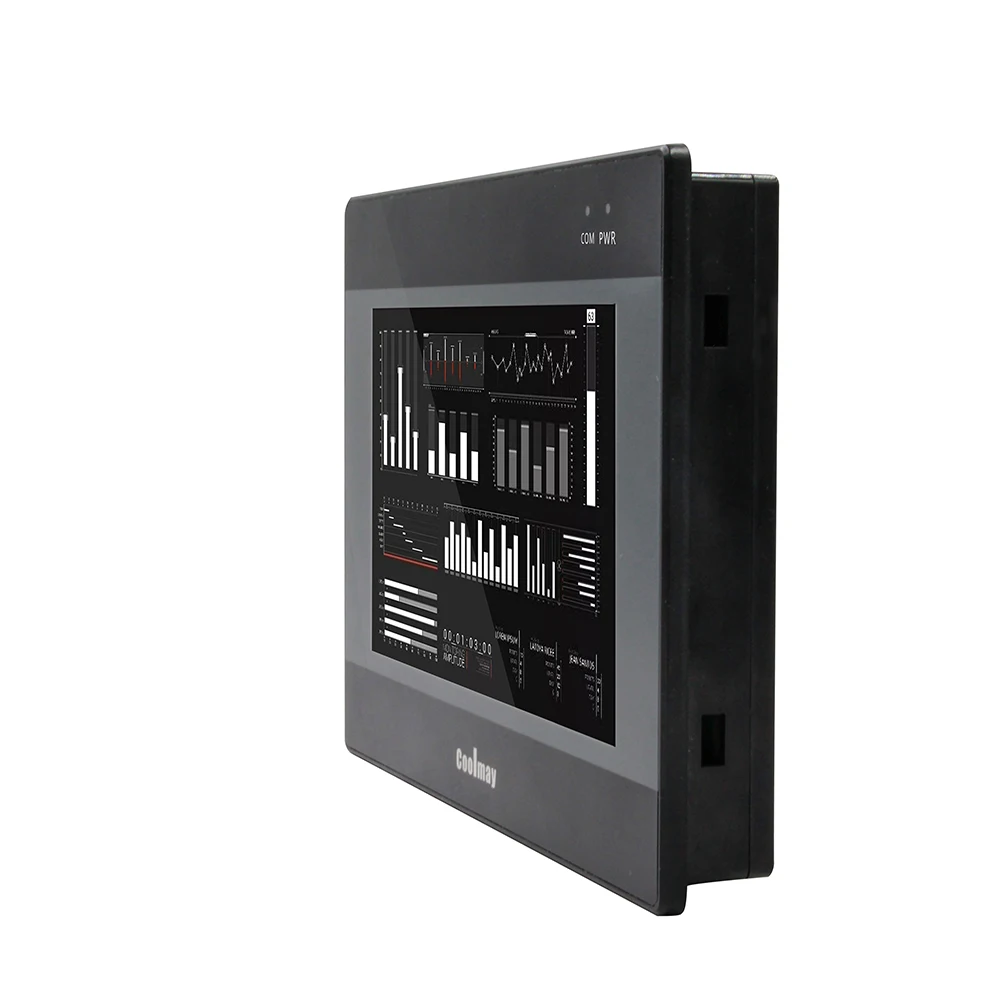

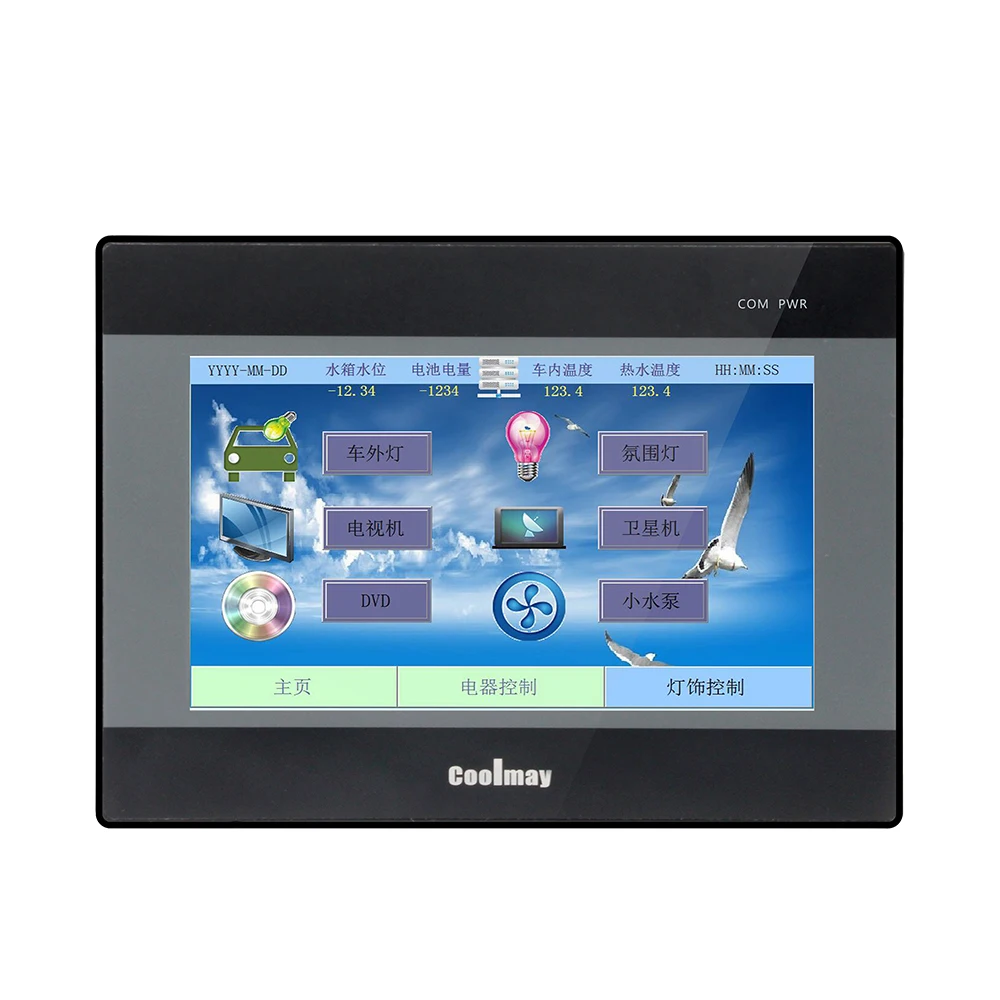

China top sale 7 inch HMI display
| Model | TK6037FH | TK6043FH | TK6050FH | TK6070FH | TK6100FH | |
Specs | Dimension | 88*88*25mm | 134*102*36mm | 151*96*36mm | 200*146*36mm | 275*194*36mm |
Cutout size | 72*72mm | 120*94mm | 143*86mm | 192*138mm | 262*180mm | |
Display size | 73*56mm | 97*56mm | 108*65mm | 154*87mm | 222*125mm | |
Weight(kg) | Appox. 0.3 kg | Appox. 0.33 kg | Appox. 0.33 kg | Appox. 0.54 kg | Appox. 0.7 kg | |
| Display | Display | 3.5" TFT | 4.3" TFT | 5" TFT | 7.0" TFT | 10.1" TFT |
| Resolution (pixels) | 320*240 | 480*272 | 800*480 | Standard: 800*480 Optional: 1024*600 (Model: TK6070HD) | 1024*600 1024*600 | |
Brightness | 300cd/m² | 400cd/m² | 300cd/m² | |||
Contrast ratio | 400:1 | |||||
Backlight | LED | |||||
Backlight time | 60,000 hours | |||||
| Display color | 65536 colors | |||||
Touch type | 4-wire resistive panel | |||||
64MB | ||||||
NOR Flash 8MB | NOR Flash 16MB | |||||
| 32bit CPU 408MHz | ||||||
| Interface | Download port | Type-C, RS232, RS485 | Type-B, RS232, RS485 | |||
COM port | 1 RS232, 1 RS485 | |||||
Optional | NULL | 1 WIFI (occupy default RS485 port) | ||||
Protocol | Support MODBUS, free port and common PLC communication Protocol | |||||
| Calendar | Yes | |||||
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC | |||||
| Consumption | 42mA/24V | 72mA/24V | 85mA/24V | 107mA/24V | 145mA/24V | |
| Protection Class | IP65 (front panel) | |||||
| Temperature | Ambient environment: 0~50℃ | Storage environment: -20~70℃ | |||||
| Humidity | 20%~90% RH | |||||
Certification | CE | |||||

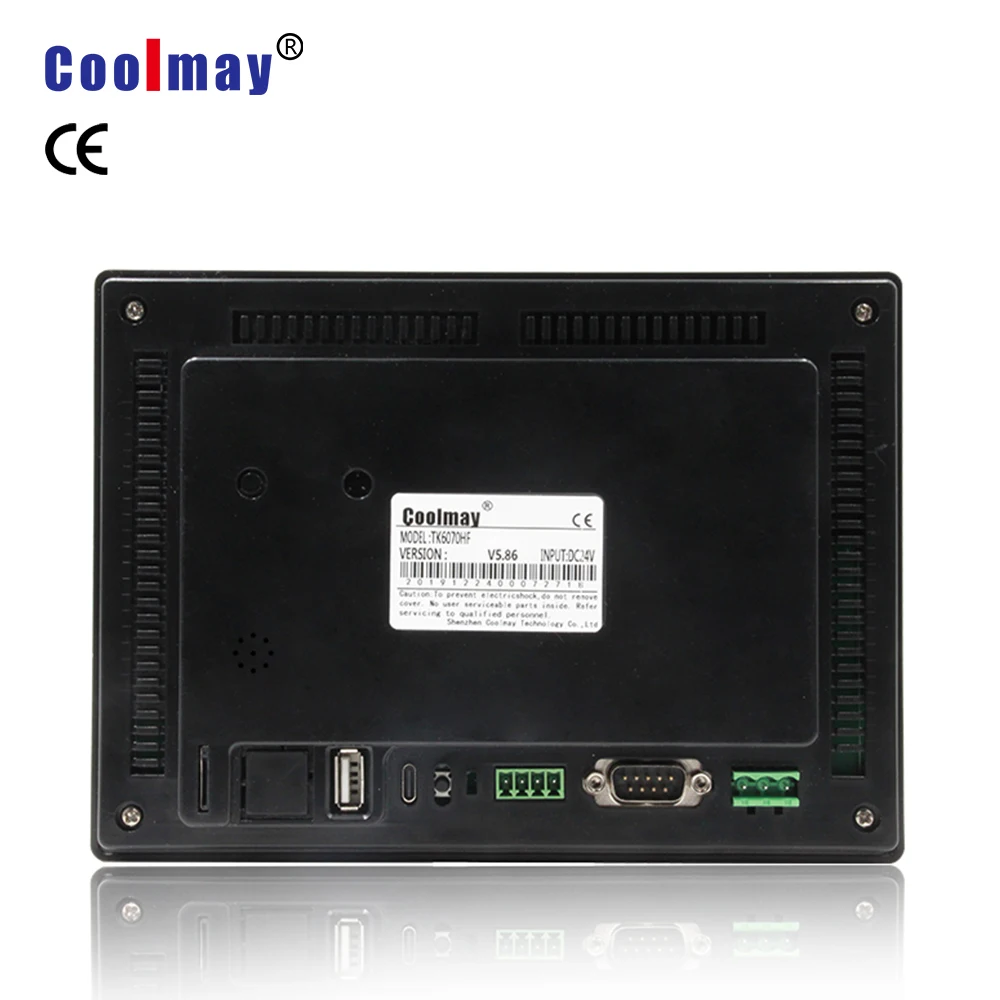

Detailed Images

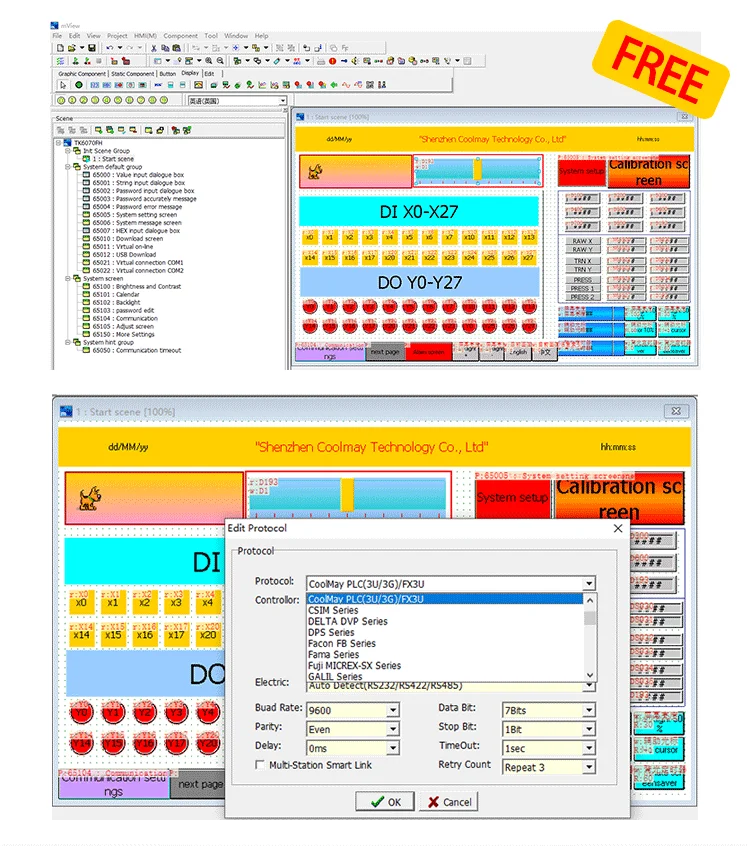

software
Our Services
We have a goup of professional technician to help you solve the problem.
Company Information
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.

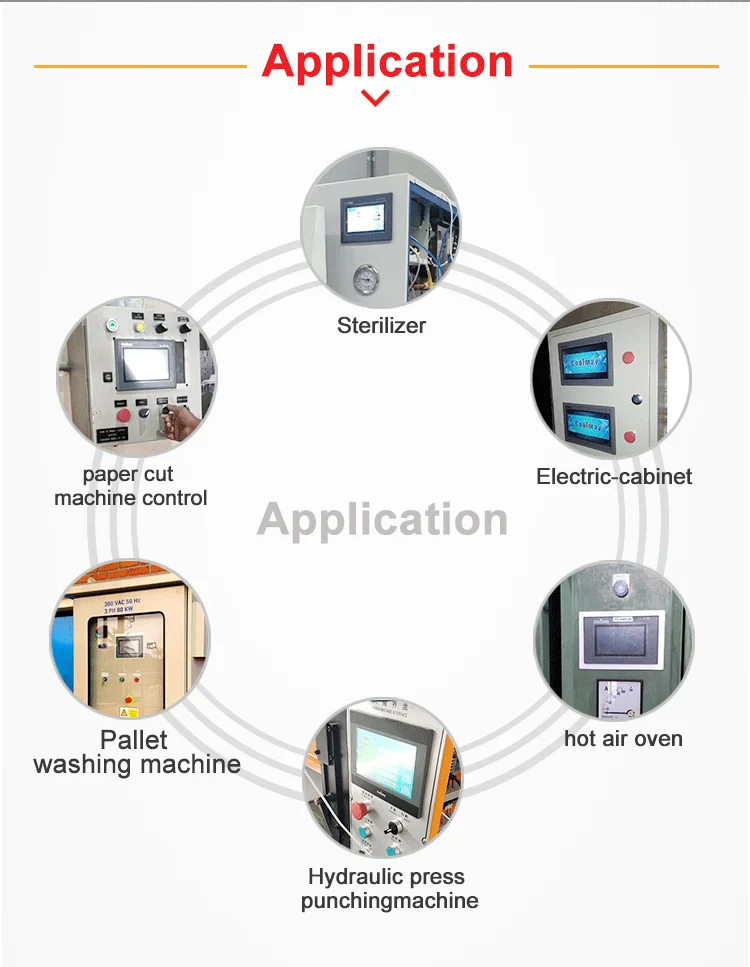

Applications
Widely used in many fileds
