WJ3101 Semi auto new energy induction pure electric copper cable strip stripper wire stripping machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan,Weijiang,Automation,Equipment,Co.,Ltd.,[Jiangsu,China]Kunshan
Share on:
Product Overview
Description

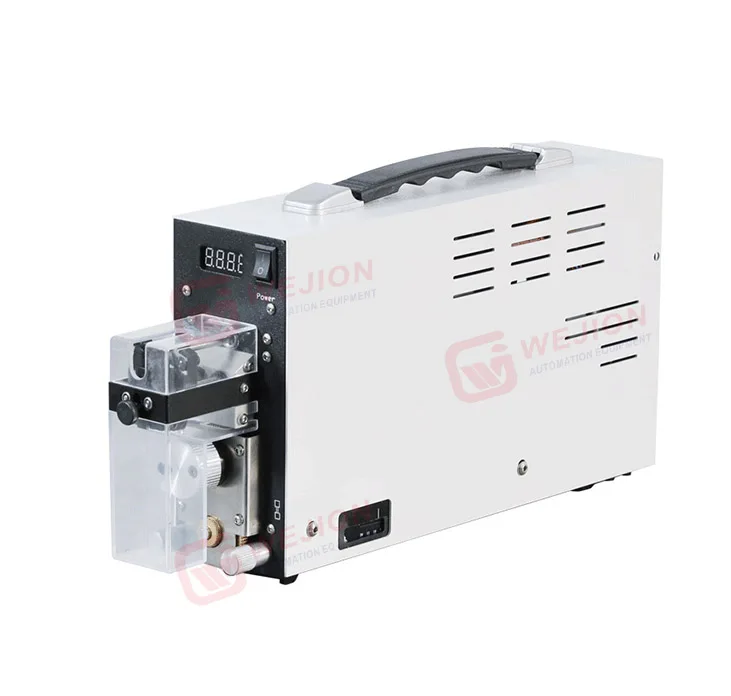

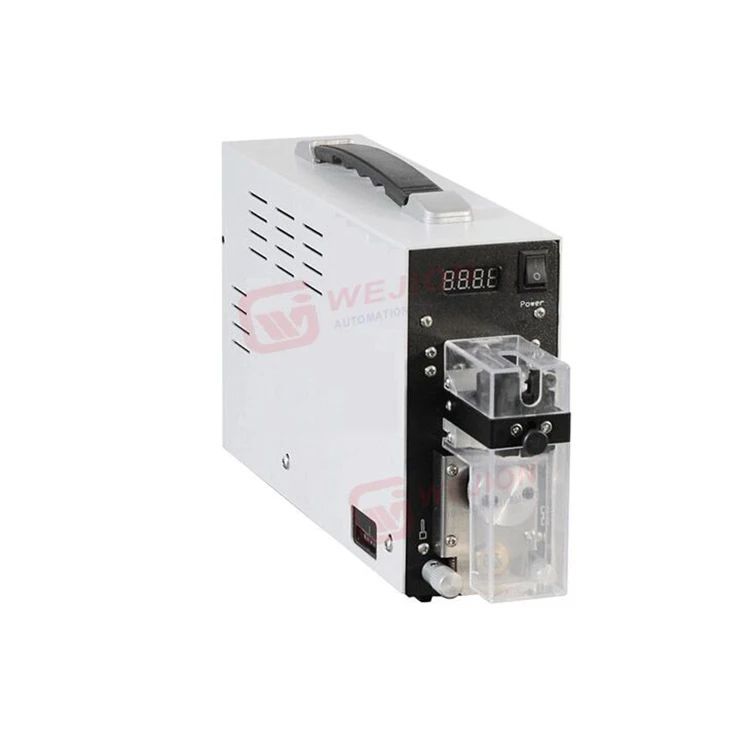

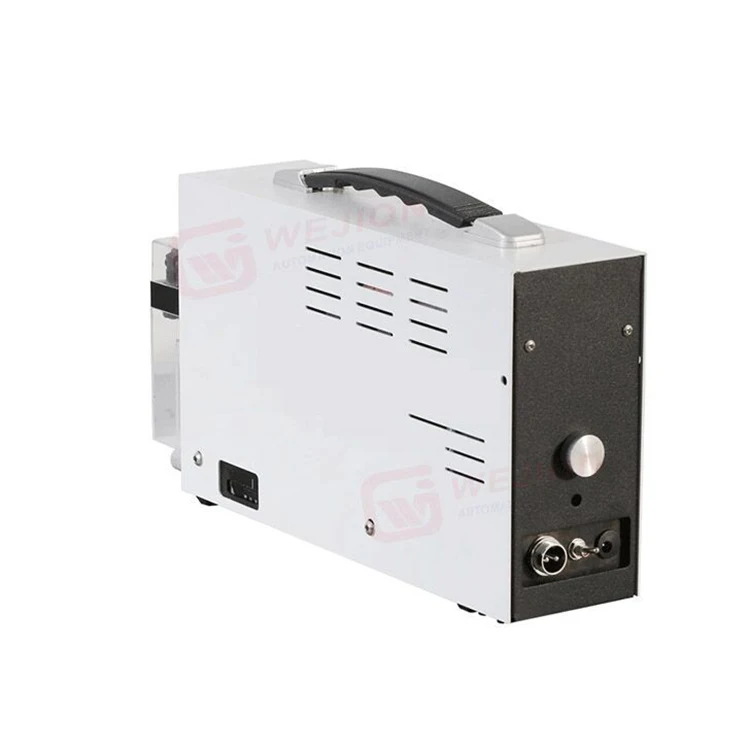

WJ-2016C Inductive Wire Stripping Machine
Parameters
Modle | WJ-2015C | WJ-2016C | WJ-2017C |
Wire Size Range | 0.03 – 2.08 mm² (32 – 14 AWG) | 0.03–4.0 mm² (11–32 AWG) | 2.5-35mm² (2-14 AWG) |
Max. Outer Cable Diameter | 3.2 mm (0.12'') | 4.2mm(0.17“) | 10mm(0.4'') |
Precision of Diameter Setting | 0.01 mm (0.001'') | 0.01 mm (0.001“) | 0.01 mm (0.001“) |
Max. Strip Length | 20mm | 20mm | 30mm |
Cycle Time | Approx. 0.3 s | Approx. 0.3 s | Approx. 0.3 s |
Machine Weight | 3KG | 5KG | 15KG |
Machine Size | 265*70*135mm | 380*85*188mm | 360*290*180mm |
WJ-2016C Features：
1.Power switch, up to open, down to close.
2.Wire diameter size display, switch on the machine to display the current processing wire diameter size, the adjustment knob 7 digital display will adjust the size according to the display.
3.Touch the sensor once, and the machine will start a cycle and stop after peeling.

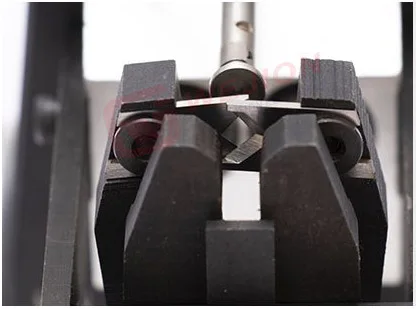

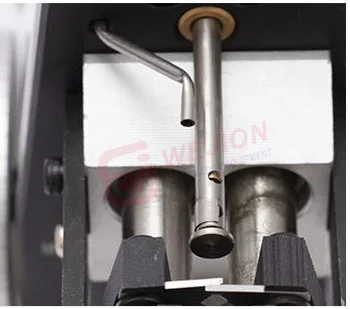

4.Adjust the wire and the center positioning piece of the knife holder.
5.Adjust the knob of No. 4 up and down center positioning piece, and it can be adjusted manually.
2.Wire diameter size display, switch on the machine to display the current processing wire diameter size, the adjustment knob 7 digital display will adjust the size according to the display.
3.Touch the sensor once, and the machine will start a cycle and stop after peeling.
4.Adjust the wire and the center positioning piece of the knife holder.
5.Adjust the knob of No. 4 up and down center positioning piece, and it can be adjusted manually.
6.Half-stripped size adjustment knob, used with the serial number 10 scale.
7.The wire core thickness adjustment knob is used in conjunction with the serial number 2 display. The number of the left-handed display becomes smaller, and vice versa.
7.The wire core thickness adjustment knob is used in conjunction with the serial number 2 display. The number of the left-handed display becomes smaller, and vice versa.
