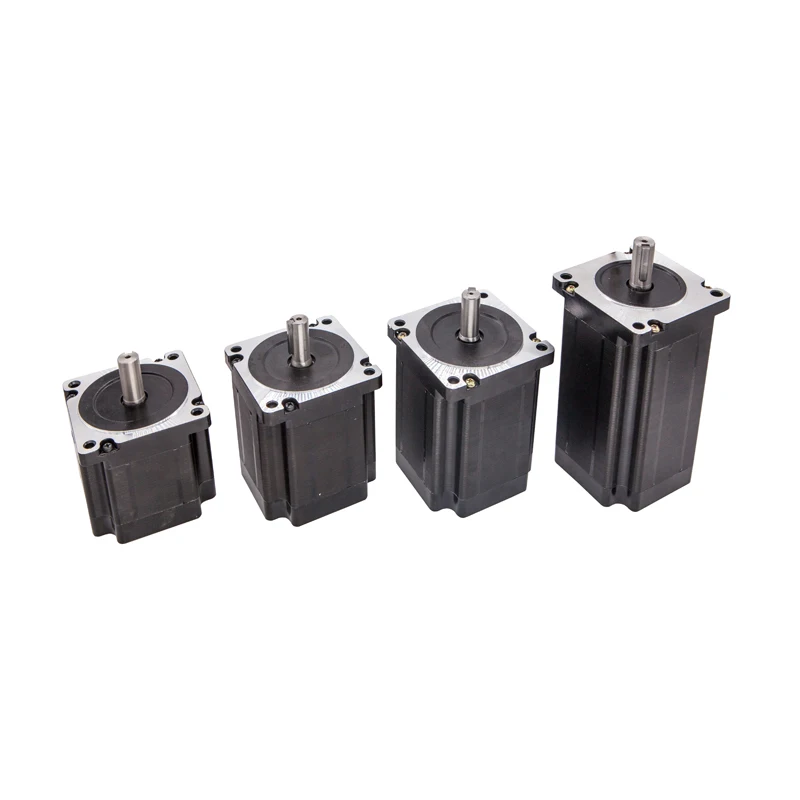

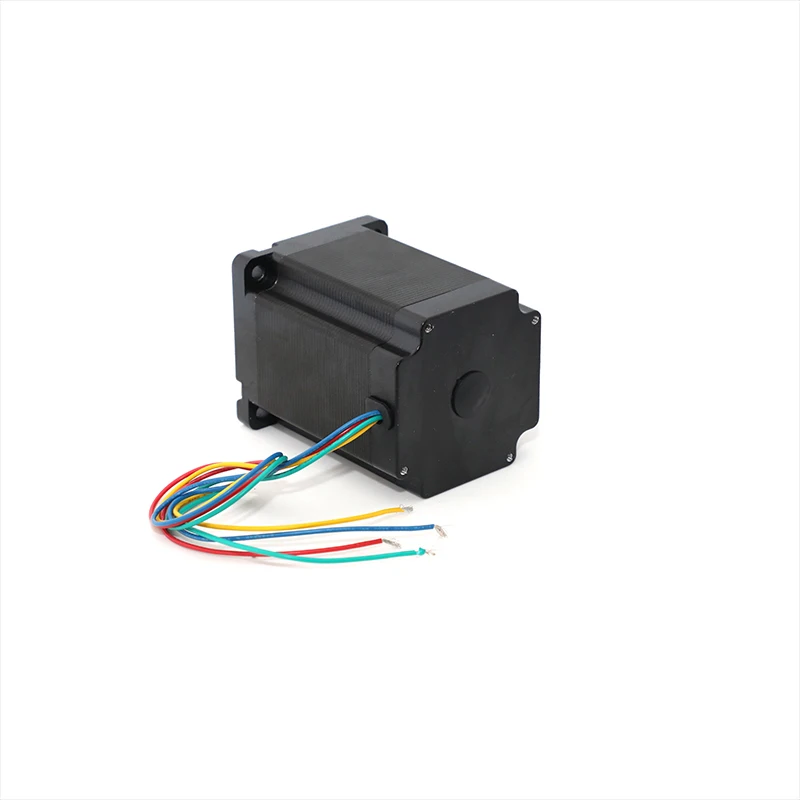

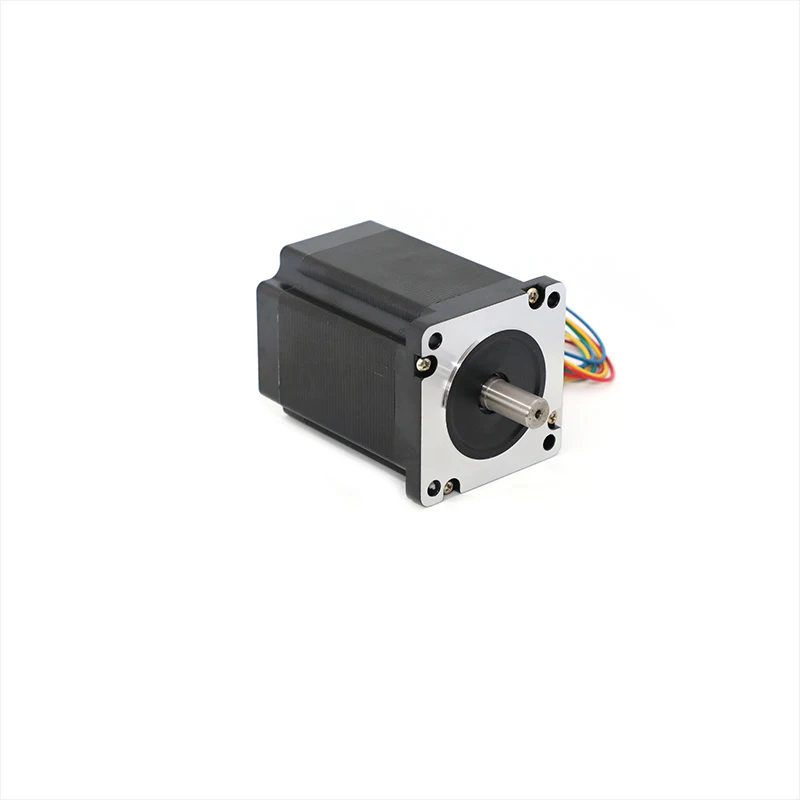

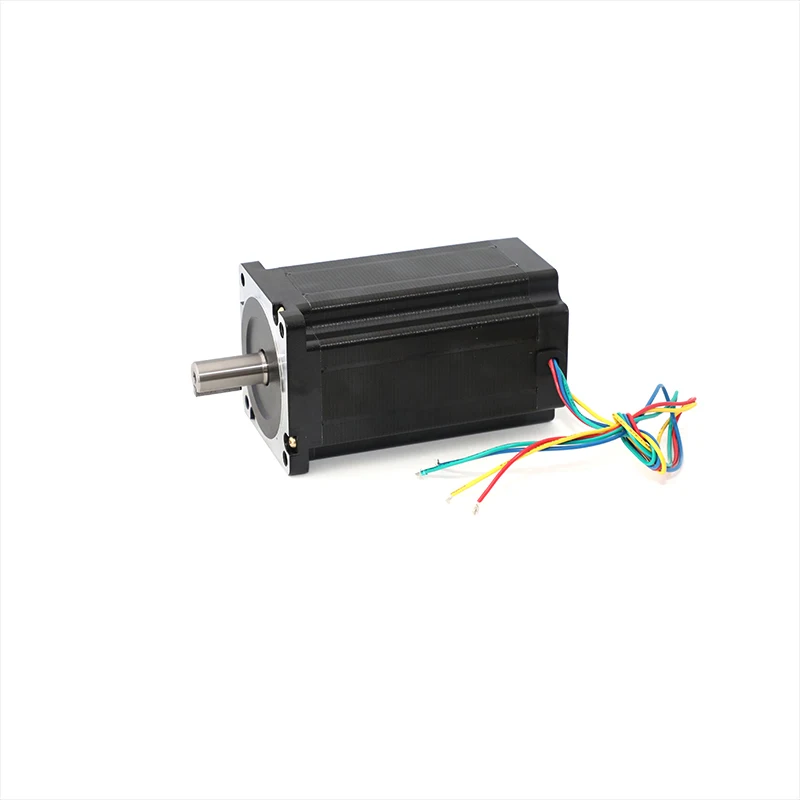

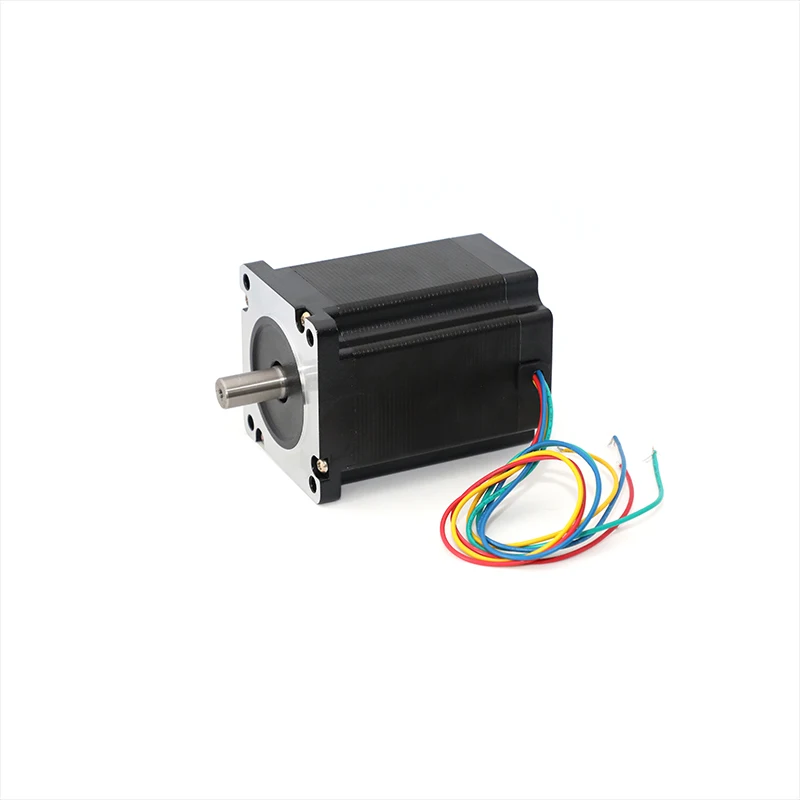

2 Phase 6A 8.5N.m NEMA 34 Hybrid Stepper Motor
- Category: >>>
- Supplier: Changzhou Songya Electromechanical Co. Ltd.
Share on (1600192590336):
Product Overview
Description
Product information
Product Description
1. Two phase/ three phase stepper motor;
2. Made of anti-high temperature permanent magnet and high quality cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable performance;
6. Excellent internal damping, can be used by different industries and under any circumstances, long lifespan.
2. Made of anti-high temperature permanent magnet and high quality cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable performance;
6. Excellent internal damping, can be used by different industries and under any circumstances, long lifespan.
Technical Specifications:
Model No. | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg. cm) | Detent Torque （g.cm Max) | Rotor Inertia (g. c㎡) | Motor Length (mm) | Motor Weight (Kg) | |||||||||
86HS65-3004 | 3.3 | 3 | 1.1 | 6.5 | 28 | 1000 | 800 | 65 | 1.7 | |||||||||
86HS68-4004 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1200 | 1000 | 68 | 1.7 | |||||||||
86HS78-4004 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1400 | 1200 | 78 | 2.3 | |||||||||
87HS78-4204 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1400 | 1200 | 78 | 2.3 | |||||||||
87HS78-6008 | 3 | 6 | 0.5 | 4 | 45 | 1400 | 1200 | 78 | 2.3 | |||||||||
86HS85-4504 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1500 | 1300 | 82 | 2.5 | |||||||||
86HS82-5608 | 2 | 5.6 | 0.35 | 3 | 50 | 1500 | 1300 | 82 | 2.5 | |||||||||
86HS100-5004 | 2.5 | 5 | 0.5 | 4 | 68 | 2100 | 2000 | 100 | 3.2 | |||||||||
86HS100-5008 | 2.5 | 5 | 0.5 | 4 | 65 | 2100 | 2000 | 100 | 3.2 | |||||||||
86HS118-6004 | 3.6 | 6 | 0.6 | 6 | 85 | 2700 | 2400 | 118 | 3.7 | |||||||||
86HS118-5608 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2700 | 2400 | 156 | 3.7 | |||||||||
86HS156-5504 | 3.9 | 5.5 | 0.74 | 9 | 120 | 4000 | 3600 | 156 | 5.5 | |||||||||
86HS156-6208 | 3.6 | 6.2 | 0.75 | 9 | 122 | 4000 | 3600 | 156 | 5.5 | |||||||||
Above only for representative products, products of special requirest can be made according to the customer's request. | ||||||||||||||||||
Company profile
Partner
Product transport
FAQ
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
