Top Features: 1), Smart Design, more productive With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot. 2), Brand new idea In terms of cellular mobile and wireless system, we tend to introduce more and more creativities into our product. Besides a set of bluetooth, wireless radio and mobile network, we bring in the WIFI function which quite broaden data communications for GNSS. 3), Excellent performance:Embedded with high-sensitivity GNSS module , A90 can implement massive surveys:RTK, DGPS (SBAS) , Static, etc. 4), Professional GNSS satellites tracked simultaneously (GPS, GLONASS,GALILEO, BeiDou) 5), Automatic date collection during centering 6), When the pole is tilted bin 30 degrees,A90 still could get the right point bate by automatic correct system 7), Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status 8), Bundled Android field software brings a big changes in user experience and accessibility
Specification
Advanced interface detection
GPS L1,C/A,L2E, L2C,L2E, L5
GLONASS L1,C/A,L1P, L2,C/A ,L2P,L3,L5;
BeiDou B1 B2 B3
Galileo E1,E5,ALTBOC,E5A,E5B,E6
SBAS(WAAS,MSAS,ENGOS)L1,C/A,L5;
GLOVE-A\B L1 BOC(CBOC)-E5A/B, E5AltBOC
RTCM2.3, RTCM3.X, RTCM3.2, CMR, CMR+
Channels
800 channels
Performance specifications
Time to first
Cold start;<40s ; hot start <19s
RTK initialization time
<10s
RTK initialization reliablity
>99.9%
Receiver accuracy
Static post processing accuracy
H:±2.5mm+1×10 ·D;V:±5.0mm+1×10 ·D
RTK Positiong accuracy
H: ±8mm+1×10 ·D; V:±15mm+1×10 ·D
Code different positioning accuracy
0.45m
Single point positioning
1.5m
DATA LINK
TX/RX Radio
Internal radio RX/TX 5KM-10KM

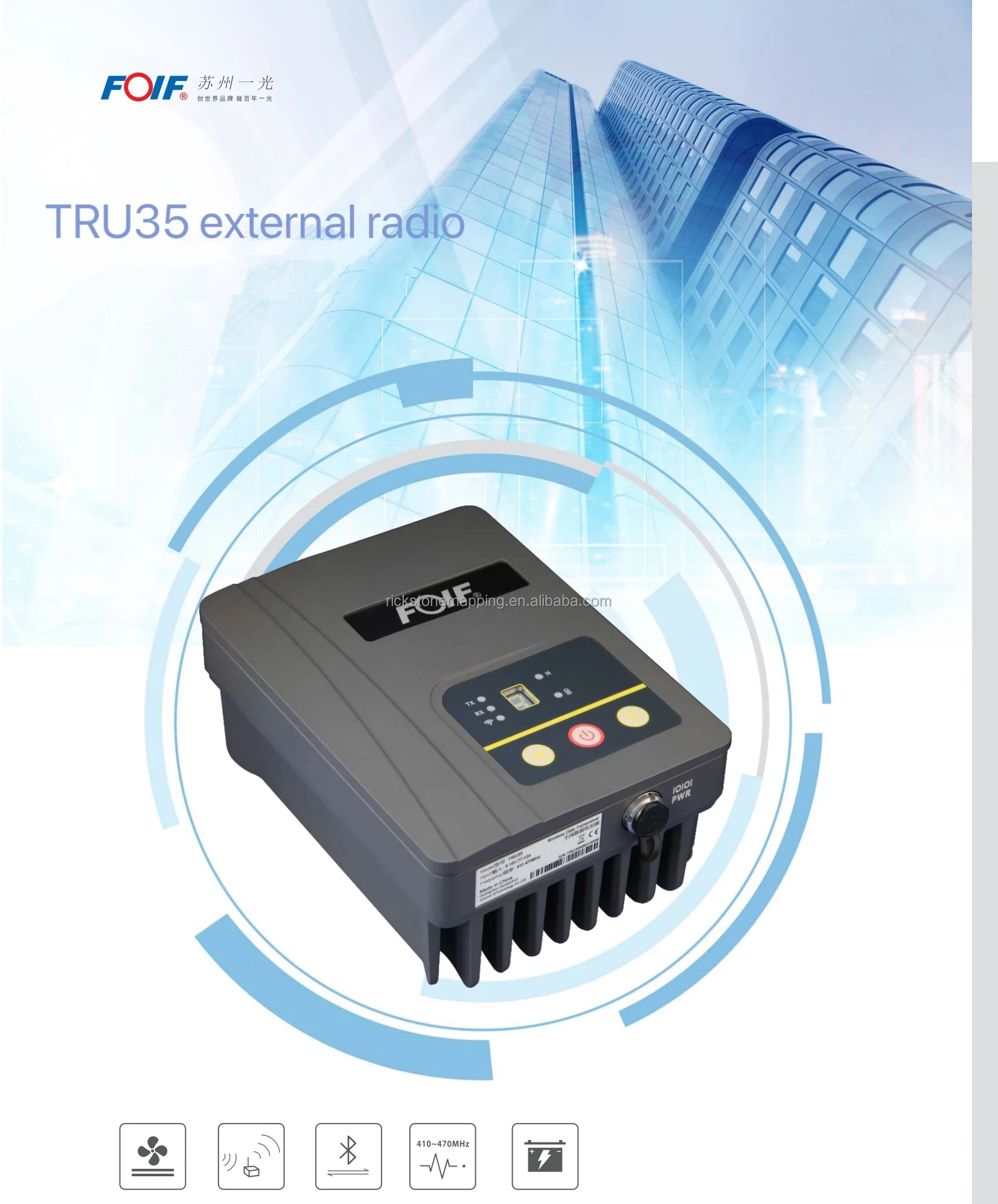

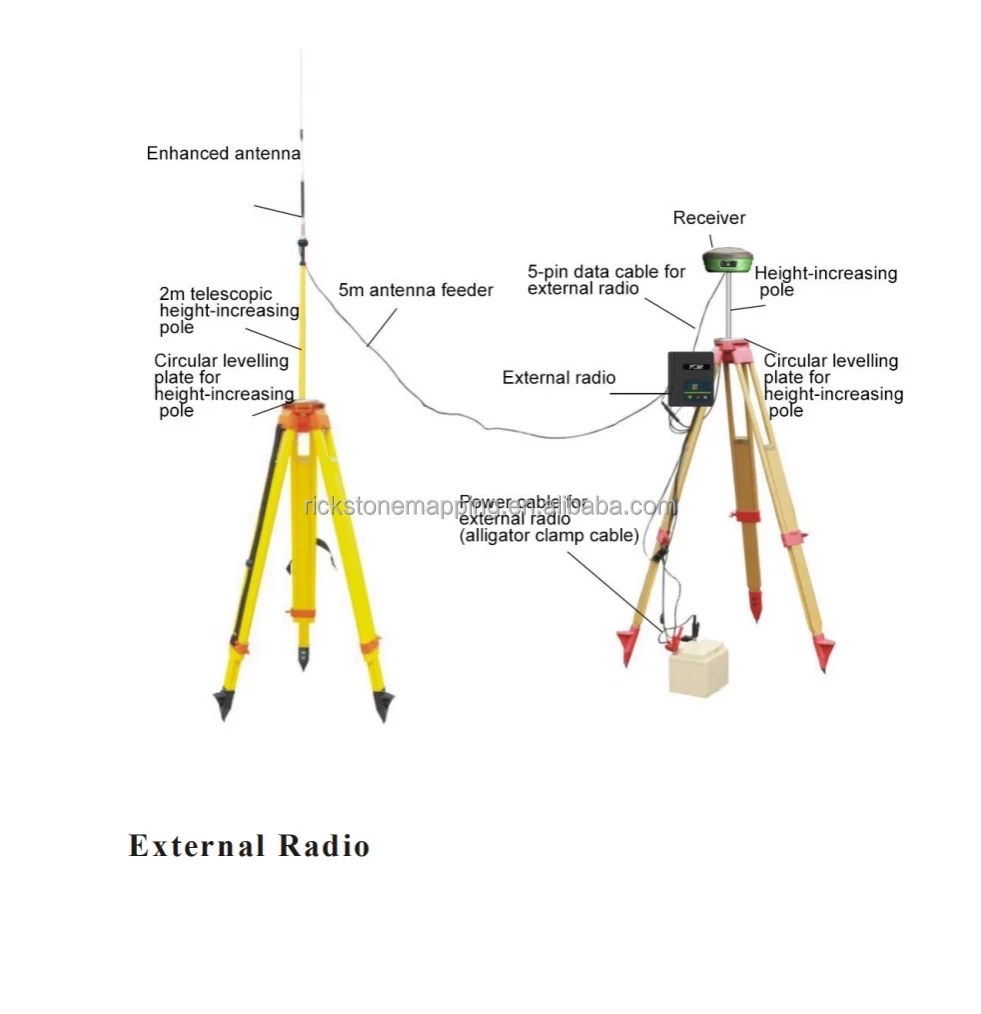

External radio
FOIF external radio Rx & Tx(FDL-5, 2/35W selectable)
50KM WORKING RANGE
WIFI
WIFI connect controller
WEB UI wireless management
GNSS upgrating /downloading/setting/base &rover
configuration
Operating system
Based on Linux, support Web UI
voice
Multi language support

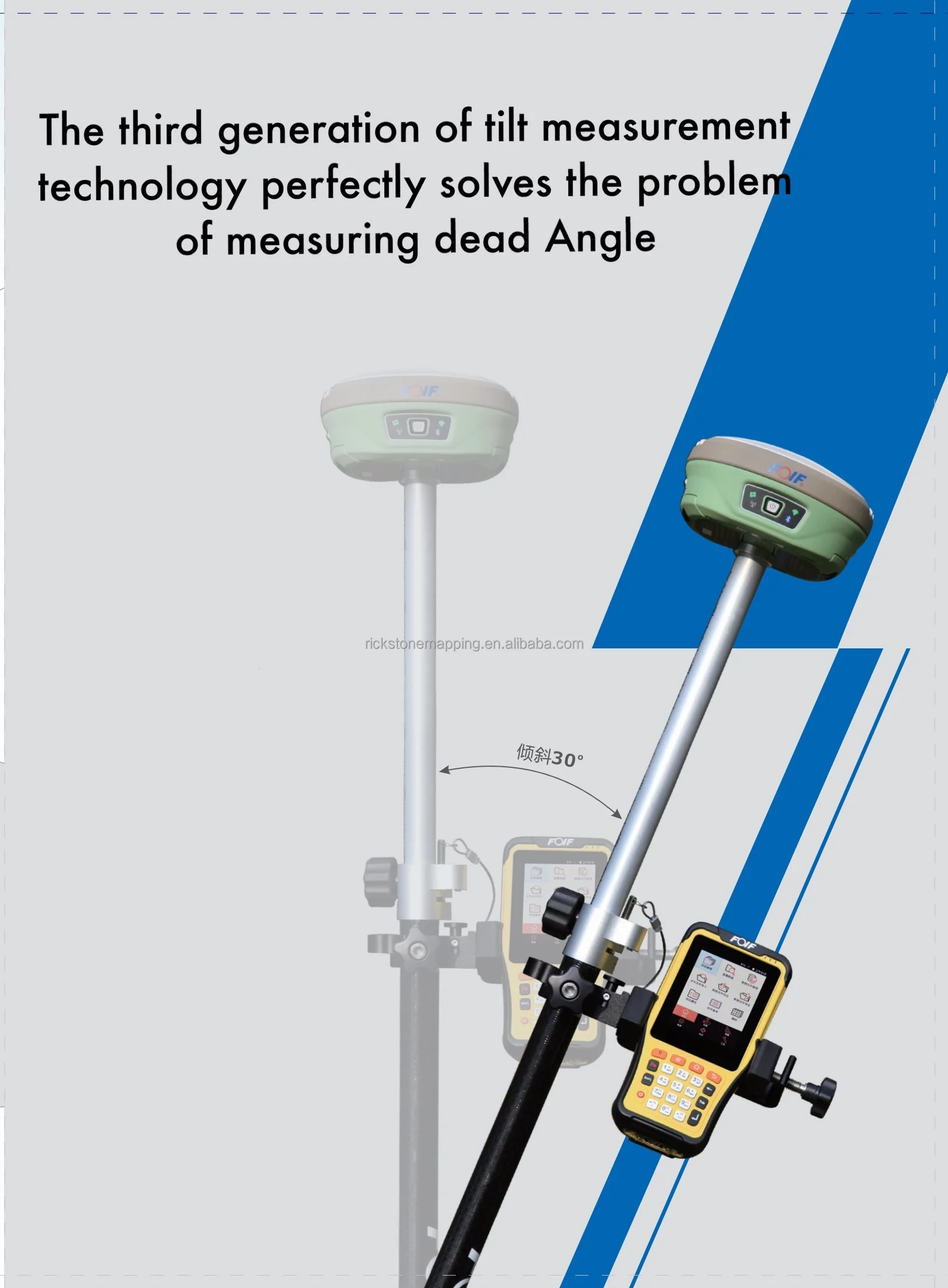

Tilt survey
Automatic correct system by 30 degree
3G/4G
GSM/GPRS/EDGE (class 10)
Quad-band
-GSM/GPRS: 850/900/1800/1900MHz band
CDMA(Optional)
OTHERS
Battery
7.2V 6800mAh , removable battery
over 13 hours when simultaneous use of 2 batteries
Display
4 led light;
1 button key;
NFC Survey
Internal electrical Bubble;
Capacity for second general NFC Survey
Memory
4G ,supports extending 32GB
Interface
RS232*2 / Bluetooth *1 / USB*1 SIM *1 /
TF*1 / Internet *1
Anti-dust & Anti-water
IP68
Temperature
working model:-30℃~+65℃
store model:-40℃~+80℃

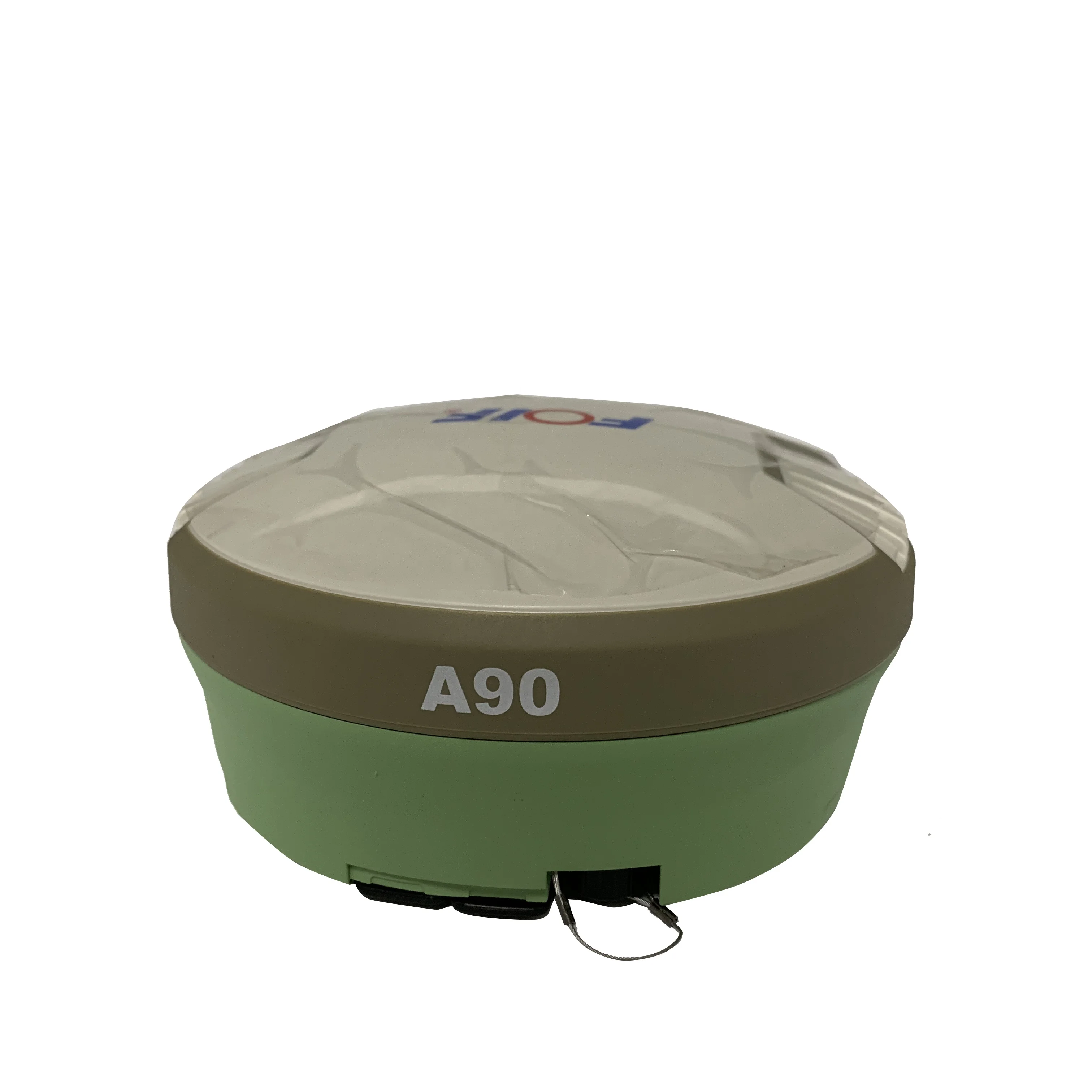

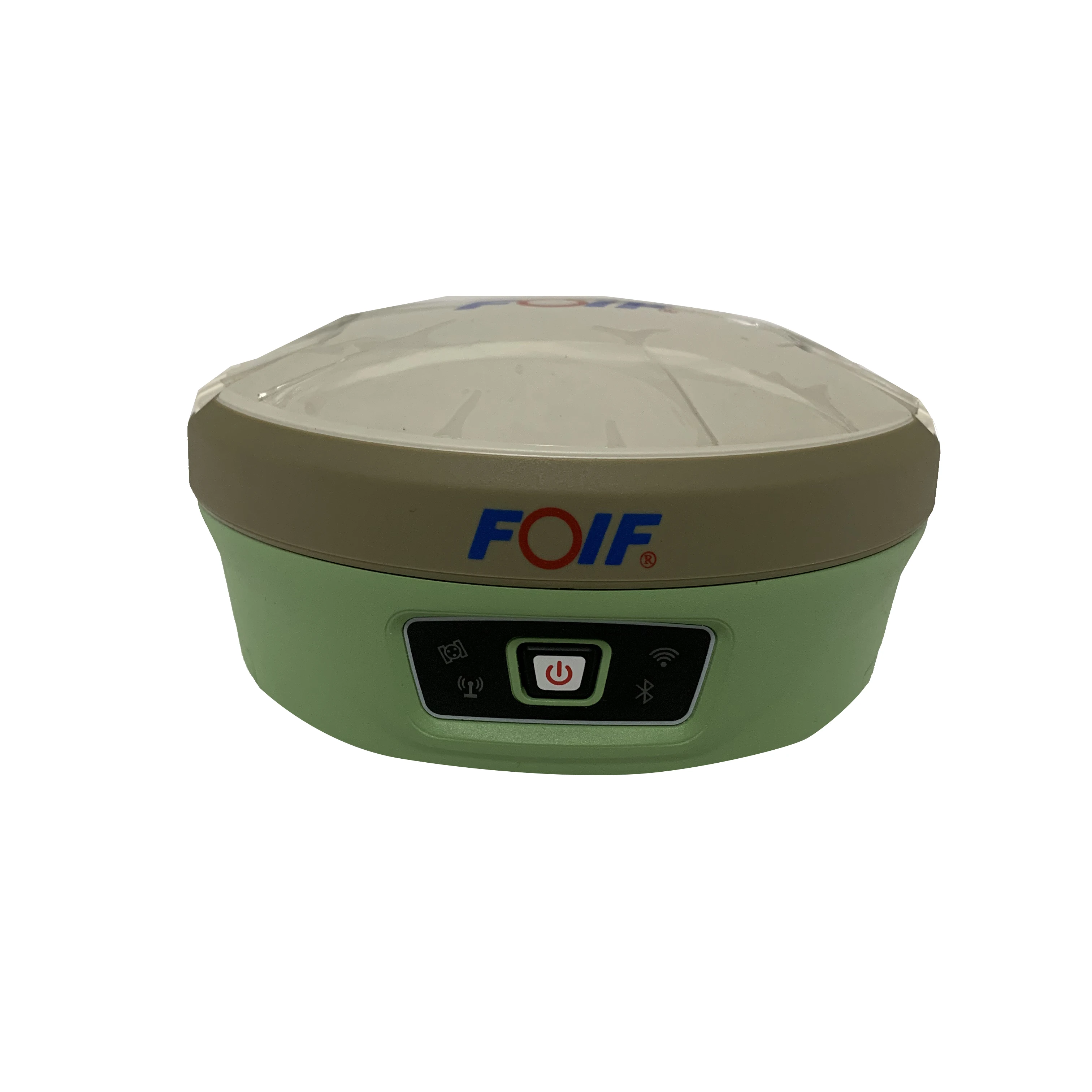

Product details
Packing & Delivery

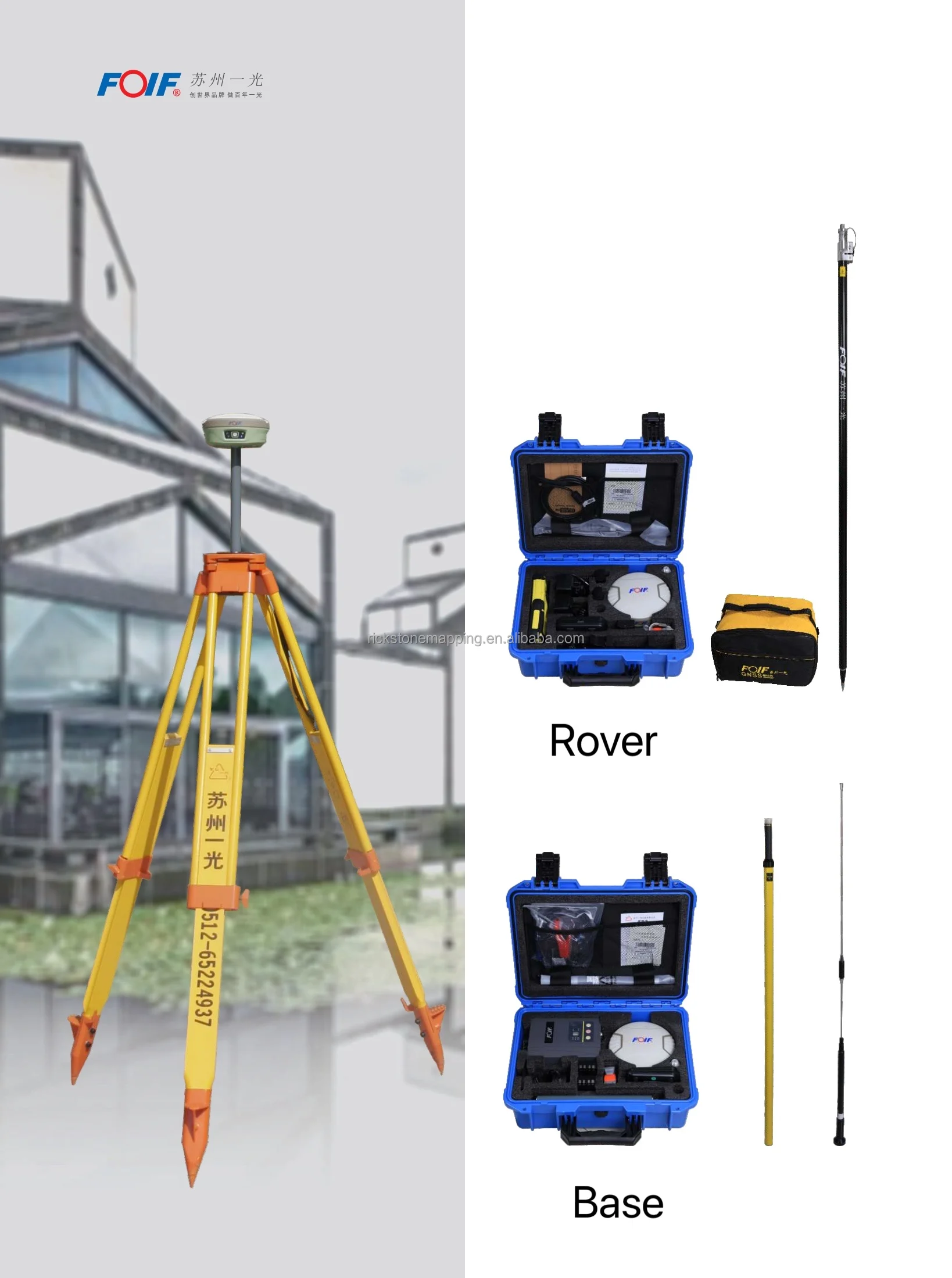

Size: FOIF A90 base station: 50mm*21mm*39mm ;8KG FOIF A 90 mobile radio station:50mm*21mm*39mm;7.5KG FOIF A90 antenna:10mm*17mm*146mm;5KG
