China Tavol 704 tractor matched Agricultural Farm Tractor with cabin for sale
- Category: Agricultural Machinery Parts >>>
- Supplier: Shandong,Tavol,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
TL704 tractor helps you grasp farming time
TL704 is a tractor popular among farmers agents and distributors.
At present, we have established agents in many countries and regions around the world.
Model | TL704 | |||
Type | 4x4 | |||
PTO power (KN) | 34.3 | |||
Rated Traction( KN) | 10.5 | |||
Dimensions(mm) | 3650×1650×2350 | |||
Wheelbase（mm） | 1965 | |||
Front and rear track (mm) | 1150/1200-1360 | |||
Minimum ground clearance(mm) | 330 | |||
Turning circle radius | 3.15±0.30 | |||
Weight (KG) | 1828 | |||
Clutch | Single or dual stage clutch | |||
Gearbox | 8+2 shift / 8+8 shuttle shift | |||
Front tire | 6.5-16/7.5-16/7.5-20 | |||
Rear tire | 11.2-24/12.4-24/12.4-28 | |||
Maximum lifting force at 610mm(KN) | 10.85 | |||
Suspension mechanism | Three-point suspension type 1 or 2 | |||
Hydraulic output | Optional 1 or 2 groups | |||
PTO speed r/min | 540/760 or 540/1000 or 760/1000 | |||
PTO type | 6-Ø35 or 8-Ø35 Rectangular Spline | |||
Engine brand | Laidong / Xichai / YTO / Yunnei | |||
Engine type | Diesel engine, In-line, water-cooled, four-stroke | |||
Engine cylinder | 4 cylinder | |||
Cabin | Flat floor enclosed cabin, could choose AC | |||
Start method | Electric | |||
Radiater(L) | 12 | |||
Fuel tank(L) | 45 | |||
Engine oil pan(L) | 5 | |||
Driveline oil (L) | 20 | |||
Lifter(L) | 9.5 | |||
This parameter table is for reference only, everything is based on actual products | ||||
Product Details

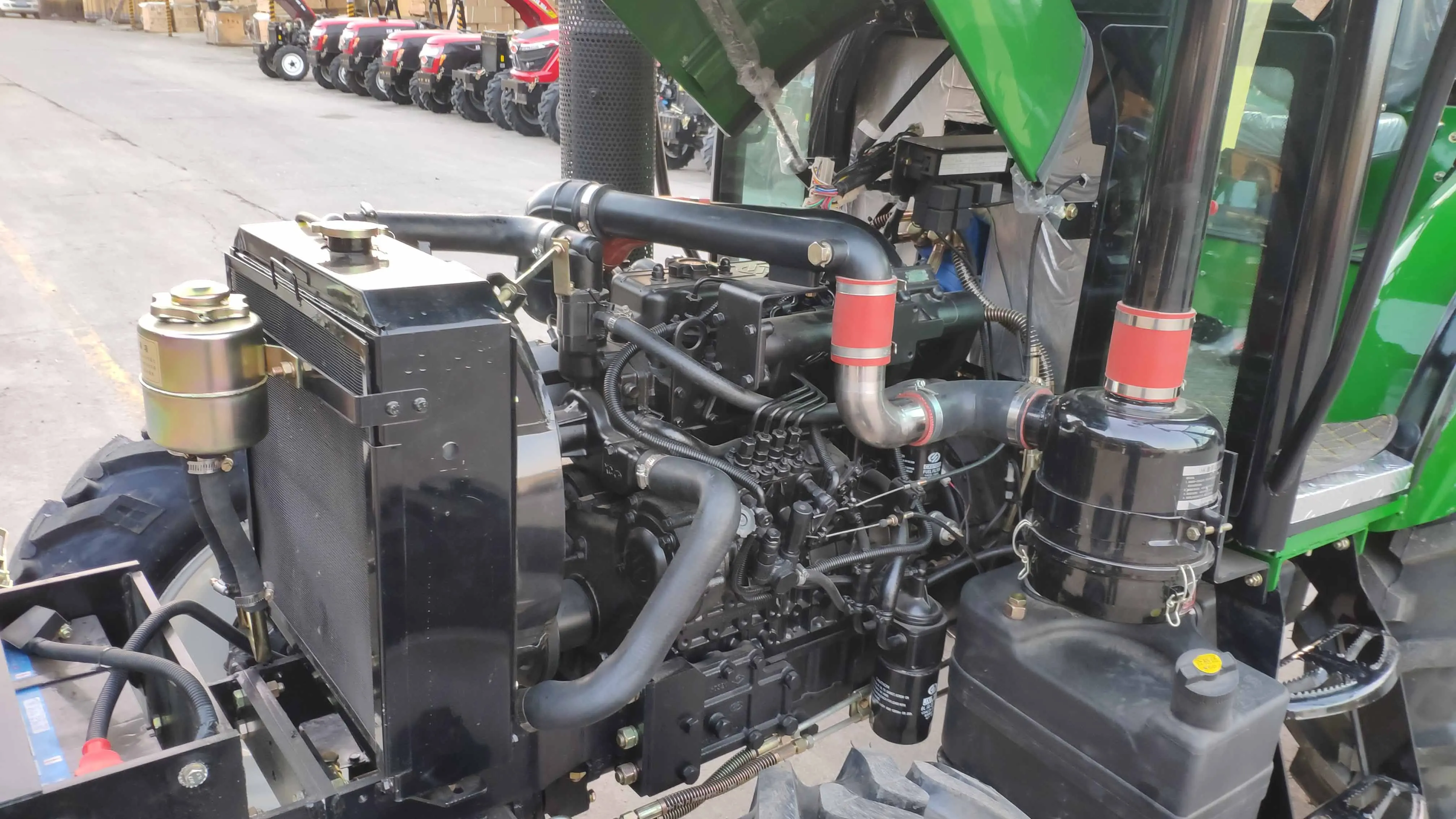

Engine
* 4 cylinder turbocharged diesel engine, Powerful and easy to maintain.
* Could choose china famous brand engine, Xichai, YTO, Xinchai, LD etc. * Low fuel consumption and large torque reserve.
* Cooling system effectively reduce engine temperature.

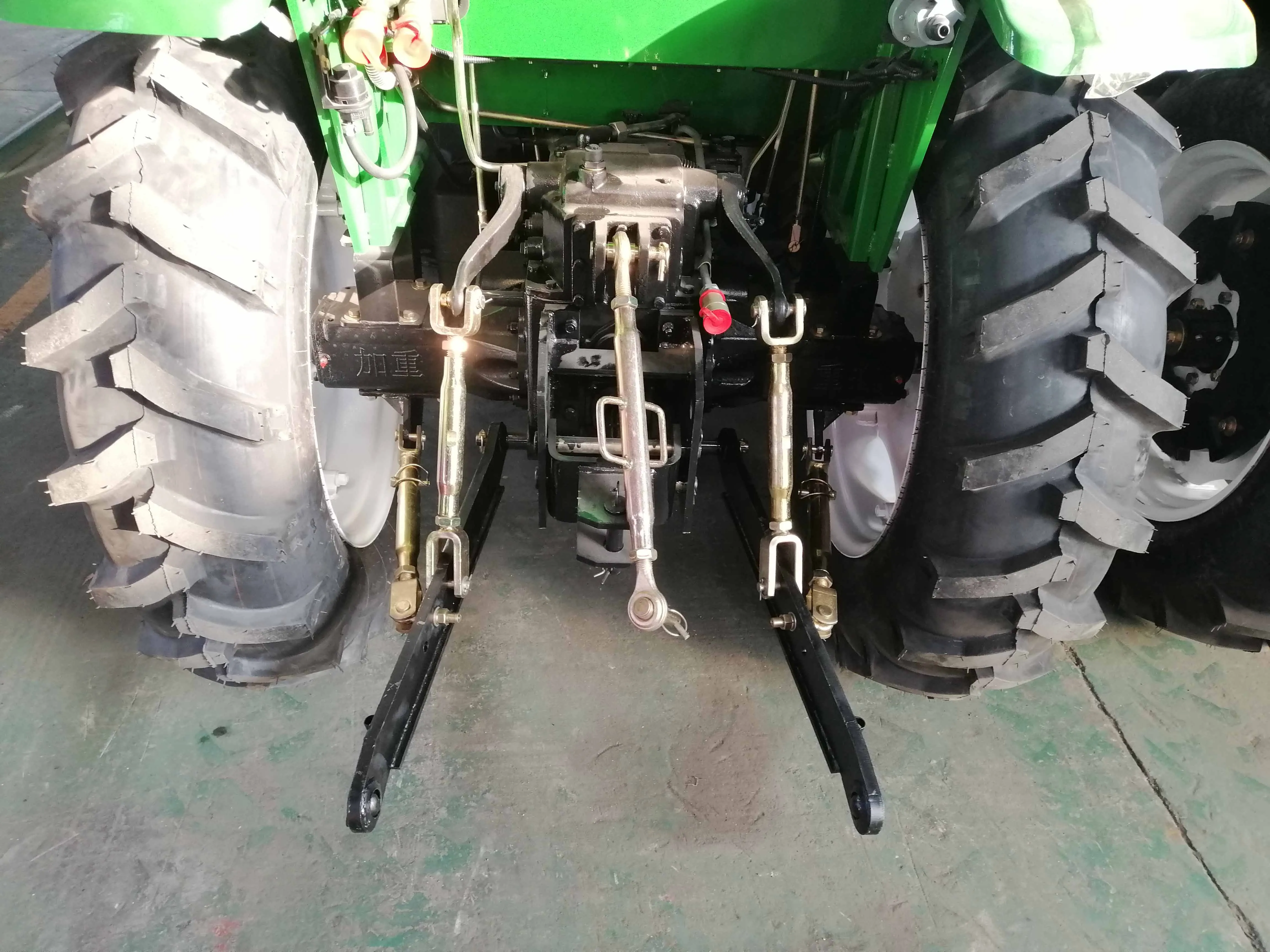

Lifter
* Hydraulic lifter, greater lifting force, the downward pressure is more powerful, which can better press agricultural machinery into the soil.
* 2 groups hrdraulic output, can be connected to agricultural machinery using hydraulic oil.
* 3-piont lift power 1150kg.
Technical characteristics of the tractor TL704
* Reversible gearbox (8 + 8) with differential lock, hydraulic steering and 4-wheel drive.
* PTO speed 540/760 r/min, optional 540/1000 r/min or 760/1000 r/min
* PTO speed 540/760 r/min, optional 540/1000 r/min or 760/1000 r/min
* Gear pump flow 32 L/min.
* Dual stage clutch, during gear shifting, PTO works uninterrupted.

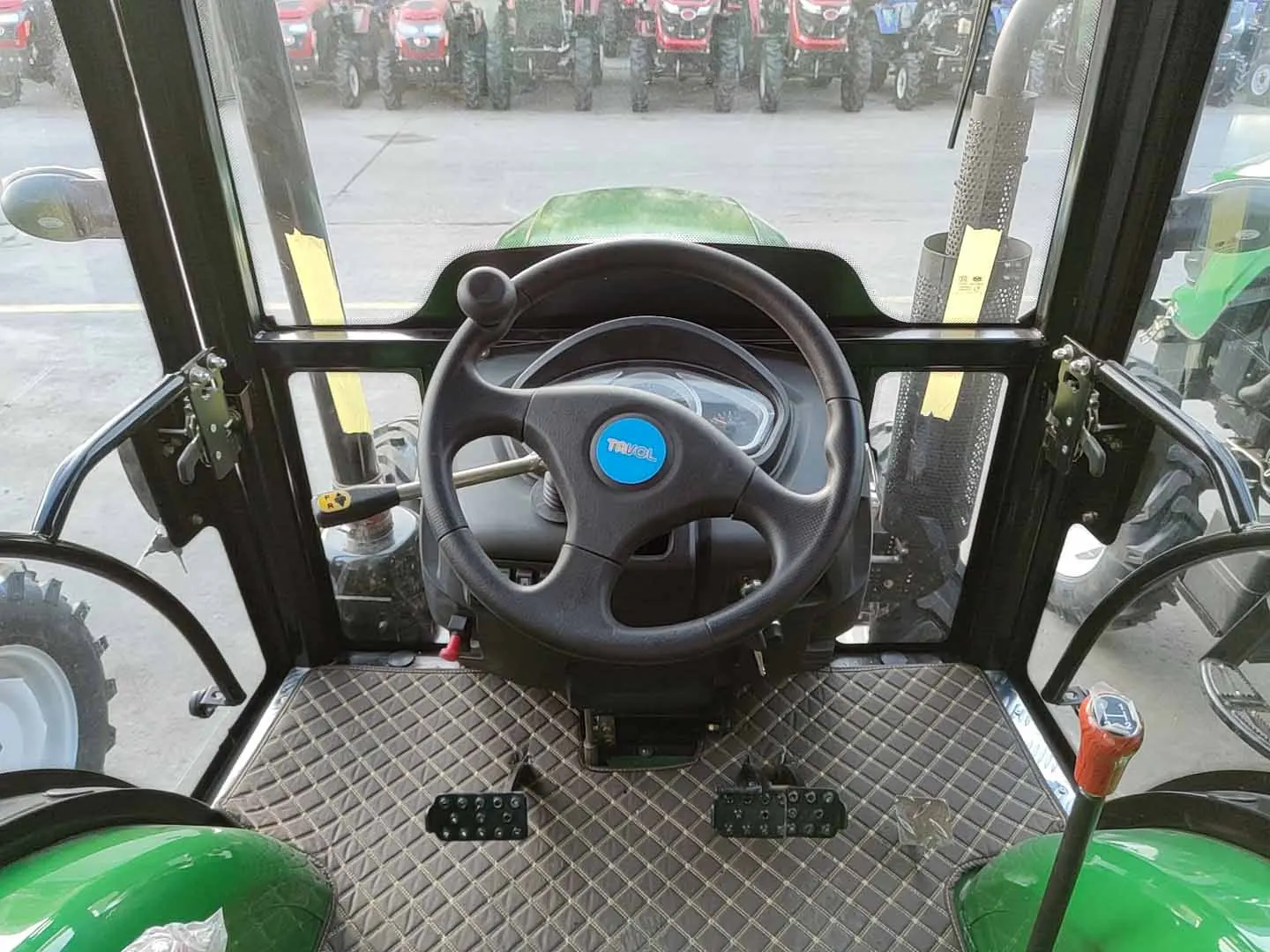

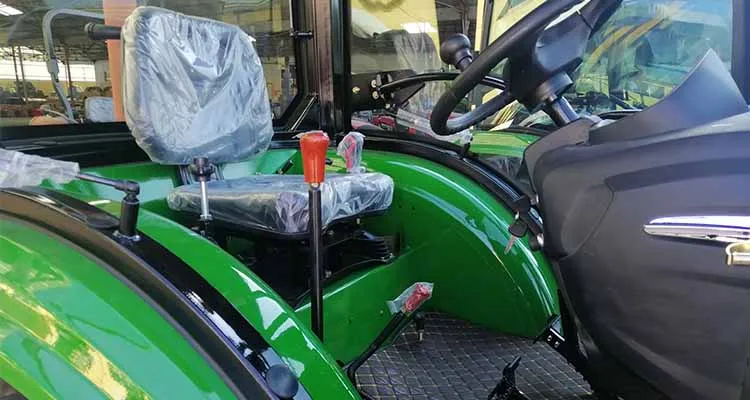

Cabin inside
* The 4-post cabin allows the driver to have a wider field of vision.
* Flat floor design is free and comfortable.
* Steering wheel with direction ball makes it easier to operate.
* Shuttle shift makes forward and backward clear at a glance.
* Shock absorption seats, driving on bumpy roads will not have too much shock.
* Flat floor design is free and comfortable.
* Steering wheel with direction ball makes it easier to operate.
* Shuttle shift makes forward and backward clear at a glance.
* Shock absorption seats, driving on bumpy roads will not have too much shock.

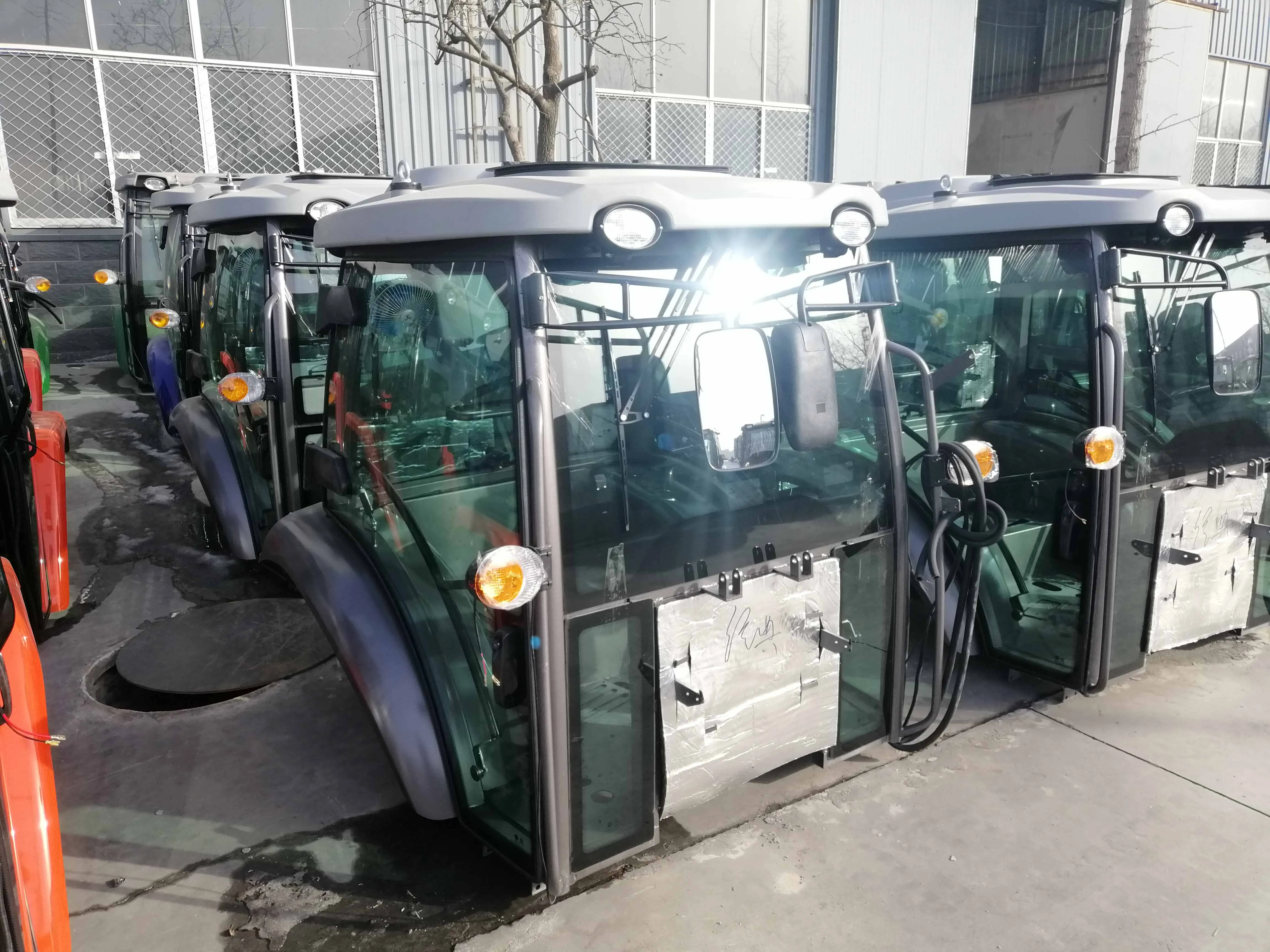

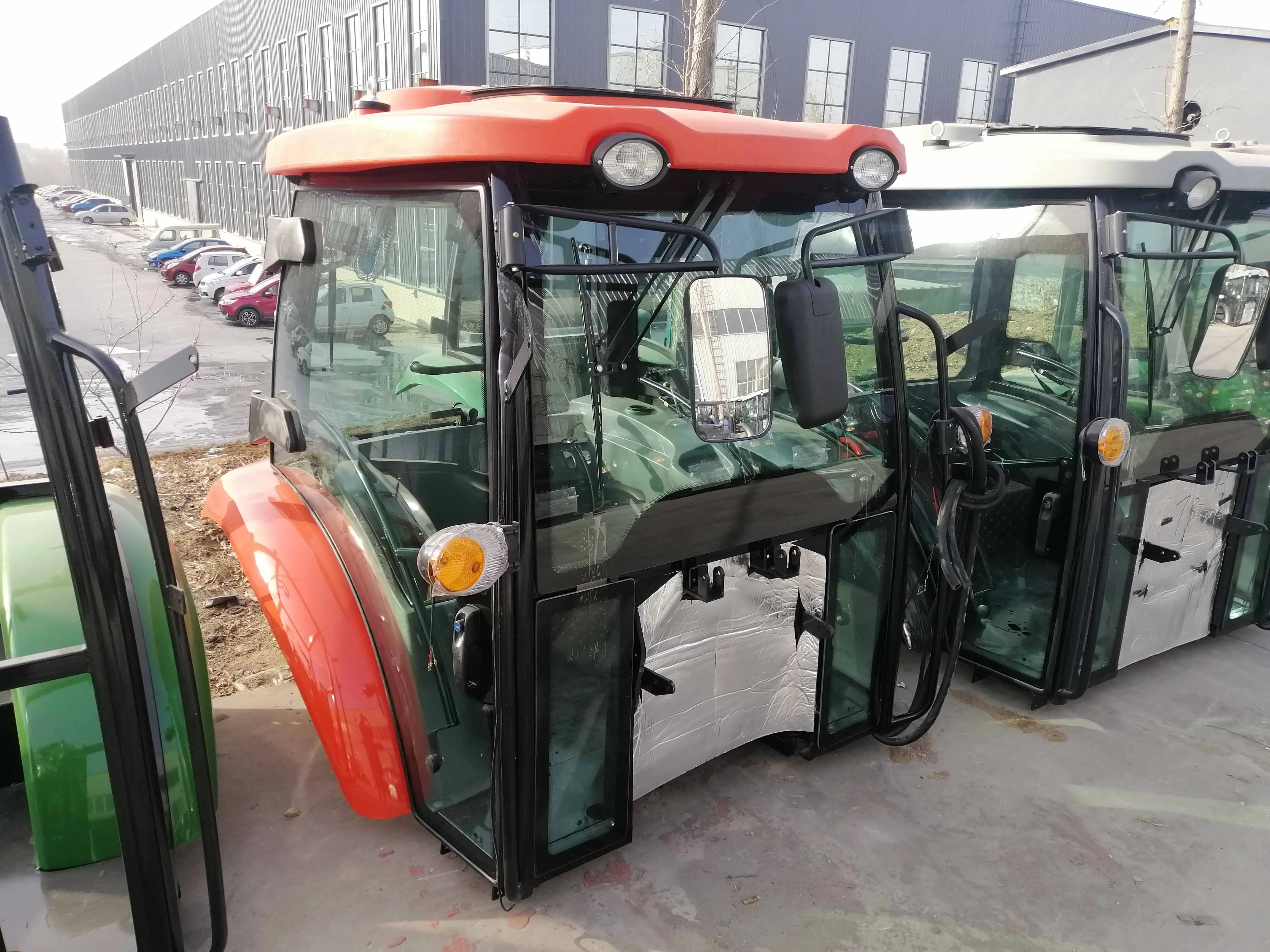

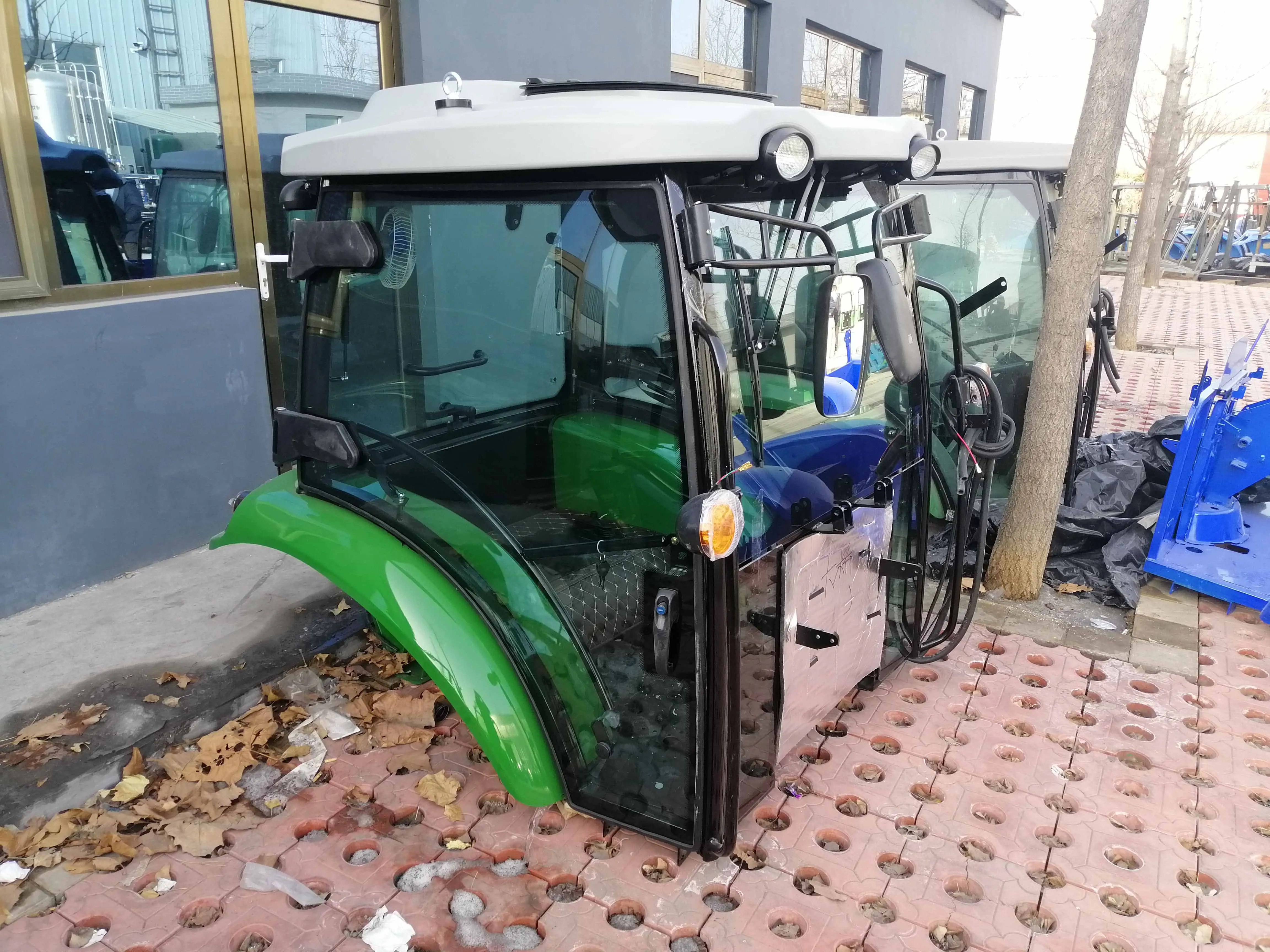

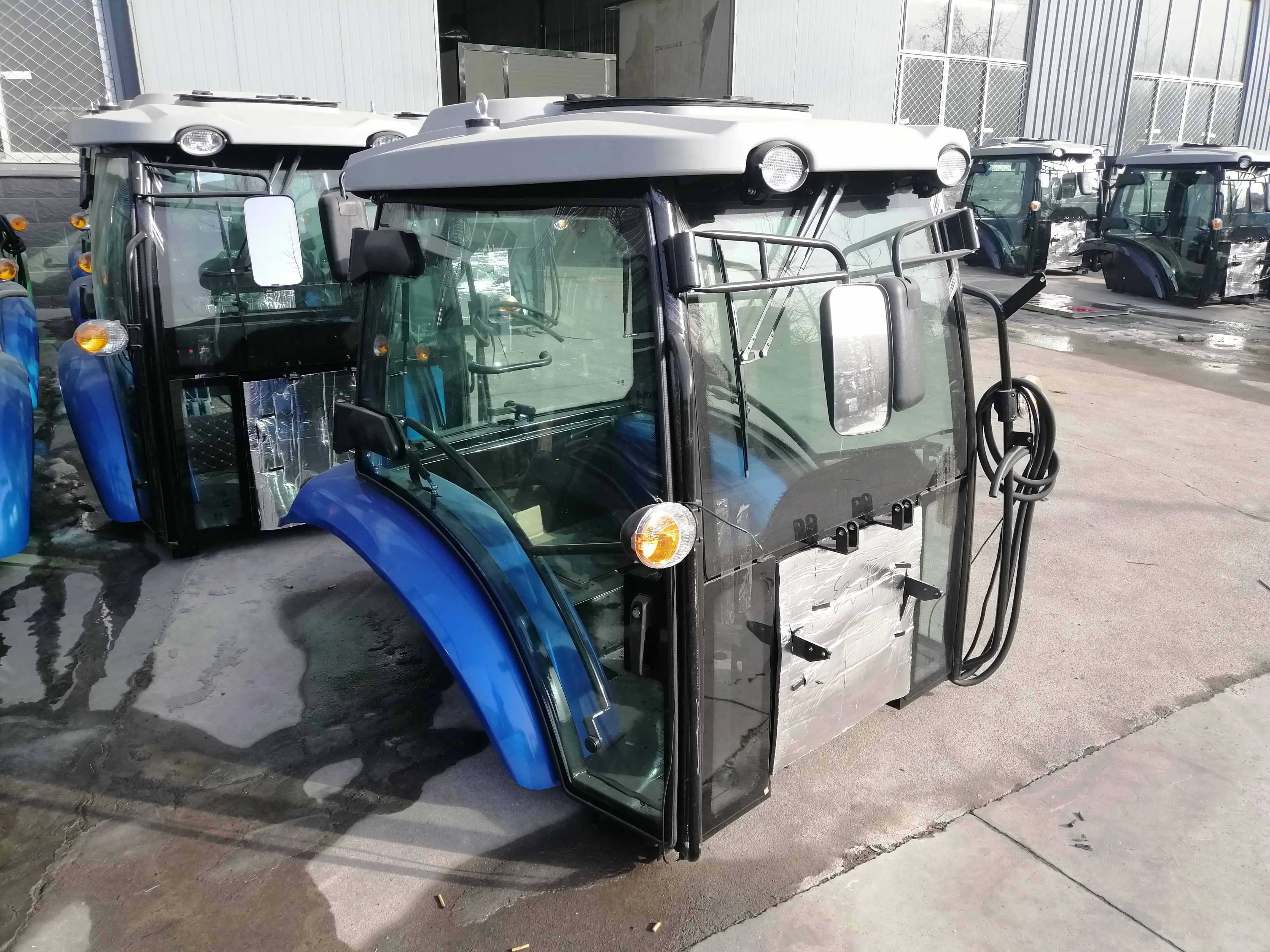

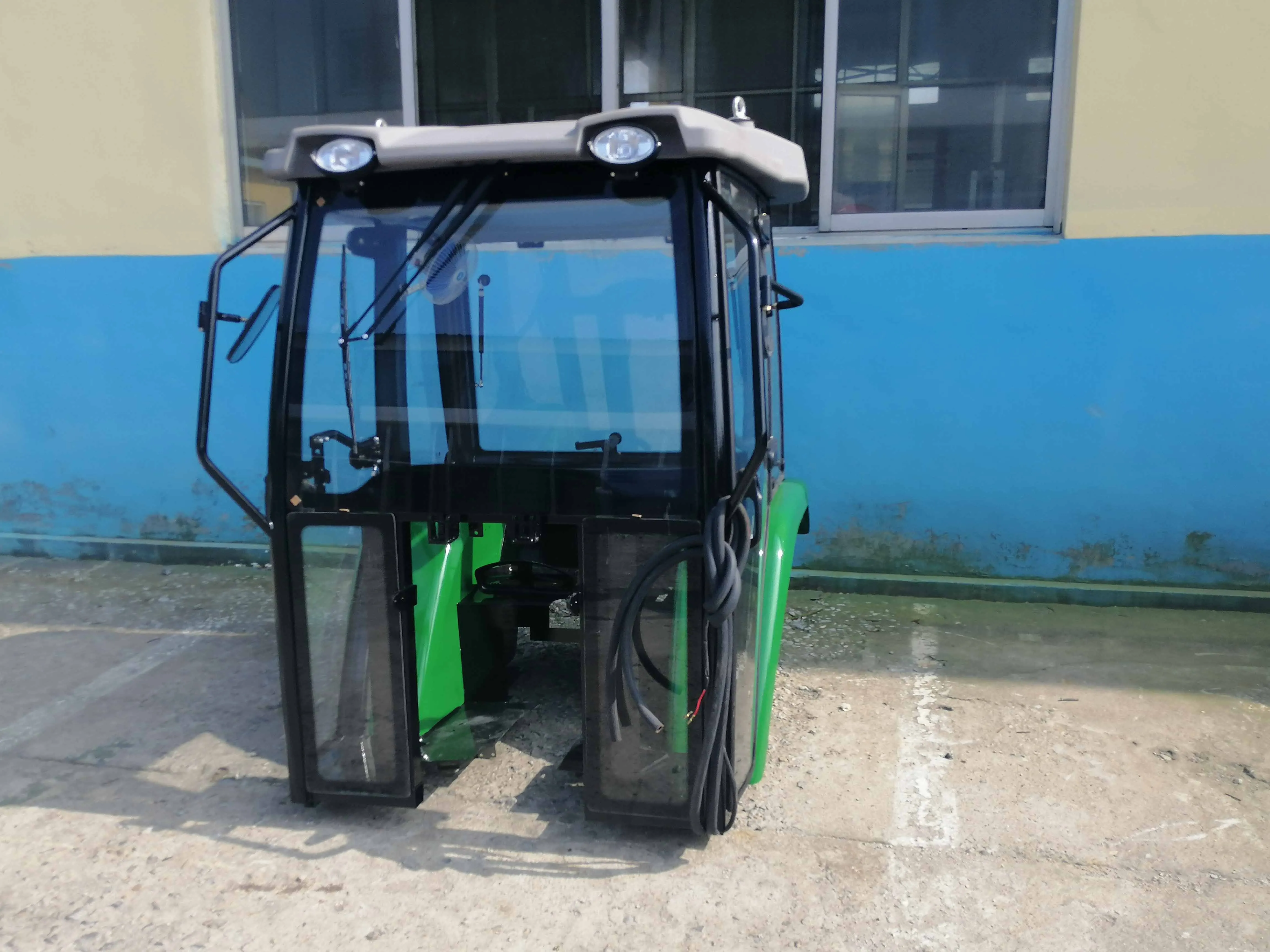

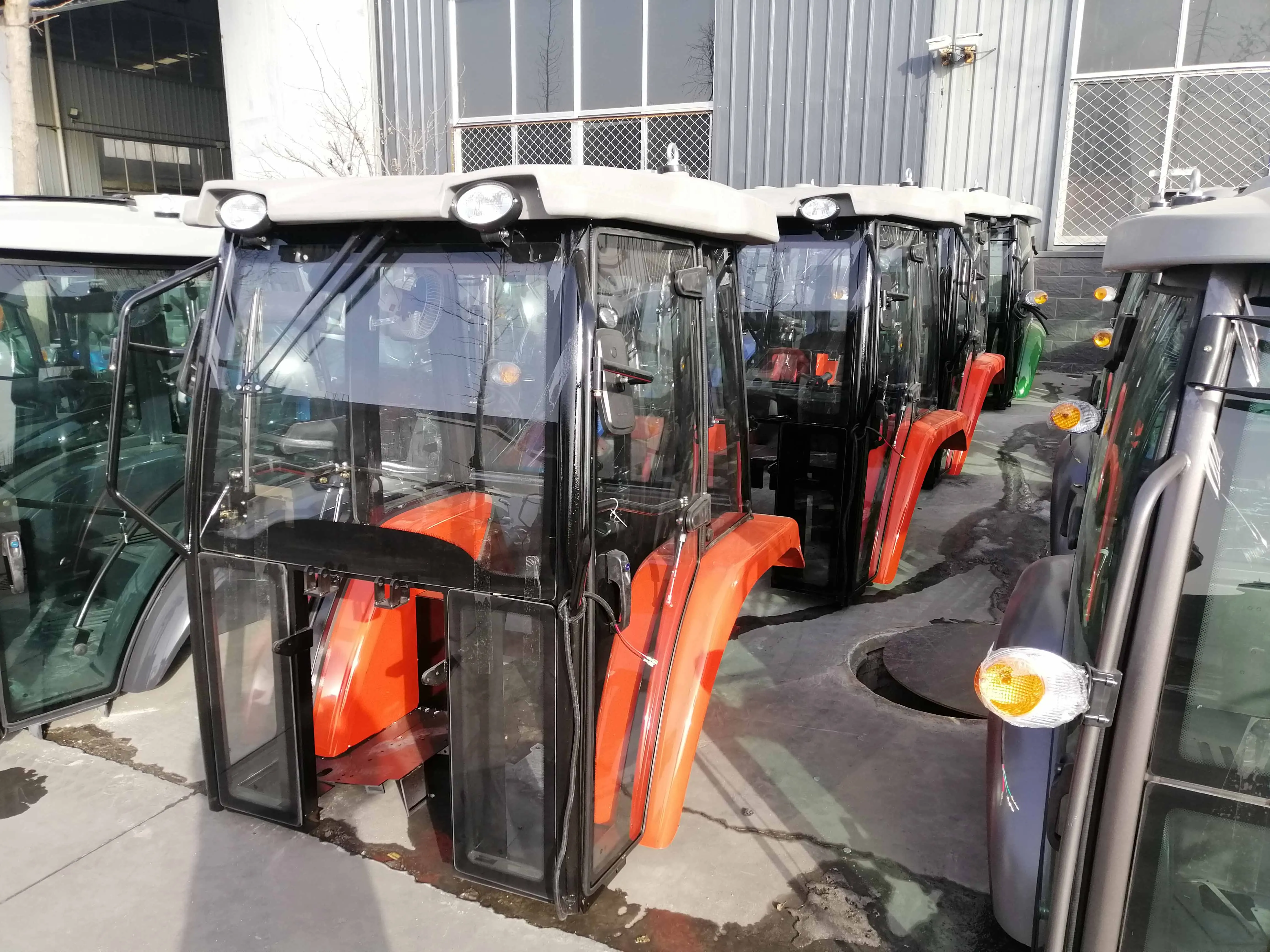

Cabin style and multiple colors
* The cabin colors are China Red, Deere Green, New Holland Blue, Lovol Blue, Kubota Orange, High Grade Gray, etc.
* The first 4 models are 4-pillar fully enclosed flat cabin, this model can use air conditioning and heating. And the latter 2 models are 6-pillar semi-enclosed simple cabs, air conditioning and heating are not allowed, and the price is lower than flat cabs
Related Products
Product Line
Packaging ＆ Shipping

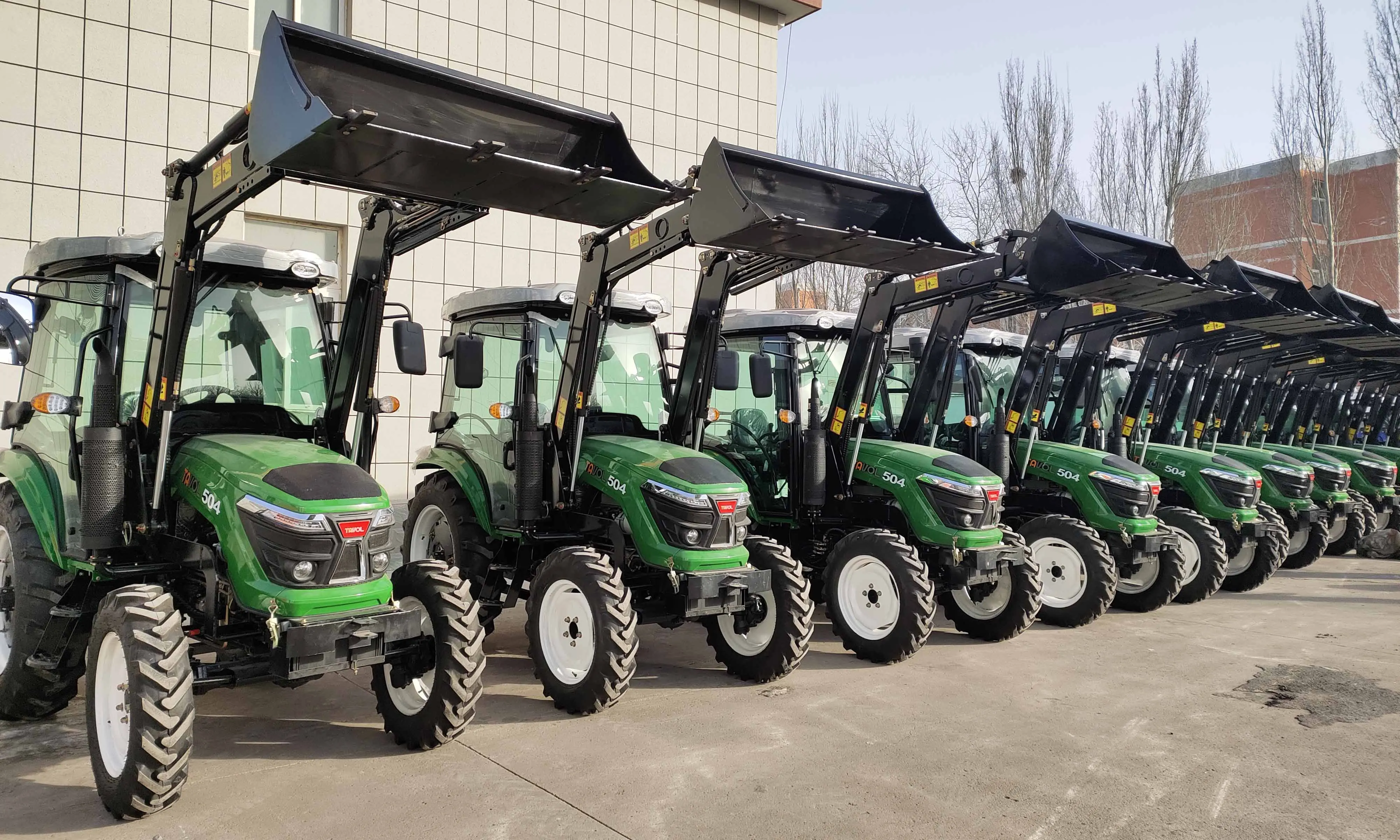

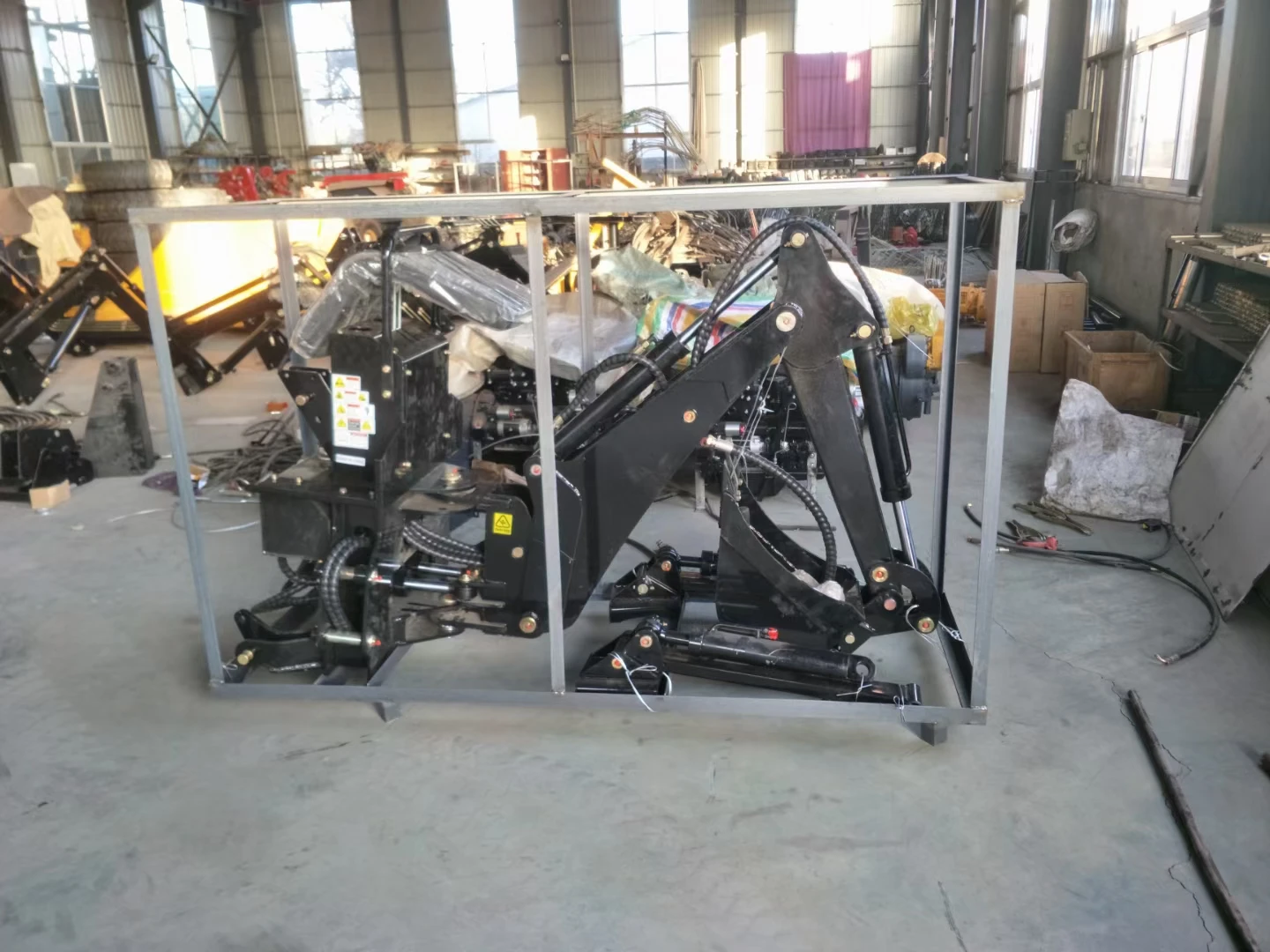

Front Loader And Backhoe
Individually packaged and shipped
One Unit Shipping

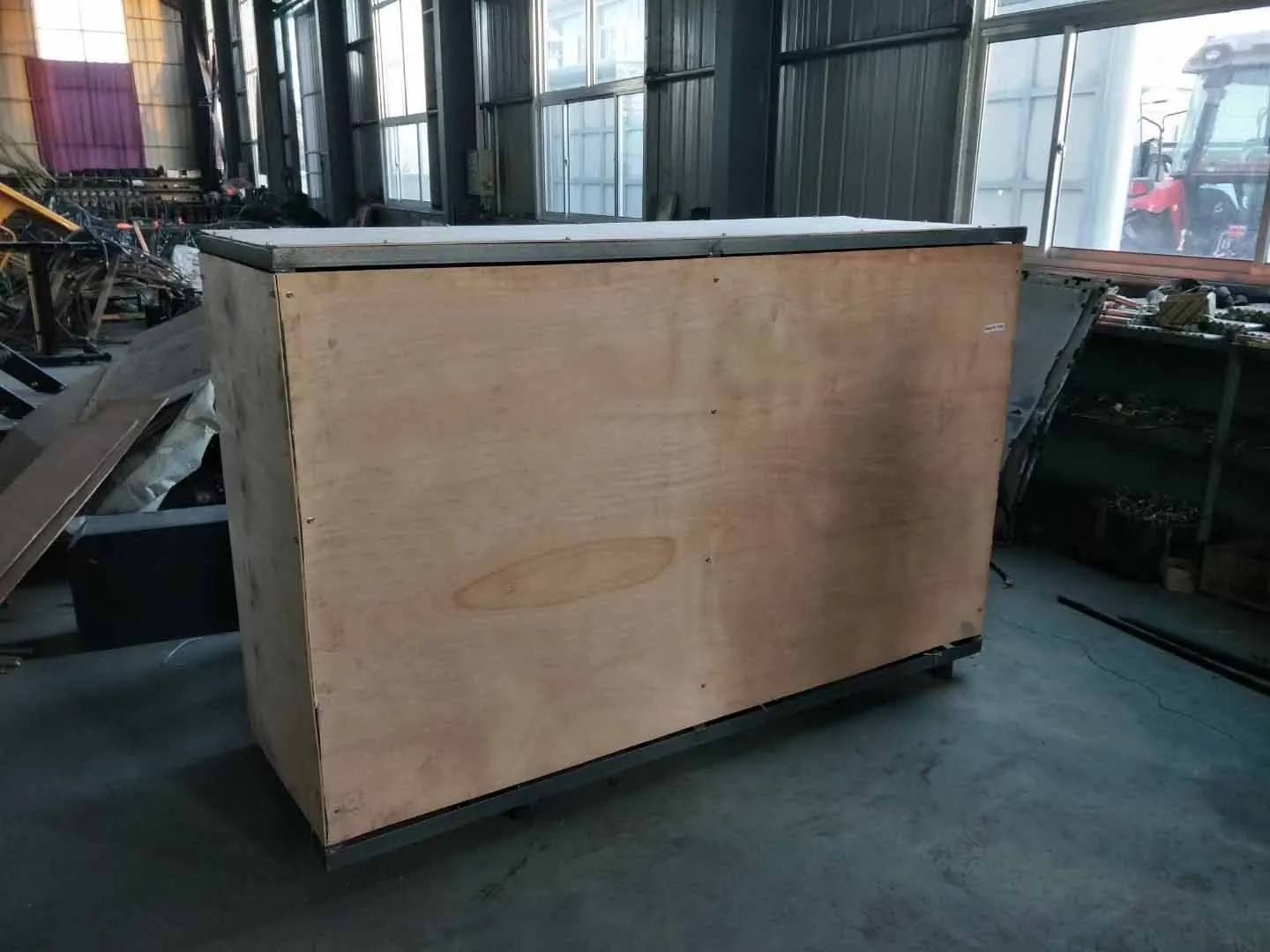

Use wooden packaging, LCL shipping
Company Profile
Shandong Tavol Machinery Co., Ltd as one of the subsidiary factory of Tavol Group, located under the world famous Mountain Tai, more than 120 staff, covers the lands 46200 square meters. There are 8 production lines. It mainly design,manufacture, sales and supply service for the farm wheel tractor from 25hp to 240hp, and some farm implements.
Tavol Company has the advanced production technology, detection technique and new products development capacity. At present,tractors models mainly divide TL-Y series, TL-E series, TL-B series, TL-D series, TL-F series, TL-G series. Meet different farmers different request. Manufactures equipment more than 200 sets, which can separately finish milling, drilling, digging, grinding, rolling, broaching, cutting, boring, bonding, punching, shearing, folding, bending, welding, testing and heat dealing etc.
Tavol Company made the machines with the attitude same as to Create a handicraft , focus on the appearance and quality of machines. Set up the advanced shot blasting lines, painting house, powder coating room and baking room, with the strong international and domestic sales systems. Tavol has create a good brand and reputation in all kinds industry.
Tavol brand has more than 15 yeas developing history. Products are exported to all over the world. Receiving customers’
recognition and praise. Tavol Tractors will devote to the world agriculture development. Better earth, better life, Tavol on your side.
recognition and praise. Tavol Tractors will devote to the world agriculture development. Better earth, better life, Tavol on your side.
Tractor Factory And Sales Team

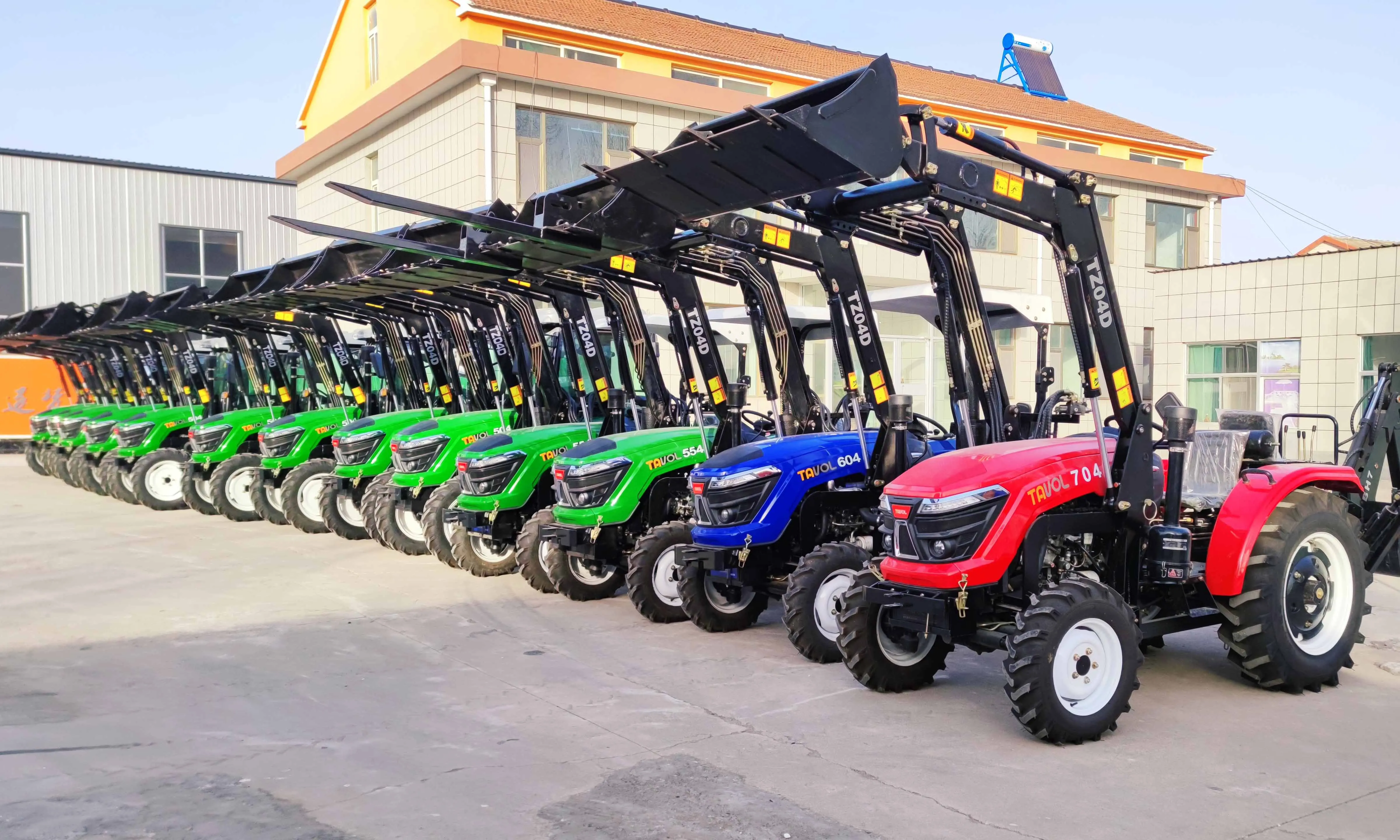

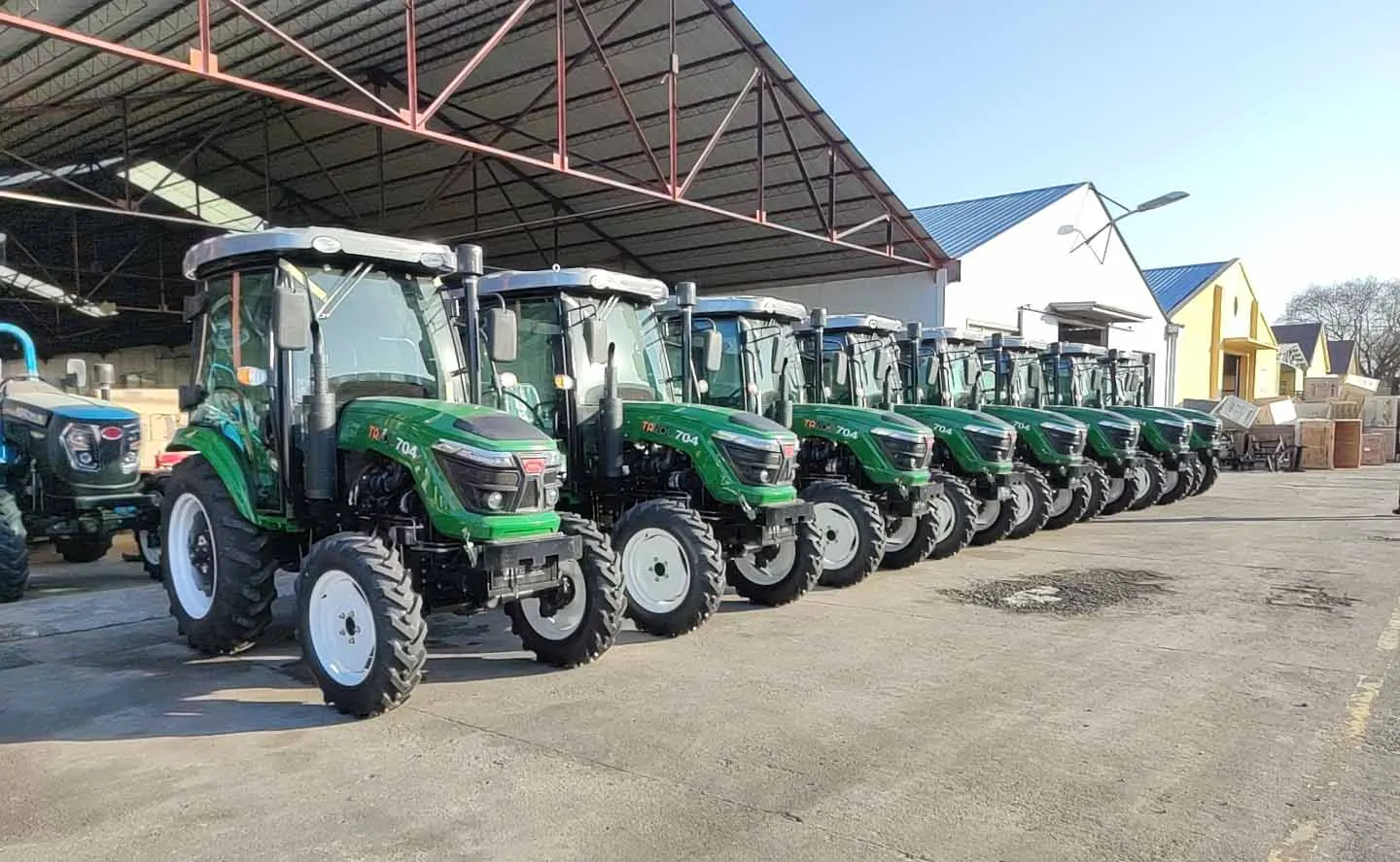

Tavol hot sales tractors, 40hp 45hp 50hp 60hp sunshade model and cabin model are popular among customers.
