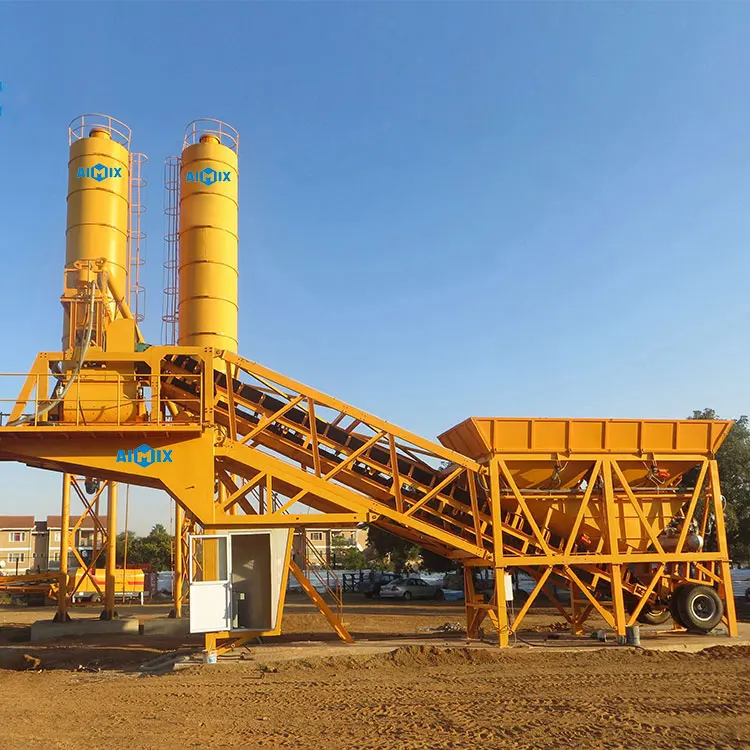

Electric 30 m3 floating concrete batching plant mini mobile concrete batch plant
- Category: >>>
- Supplier: Aimix Group Co. Ltd.
Share on (1600193517005):
Product Overview
Description
Product Overview
Electric 30 m3 floating concrete batching plant mini mobile concrete batch plant
Mobile mix concrete batching plant cost is cheaper than engineering concrete mixing plant with the same output because of its high configuration. However, it can bring customers much more profit. Customers can choose either type according to the actual demand.
Besides, our sales can give useful suggestions if customers are not sure which one to choose. We also provide customized ready mix concrete plant layout design to meet customers’ real demand.
Besides, our sales can give useful suggestions if customers are not sure which one to choose. We also provide customized ready mix concrete plant layout design to meet customers’ real demand.
FEATURES AT A GLANCE
Configuration
JS750 Twin Shaft Concrete Mixer x 1 set
* Main Framework x 1 set
* Travelingmechanism x 1 set
* PLD1200 Separate Weighing Aggregate Batching Machine with 2 bins x 1 set(4 bins is also available)
* Weighing System for Cement, Water and Additive x 1 set
* Pneumatic System x 1 set
* Main Frame Support x 1 set
* Cement Silo 100T x 1 set
* Cement Screw Conveyor LSY219 x 1 set
* Full-automaticControl System with control room and air conditioner x 1 set
Mobile concrete plant for sale is ideal machine for public railways, bridges, ports, hydropower projects, etc. Next will show you its superiority in such fields. If you do such projects, mobile concrete batching plant China will be your best choice.
PRODUCT CONFIGURATION

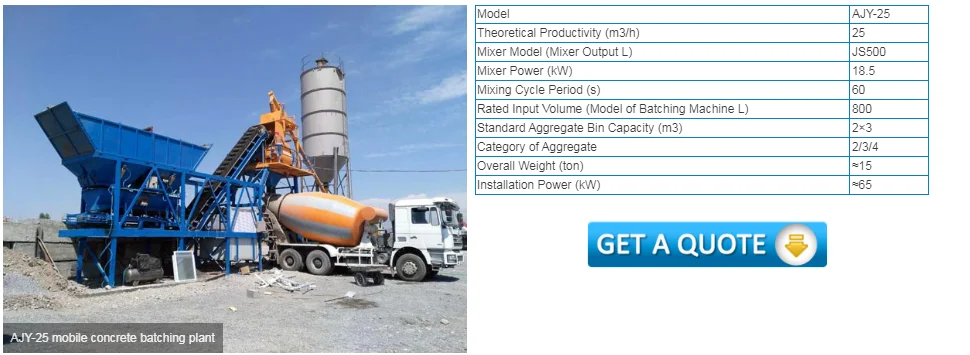

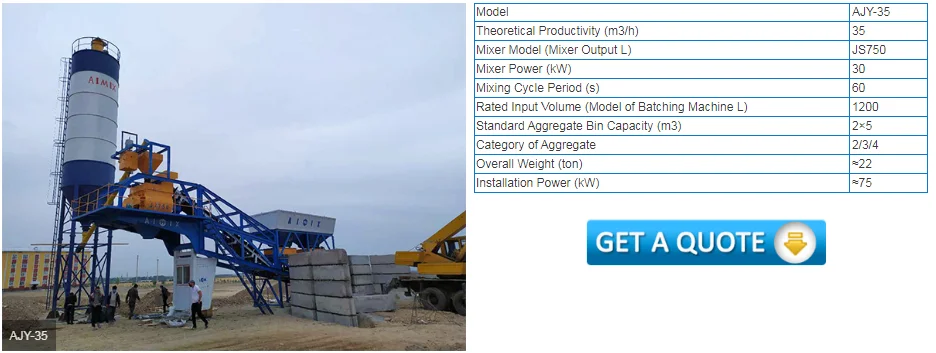

Mobile concrete batching plant | AJY-25 | AJY-35 | AJY-60 | AJY-90 | |||
Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 | |||
Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 | |||
Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 | |||
Mixer Motor Power (kW) | 18.5 | 30 | 18.5x2 | 30x2 | |||
Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | |||
Aggregate Material Quantity (m3) | 3x3 | 5x3 | 8x3 | 12x3 | |||
Cycle Period (s) | 60 | 60 | 60 | 60 | |||
Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 | |||
Cement Silo (t) (optional) | 50x1 | 50x1 | 100x1 | 100x1 | |||
Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% | |||
Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | |||
Traction Type | Semi-trailer | ||||||
Control Mode | Full Automatic Computer PLC Control | ||||||
Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | ||||||
The mobile cement plant and the stationary concrete batching plant have almost the same operation process, operation mode and maintenance method. However, mobile concrete plant has unique features such as flexible movement, quick and easy assembly and dis-assembly, and simple storage management. All of the mobile batching plants adopt a belt conveyor to transport the raw aggregates while stationary concrete batching plants adopt a skip hopper or a belt conveyor to transport the raw aggregate.
Aimix has exported our mobile batching plants to many countries over the world such as the Philippines, Pakistan, UK, Indonesia, Vietnam, Sri Lanka, Bangladesh etc. From 2019, we have sales and offices in Indonesia. We provide quality mobile batching plant for sale in Indonesia.
Successful Project
Aimix group co.,ltd, as one of the most reliable mobile concrete batching plant manufacturers, we can supply clients AJY-25,AJY-35, and AJY-50. among them, AJY-35 mobile batching plant for sale is much more popular. In addition model display, I will show you some successful cases in a foreign country. Then let’s learn more about its application, otherwise, you choose a wrong type concrete batching plant mobile.
SALES AND SERVICE NETWORK
Company & Factory Introduction

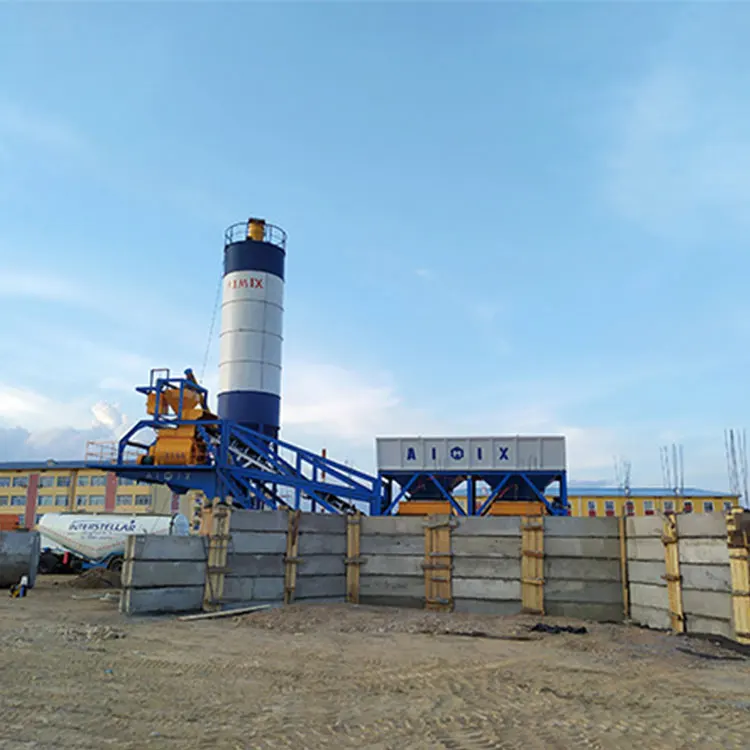

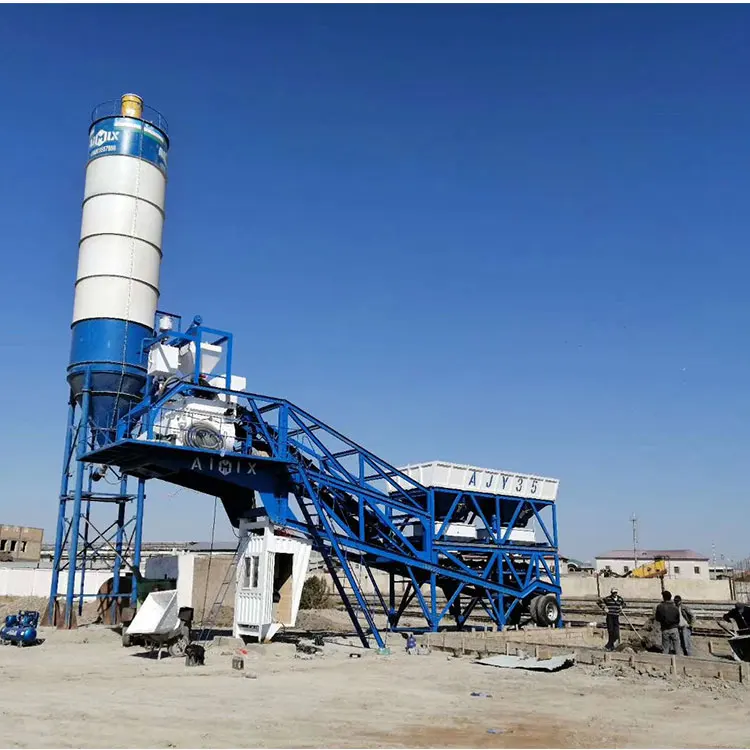

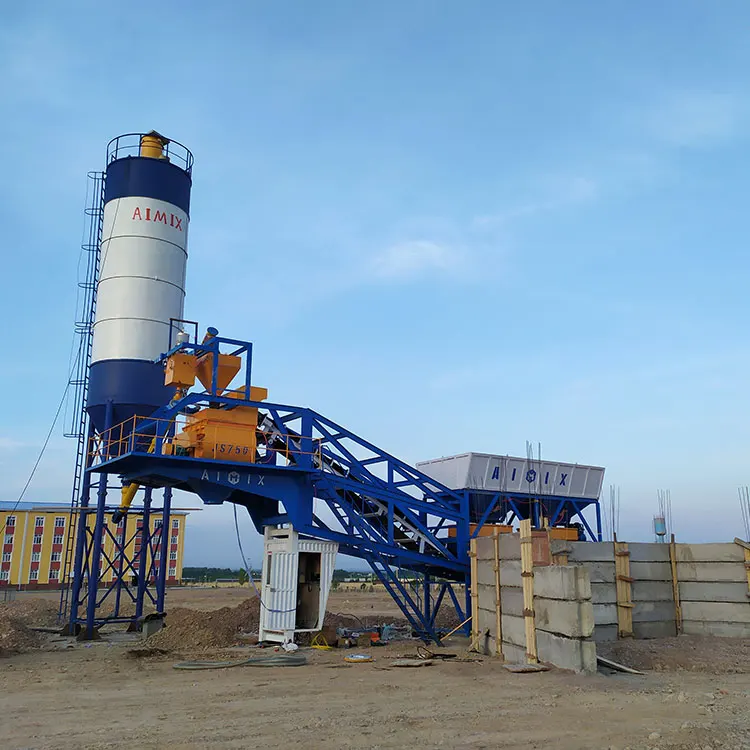

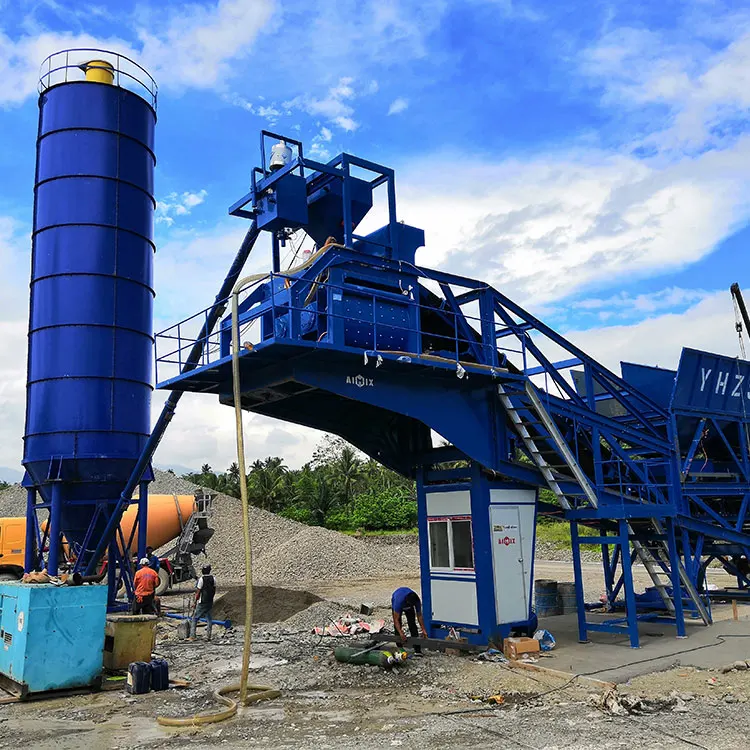

Aimix AJY35 mobile concrete batching plant was successfully installed in Indonesia, Malaysia ,Uzbekistan, etc. The following are some pictures of this mobile concrete plant took on the installation site.The transport unit of all parts of the mobile concrete mixing plant produced by Aimix Group is smaller than the inner space size requirement of the container. It is very convenient to transport the mobile concrete plants. It is a useful equipment for the mobile construction of public railways, bridges, ports,hydro-power and other projects. Get a quote now
FAQ
Q: Are you factory or a trading company?
A: We are factory and manufacture of concrete batching plant with for 38 years experience.
Q: Do you supply training and after-sale service?
A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the
problems as fast as possible.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
Get a quote now
Q: How about the concrete mixing plant production period?
A: AJ 50-60 station construction period is about 20 working days.
Q: How long will it take to install one set AJ bucket series concrete batching plant?
A: 10-15 days.
Q: How many people needed to install the 60m3/h Concrete Batching Plant? What tools needed?
A: Workers: 1-2 electricians, 1-2 electric welders and 4-5 installation assistants.
Tools : A crane of about 25 tons, a forklift or a loader for workers to use when lifting equipment
Q: If the engineer can't come, how do we install it? Are there any fees?
A: Our engineers can provide online instructions for installation at any time, and it's free.
A: We are factory and manufacture of concrete batching plant with for 38 years experience.
Q: Do you supply training and after-sale service?
A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the
problems as fast as possible.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
Get a quote now
Q: How about the concrete mixing plant production period?
A: AJ 50-60 station construction period is about 20 working days.
Q: How long will it take to install one set AJ bucket series concrete batching plant?
A: 10-15 days.
Q: How many people needed to install the 60m3/h Concrete Batching Plant? What tools needed?
A: Workers: 1-2 electricians, 1-2 electric welders and 4-5 installation assistants.
Tools : A crane of about 25 tons, a forklift or a loader for workers to use when lifting equipment
Q: If the engineer can't come, how do we install it? Are there any fees?
A: Our engineers can provide online instructions for installation at any time, and it's free.
