Products Description

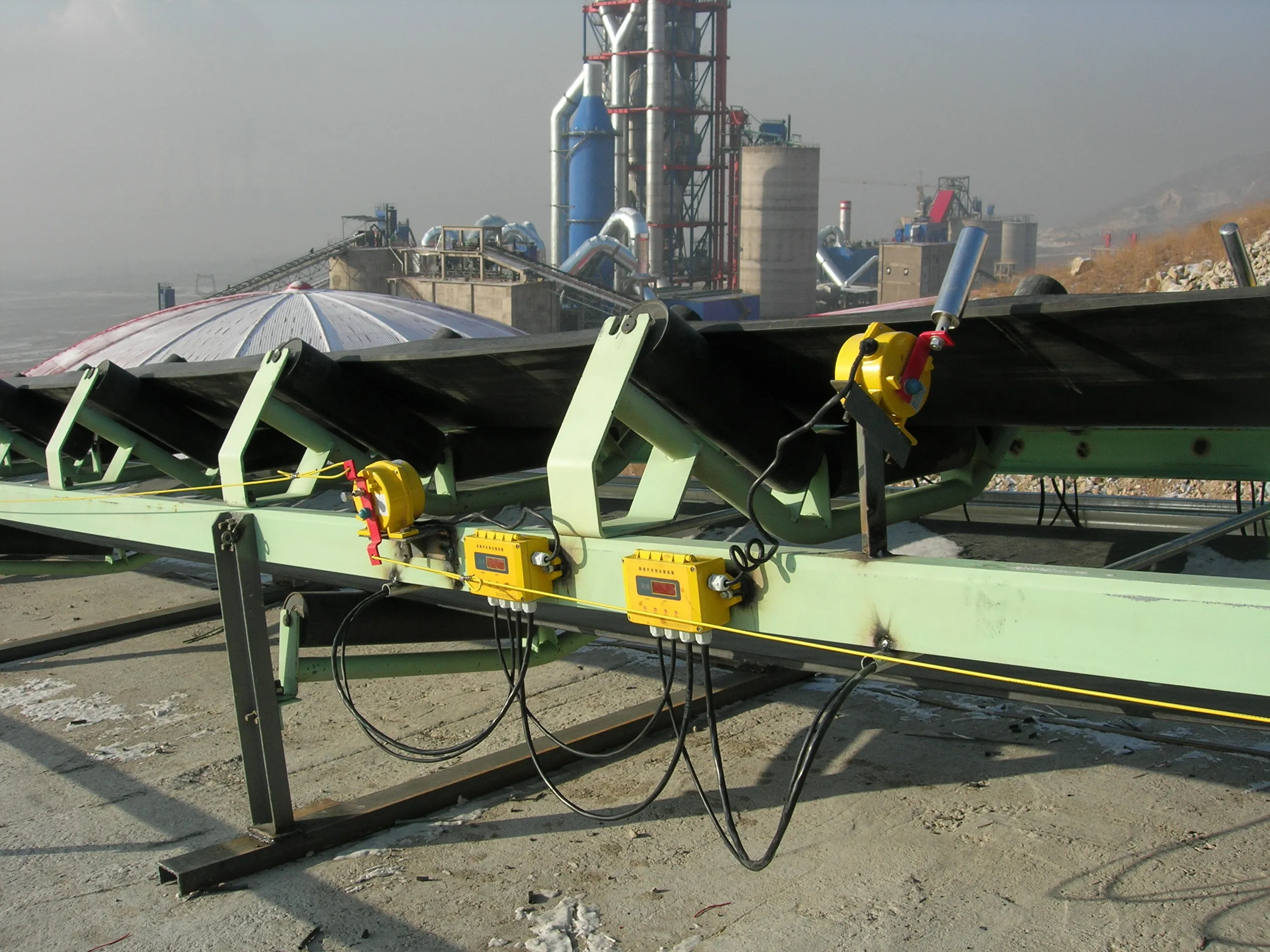

Belt sway switch can prevent material overflow or belt damage caused by belt sway by detecting the belt. This product is easy to install, reliable performance, It is widely used in the field of belt conveyor.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
Adopt two-level action mode of slight sway, serious sway.
The shell has high protection level, good sealing, and can be used in harsh environment.
Large contact capacity, sensitive action and reliable performance.
The switch has its own junction box, which is convenient for wiring.
Adopt two-level action mode of slight sway, serious sway.
The shell has high protection level, good sealing, and can be used in harsh environment.
Large contact capacity, sensitive action and reliable performance.
The switch has its own junction box, which is convenient for wiring.
Ambient temperature | -40℃~50℃ |
Relative humidity | 0~95% |
Atmospheric pressure | 80 kPa ~110kPa |
Electrical life | >100,000times |
Output mode and quantity | 2×SPDT |
Contact rating | AC380V 5A DC24V 5A |
Action force | 75~100N |
First-level action angle | 15° |
Second-level action angle | 30° |
Limit angle | 75° |
Reset mode | Automatic |
Protection level | IP67 |
