Product Overview
Description

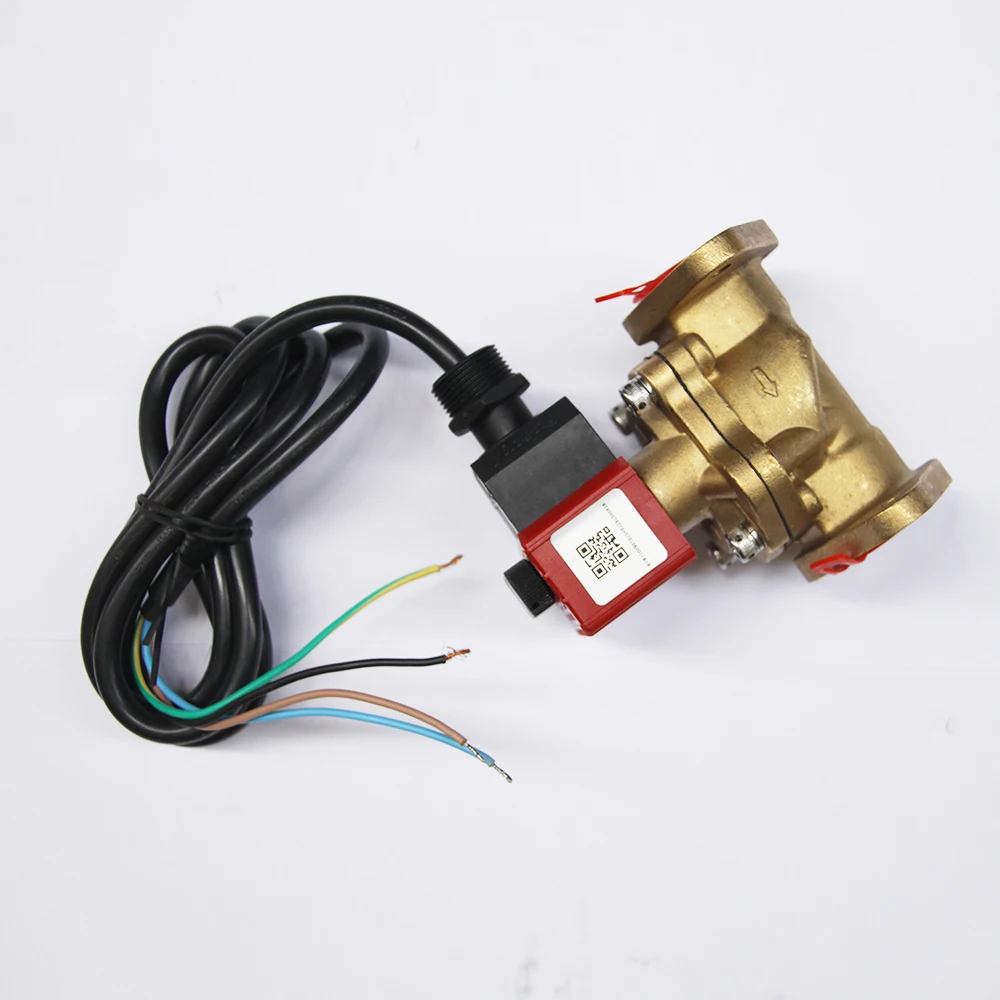

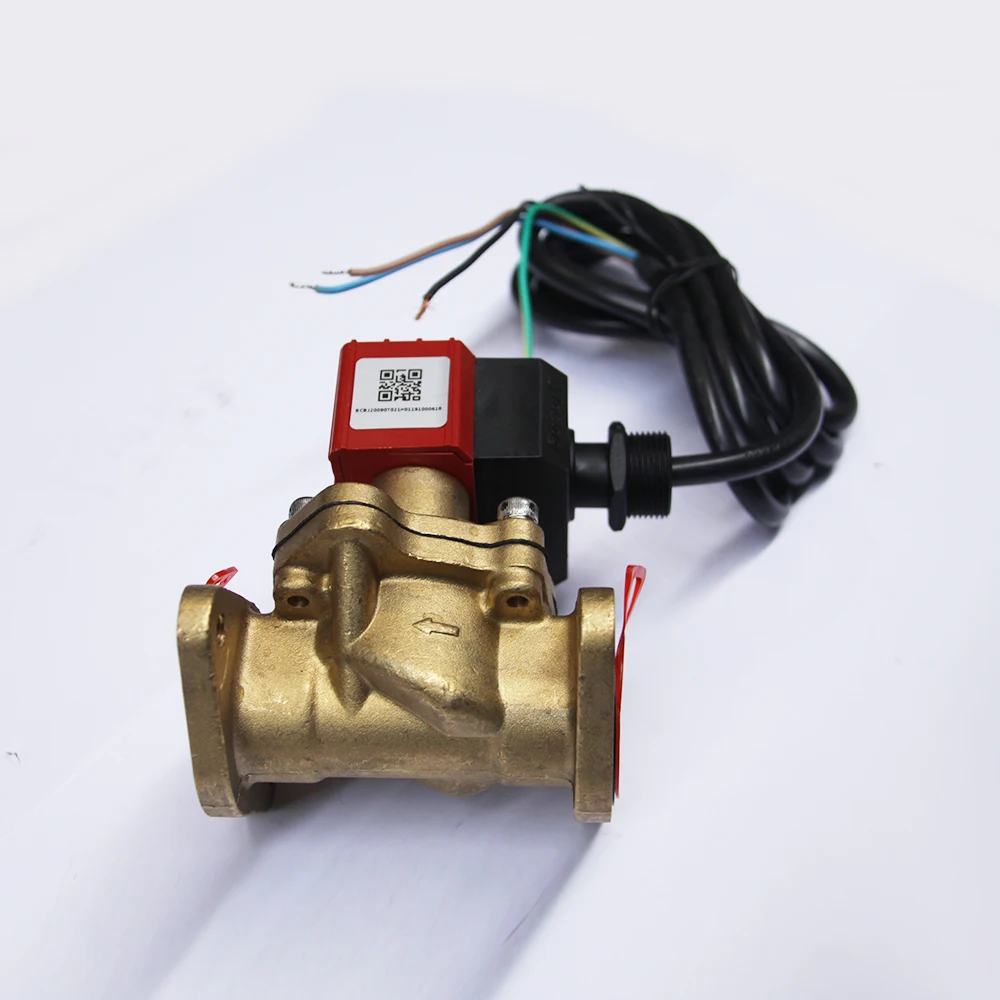

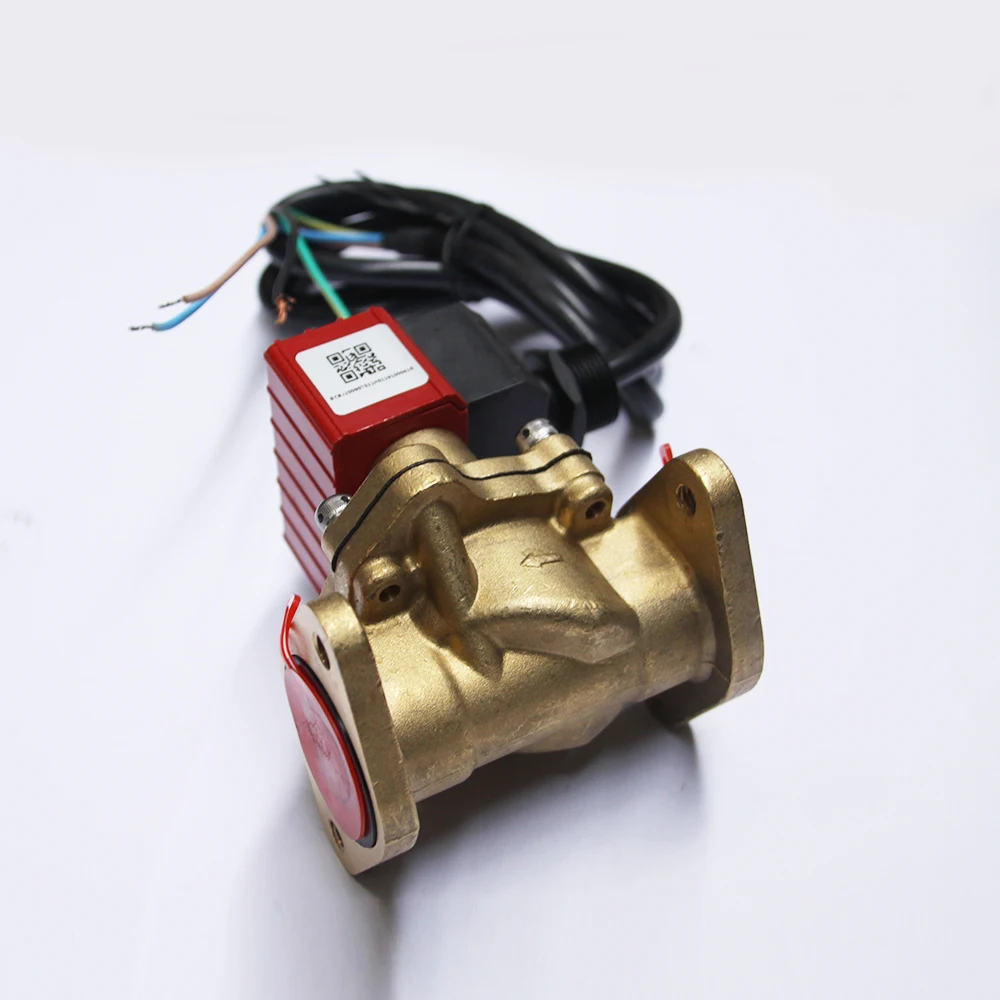

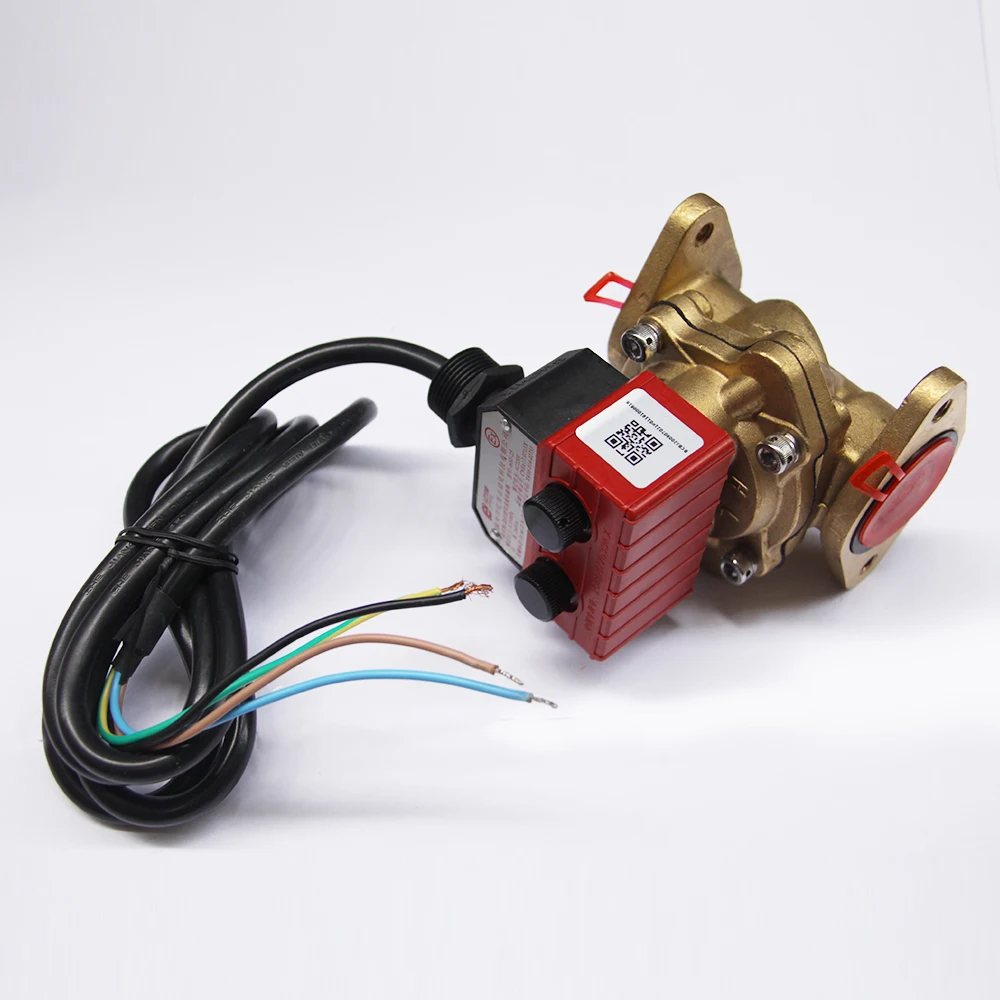

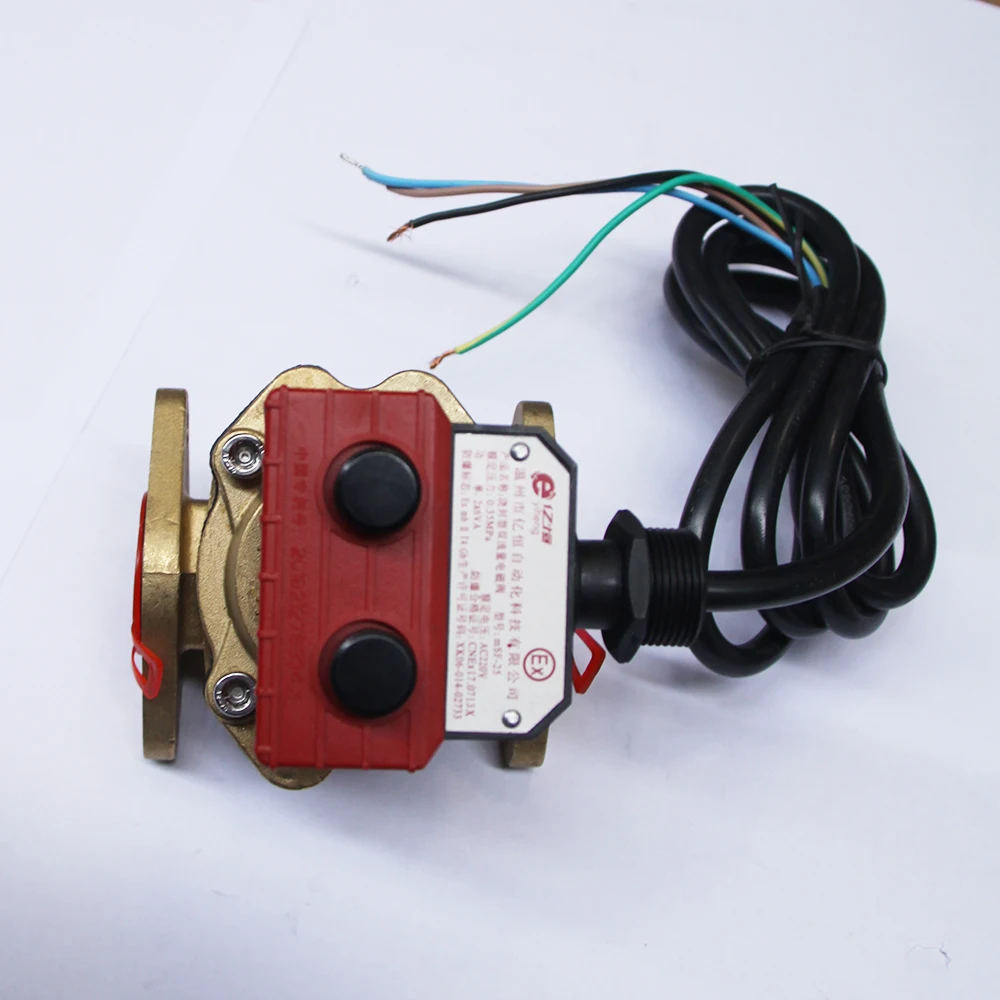

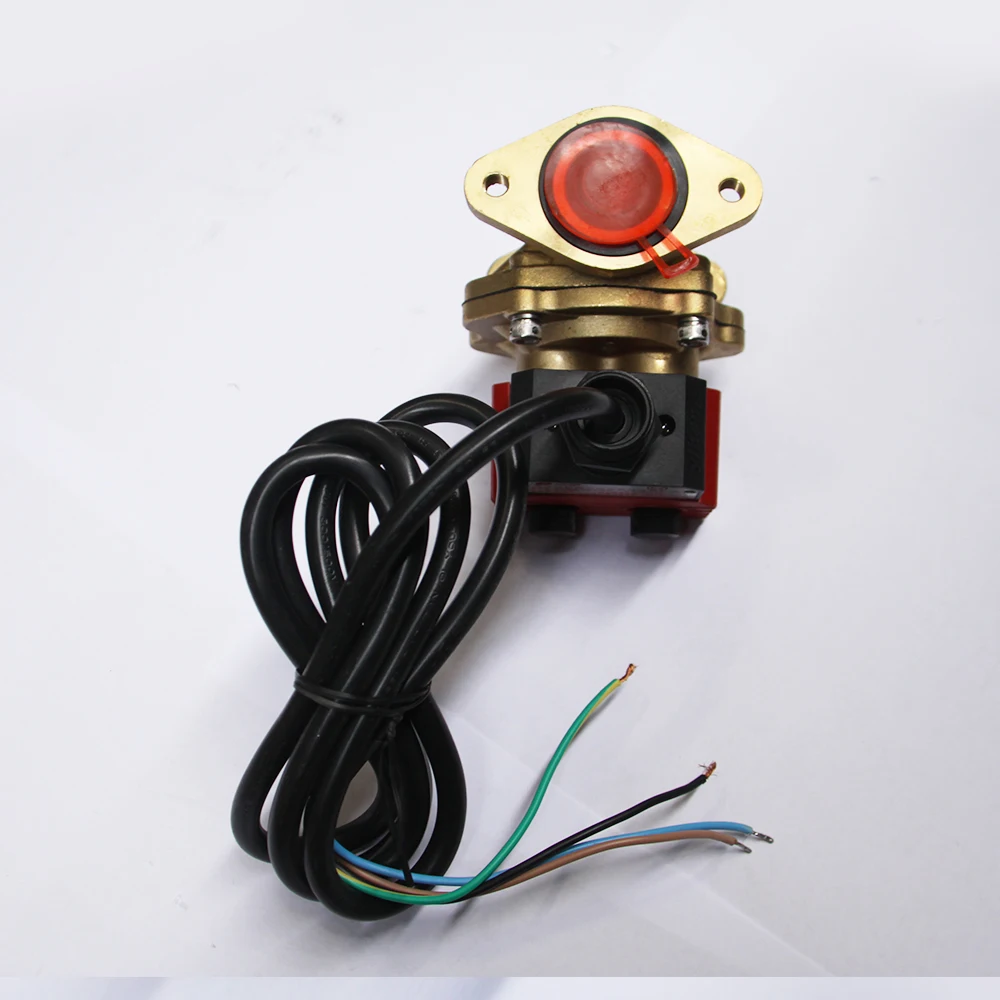

Exm double flow solenoid valve
Products Description
Advantage
1. This valve is suitable for computer dispenser
2.It has types of large flow rate, small flow rate, and closed two position two-way valve.
3.Controlled by high-power double solenoid valve coil and using the Exm explosion-proof, it has compact structure and small size with superior performance.
4.It is a reliable ideal explosion-proof solenoid valve controlled by
computer dispenser.
computer dispenser.
Details Images
Product Paramenters
Main performance parameters and connecting format | ||||||||
Items | Units | Technical parameters | ||||||
Nominal diameter | mm | 20 | 25 | 40 | ||||
Nominal pressure | MPa | 0.35 | 0.35 | 0.35 | ||||
Minimum operating pressure differential | MPa | 0.035 | 0.035 | 0.035 | ||||
Nominal voltage | AC220V 50HZ, DC24V, DC12V | |||||||
The fluctuation of voltage | % | 85-110 | ||||||
Insulation class | B | |||||||
Connecting format | male screw connection | |||||||
female screw connection | ||||||||
large flange connection | ||||||||
small flange connection | ||||||||
Operating ambient temperature | -40°C-+50°C | |||||||
Working environment relative temperature | 5%-95% ±25°C | |||||||

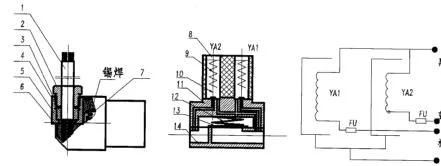

Explosion-proof parts diagram Schematic diagram Circuit interconnect pattern
1. cable 2. nut 3. rubber gasket 4. washer 5. shell 6. alkyd glass paint tube 7. packing
8. electromagnetic coil group
9. reset spring of movable iron core 10. movable iron core
11.valve cover 12. reset spring of diaphragm 13. diaphragm 14. valve body 15. fuse
8. electromagnetic coil group
9. reset spring of movable iron core 10. movable iron core
11.valve cover 12. reset spring of diaphragm 13. diaphragm 14. valve body 15. fuse
Conditions of use
Atmospheric pressure: 80 ~ 110kPa
Ambient temperature: -40 ~ +50°C
Ambient air relative humidity: 5% ~ 90% (+25°C)
Nominal pressure: 0.035MPa
Operating pressure difference: 0.035MPa
Operation place: Area 1 and Area 2 containing explosive gas mixture of IIA, IIB, IIC and Group
T1 ~ T3 .
Operating position: horizontal
Working schedule: continuous
Working environment: no violent vibration, no dripping, drenching, splashing, no severe corrosive
and insulation-breaking gas (steam).
Working medium: gasoline, diesel oil and other non - corrosive chemical coating.
Atmospheric pressure: 80 ~ 110kPa
Ambient temperature: -40 ~ +50°C
Ambient air relative humidity: 5% ~ 90% (+25°C)
Nominal pressure: 0.035MPa
Operating pressure difference: 0.035MPa
Operation place: Area 1 and Area 2 containing explosive gas mixture of IIA, IIB, IIC and Group
T1 ~ T3 .
Operating position: horizontal
Working schedule: continuous
Working environment: no violent vibration, no dripping, drenching, splashing, no severe corrosive
and insulation-breaking gas (steam).
Working medium: gasoline, diesel oil and other non - corrosive chemical coating.
Certifications

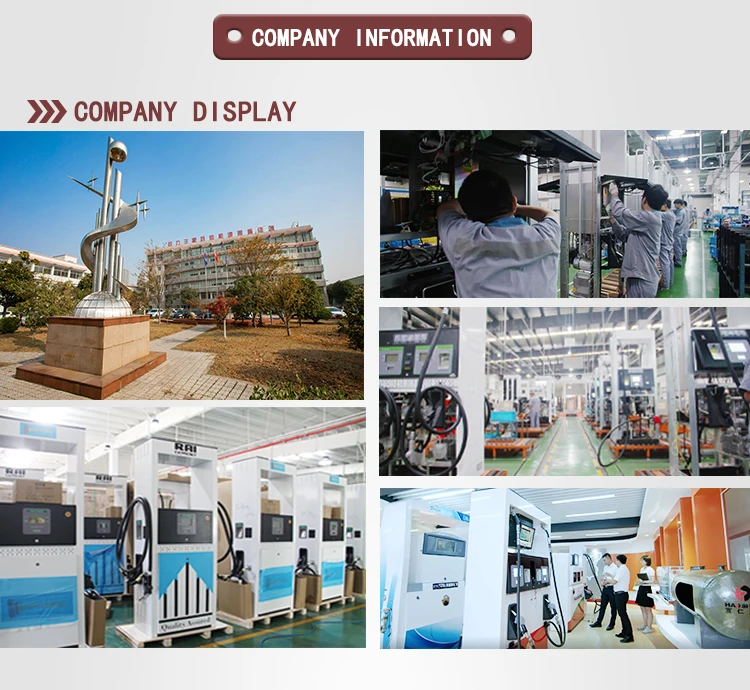

Company Profile

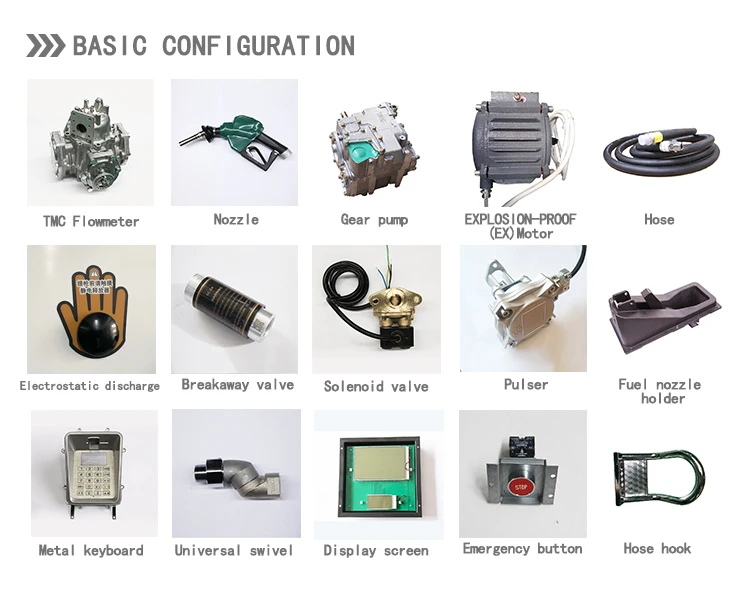

We are the manufacturer of refueling machines： fuel dispenser, CNG/LNG dispenser, vehicle mounted machine, skid mounted machine, oil tank( we are the first one to produce double layer oil tank in china) we are the supplier of national oil company, 70%coverage of Jiangsu market (the most developed province in China)
