HUA DIAN 2022 GOOD QUALITY COPPER GROUNDING CLAMP
- Category: >>>
- Supplier: Zhejiang Huadian Lightning Protection Technology Co. Ltd.
Share on (1600194549648):
Product Overview
Description
HUA DIAN 2021 GOOD QUALITY COPPER GROUNDING CLAMP
PRODUCT INTRODUCTION
Earth outlet is manufactured from brass. It provides an excellent earth point when connected to continious reinforcing bars. Earth outlet is widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life.
|
PRODUCT FEATURES

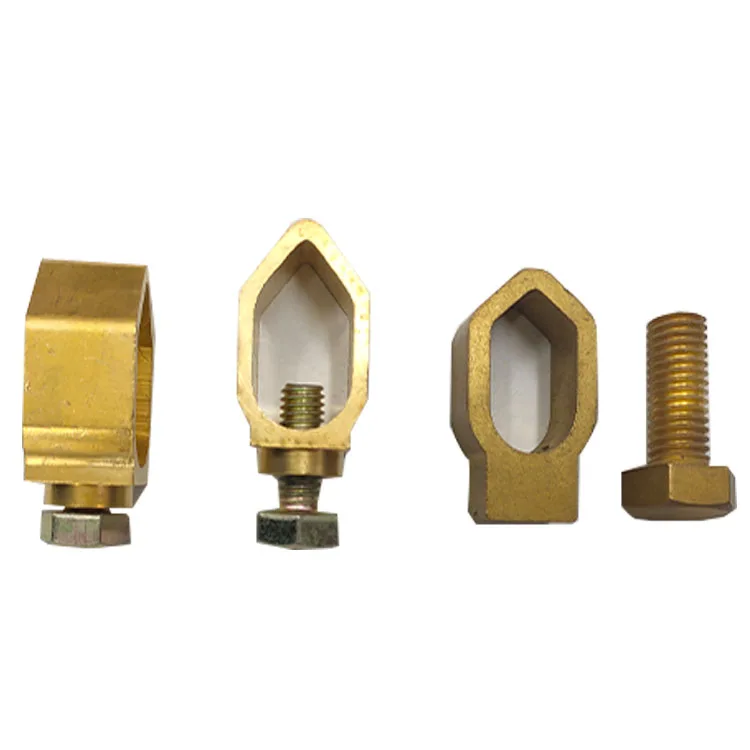

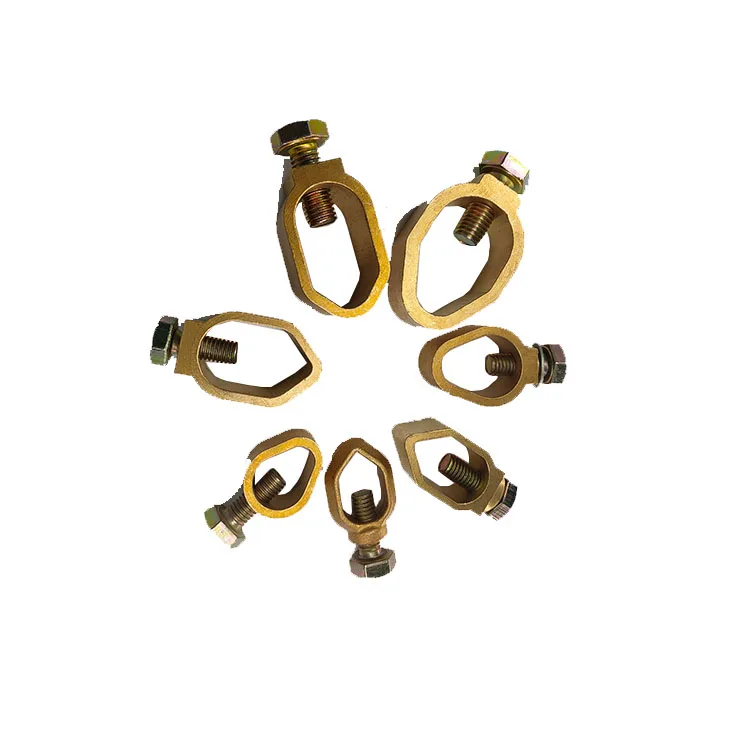

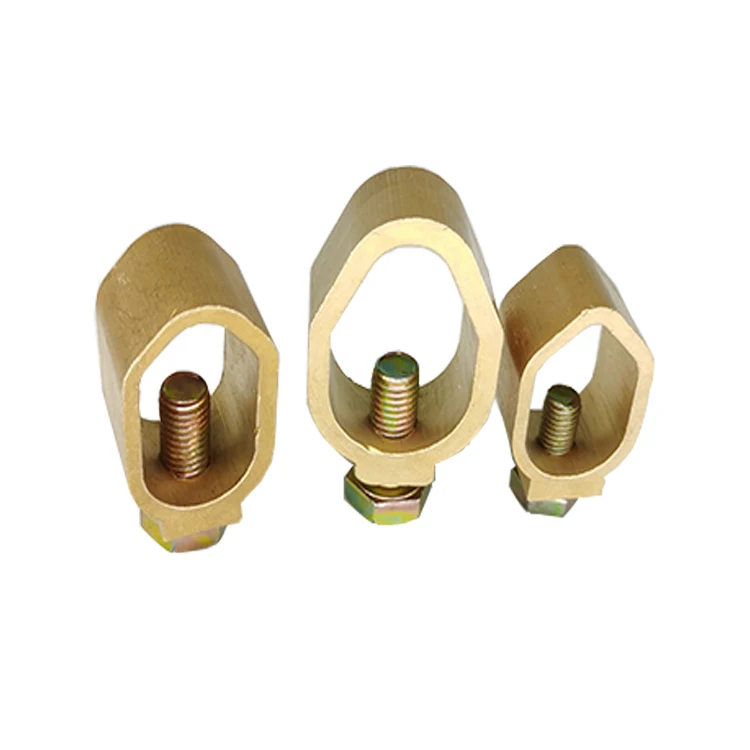

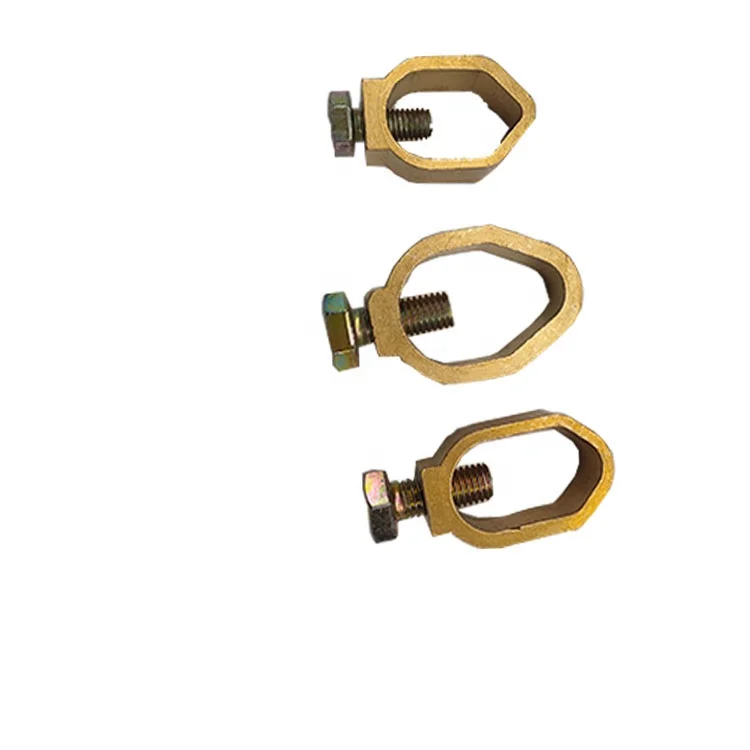

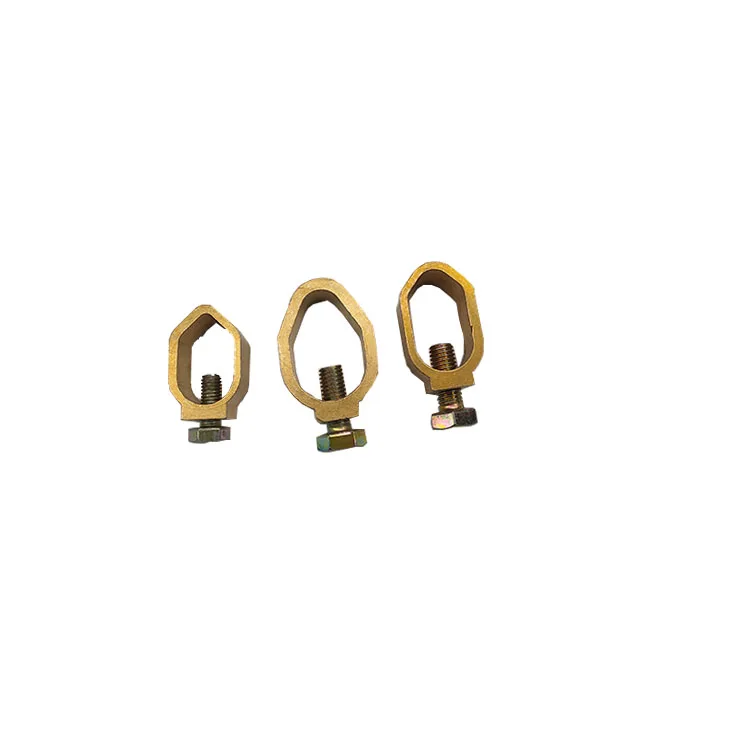

PRODUCT PICTURES
PRODUCT SPECIFICATION
| Part No. | Fix Hole No. | Application of cable size |
| HD-WB401-95 | M10X4 | 95mm2 |
| HD-WB201-95 | M10X2 | 95mm2 |

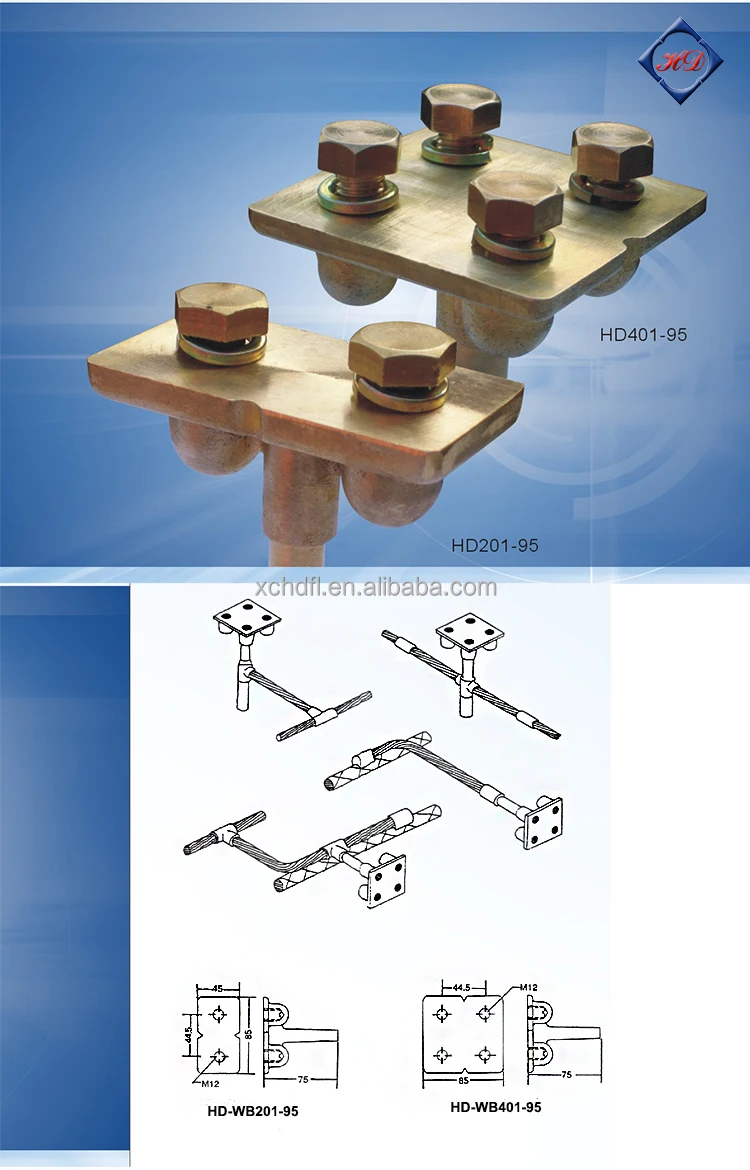

*HD-WB201-95
1) Material: 58# Cu ( copper content: 58%)
2) dimensions: Length: 84mm* Width: 44mm*thickness: 8.5mm,
stem Diameter: 10.7mm, stem length:70mm
3) Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.48kg( including weights of two bolts and two screw caps and two washers)
*HD-WB401-95
1) Material:58# Cu ( copper content: 58%)
2) dimensions:Length: 84mm* Width: 84mm*thickness: 8.0mm,
stem Diameter: 18mm, stem length:70mm
3)Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.94kg( including weights of four bolts and four screw caps and four washers)
PRODUCT APPLICATION
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
