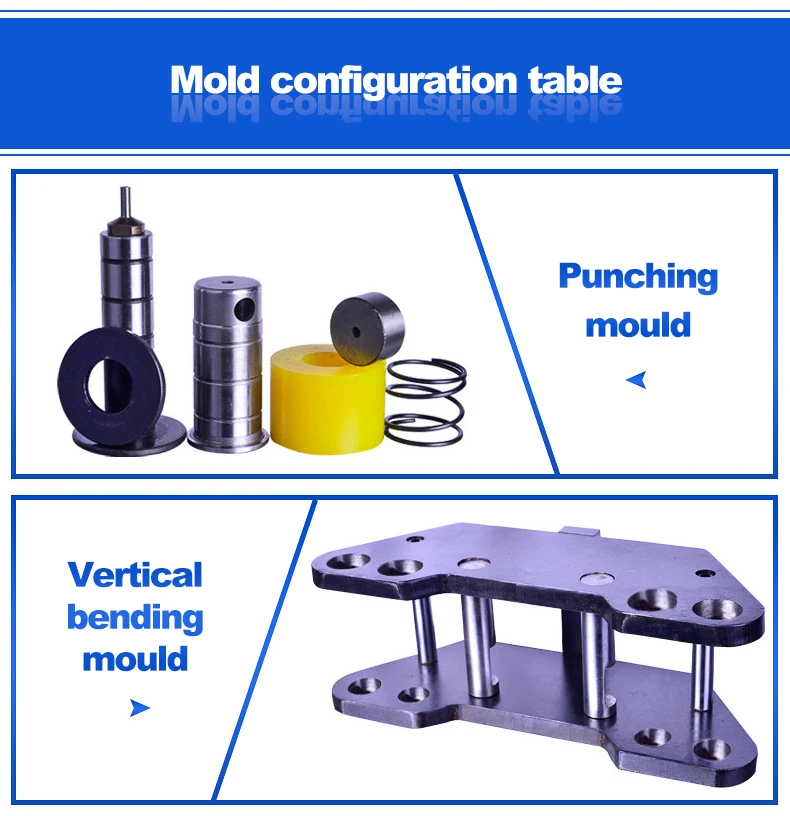

Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00

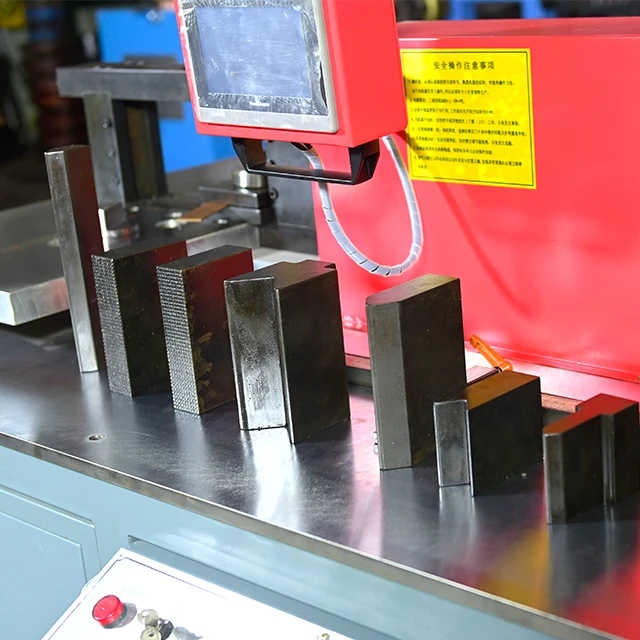

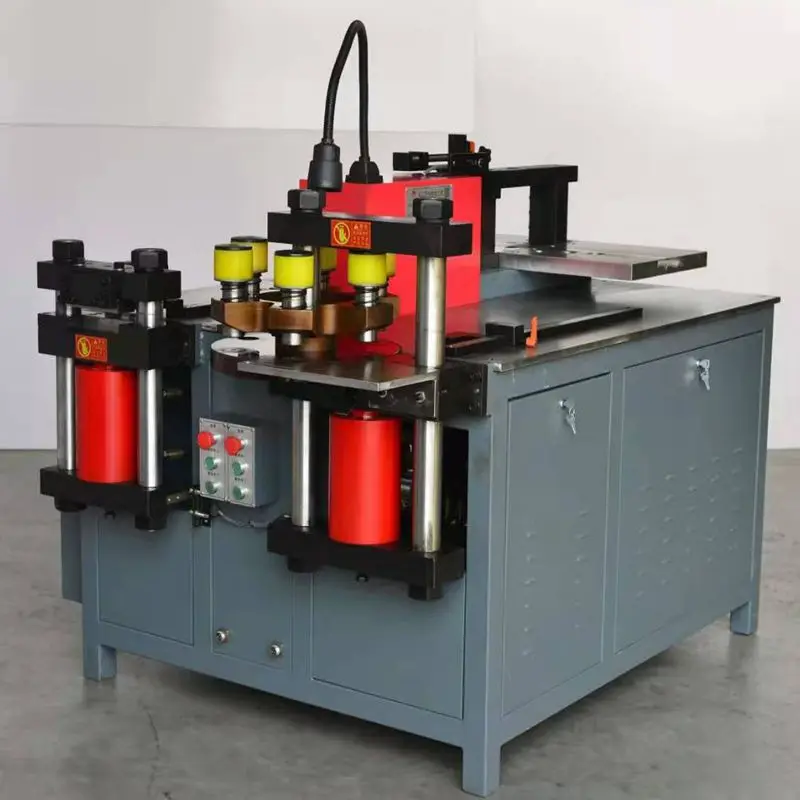

Bus processing machine hydraulic bar bending machine electric copper bar bending machine
- Category: Busbar Machine >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1600195287331):
Product Overview
Description
parameter name | unit | DS-301SK-B | |

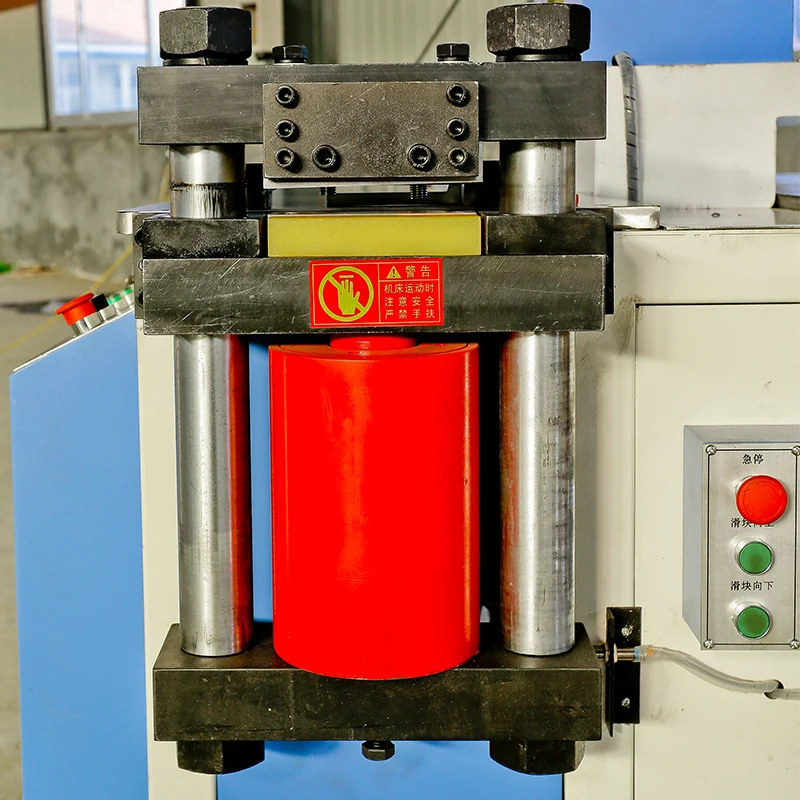

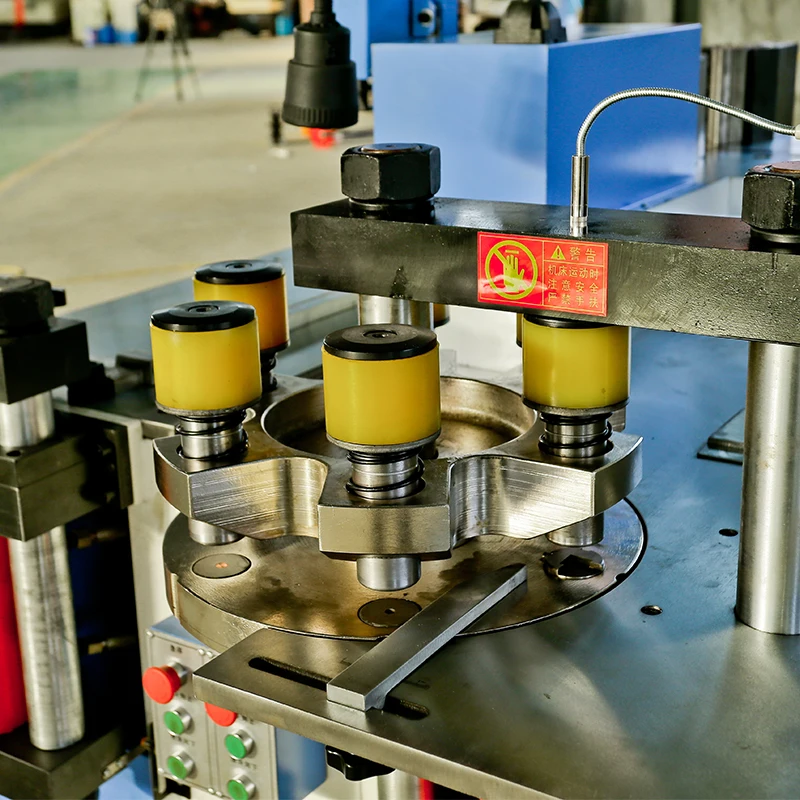

Punching | Punching force (KN) | 300 | |
Punching range (㎜) | ф4.3～ф30 | ||
Thickness (㎜) | 12 | ||
Width（㎜） | 150 | ||
Cutting | Shear force (KN) | 300 | |
Thickness (㎜) | 12 | ||
Width(㎜) | 150 | ||
Bending | Bending force (KN) | 300 | |
Width(㎜) | 150 | ||
Thickness (㎜) | 12 | ||
Dimensions | mm | 1700*1400*1300 | |
Motor Power | 1×4KW | ||
Machine weight | 1240Kg | ||

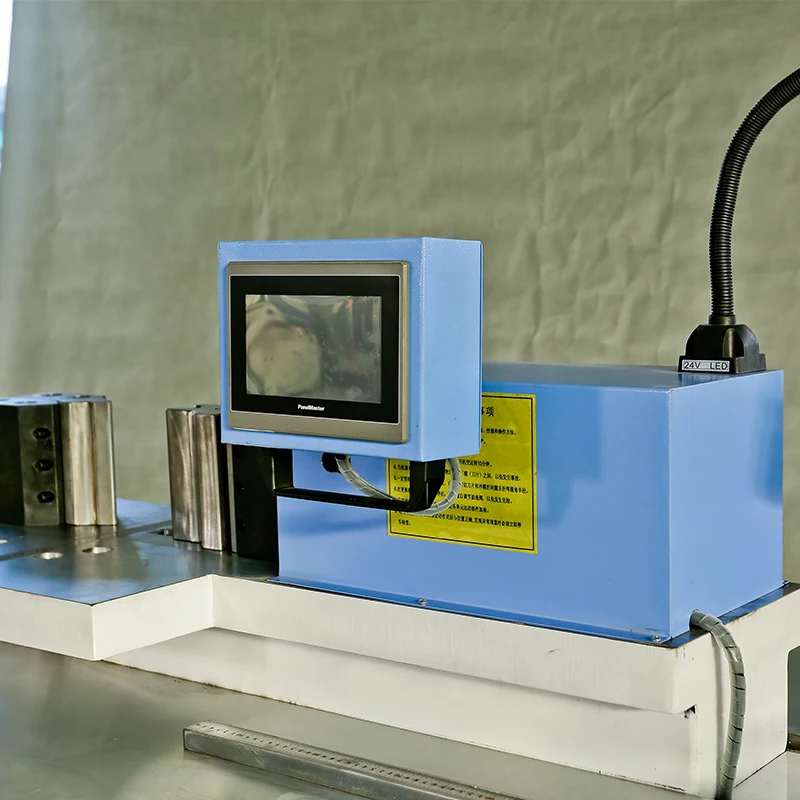

CNC description | The bending angle is numerically controlled, and Siemens PLC controls the angle to be directly input, the accuracy is ±1°, and the repeatability is ±0.5°. Punching, cutting, folding, can work at the same time. You can also input the height and side length to directly process the required workpiece (Z-bend). | ||
Jinan Deshang CNC Equipment Co., Ltd. is a technology-based enterprise dedicated to the development and production of electrical equipment and CNC sheet metal equipment. Our main products include CNC busbar processing machines, economical copper busbar punching machines, CNC aluminum busbar sharing machines, CNC busbar bending machines, CNC turret busbar processing machines, CNC copper busbar processing machines, combined three in one busbar processing machines, portable busbar processing machines and other products. Products are widely used in high and low voltage switch cabinets, substations, transformers, electrical switches, shipbuilding, elevator manufacturing, chassis cabinet manufacturing and other industries.
Our products are exported to Europe, North America, South America , Southeast Asia, Russia, Africa ,Australia and other countries. We have more than ten years export experience.
Our company has obtained ISO9001 quality system certification; EU CE compulsory certification and a number of national invention patents.
Our products are exported to Europe, North America, South America , Southeast Asia, Russia, Africa ,Australia and other countries. We have more than ten years export experience.
Our company has obtained ISO9001 quality system certification; EU CE compulsory certification and a number of national invention patents.
Company Advantage:

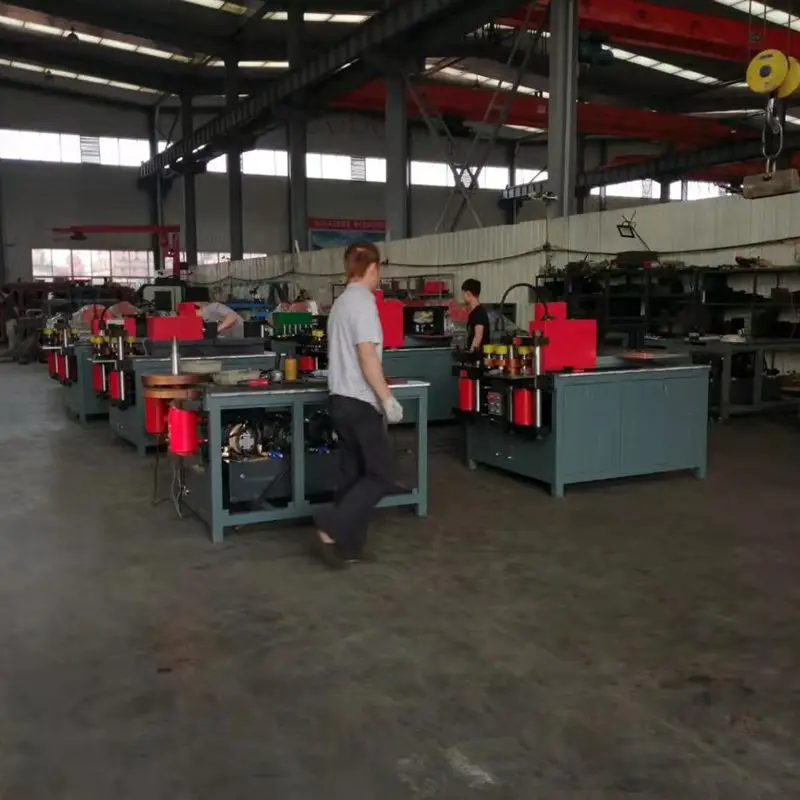

1.Factory scope
We have our own factory and engineer team ,can offer suitable goods for you.
2. Main Products
We can offer all kinds of busbar processing machine for your electrical business .Busbar cutting bending punching and spare parts can have together from our factory .
3.Main Markets
We have more than ten years export experience .Europe, North America, South America , Southeast Asia, Russia, Africa ,Australia and other countries are all have our customers.
4.Our Team
We have professional technicians and sales teams to ensure technical professionalism and timeliness of communication.
We have our own factory and engineer team ,can offer suitable goods for you.
2. Main Products
We can offer all kinds of busbar processing machine for your electrical business .Busbar cutting bending punching and spare parts can have together from our factory .
3.Main Markets
We have more than ten years export experience .Europe, North America, South America , Southeast Asia, Russia, Africa ,Australia and other countries are all have our customers.
4.Our Team
We have professional technicians and sales teams to ensure technical professionalism and timeliness of communication.
The quality of how?
Three-year warranty, quality assurance
What if a novice can't use it?
Before leaving the factory, it will bedebugged and arrived at the location. There is a video tutorial. After the equipment arrives, the technical staff will follow thevideo to teach.
Is the product cost-effective?
One device has more than a dozen functions, super cost-effective
Will the operationbe troublesome?
Directly input the thickness and width of the copper bar, and automatically calculate the angle, which is convenient and quick.
How useful is it?
Customers always have repurchases
Is electricity safe?
The product is equipped with a 24V safety control power supply
Is the pumping station pressure enough?
The cutting station is increased by 50 tons, and the cut copper bars have no corners, no burrs, and a smooth section.
Can it be customized as required?
The manufacturer produces and sellsitself, fully capable
Three-year warranty, quality assurance
What if a novice can't use it?
Before leaving the factory, it will bedebugged and arrived at the location. There is a video tutorial. After the equipment arrives, the technical staff will follow thevideo to teach.
Is the product cost-effective?
One device has more than a dozen functions, super cost-effective
Will the operationbe troublesome?
Directly input the thickness and width of the copper bar, and automatically calculate the angle, which is convenient and quick.
How useful is it?
Customers always have repurchases
Is electricity safe?
The product is equipped with a 24V safety control power supply
Is the pumping station pressure enough?
The cutting station is increased by 50 tons, and the cut copper bars have no corners, no burrs, and a smooth section.
Can it be customized as required?
The manufacturer produces and sellsitself, fully capable
