mini cnc mill 3 axis XK7124 for metal cutting
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600195438767):
Product Overview
Description
Recommend Products

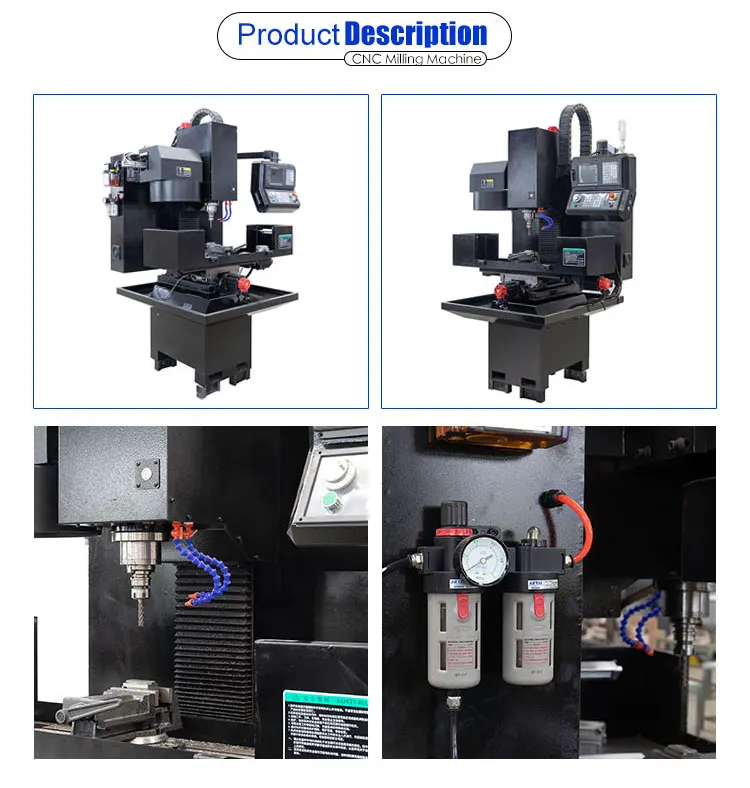

Product Description

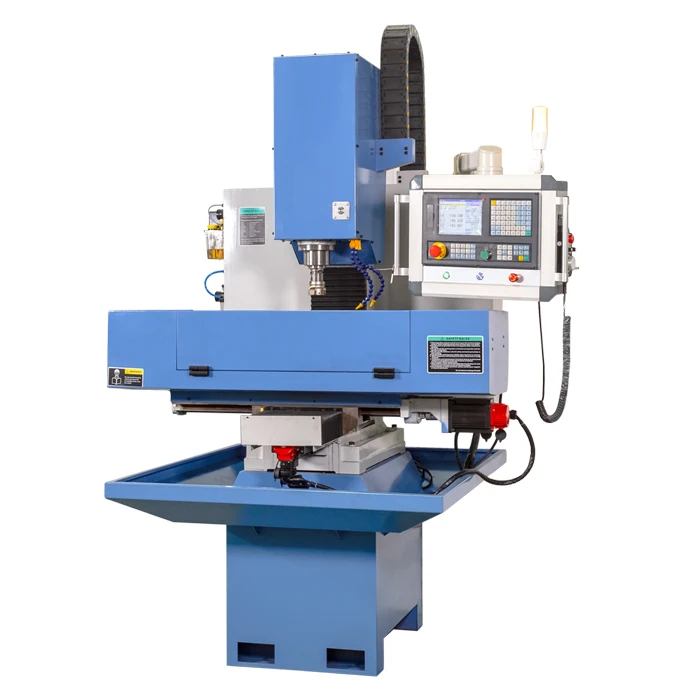

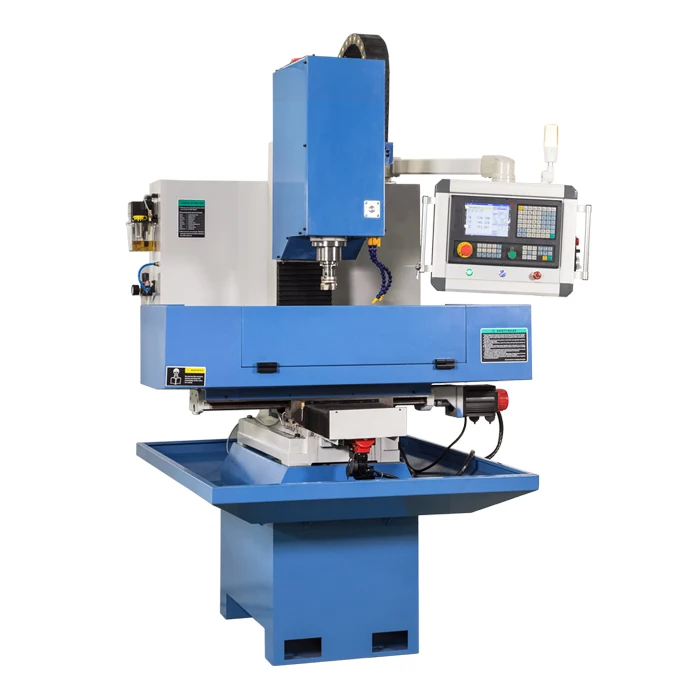

CNC milling machine XK7124

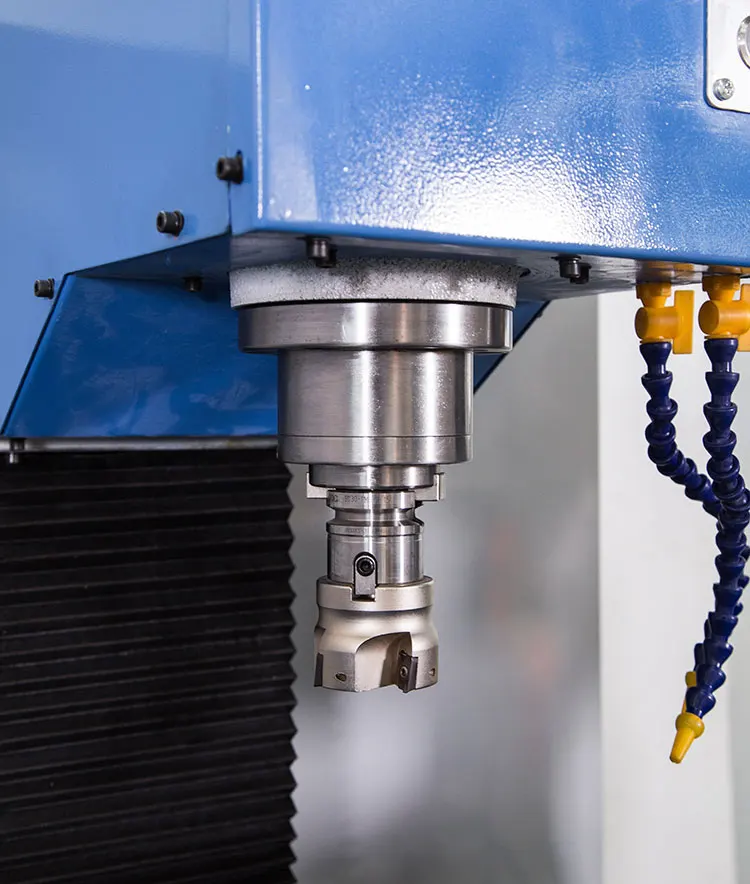

1. The spindle is a fast tool change structure, the spindle dynamic balance G1 processing, the precision 300mm beats 1 wire. The sleeve has a diameter of 90mm and the shaft core is made of standard alloy steel 20CrMnTi as the main shaft material. It is manufactured by standard processes such as forging and carburizing.
2. The three-axis servo is the absolute value servo. Compared with the ordinary incremental servo motor, the performance is greatly improved, and there is no need to return to zero. It is not necessary to install the hard limit. Say goodbye to the system alarm caused by some small switches, power failure or collision. After rebooting, there is no need to set the knife.
3. The spindle motor is a spindle servo motor. Compared with the conventional variable frequency motor, the torque is larger than that of the ordinary motor. The low speed and constant torque have an absolute advantage in tapping. It is perfectly matched with the A-axis of the 4-axis system.
2. The three-axis servo is the absolute value servo. Compared with the ordinary incremental servo motor, the performance is greatly improved, and there is no need to return to zero. It is not necessary to install the hard limit. Say goodbye to the system alarm caused by some small switches, power failure or collision. After rebooting, there is no need to set the knife.
3. The spindle motor is a spindle servo motor. Compared with the conventional variable frequency motor, the torque is larger than that of the ordinary motor. The low speed and constant torque have an absolute advantage in tapping. It is perfectly matched with the A-axis of the 4-axis system.
Specification | XK7124 |

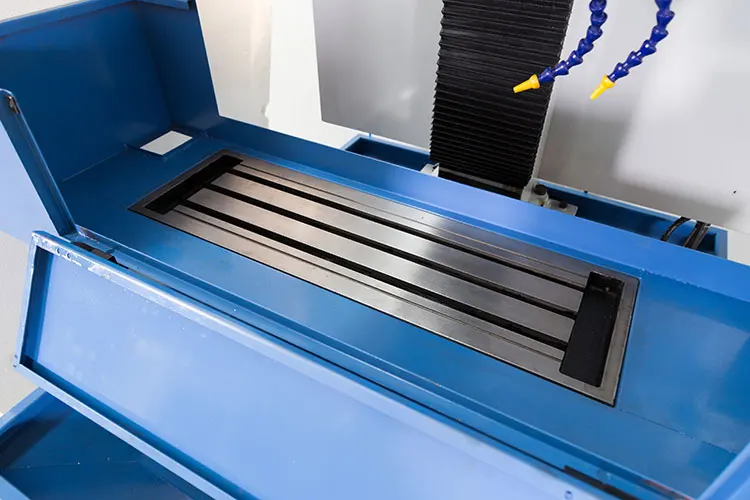

Worktable size(LxW) | 800x240mm |
X axis travel | 425mm |
Y axis travel | 245mm |
Z axis travel | 530mm |
Distance from spindle nose to worktable surface | 105-635mm |
Rapid feed speed(X/Y/Z) | 10/10/10 m/min |
Spindle taper | BT30 |
Max.spindle speed | 6000rpm |
Main motor power | 3.7kw |
Machine size(LxWxH) | 1540x1300x1960mm/1730x1330x2060mm |
Machine weight | 600kgs/750kgs |

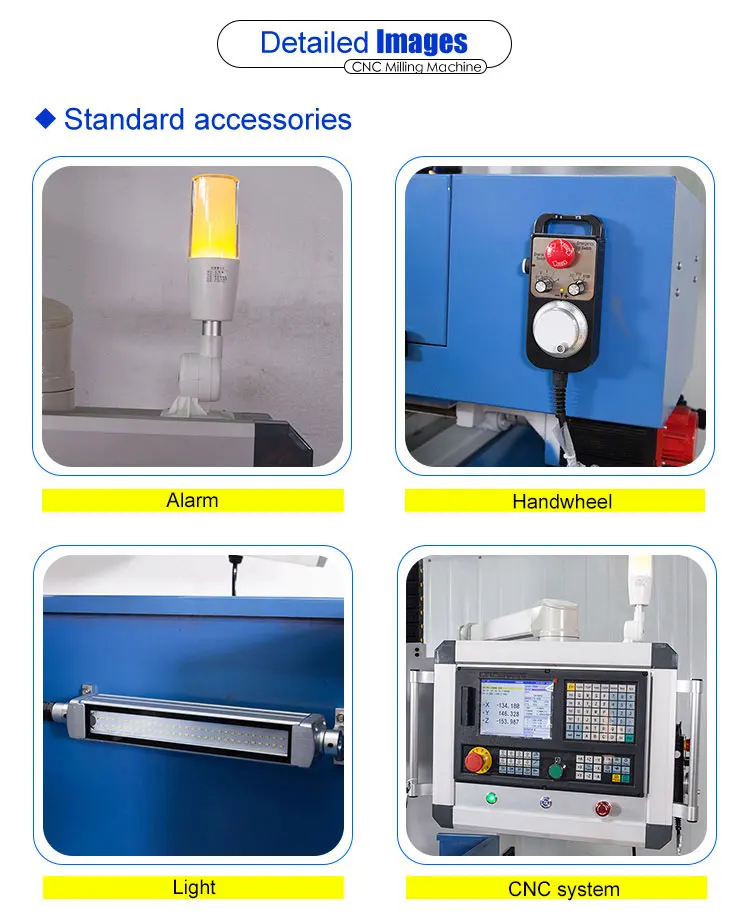

Detailed Images
Package and delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
