factory direct selling good quality dongfeng 4x2 RHD LHD 3m3 4m3 5m3 oil fuel tank truck
- Category: >>>
- Supplier: Chengli Special Automobile Co. Ltd.
Share on (1600195891041):
Product Overview
Description

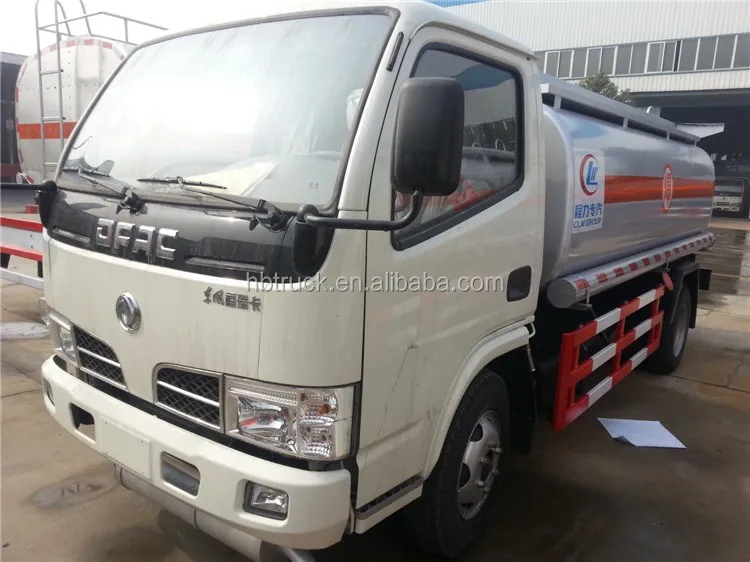

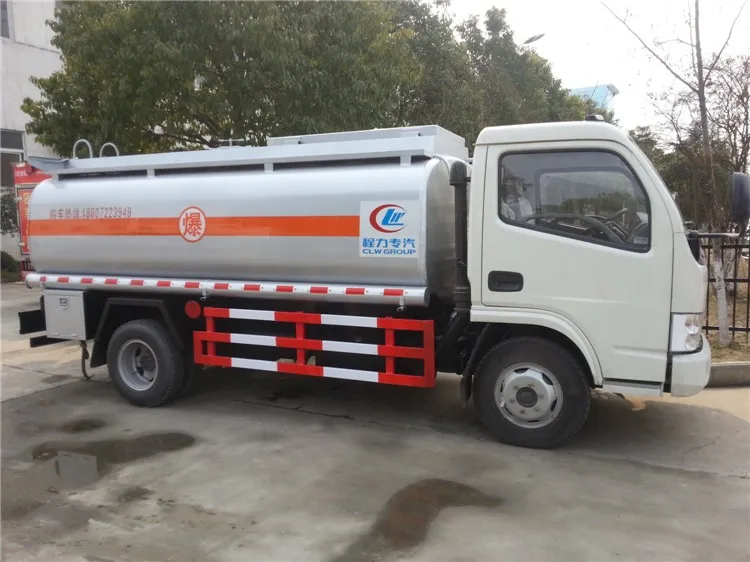

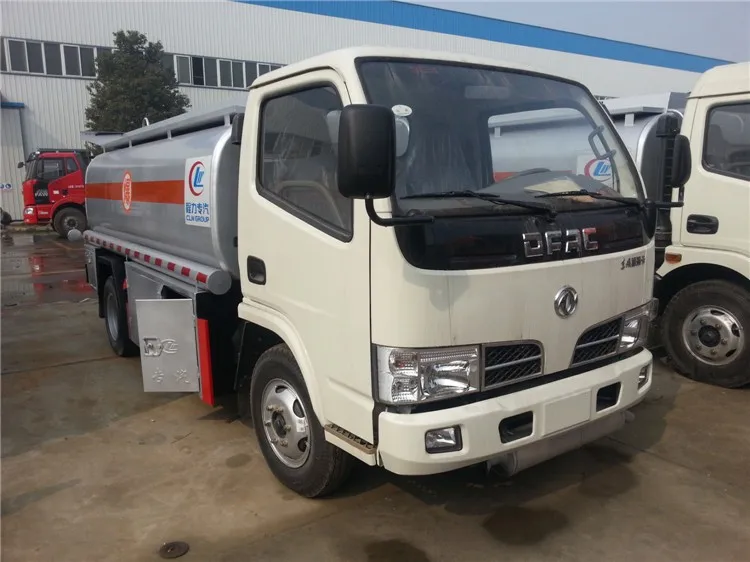

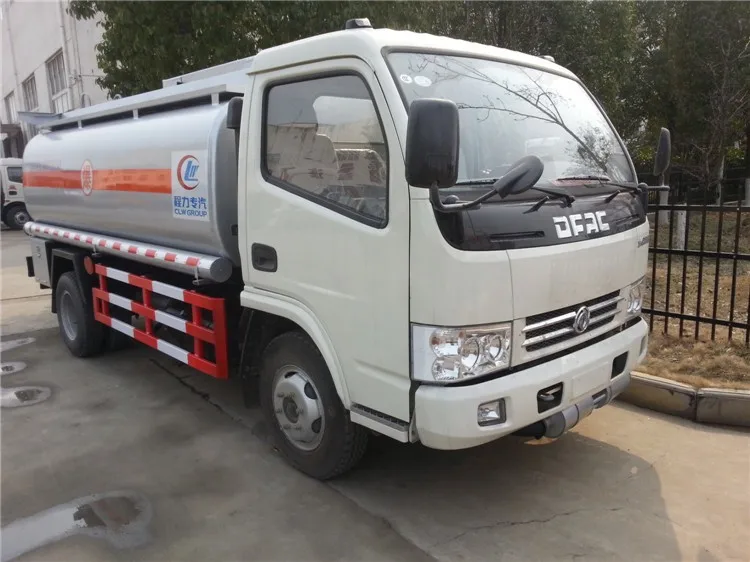

factory direct selling good quality dongfeng 4x2 RHD LHD 3m3 4m3 5m3 oil fuel tank truck
Product Description
| Main Specification | |
| Product Name | dongfeng fuel tank truck 5000liters |
| Truck model | CLW5060GJYD3 |
| Driving Type | 4×2,left/right hand drive |
| Weights | |
| Max.Payload (kg) | 5000 |
| Curb weight(kg) | approx.3500 |
| Dimensions | |
| Wheelbase (mm) | 3300 |
| Overall Dimension (mm) | Approx.5995×1980×2300 |
| Box dimension | 5000liters |
| Engine | |
| Engine Model | CY4100Q(82HP) |
| Engine type | 4 stroke water-cooled, Inter-cooling,Turbocharged |
| Displacement (L) | 3.707L |
| Rated power Rev ((Kw/rpm) | 60kw |
| Emission standard | EURO 2 |
| Drive Line | |
| Transmission | 5forwards, 1 reverse gear, manual operation |
| Steering | With power steering |
| Brake system | Air brake |
| Cab | |
| Cab | Single row, Howo cabin, A/C optional |
| Axles | |
| Front axle | 2 tons |
| Rear axle | 3.5 tons |
| Tire specification | |
| Tire specification | 7.00R16 standard tire,6 tires+1 spare tire |
| Specification of Fuel truck | |
| Tank capacity | 5000liters,one compartment |
| Tanker material | Q235, carbon steel |
| Manhole | 1 pcs manhole fixed on top of tank |
| Outlet and inlet | 1 pcs outlet and 1 pcs inlet |
| Oil rope | 2 pcs oil rope |
| Fire extinguisher | 2 pcs 4kg fire extinguisher |
| Anti-static devices | Including ground towing, static line plate |
| Pump | Equipped Oil pump (driven from gearbox by PTO) |
| Model:60YHCB-30 | |
| Flow:30m3/h | |
| Pressure :0.4Mpa | |
| Rotate Speed:970r/min | |

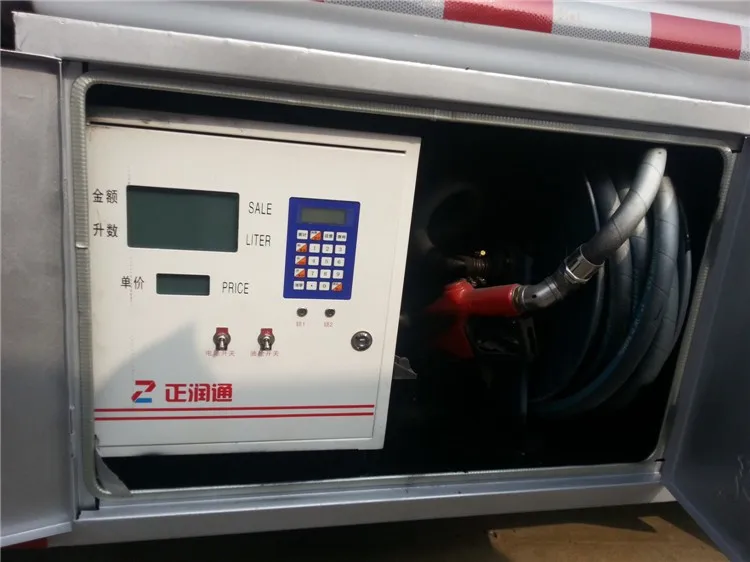

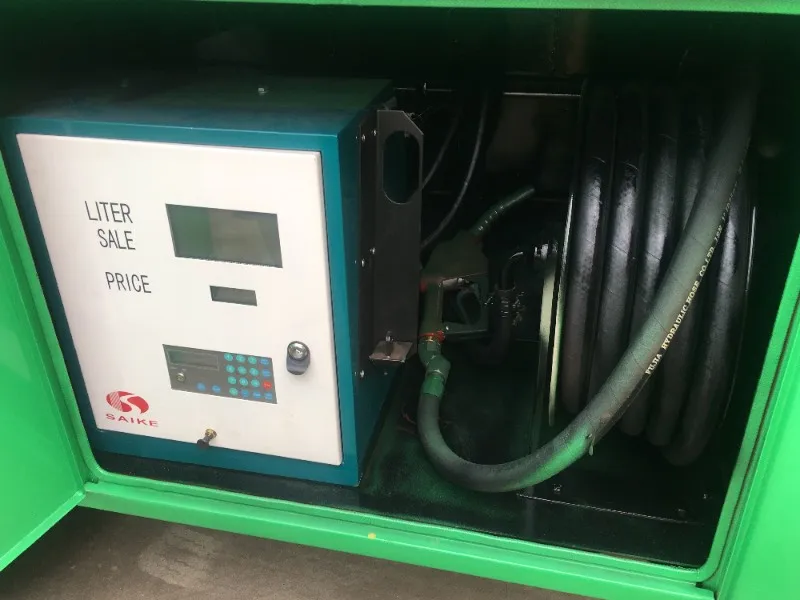

| Fuel dispenser | this dispenser can use for diesel and gasoline |

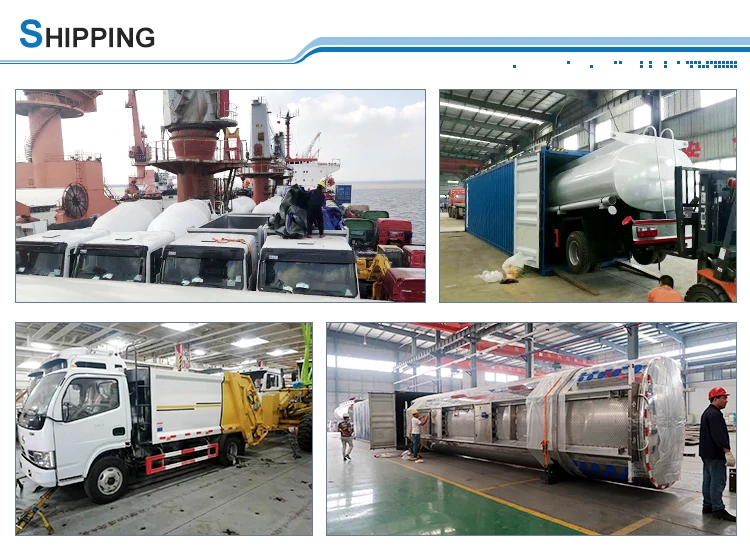

Packaging & Shipping
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
Company Information
Chengli Special Automobile Co.,Ltd.
Our company has total assets of 2 billion Yuan(About 0.32 billion USD), covers an area of more than 1,000 acres, has more than 8,000 employees, including 500 technical engineers, more than 2,000 skilled workers, annual production capacity of 100,000 sets special puporse vehicles .
We has leading products as: water truck, garbage truck, suction sewage truck, sweeper,oil tanker truck, chemical trucks, wrecker,aerial platfrom truck , fire truck,crane truck, refrigerated trucks, vans,LPG pressure vessels, road maintenance trucks, flatbed trucks, bulk food truck, dry mortar vehicles, beekeeping truck,mobile stage vehicles,LED advertisement trucks, mobile shop trucks, heavy duty truck mounted crane, cement pump truck, pharmaceuticals transportation trucks, all kinds of trailers,etc., covers series of more than 800 models.,
Certifications
Our company passed ISO9001-2008 Quality Management system certificate,ISO 14001 Enviromental Management system certiifcate,OHSAS18001 Occupational health and safty management system certificate,Europen ADR certificate,ASME certificate OCAP,BV and so on certificate
Customer Visit
FAQ
Question 1: How many units is your factory MOQ?
Our MOQ is 1 unit .
Question 2: What is the shortest production time?
Our production time is 15 days for one unit(common products), if you need more than 5 or more than 10, we can offer you in 40days .
Question 3: How long time of your warranty?
Our warranty is one years after send to your country .
Question 4: What certificate do you have?
All our products has orignal certificate and CCC and ISO certificate ,we accept SGS and BV identification.
Question 5: Do you make right hand drive trucks?
Yes,we do. Our standard Steering:Left-hand drive, if you need Right-hand drives, please inform us in advance.
Question 6: Where is your factory?Near Shanghai ,Guangzhou ,or Beijing?
Our factory is in central China,suizhou city ,hubei province ,china.You can take plane to Wuhan airport from Shanghai ,Guangzhou ,or Beijing.(According to your journey).The distances between each these 3 cities to Wuhan are nearly the same. When you arrive Wuhan City,we can arrange driver to pick you up at Wuhan airport.It takes nearly 2 hours from Wuhan airport to our factory.
