LEYO Spindle 7.5kw 30000rpm cnc milling 3 axis vmc vertical machine center milling machine cnc metal
- Category: CNC Engraving & Milling Machine >>>
- Supplier: Dongguan,Liyang,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description

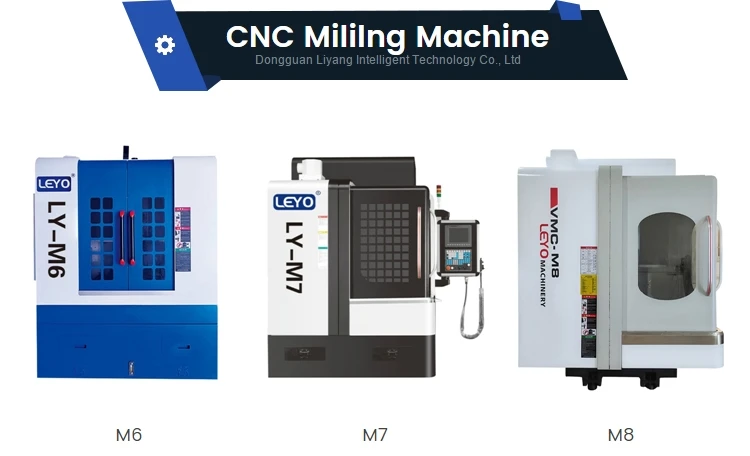

| Model | Unit | M6 | M7 | M8 |
| X/Y/Z axis travel | mm | 600/500/250 | 700/600/300 | 800/700/330 |
| X/Y/Z maximum moving speed | m/min | 15 | 24 | |
| X/Y/Z maximum cutting feed speed | m/min | 10 | 20 | |
| X/Y/Z servo motor power | kw | 0.85 with brake | 1.3 with brake | |
| X/Y/Z lead screw | mm | 0.008 | ||
| Spindle speed | rpm | 30000 | ||
| Spindle motor power | kw | 11 | ||
| Spindle taper hole | - | BT30 | ||
| Positioning/Re-positioning accuracy | mm | 0.003 | ||
| Table size (L x W) | mm | 600*500 | 600*700 | 700*800 |
| Maximum payload | kg | 400 | 600 | 800 |
| Machine size (L*w*h) | mm | 1730*2000*2300 | 2200*2500*2400 | 2200*2500*2400 |
| Machine weight | kg | 3800 | 4000 | 5000 |
| CNC Controller | LNC/Syntec/Mitsubishi/FANUC/Siemens | |||
| Tool magazine | None/12T servo tool magazine | |||
| Optional | Controller /Spindle/Nitrogen counterweight/ Tool setting instrument/4th 5th rotary table/Chip conveyor | |||

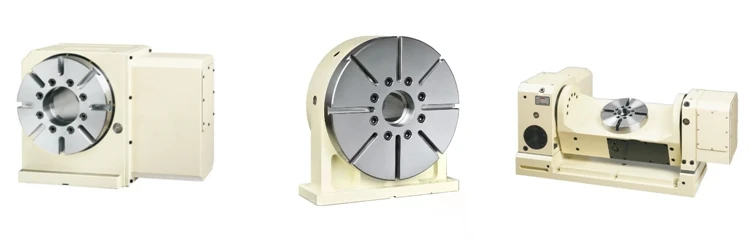

Gutian roller cam NC turntable

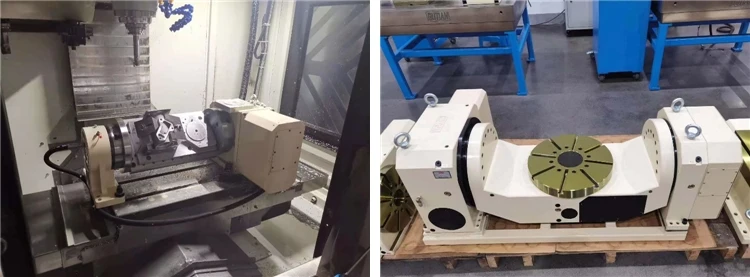

4th 5th axis rotary table/4th axis Thimble tailstock or disc tailstock
Compared with worm gear,roller cam transmission structure has the characteristics of
higher rigidity, higher precision and higher stability.
Can you offer OEM/ODM service?
 Dongguan Liyang Intelligent Technology Co., Ltd |
1. Your product look similar, but the price is different. What's the difference?
-The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The higher the configuration, the higher the price. If you want to get an accurate quotation, please contact customer service.
2. Can your offer customized service?
-Yes, we can. Please provide the specification for the machine you need, and tell us your requirements.
3.With so many machine tools, how to choose one that suits me?
-Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the model suitable for you according to the products you need to process.
4. Is your machine tool 3-axis, 4-axis or 5-axis?
-We have 3-5 axis machine tools, we need know the size you need for 4th 5th rotary table,NC controller ,motor brand and models,so that can offer a accurate quotation to you.
5.Can you offer me a quotation with shipping fees ?
-Usually, we offer FOB price. Because the shipping fees is different in different countries at different times. We usually provide you with an FOB quotation first. If the price you are satisfied, we will find the forwarder to provide you with a freight quotation.
