Price:$1.16 - $1.80
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

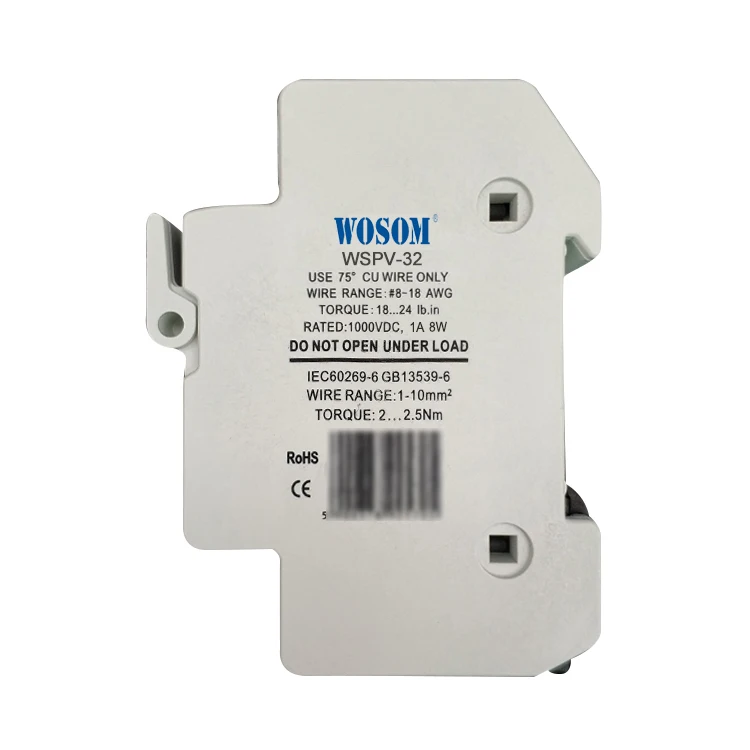

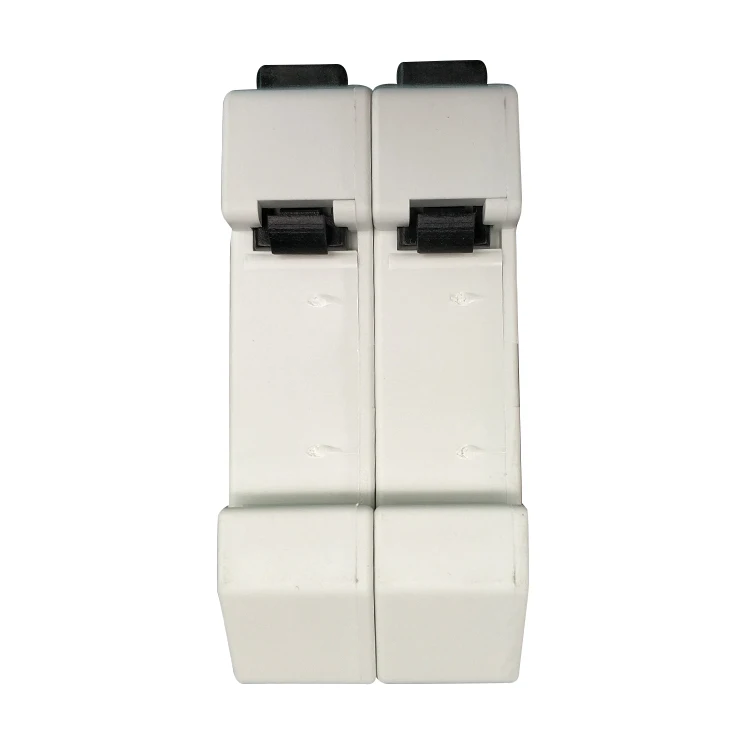

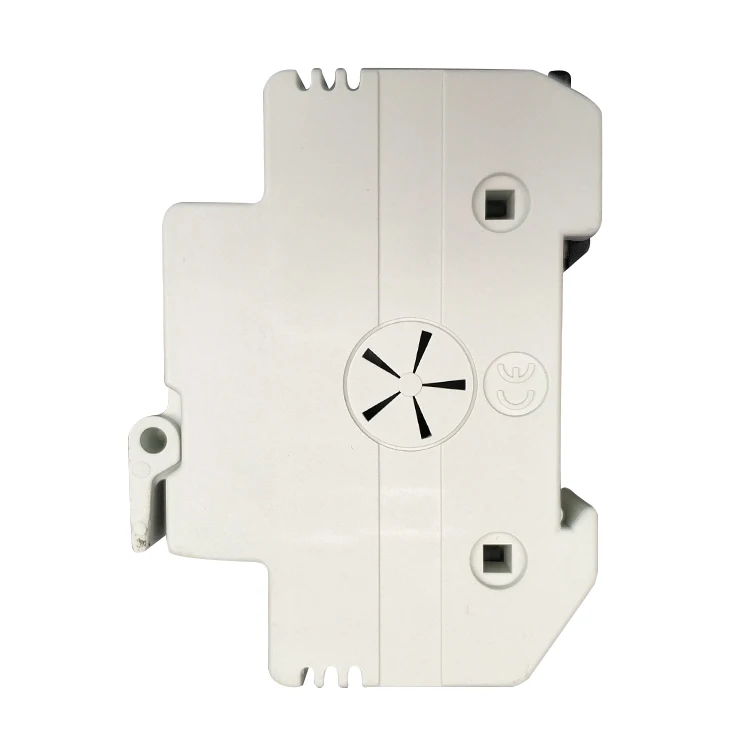

Photovoltaic Fuse Holder
Pole No:
1P、2P、3P、4P
Rated Voltage:
DC 1000V
Rated Current:
1A、2A、3A、4A、5A、6A、8A、10A、12A、15A、16A、20A、25A、30A、32A
Standard Complying:
GB13539.6 、IEC60269-6
Suitable for:
 10.3 x38 fuse link

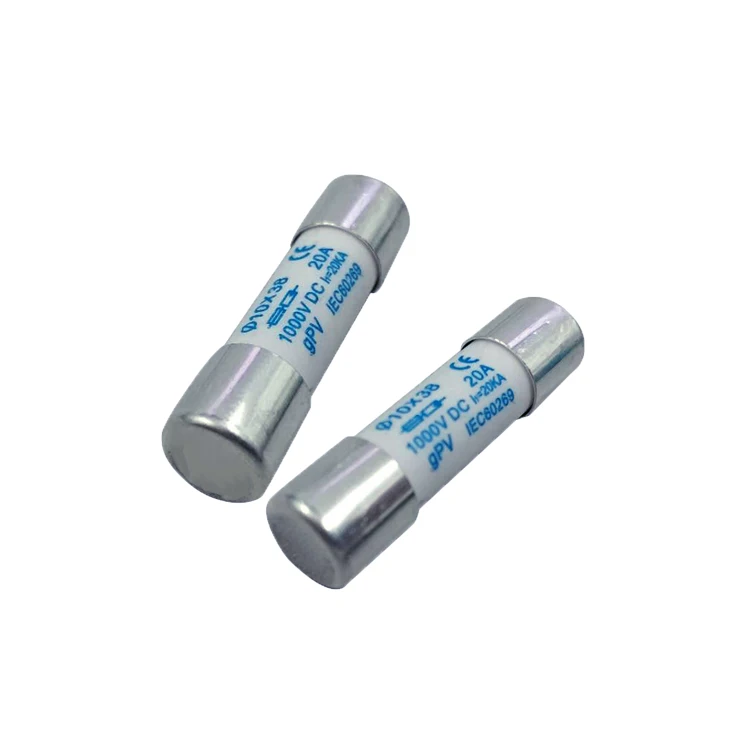

Photovoltaic Fuse

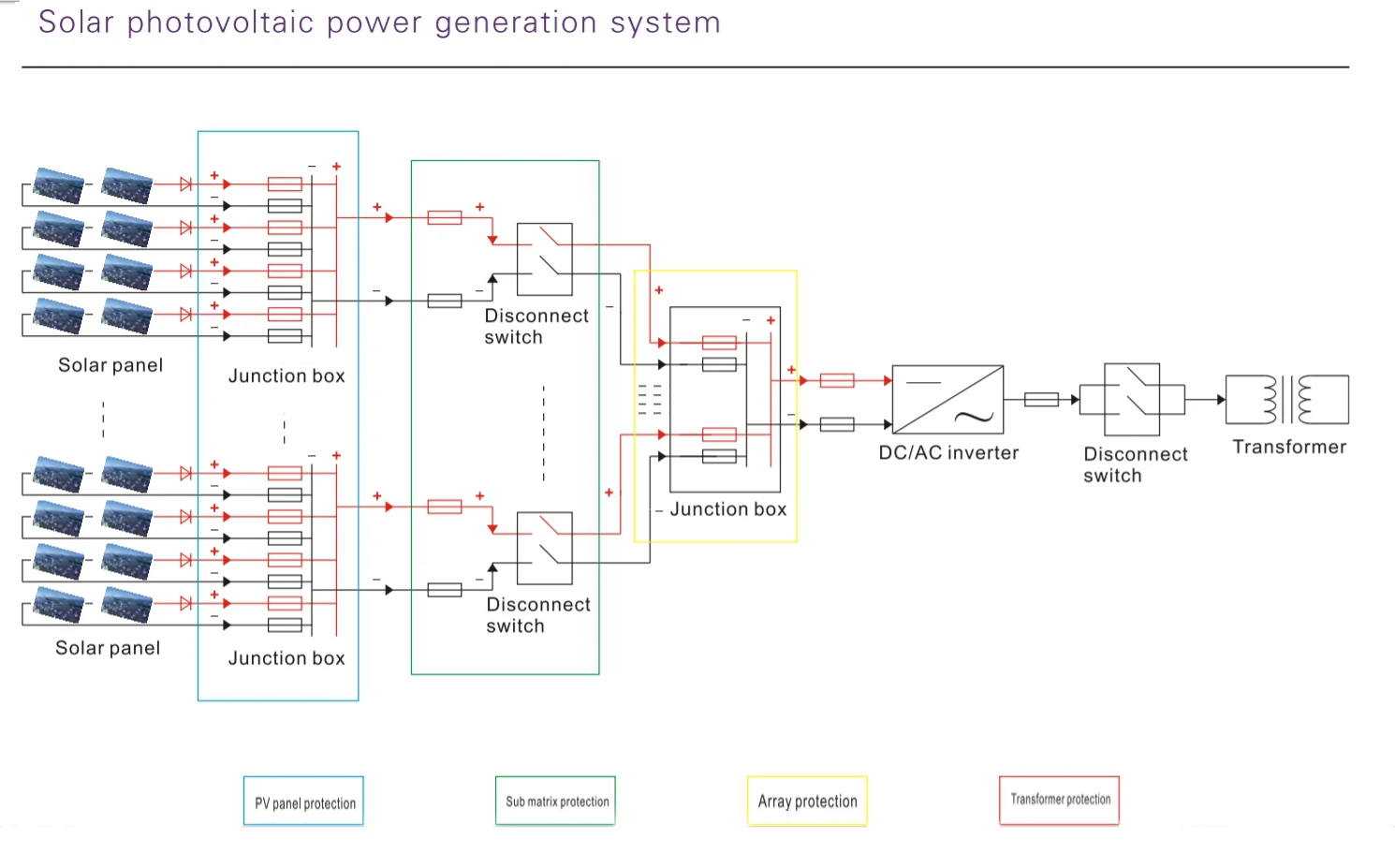

This series of fuse is suitable for solar photovoltaic power generation system, rated voltage to 1500V, rated current to 63A,
used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for over current
protection, and photovoltaic panels,and batteries connected in series and parallel, to charge variable flow system for short
circuit breaking protection, in photovoltaic station and inverter rectifier system for short- circuit breaking protection,as well
as photovoltaic power generation system,inrush current and short circuit fault voltage for quick break protection, rated breaking
capacity to 10~ 50kA,products confirms to IEC 60629.1 and 60629.6.






Normal Service Conditions
Ambient Temperature: -40°C~+ 90°C
Equipment installation height: less than 2000m (If exceeding this value, please specify the requirements, and company will design
according to the requirements) Relative air humidity: less than 90%




Structure
Fuse link is made of pure silver (or made of silver strings), welding low tin and encapsulated in the melt tube made of high-
strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected
with contacting terminals by spot welding Fuse base suppressed by the plastic casing fitted with contacts and contains the fusion
pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and
convenient device, use security, beautiful appearance, etc.
