RisingHF LoRaWAN Network Server IoTSquare is a micro data platform customized for small LoRaWAN networks. With IoTSquare platform, users can do LoRaWAN application test, operating, maintenance, and data management quickly and easily on the deployed LoRaWAN network. The IoTSquare can support access for up to 300 gateways and 100k end-nodes.
Benefits from years of technical accumulation and precipitation of RisingHF in the LoRaWAN field, IoTSquare provides a complete preset regional frequency plan, such as CN470, EU868, AS923, US915 etc, and can cover most global common frequency bands.
The IoTSquare platform is fully compatible with the LoRaWAN standard and can be seamlessly interfaced with RisingHF’s all gateway types and node products to help device manufacturers quickly realize the ability to internet of things.
BasIC Function
Support LoRaWAN standard protocol
Support all V1.0.x protocols, such as V1.0.2, V1.0.2B, V1.0.3 etc
Support Class A/B/C device access
Support downlink window dynamic scheduling algorithm, provide efficient downlink data scheduling mechanism
Support automatic MACCMD delivery function
Support ADR function
Support Chinese and English bilingual interface, switch on one-click

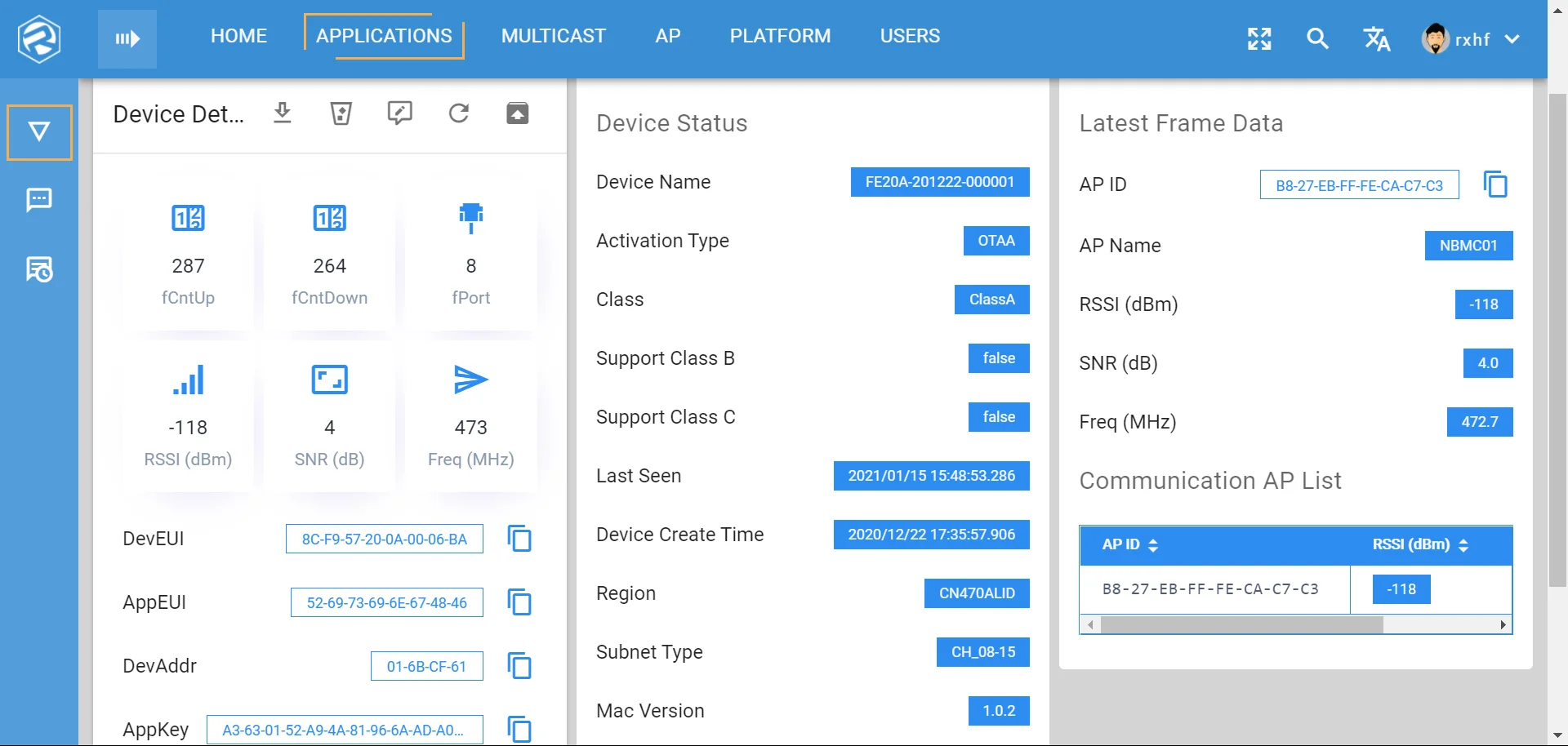

Provide complete device and gateway management mechanism, support device batch import, device historical data export, real-time data and historical data viewing
Provide gateway SDK online management and upgrade
Provide Class C-based multicast group management
Provide data storage capability to facilitate user storage and real-time access to massive device data
Divided by functional modules, provide a stable and reliable API interface
Gateway Access INTERFACE
Support IoTSquare SDK mode access
Use TLS encrypted transport for better network stability, security and real-time
Efficient data compression, which reduces traffic transmission by more than 50% over Packet Forwarder access

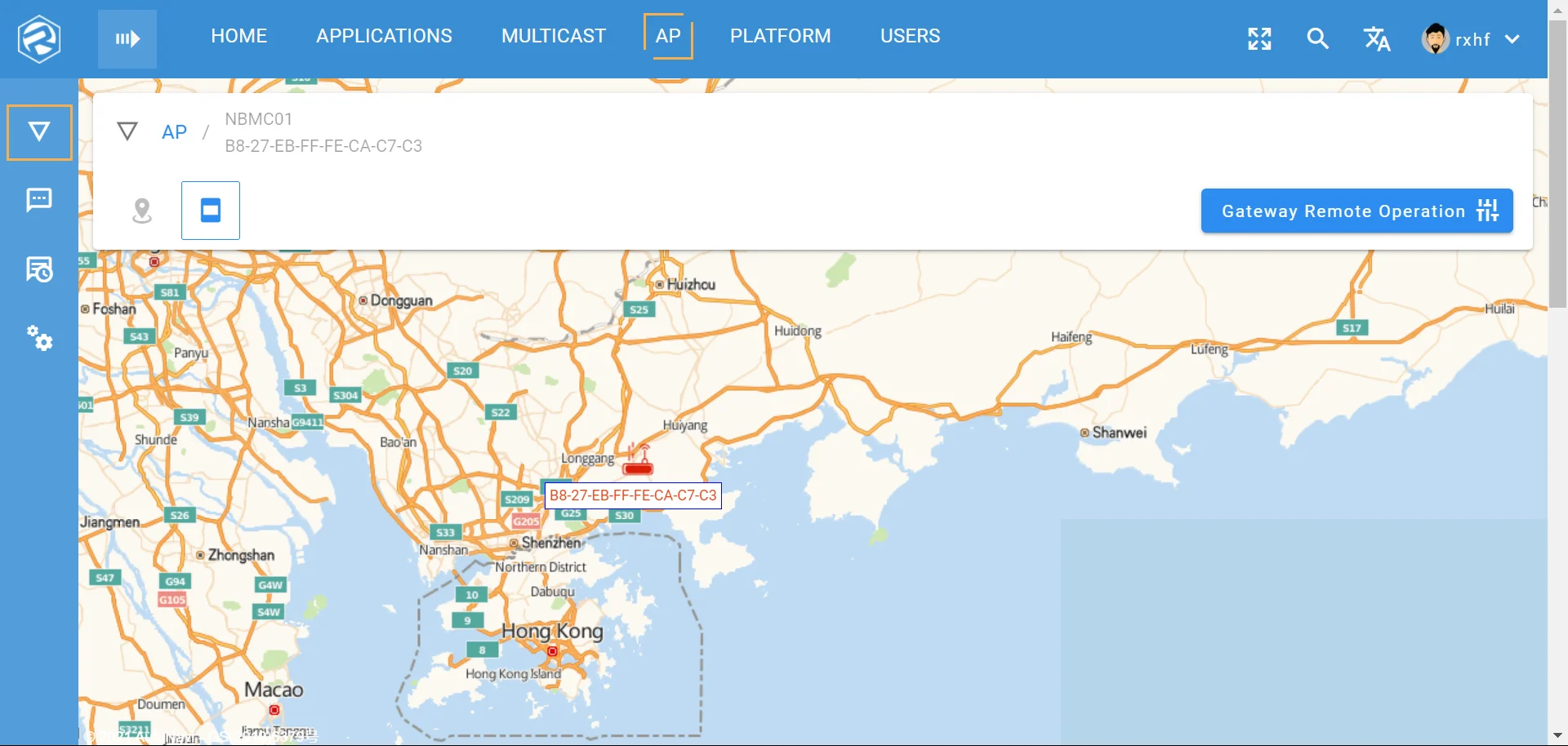

Gateway remote control and remote upgrade
Support UDP access, compatible with Semtech standard Packet Forwarder protocol

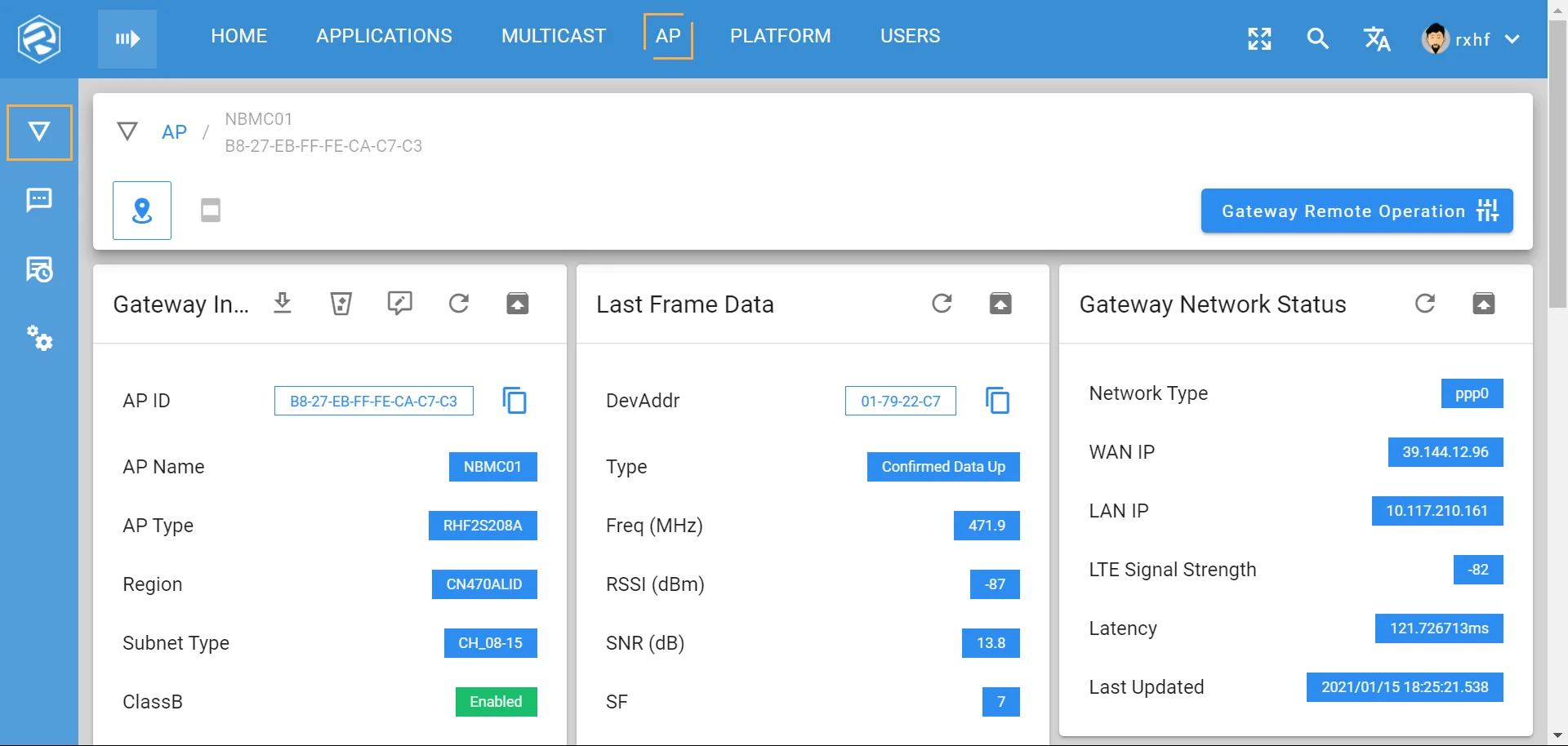

Detailed gateway connection status monitoring logs to help simplify network management
Complete Data Stream
Most LoRaWAN application services stop at the application layer data push, making it difficult to solve the problem of protocol stack and hardware development and network operation and maintenance. For this reason, IoTSquare provides complete data flow from LoRaWAN protocol layer to user application layer, including gateway, node real-time data, historical data, covering all information of application layer and protocol layer, supporting online delivery, data tracking, and helping customers quickly develop new products and streamlined network operation and maintenance processes.
Data Platform Interface
The application can be configured to perform data push and configuration request headers in HTTP/HTTPS mode to implement user-defined authentication and authorization functions
The interface-tools tool provides NAT intranet users with the same data push as the public network environment when the application enables the MQTT debugging function
The open interface supports token authentication to obtain node and gateway configuration information
Architecture And Deployment
IoTSquare provides a free online test account and opens full debug permissions and push interface
IoTSquare backend with scalable microservices architecture and container technology to support flexible deployment mode
Stand-alone deployment for maximum customer cost reduction
Cross-host cluster deployment, horizontally expand system load capacity without downtime
Support deployment to major cloud service providers at home and abroad (users need to purchase virtual hosts and related services themselves)
Ali Yun
Tencent Cloud
Amazon AWS
Google Cloud
Support deployment to private data center provided by the user
Contact Information
Contact salesww@risinghf.com for more ordering information
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Production flow chart
Assembly Line
SMT Line1
SMT Line2

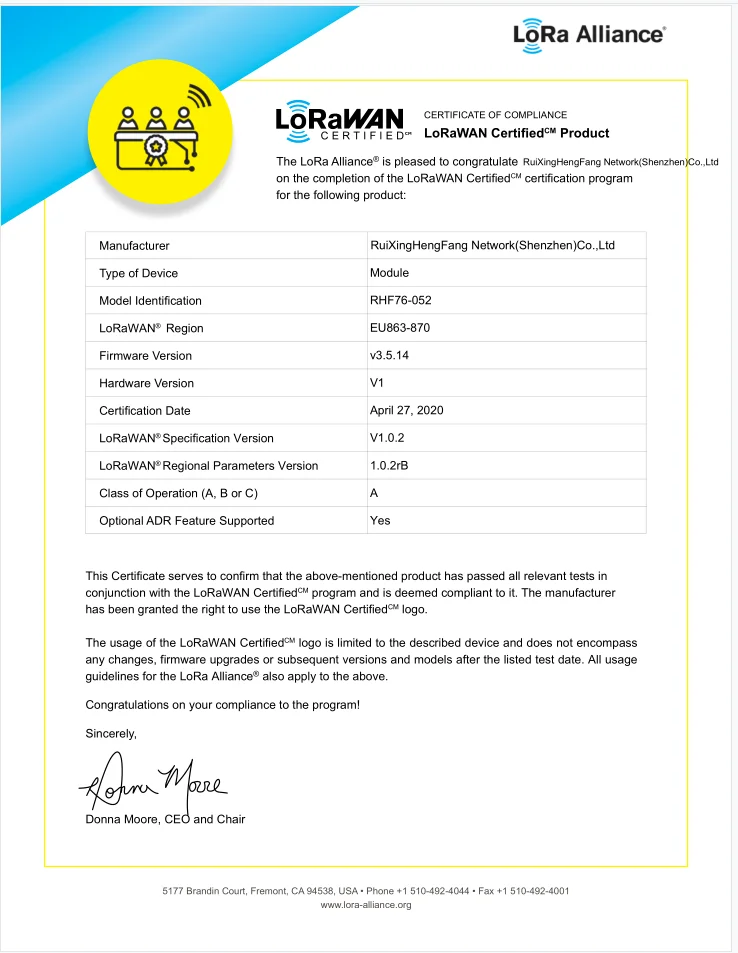

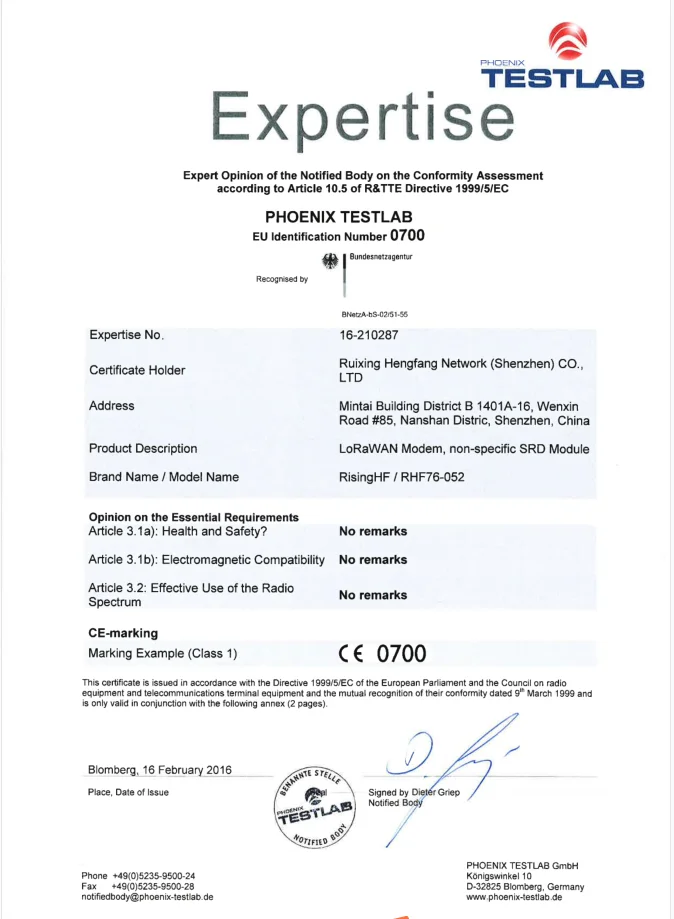

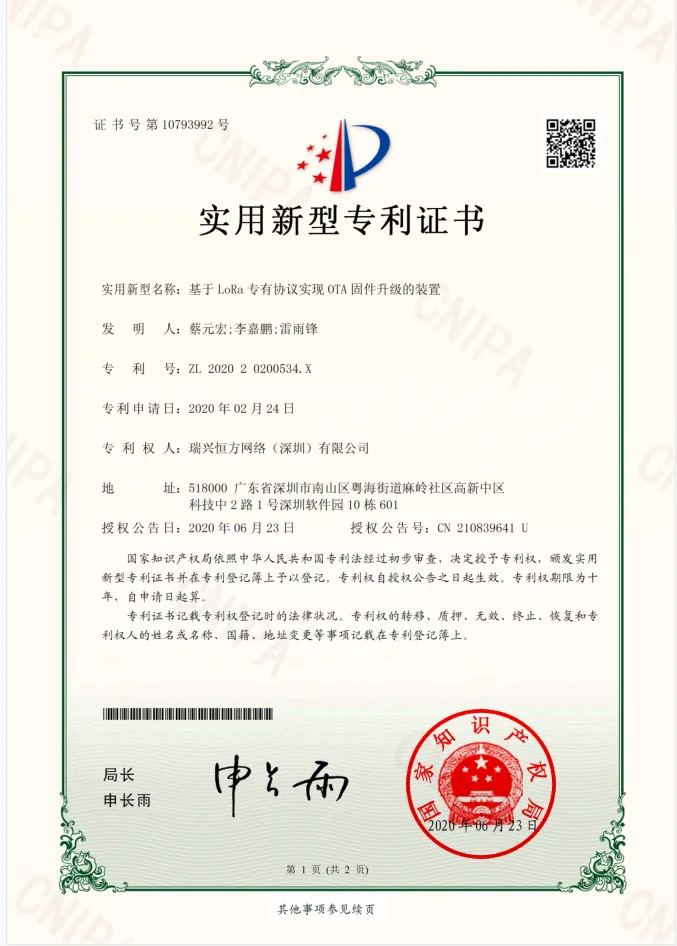

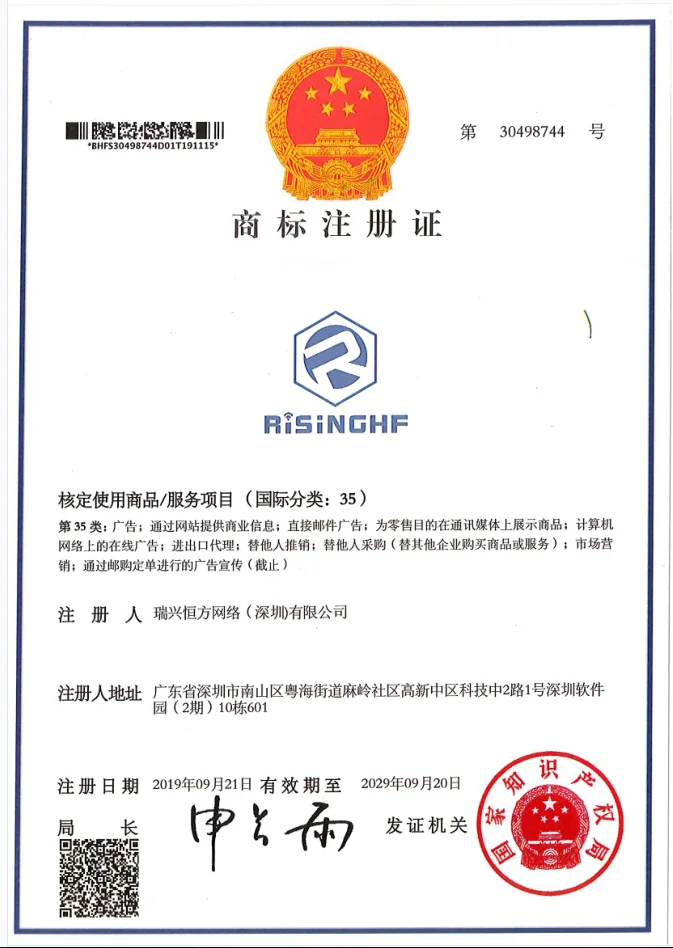

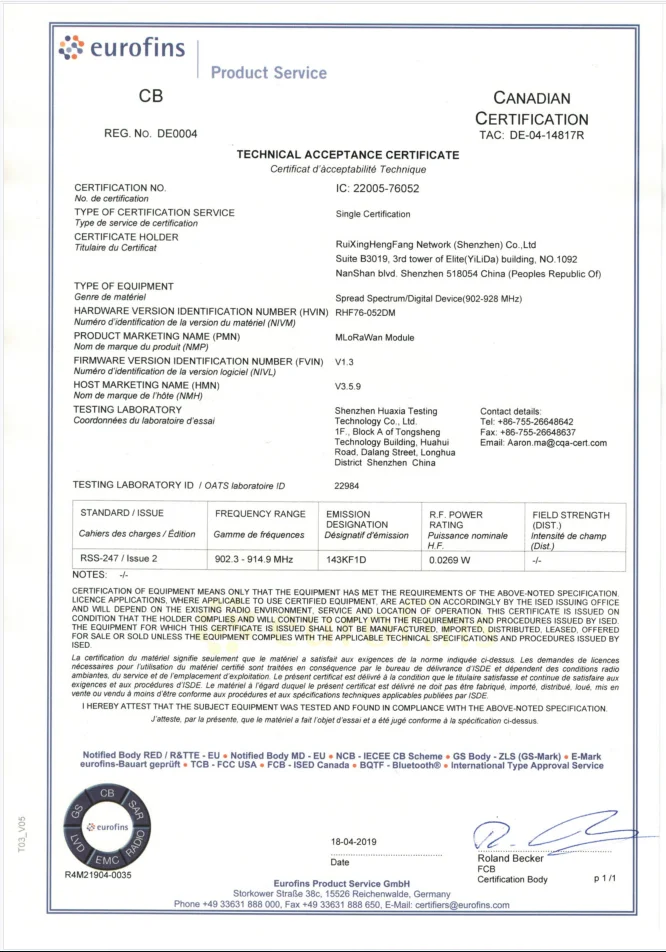

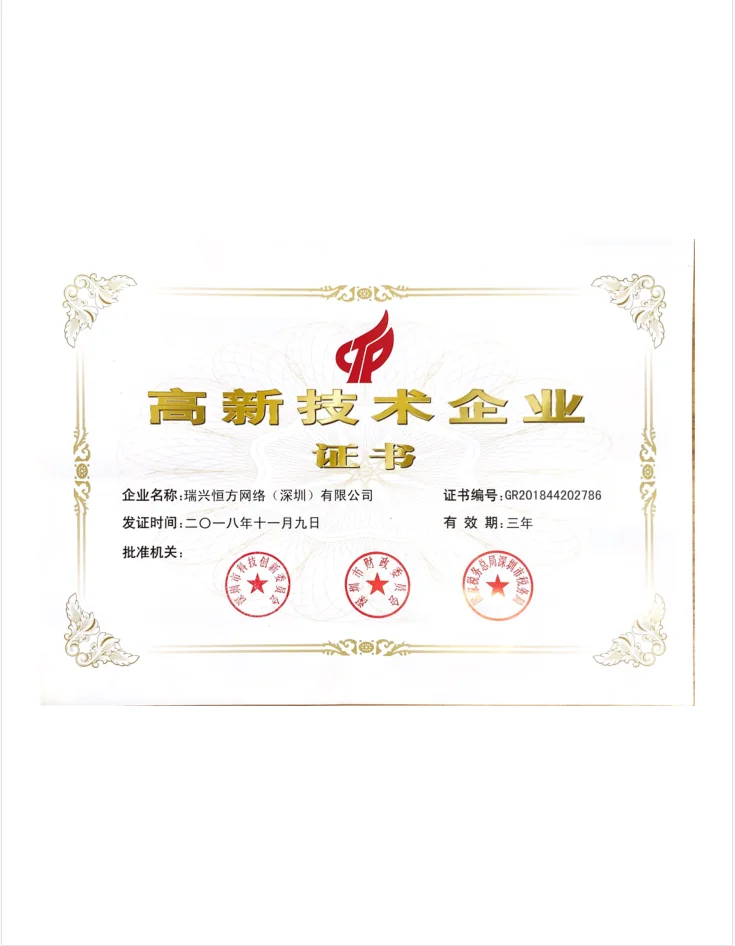

Certifications
FAQ
1.What’s the advantage of RisingHF LoRaWAN module?
Answer: RisingHF LoRaWAN module is developed with standard LoRaWAN protocol with LoRaWAN certificate. All RisingHF module supports global LoRaWAN protocol, include CN470, EU868, IN865, RU864, AS923, US915, AU915, KR920, KZ865 and so on. And some new features like LoRaWAN Relay, multicast, FUOTA.
2.How to use RisingHF LoRaWAN module?
Answer: RisingHF LoRaWAN module is integraged with LoRaWAN stack inside. Customer just need to send AT command from Host MCU to the module via UART interface. No need to care about the LoRaWAN protocol but just focus on your application design.
3.What frequency do your module, device and gateway support?
Answer: Currently our module, device and gateway can support CN470, EU868, IN865, RU864, AS923, US915, AU915, KR920, KZ865 and ect.
4.What's the MOQ if we need to order your device?
Answer: For modules, MOQ is 10. And there is no MOQ limitation for others device, you can even order 1 set of our gateway.
5.What's the lead time?
Answer: usually if you need several samples, it takes about 4~7 working days; For batch orders, usually lead time will be about 20~35days according to your order quantity and requirement. Please contact with our custom services or sales to double check.
6.Are your modules and gateways CE/FCC certified?
Answer: Both our LoRaWAN modules and gateways are CE/FCC certified.
7.How can I get technical support?
Answer: Please find some technical doc on our website www.risinghf.com first. Or you could contact with our custom service or sales directly to ask for more support.
