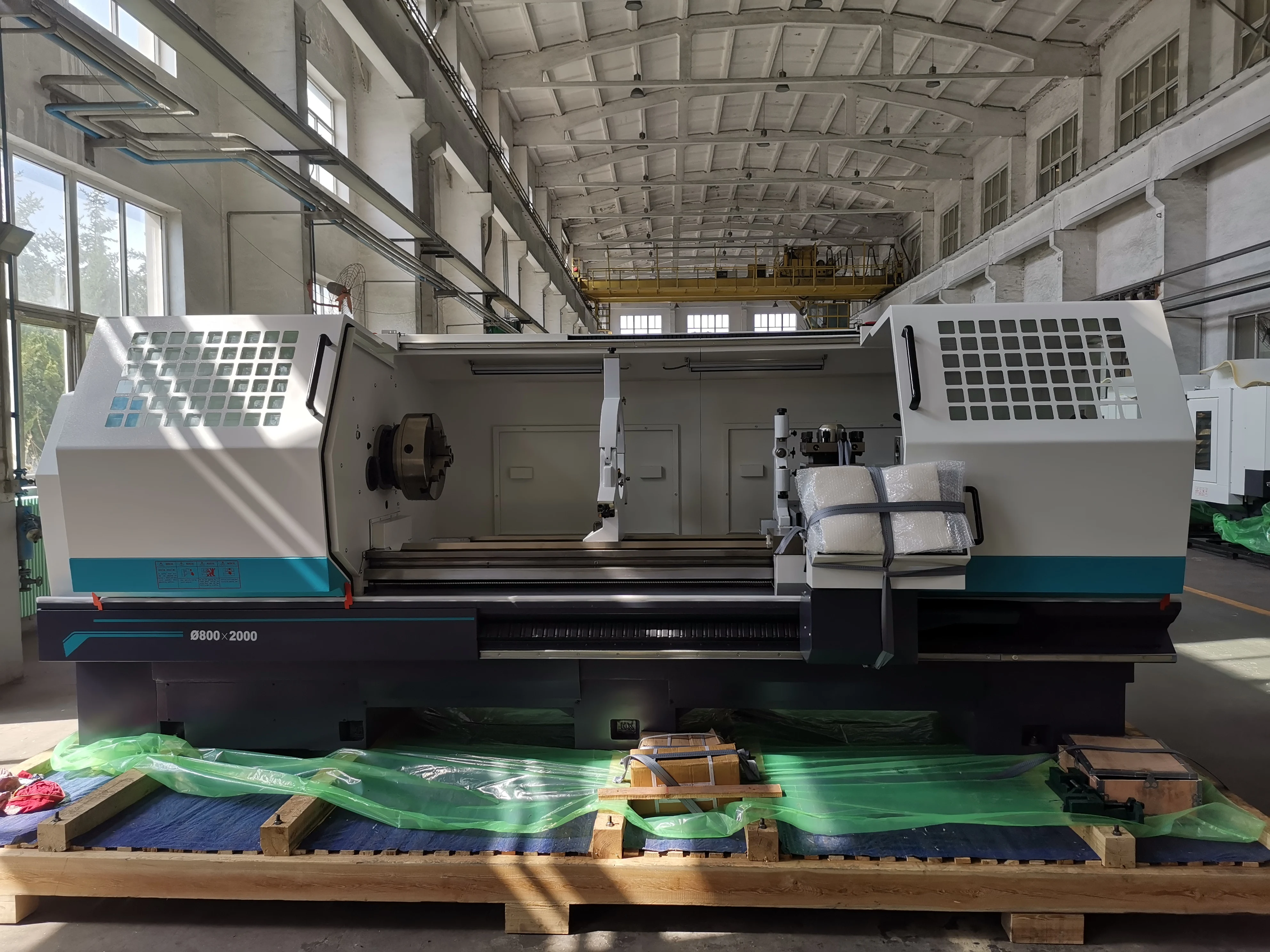

Outlet Price Processing Variable Speed metal Lathe CKE6180 CNC Lathe Machine

Share on (1600196206702):


Price:RUB 1,449,163.17

Quantity:


Product Overview

Description

Specification
CNC system
Fanuc/Siemens
Max. Swing over bed mm
φ800/φ1000mm
Max. Swing over toolpost mm
φ490/φ700mm
Max workpiece length mm
1000/ 1500/2000/3000/4000/5000mm
Width over bedways mm
550mm
Main motor power kW
11kW/15kW
Diameter spindle bore mm
Ф100
Spindle nose
C11
Spindle speed r/min
7-1000 r/min
Tailstock quill taper
No 6 MT
Quill diameter/Quill travel Tailstock mm
Ф100/240mm
Max. travel of X-axis mm
400mm
Max. travel of Z-axis mm
791/1252/1852/2755/3791/4752mm

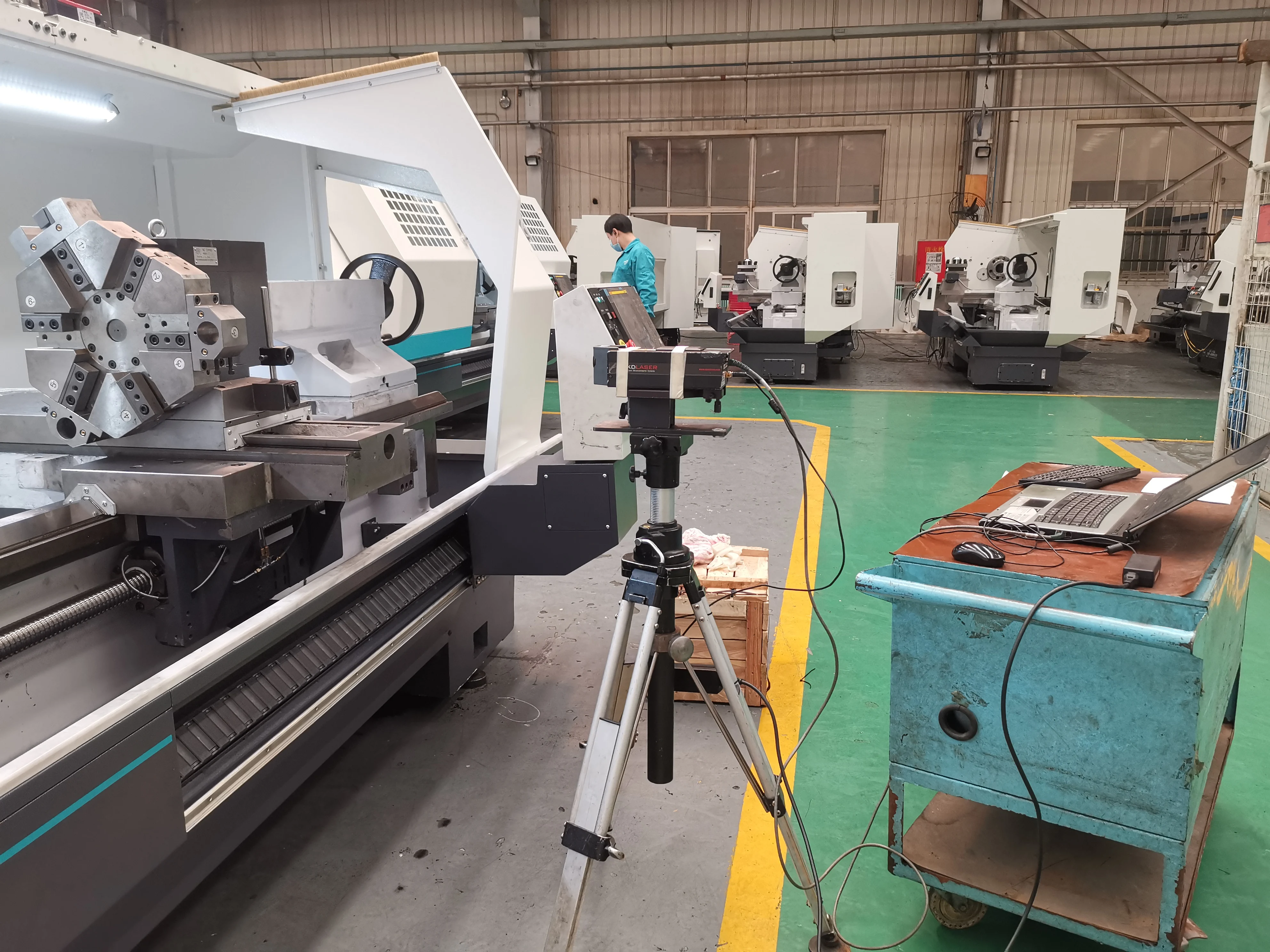

Position accuracy X/Z mm
0.017mm/0.023mm(1000)/0.025(1500/2000)/0.029(3000/4000/5000)
Repeated position accuracy X/Z mm
0.007mm/0.012(1000)/0.015(1500/2000)/0.015(3000/4000/5000)
Tool shank mm
32×25mm
Size & weight mm kg
3450/3900/4500/5400/6450/7530 × 2025 × 1810mm 5250/5570/6070/6370/7550/8550kg(1000/1500/2000/3000/4000/5000)
Standard configuration

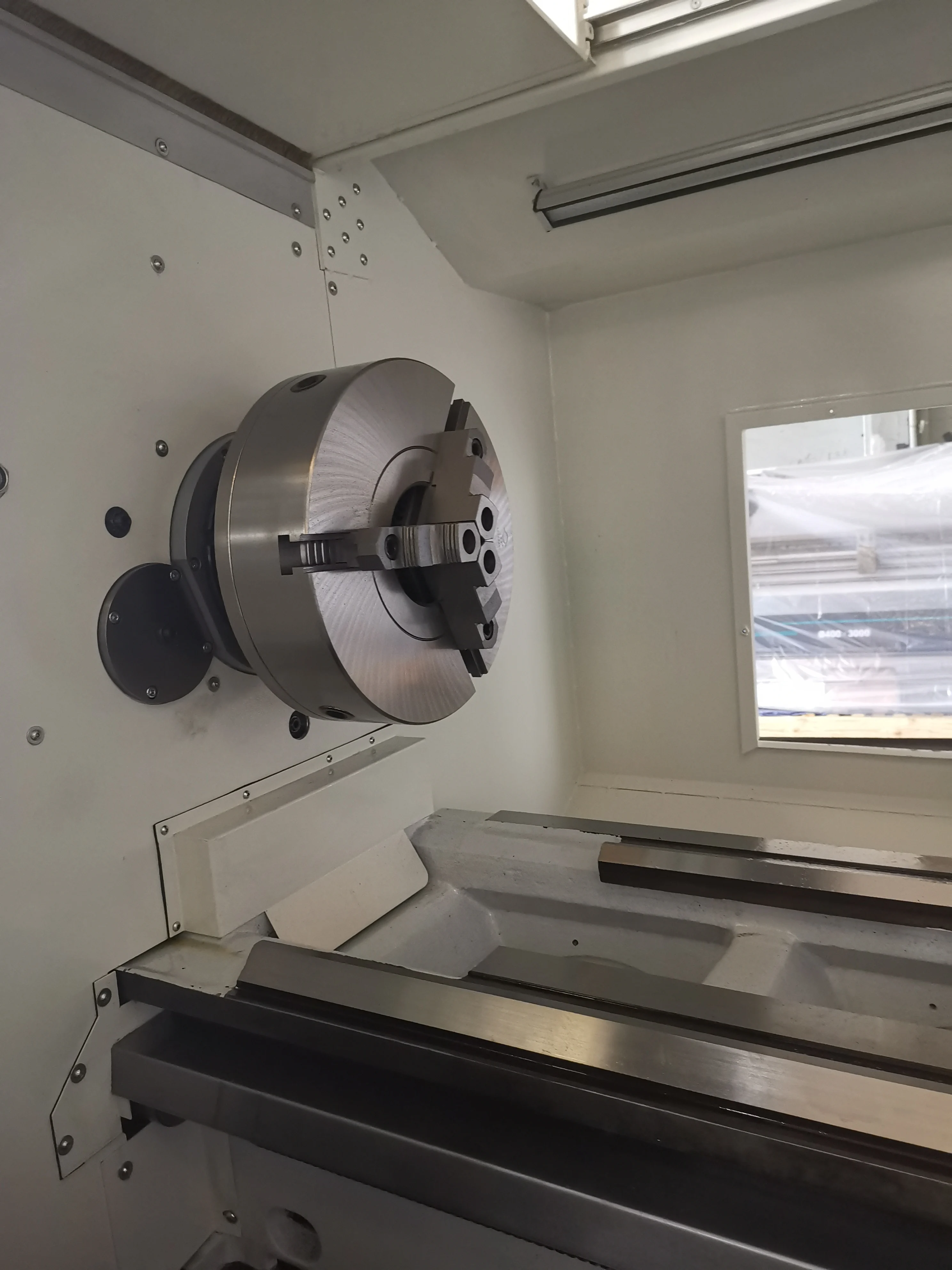

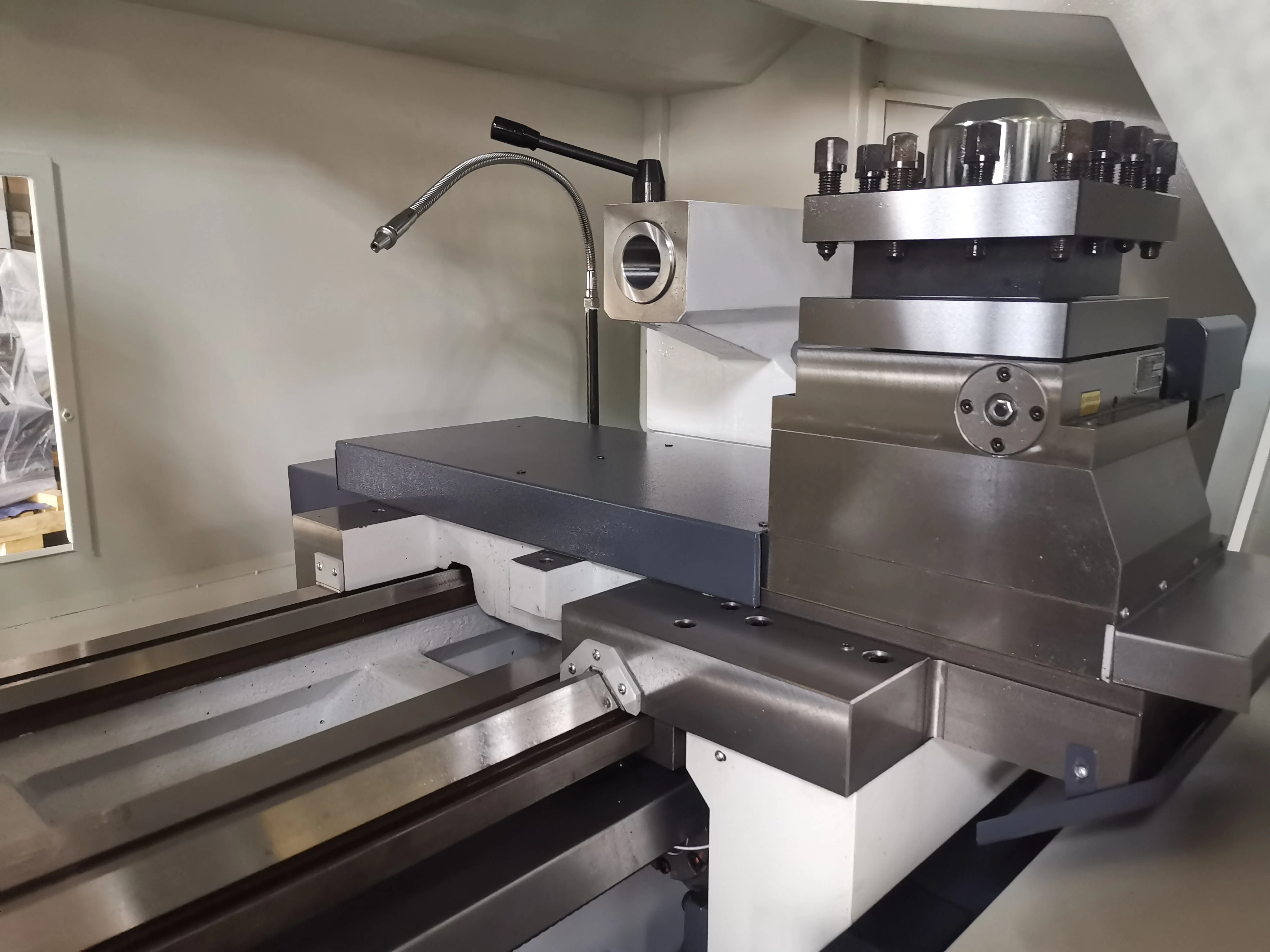

CNC Siemens,CNC Fanuc, 3-jaw chuckФ400mm/Ф500mm, 4-position tool holder, Manual tailstock, Electric cabinet heat and cold exchanger, Working lighting, Automatic lubrication system of guide rail, Automatic cooling system, A set of keys and tools for machine tool maintenance, Lubrication gun, English documents
Optional configuration
4-jaw chuck,
6-position tool holder,

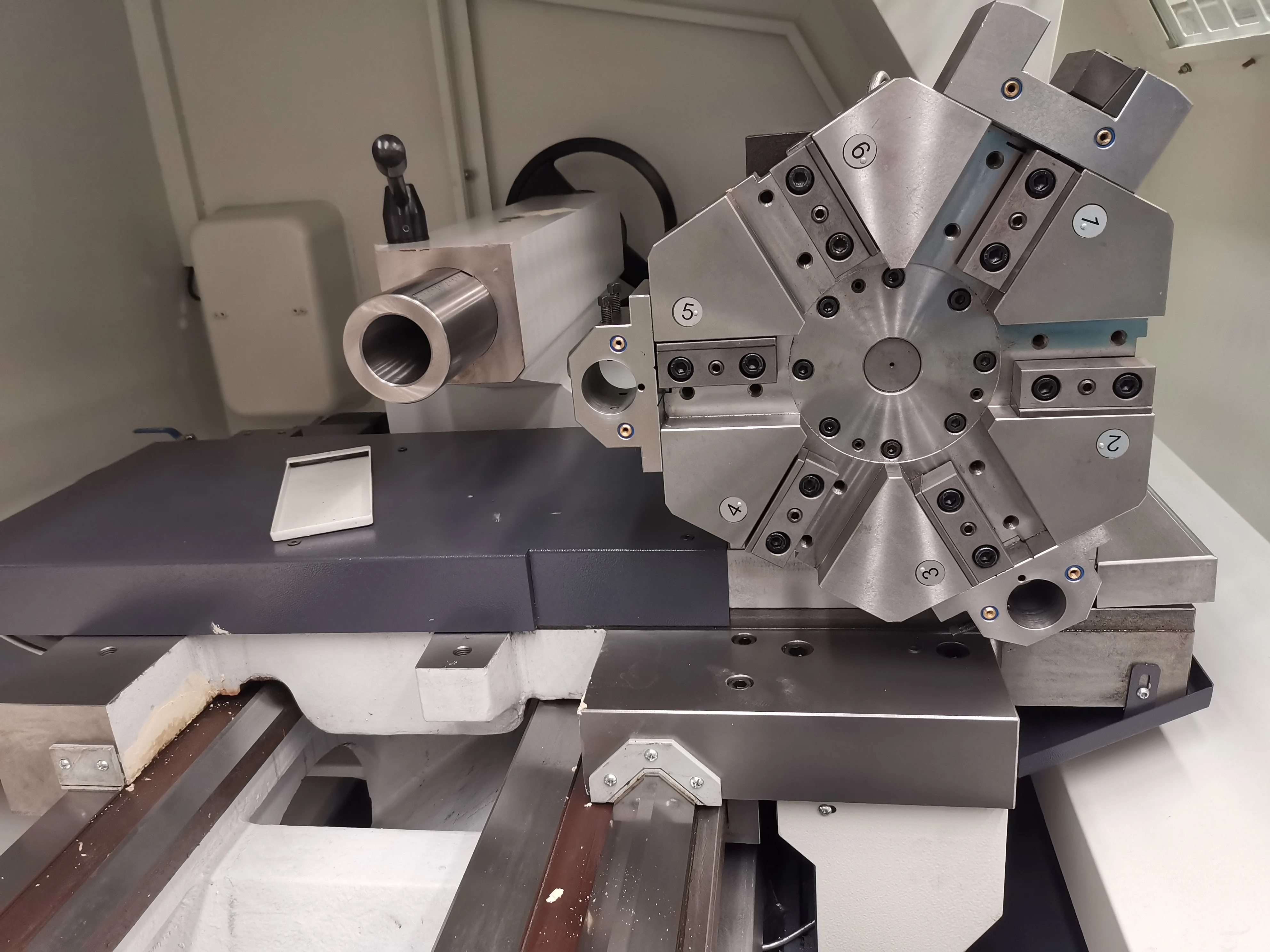

8-Position tool holder,
Hydraulic chuck,
Hydraulic tailstock,
Centre rest,
Follow-rest,
Live top,
Automatic feeder

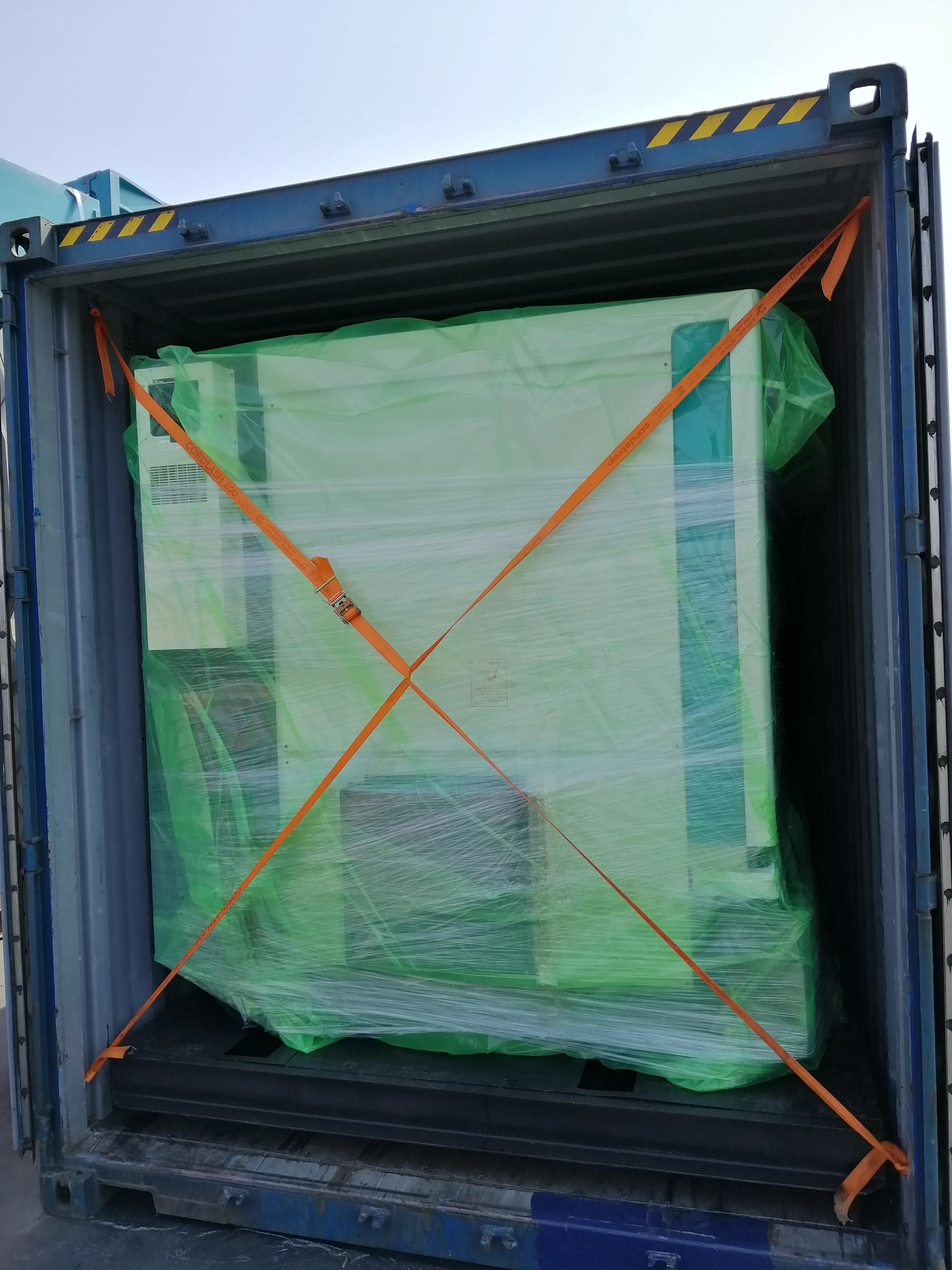

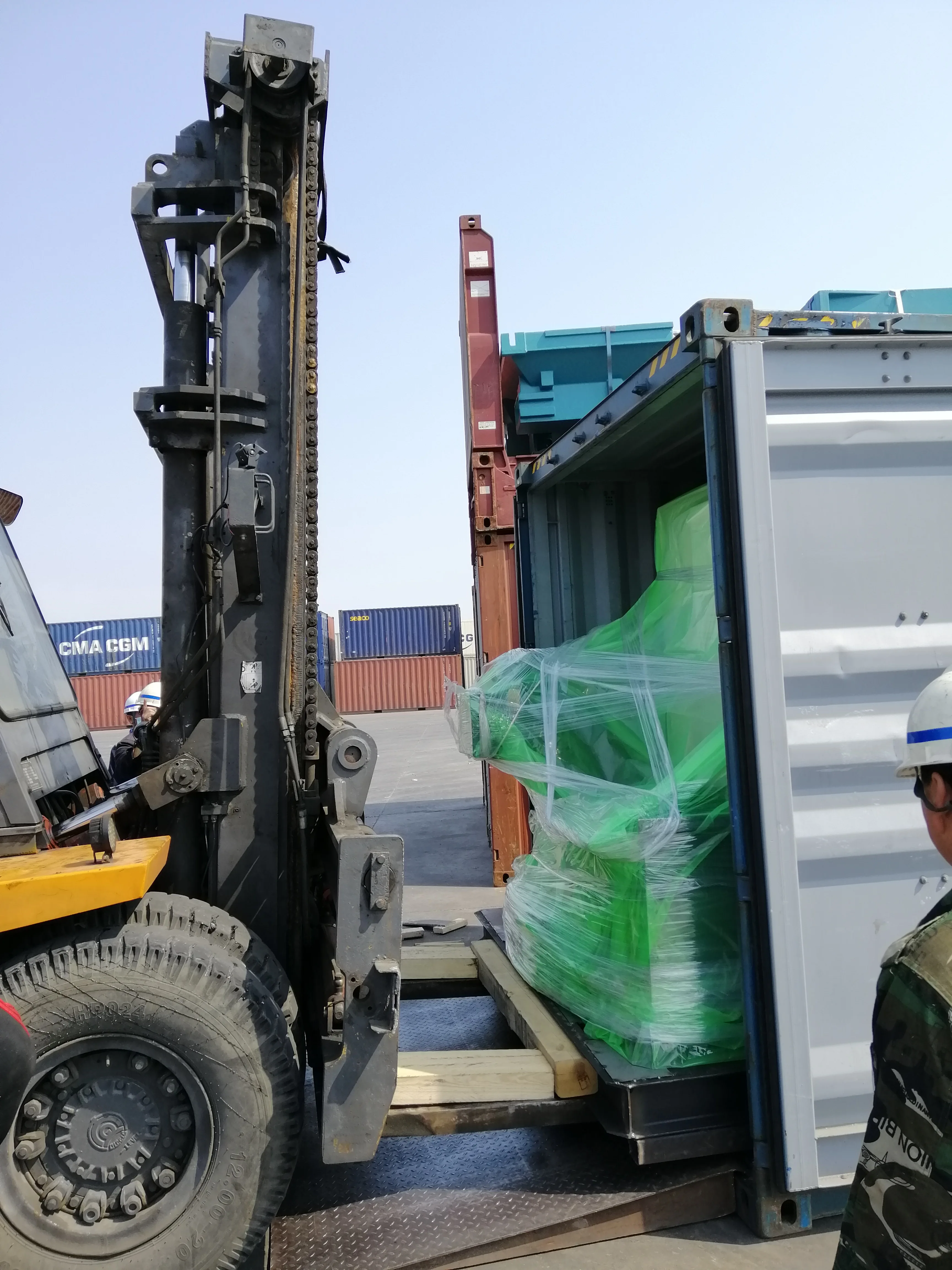

Packing & Delivery
Our shipping methods cover world-renowned shipping company: DHL, UPS, DEEX, ARAMEX and so on.
No matter where you are, The Mission Must Reach!
Just contact us to know which method is best for you!

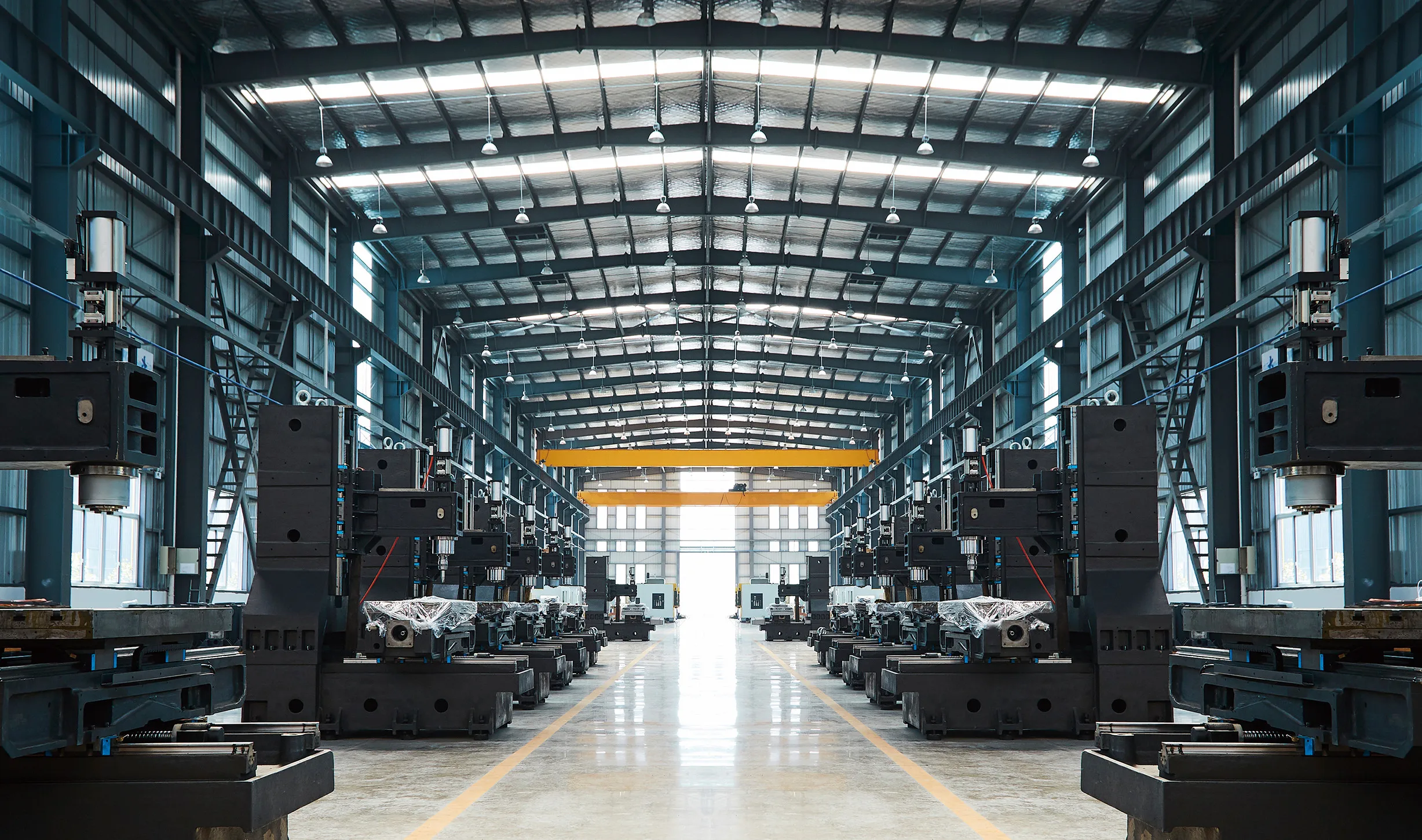

Company Profile

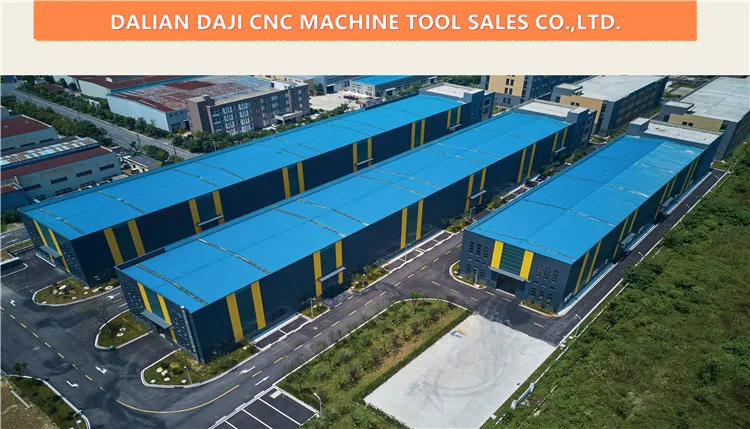

Dalian Daji CNC Machine Tool Sales Co., Ltd., formerly known as Dalian Jinyu Machine Tool Co., Ltd., was established in 1992. It has been a key enterprise in the machine tool industry for a long time. After restructuring, it has become an independent R & D manufacturer. Now it is committed to CNC machine tools, vertical machining center, horizontal machining center, gantry machining center, boring machine, radial drilling machine, flexible manufacturing technology and automatic testing Technology and high-speed CNC machine tools, high-speed machining centers, flexible production lines, precision mold and parts processing equipment technology research and development, manufacturing, sales, all-round service in one company, the company has become a strong domestic CNC machine tool manufacturing enterprises. The company is headquartered in Dalian, Liaoning Province, with a plant area of more than 66000 square meters and more than 200 employees. Its products are exported to the United States, Russia, Turkey, Germany, Kazakhstan, Indonesia, Malaysia, Thailand, Vietnam, Mexico, Brazil, Argentina, Australia, Saudi Arabia, Middle East countries and other countries. formerly known as Dalian Jinyu Machine Tool Co., Ltd., was established in 1992. It has been a key enterprise in the machine tool industry for a long time. After restructuring, it has become an independent R & D manufacturer. Now it is committed to CNC machine tools, vertical machining center, horizontal machining center, gantry machining center, boring machine, radial drilling machine, flexible manufacturing technology and automatic testing Technology and high-speed CNC machine tools, high-speed machining centers, flexible production lines, precision mold and parts processing equipment technology research and development, manufacturing, sales, all-round service in one company, the company has become a strong domestic CNC machine tool manufacturing enterprises. The company is headquartered in Dalian, Liaoning Province, with a plant area of more than 66000 square meters and more than 200 employees. Its products are exported to the United States, Russia, Turkey, Germany, Kazakhstan, Indonesia, Malaysia, Thailand, Vietnam, Mexico, Brazil, Argentina, Australia, Saudi Arabia, Middle East countries and other countries.
FAQ
1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 5.How about the delivery time? A: Within 35-45 days after we confirm you requirement. 6.What kind of payment does your company support? A: T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
