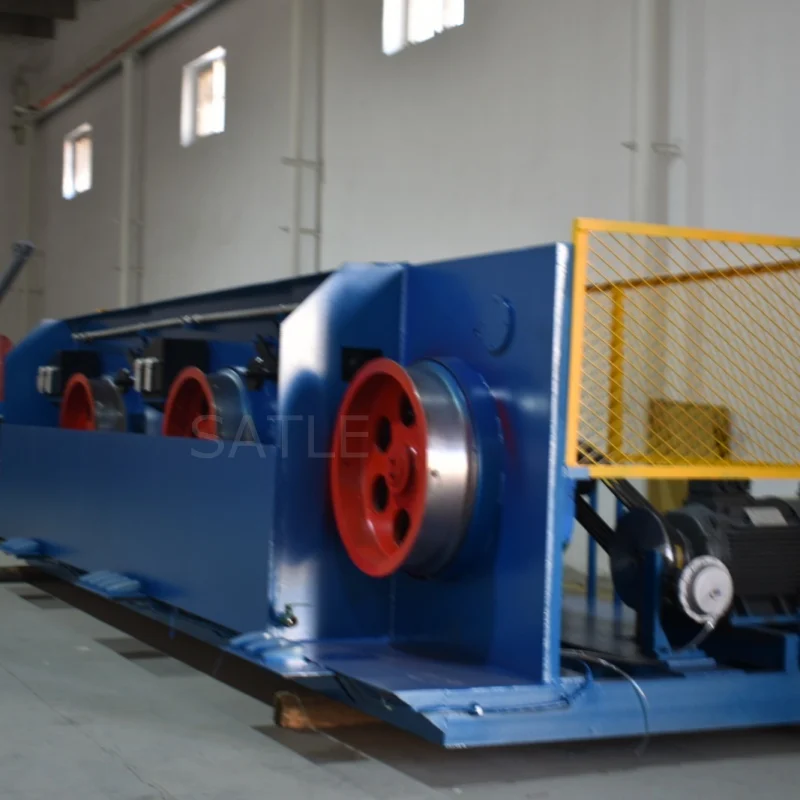

  • High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine

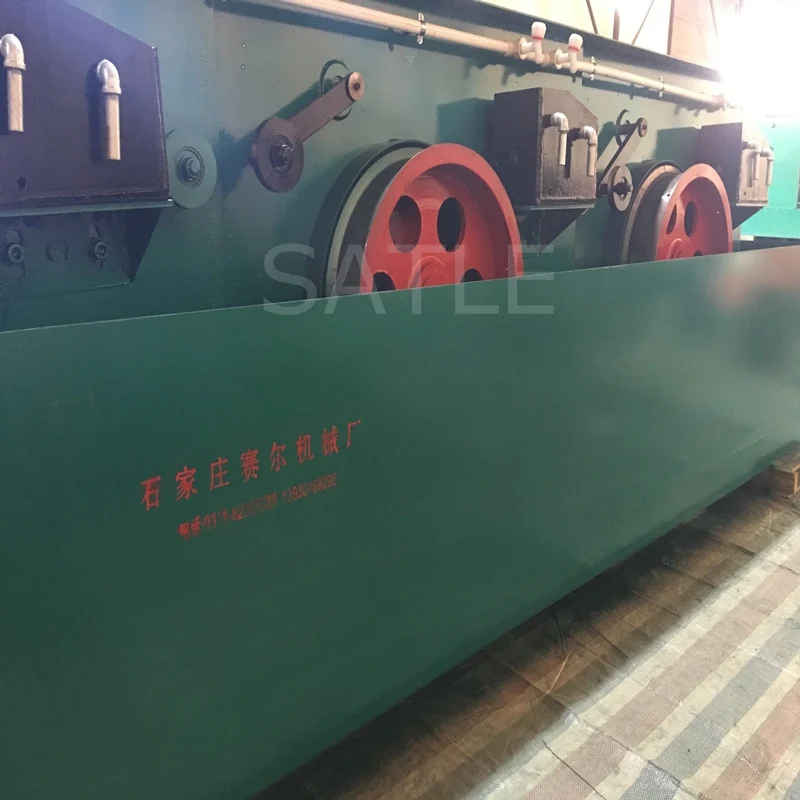

High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine
High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine

High efficient rod breakdown copper wire drawing machine Horizontal Type Straight Line Wire Drawing Machine

Share on (1600196209727):


Price:$6,300.00

Quantity:


Product Overview

Description





Product Display










Parameters


Model
LW400
LW560

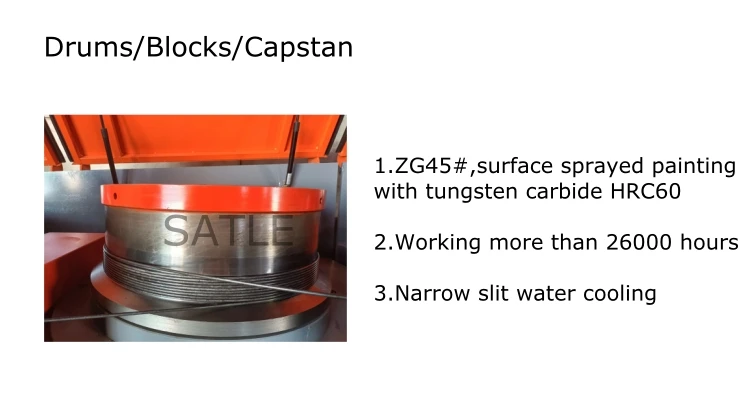

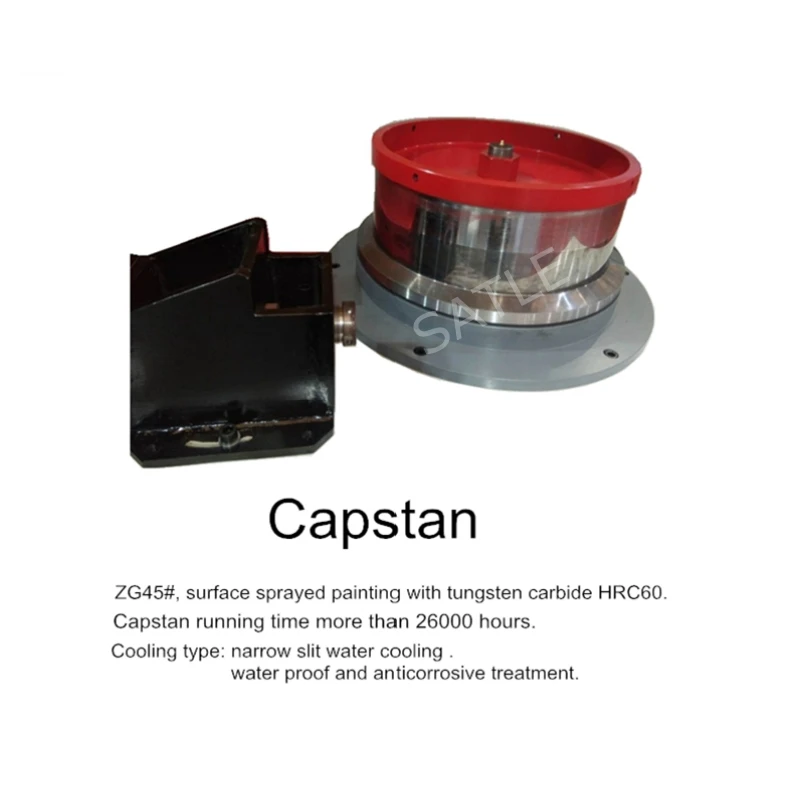

Diameter of Capstan(mm)
400
560
Maximum Strength of Inlet Wire(mpa)
~1100
800~900
Drawing Time
6~8
6~8
Average Compression Ratio
21%
25%
Maximum Diameter of Inlet Wire(mm)
3.2
6.5
Minimum Diameter of Finished Product(mm)
0.8
2.3
Highest Drawing Speed(m/s)
~12
~10
One block
11
18.5~22
Driving System
Single or double-stage belt
Paying Off Manner
Automatic damping wire paying off
Taking Up Manner
Wire taking up with constant tension controlled by inverter
Suitable Drawing Materials
Various metal wire, for example welding wire(gas shield welding wire, submerged arc welding wire, flux-cored wire etc); electrode,
steel wire (medium and low carbon steel wire, stainless steel wire etc)
