1.Low speed powder filling production line for vials




Main description


This low-speed line is specially designed tor the requirement of low output and short-run production with reliable and stable production under the intermittent motion, the major machine parts procured from well know brand. adopt smart control system. The line benefits our customers by its few change parts and changing parts quickly.

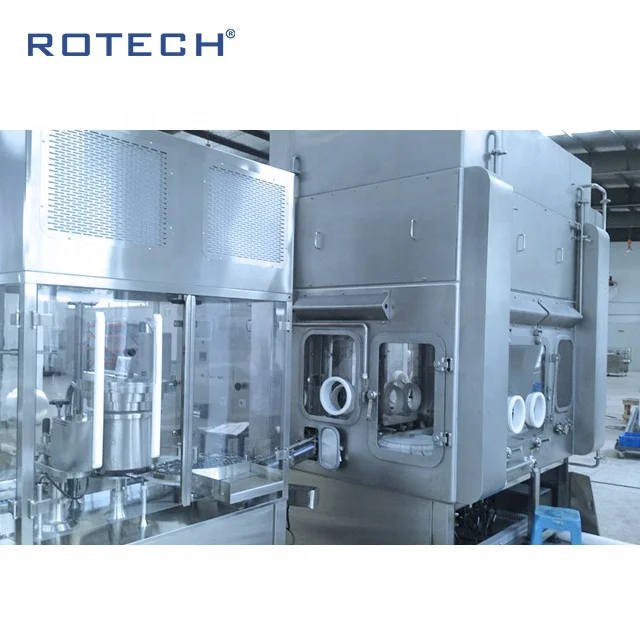

The entire synchronized filling line in stable running. easier operation, low noise, no pollution to production environment; the designing and manufacturing are being in compliance with ISO standard, cGMP guideline, FDA'S CFR211.67a regulation, CE standard, Principle of Human Machine Engineering; oRABS, cRABS, Isolator system are possible to provide optionally. The container sizes applicable range from 5m1-50ml with maximum production speed of the whole line up to 120viels/min.

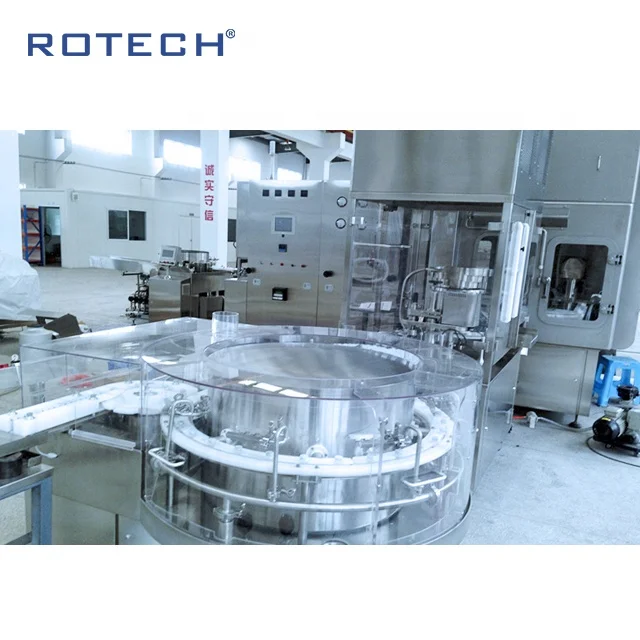

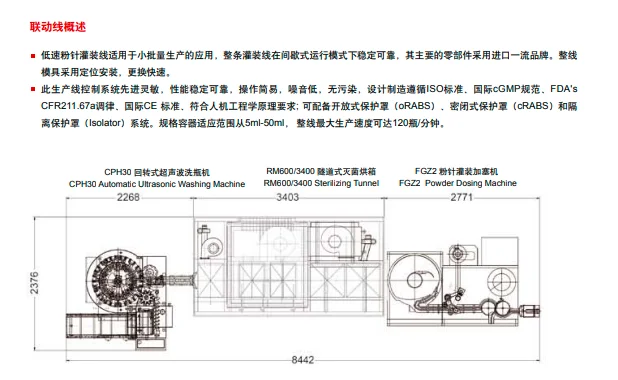

This line including QCL30 Automatic ultrasonic washing machine+ MR600/3400 sterilizing tunnel+ FGZ2 filling and stoppering machine

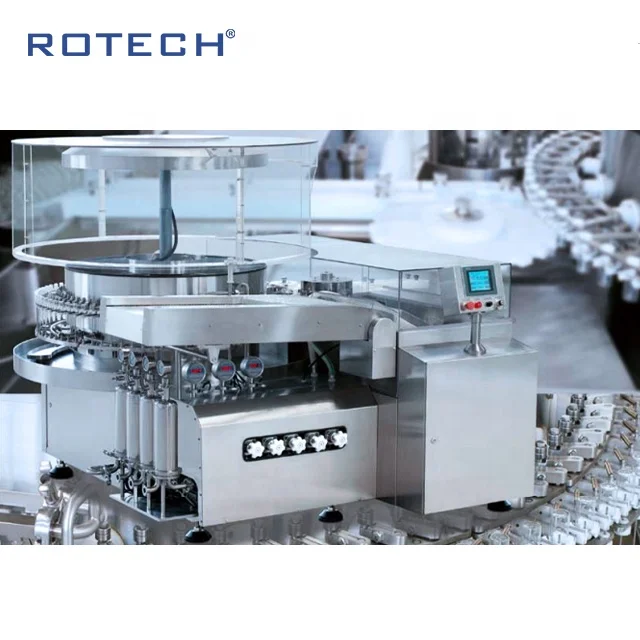

1.QCL30 Vial Automatic ultrasonic washing machine


QCL series automatic washing machine consist of infeeding section, ultrasonic treatment section and final washing section, the containers are going through those sections for completion of the whole washing processing by Ultrasonic treatment, prewashing and final washing steps, the cleaning quality of the container washed meets any Pharmacopoeia and being able to validate.














































































Model



QCL30 Automatic ultrasonic washing machine


2-5ML9000
7-10ML9000
15ML7200
20ML6600
30ML6000
50ML4200
100MLN/A

Power supply



380V/50Hz/3Phases



Power


 15KW


Compressed air




≤0.01%




Compressed air consumption




0.3-0.5Mpa




WFI temperature




≥35 m3/h




WFI consumption




40-60




PW pressure




0.30-0.5 m3/h




Dimension




1795*1894*1300




Feeding height




1000mm




Weight




2100kg

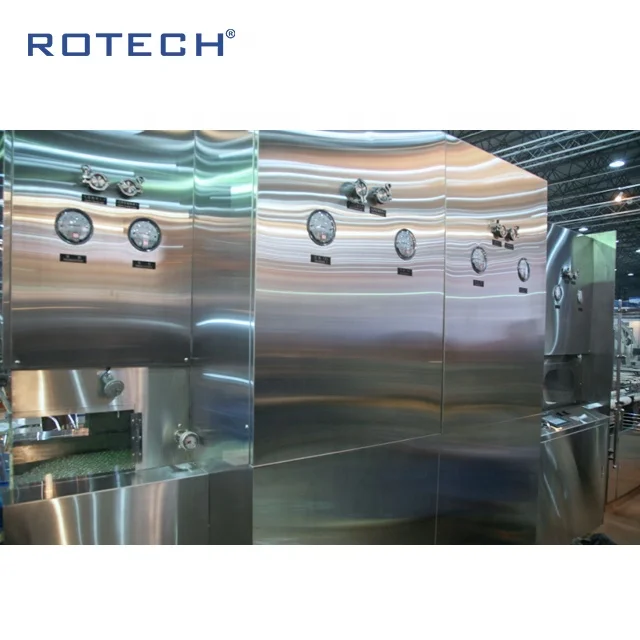

2.MR600/3400 Sterilizing Tunnel machine


This equipment is applied for drying, sterilizing and depyrogenating of washed vials, ampoules and all other containers. The sterilization tunnel could be divided into three different sections (preheating, heating, and cooling). Either water or air cooling is applied in the cooling zone. Various selections of customizable mechanical & electrical devices satisfy every need of each customer. Most importantly, not only the working principal but also the choose of material satisfy with the cGMP standard.















































































Model



MR600/3400 sterilizing tunnel


2-5ML13700
7ML8400
10ML6800
15ML5800
20ML3300
30ML2800
50ML730
100ML390

Power supply




380V/50Hz/3Phases




Power




56kw /≤±5




Air intake




500 m3/h




Exhaust




3900 m3/h




Water consumption




2-3 m3/h/6-9cooling water




Output temperature




30-35




Dimension




3400*1620*2200




Feeding height




900±20mm




Height




2300kg

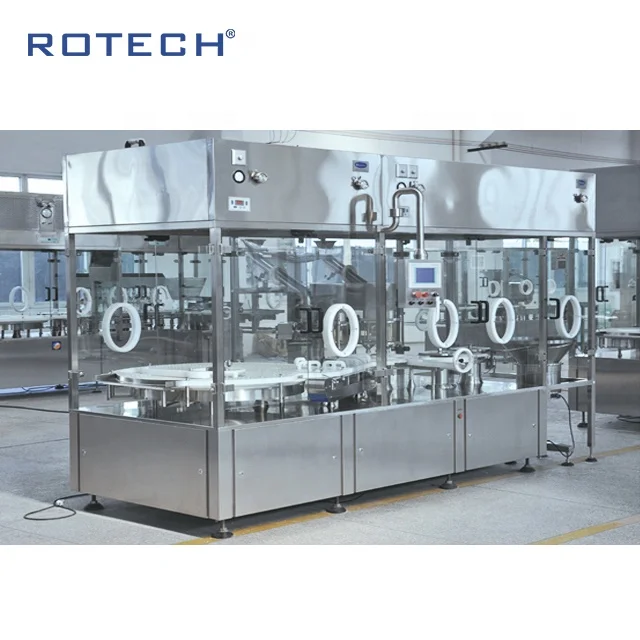

3.FGZ2 Vial powder filling and stoppering machine


The core design of the powder filling machine is to use the combination of servo motor and updated auger, which ensures the accuracy of the filling dosage. With the exact amount of powder filled in, rubber stopper will then be automatically sealed on top of each vial.










































































Description



FGZ2 Linear powder filling machine


7ML15000
10ML15000
15ML12000
20ML12000
25ML10000
30ML10000

Power supply



380V/50Hz/3Phases



Vacuum



-0.066Pa, 10m³/h



Power




3kw




Noise Level




≤65db




Max Capacity




15000




Tolerance




≤±2%




Completion rate




99.5%




Dimension




2330*1320*1800




Feeding height




900±20mm




Weight




1100kg
