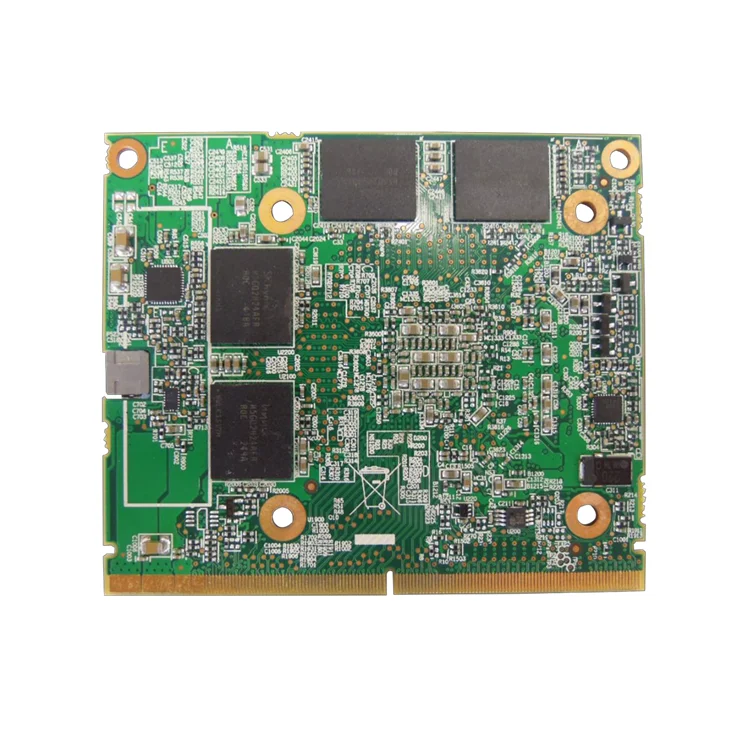

Xingtac GMC 775D HD7750 Graphics Card 2G 128bit GDDR5 64*32 MXM Type A 55W Graphics Card
- Category: >>>
- Supplier: Luchengtech Co. Ltd.
Share on (1600196339062):
Product Overview
Description
Xingtac GMC-775D HD7750 Graphics Card 2G 128bit GDDR5 64*32 MXM Type A 55W Graphics Card

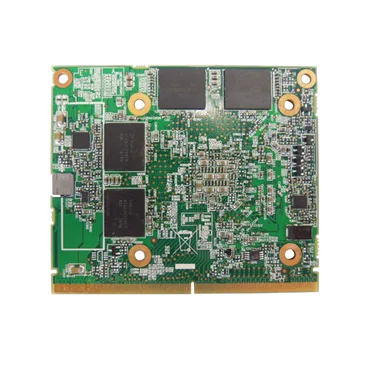

MXM Board Outlines: Figure 2.1 shows the board outlines (top side view) for Type A MXM modules. An additional system keep-out of 0.5mm[0.020] per side is allowed on the PCB to accommodate whatever means of production panelization is required. This additional clearance is above and beyond the dimensional limits presented here. The location of these features is not specified or controlled.

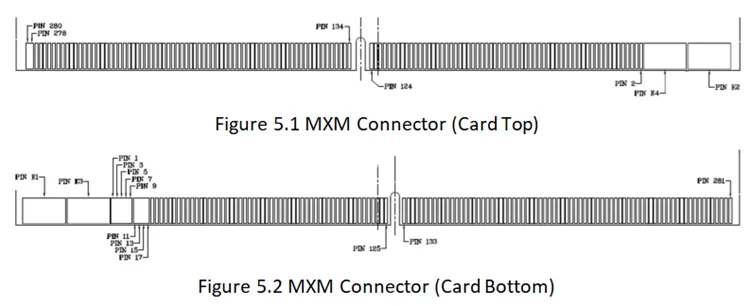

MXM Connector
Display Port Interface

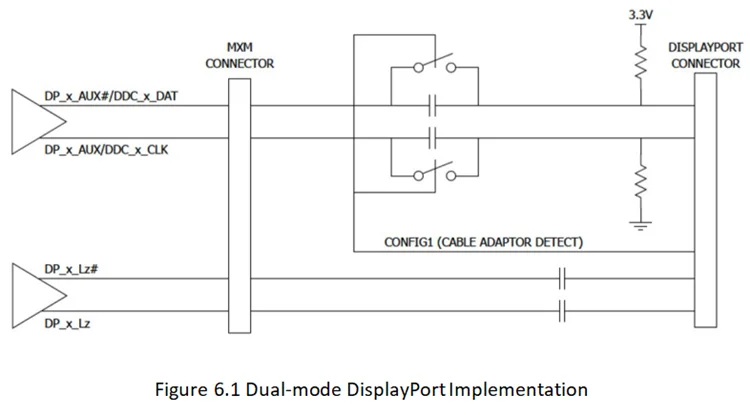

DC blocking capacitors of DisplayPort must be placed on the system board. In addition to the MXM implementation of Dual-mode DisplayPort requires the circuit in Figure 6.1 on the AUX lines for proper dongle detection. The HPD signal conditioning must also be placed on the system board.
Tech Specs
Chipset | AMD Radeon HD7750 28nm | ||||||
Shader Processing Units | 512 Shaders | ||||||
Bus Type | MXM 3.0 / up to PCI Express 3.0 | ||||||
Memory Size | 2GB 128bit GDDR5 | ||||||
Chip / Memory Clock | 600MHz / 800MHz | ||||||
Board Power | 55W | ||||||
Board Dimensions | MXM Graphics Module Version 3.0 Type A (72x82mm) | ||||||
Number of output Channel | 6 | ||||||
OpenGL | 4.5 | ||||||
DirectX | 12 | ||||||
Video Playback | H.264, VC-1, MPEG2, MVC, MPEG-4/DivX Decode | ||||||
VIN Range | 12~19V | ||||||
