High quality 1 ton pickup truck crane with electric winch for sale
- Category: >>>
- Supplier: Shandong Jndo Hoisting Equipment Co. Ltd.
Share on (1600196354575):
Product Overview
Description
Product Description
Product Introduction

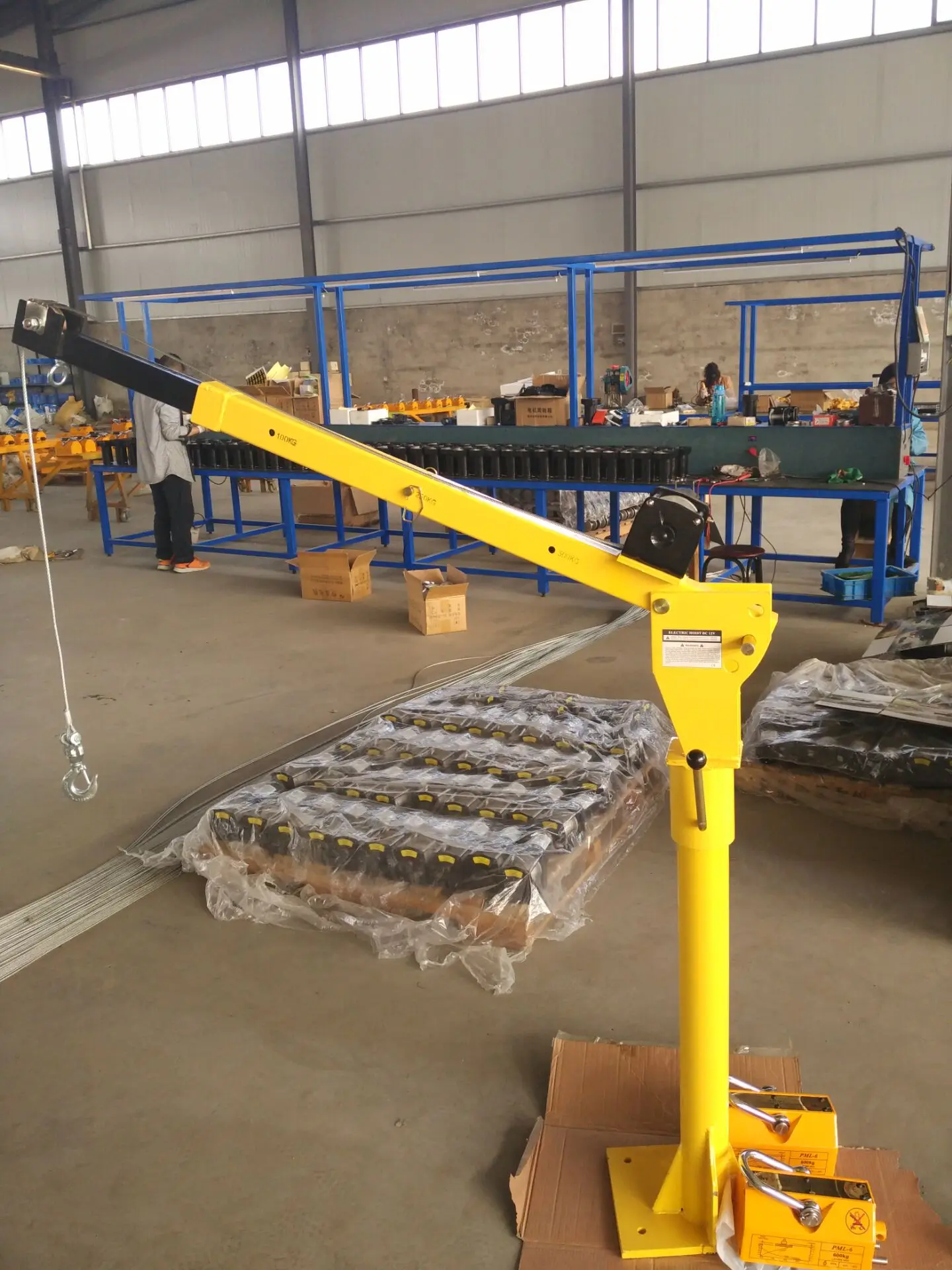

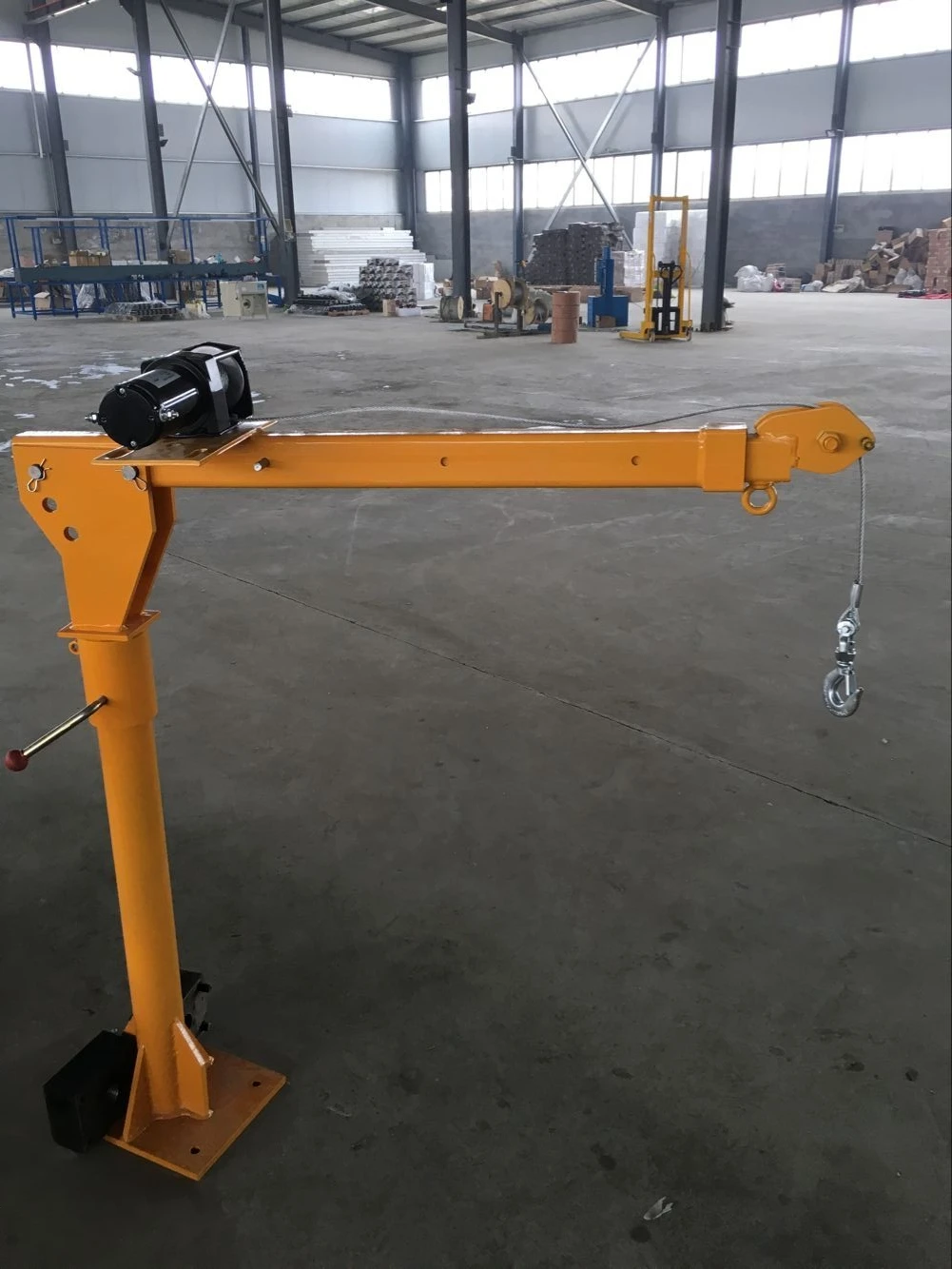

2016 new style mini portable electric pickup truck crane is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required.
SPECIFICATIONS FOR 500kg Truck Crane | ||||||
Single line Lifting Capacity(maximum) | 500kg | |||||
Double-line Lifting Capacity(maximum) | 800kg | |||||
Lifting Height Max.Std.(base to hook) | 1940mm | |||||
Reach Max.(from center of rotation) | 1490mm (see Figure 3) | |||||
Rotation (continuous) with Brake | 360° Manual | |||||
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting) | |||||
Line speed with No Load | 3.6m/min single line | |||||
Power Requirements | 12V DC 125 amps | |||||
Switch Cable | 4.2m | |||||
Mounting Base | 250x250x18mms | |||||
Mounting Bolt Hole Pattern | 170x170mms | |||||
Finish | Powder Coated | |||||
Packing Size | 140x39x35cm | |||||
Weight | N.W.57kgs G.W.60kgs | |||||
Advantages
1. Trailer winch is wildely used in pick-up trucks, carvan cars, loading docks, platform etc.
2. Very light weight, only about 58.5kg.
3.Compact design,fold away when not in use.
3. Easily installed,on site or by a vehicle body builder.
4. The power is from truck motor.
