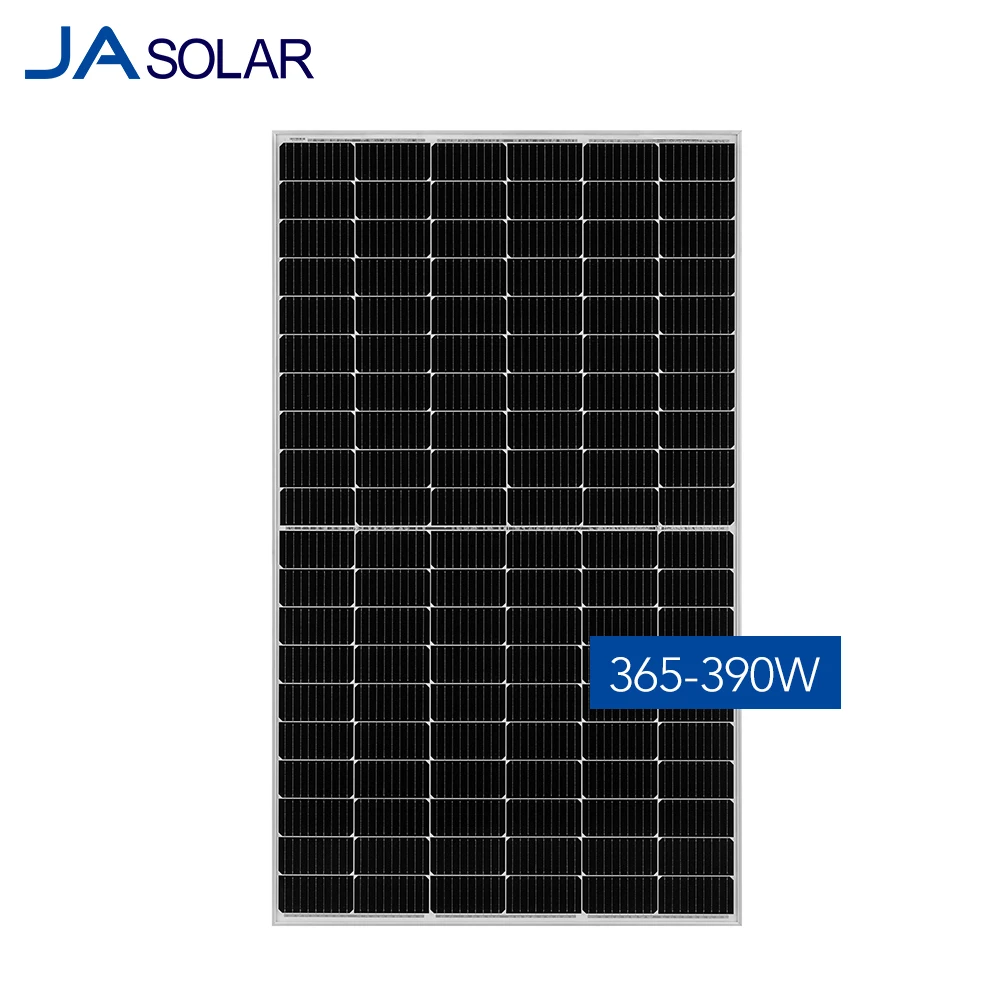

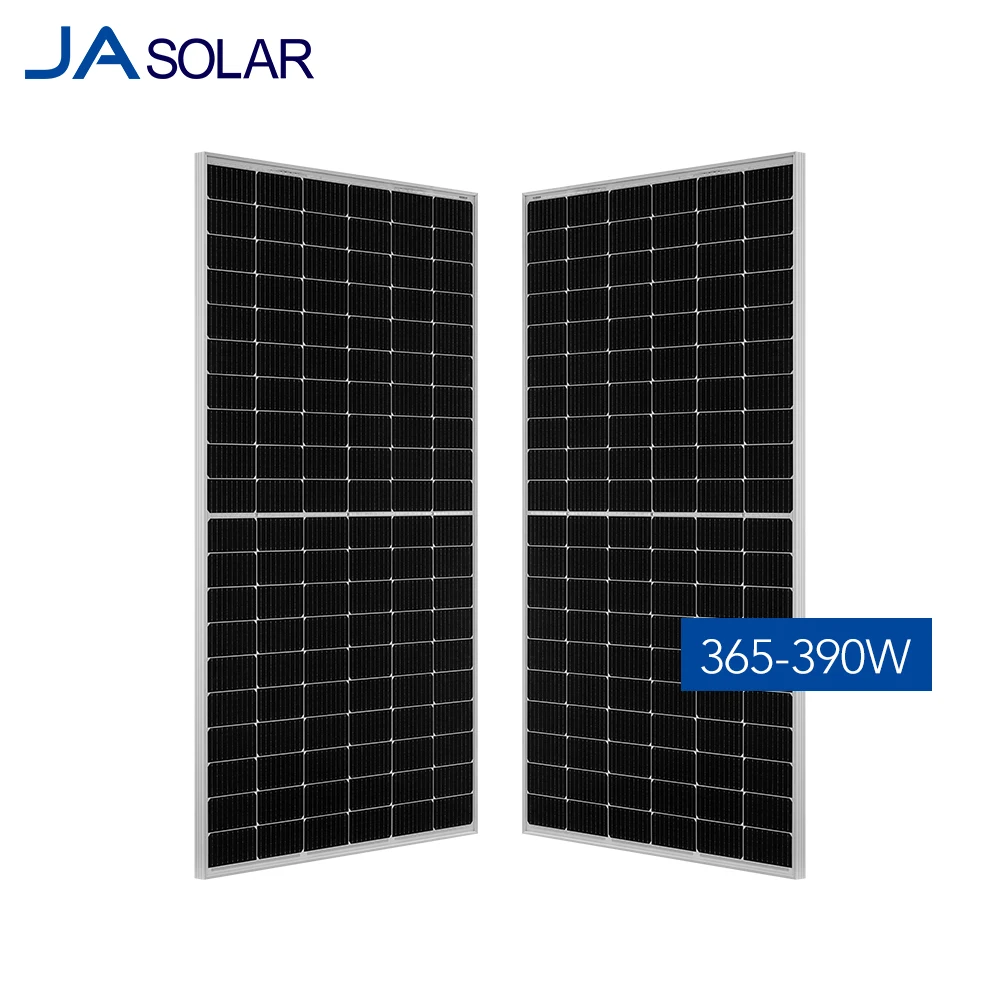

370 watt stock in Rotterdam Europe Half cell 9BB black solar module panels cheapest price solar panel
- Category: >>>
- Supplier: SOLAR WORLD CO. LTD
Share on (1600196455270):
Product Overview
Description
Products Description
ELECTRICAL PARAMETERS | ||||||||||||
TYPE | JAM60S20 -365/MR | JAM60S20 -370/MR | JAM60S20 -375/MR | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Rated Maximum Power(Pmax) [W] | 365 | 276 | 370 | 280 | 375 | 284 | ||||||
Open Circuit Voltage(Voc) [V] | 41.13 | 38.41 | 41.30 | 38.65 | 41.45 | 38.89 | ||||||
Maximum Power Voltage(Vmp) [V] | 33.96 | 32.05 | 34.23 | 32.30 | 34.50 | 32.55 | ||||||
Short Circuit Current(lsc) [A] | 11.30 | 9.15 | 11.35 | 9.20 | 11.41 | 9.25 | ||||||
Maximum Power Current(lmp) [A] | 10.75 | 8.61 | 10.81 | 8.66 | 10.87 | 8.71 | ||||||
Module Efficiency [%] | 19.5 | 19.8 | 20.1 | |||||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.044%/°C | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.272%/°C | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||||
NOCT | Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G | |||||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||
TYPE | JAM60S20 -380/MR | JAM60S20 -385/MR | JAM60S20 -390/MR | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Rated Maximum Power(Pmax) [W] | 380 | 287 | 385 | 291 | 390 | 295 | ||||||
Open Circuit Voltage(Voc) [V] | 41.62 | 39.14 | 41.78 | 39.38 | 41.94 | 39.63 | ||||||
Maximum Power Voltage(Vmp) [V] | 34.77 | 32.72 | 35.04 | 32.96 | 35.33 | 33.20 | ||||||
Short Circuit Current(lsc) [A] | 11.47 | 9.30 | 11.53 | 9.35 | 11.58 | 9.40 | ||||||
Maximum Power Current(lmp) [A] | 10.93 | 8.78 | 10.99 | 8.83 | 11.04 | 8.88 | ||||||
Module Efficiency [%] | 20.3 | 20.6 | 20.9 | |||||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.044%/°C | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.272%/°C | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||||
NOCT | Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G | |||||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||
More Details Please Send Inquiry To Us | ||||||||||||

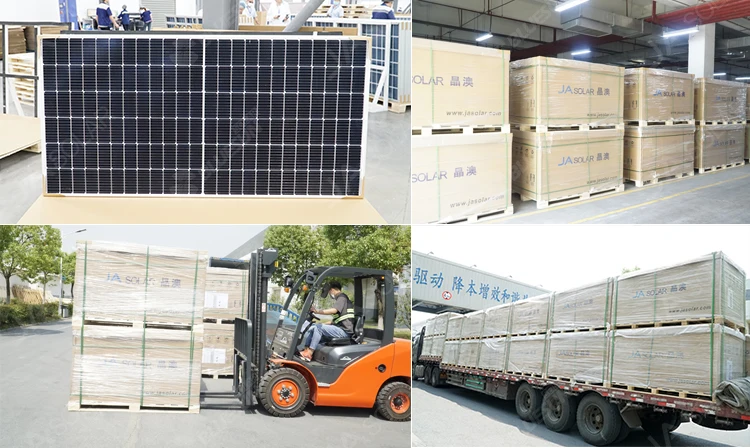

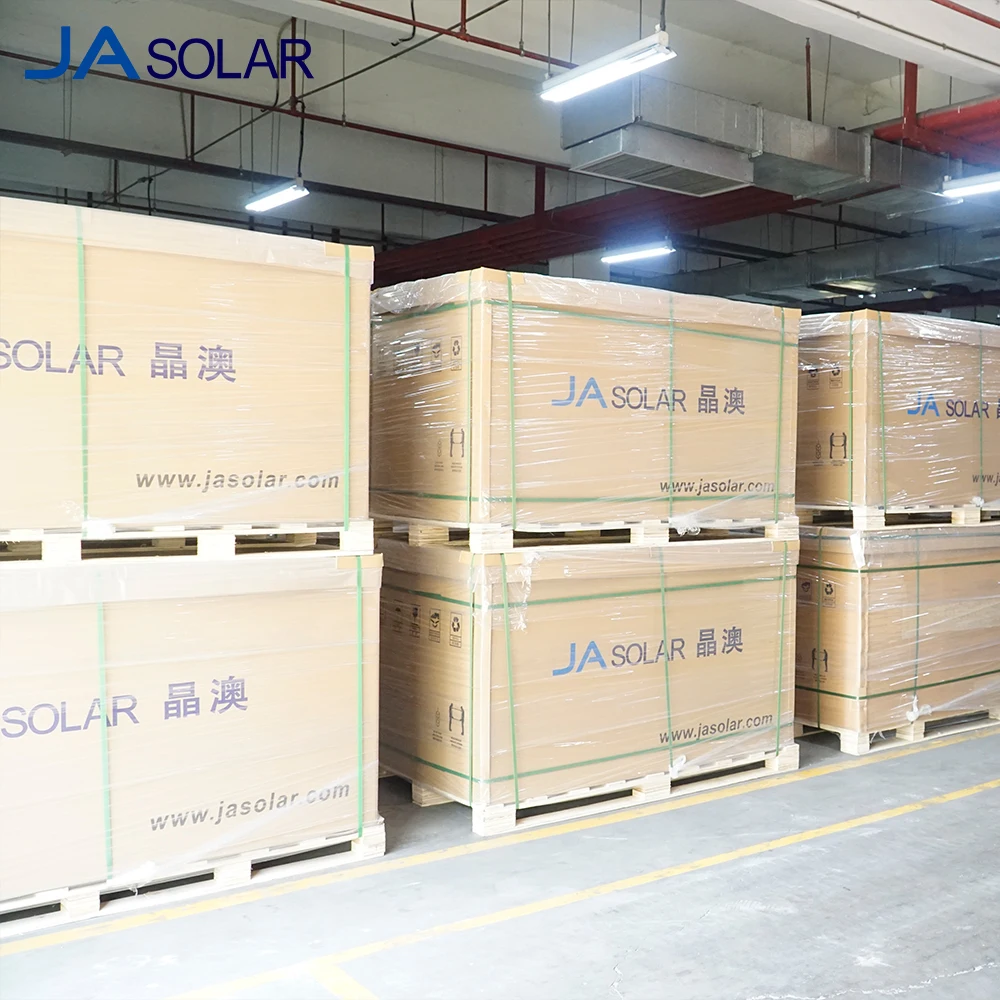

Packing & Delivery
Model | JAM60D10/JAM60D20 | JAM72D10/JAM72D20 | JAM60S10/JAM60S20 | JAM72S10/JAM72S20 |
Pcs/Pallet | 30 | 30 | 30 | 30 |
Pcs/20'GP | 180 | 150 | 180 | 150 |
Pcs/40'HQ | 720 | 600 | 720 | 660 |
Payment
T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% on-time shipment protection
100% payment protection for your covered amount
100% payment protection for your covered amount
Why Buy JA Via Bluesun
