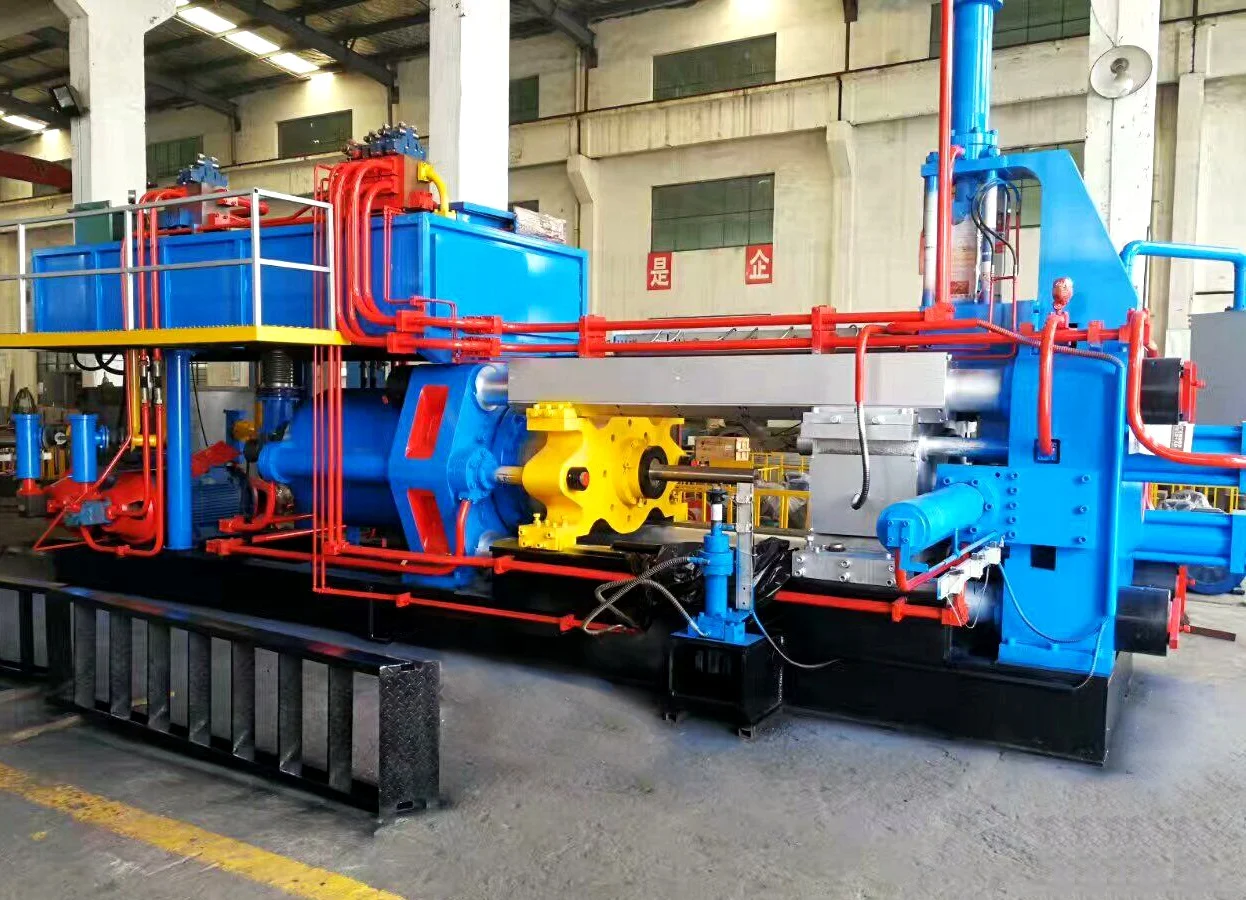

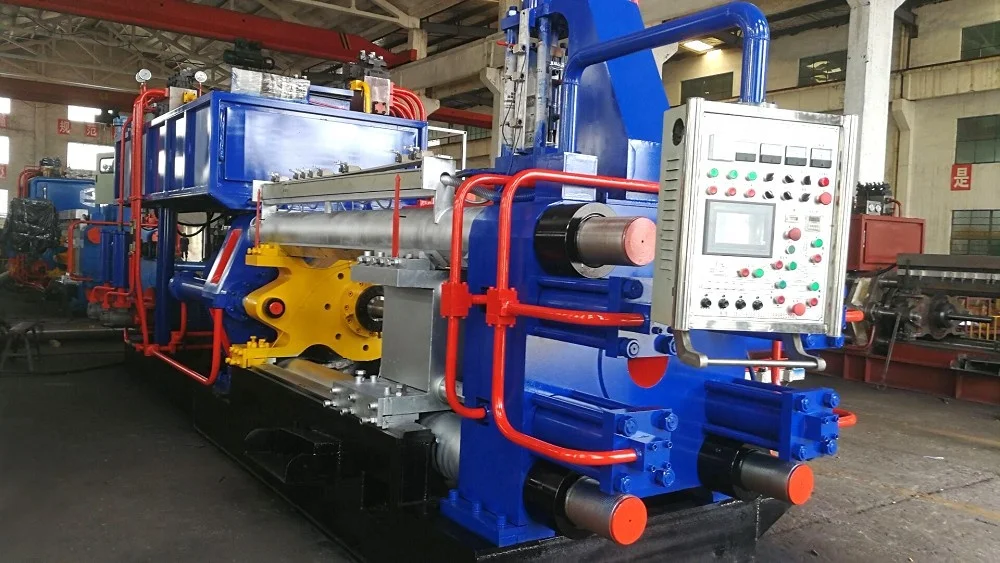

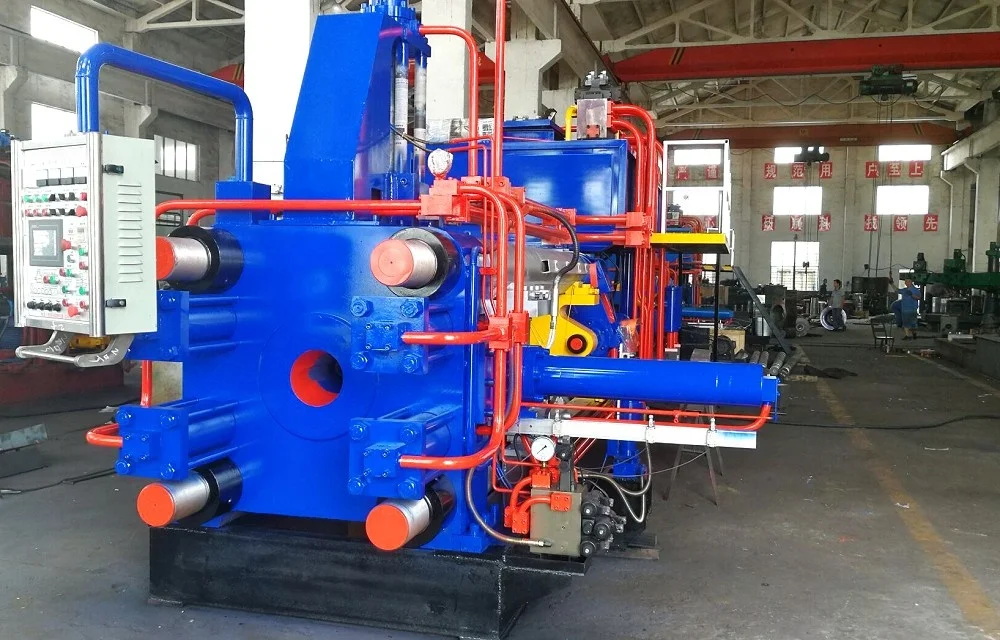

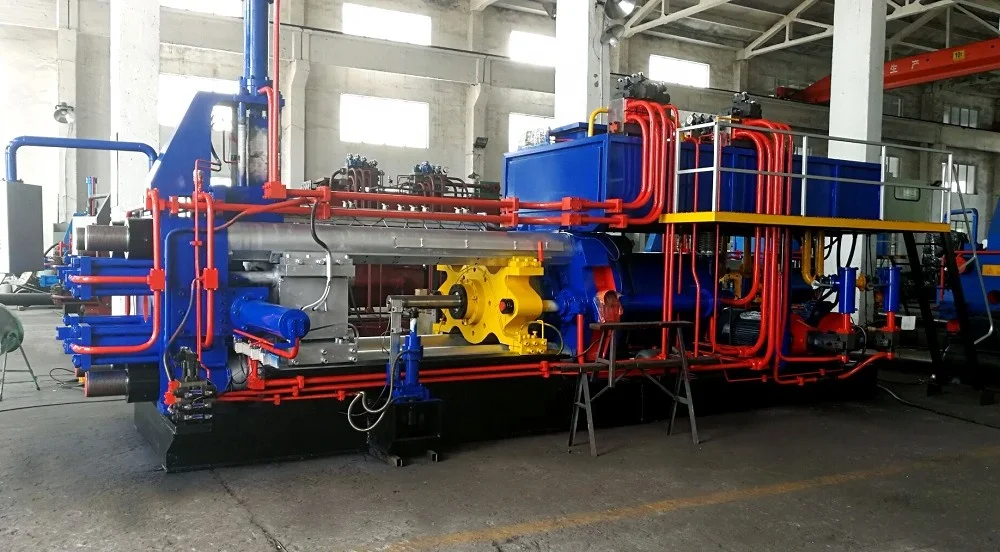

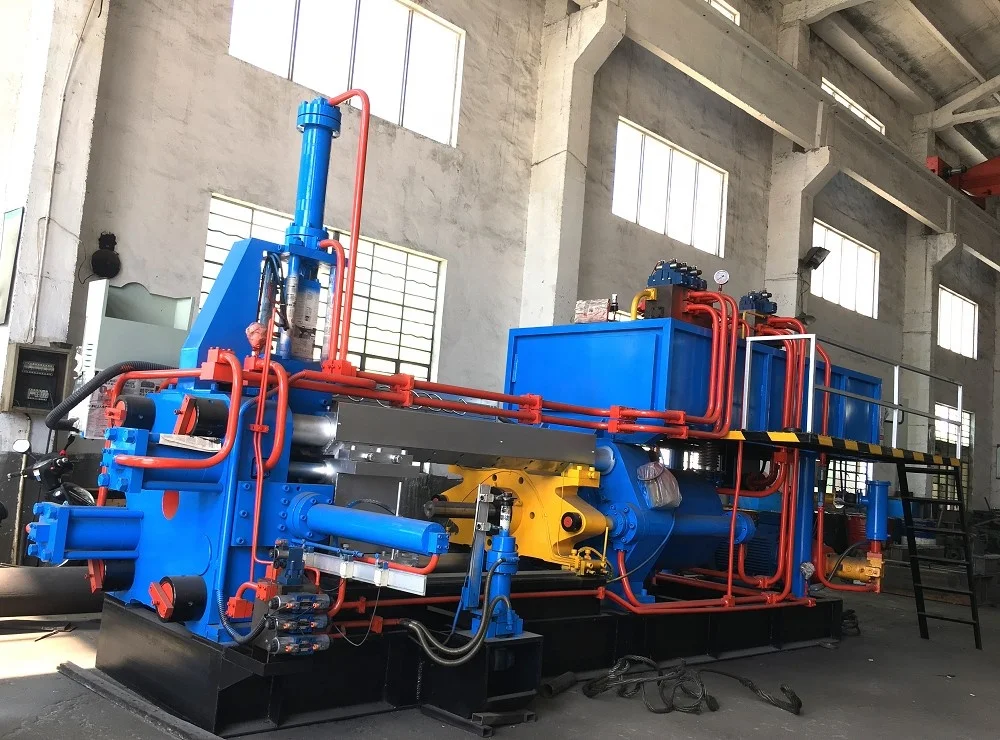

aluminum profiles extrusion equipment

NO.

Item

Type

QTY

1

Hydraulic system working pressure

21Mpa

2

Extrusion Pressure

Main Cylinder 633T

Lateral Cylinder 51.5T

3

Lateral cylinder return force

16T

4

Locking force of container

51T

5

Shear  pressure

32T

6

Extrusion working  speed(maximum)

8.8mm/s

7

Master plunger fast forwarding speed

315mm/s

8

Master plunger fast backward speed

348mm/s

9

Closing speed of container

136mm/s

10

Open speed of container

83mm/s

11

Shear down speed

216mm/s

12

Shear up speed

442mm/s

13

The inner hole range of extrusion tube

ID Φ85-115

L 500mm

14

The dimension range of aluminum bar

IDΦ80-Φ110

L 450mm

15

The total power of motor

55KW

16

Heating power for extrusion tube

T 1.2KW*15=18KW

17

Operation Mode

Manual or automatic single stoke

18

External dimension(L*W*H)

7m*2.8m*3.2m
