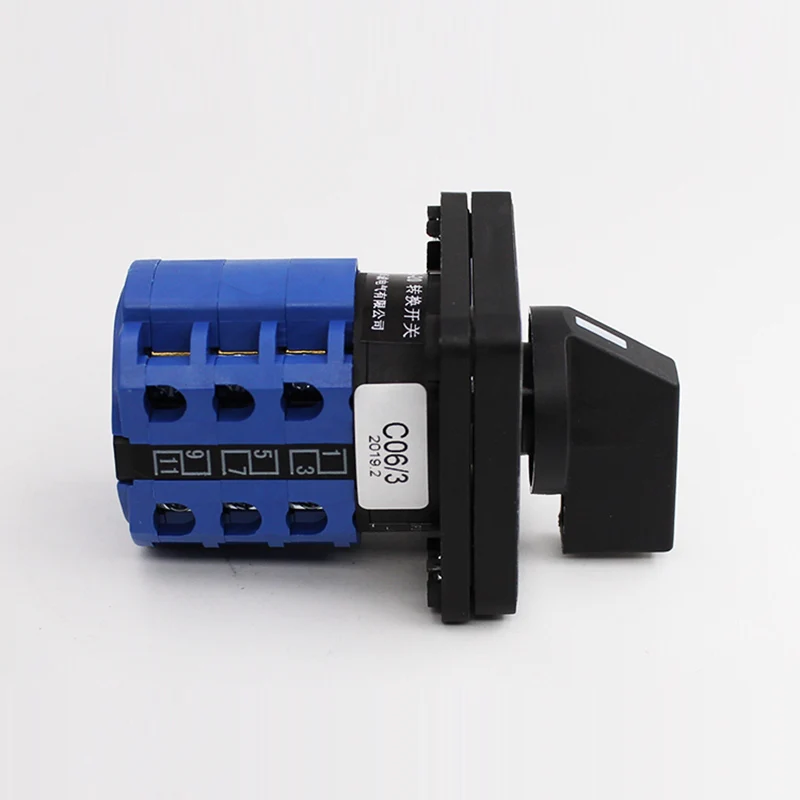

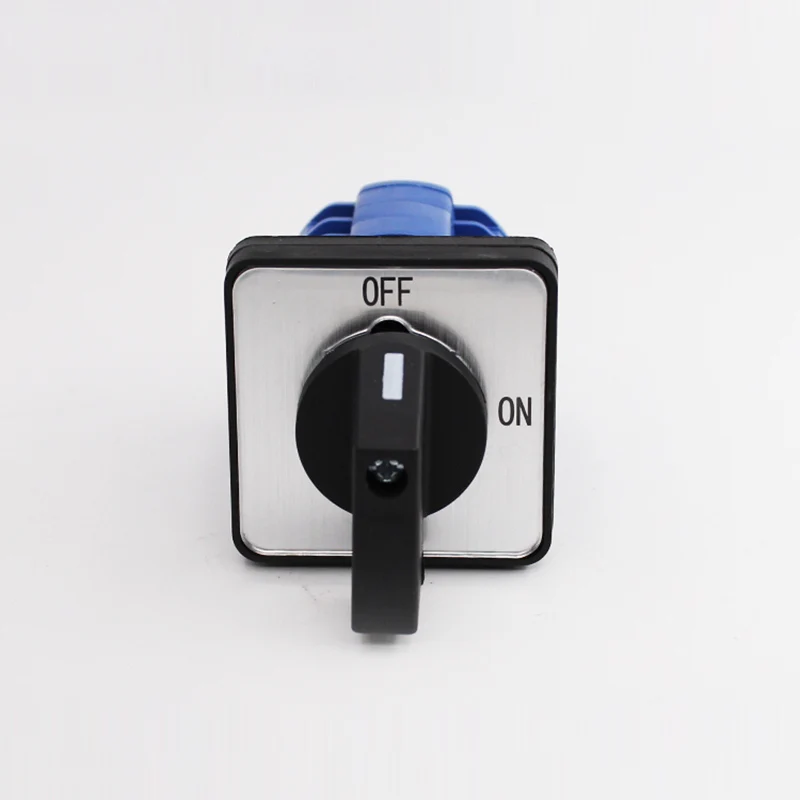

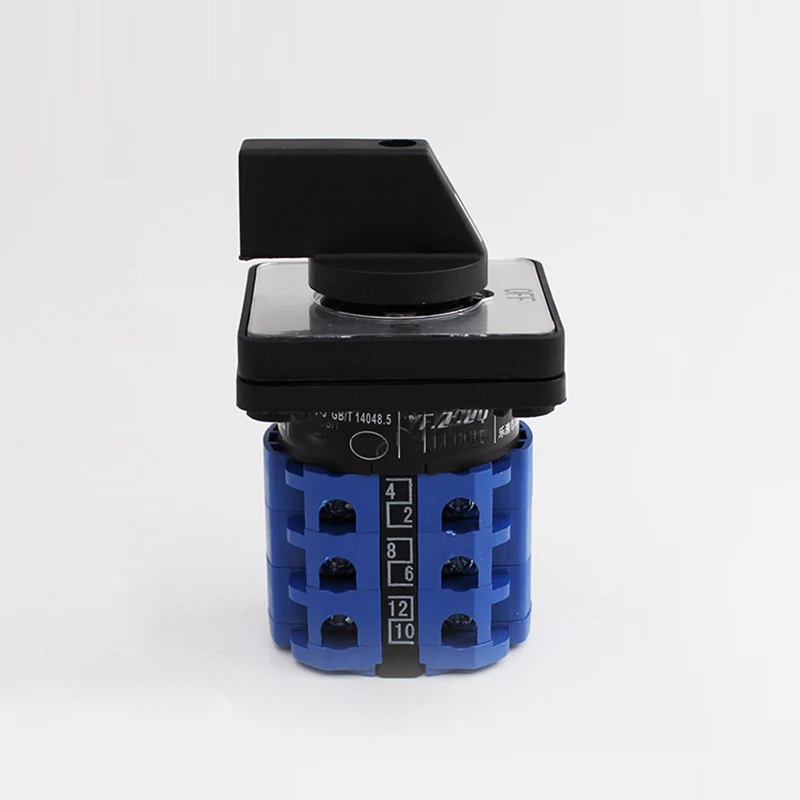

Karwoll LW26 20 C06/03 20A CE certificate universal side insert rotary dip switch change over switch

The LW26 series rotary switch mainly applies to 440V and below, AC50Hz or240V and below DC circuits. for breaking and closing,change-over of circuits under unfrequently manual operation, and the typical application are:control switch of 3 phase motors,control switch of switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB14048.3 GB14048.5 and IEC60947-3 IEC60947-5-1.

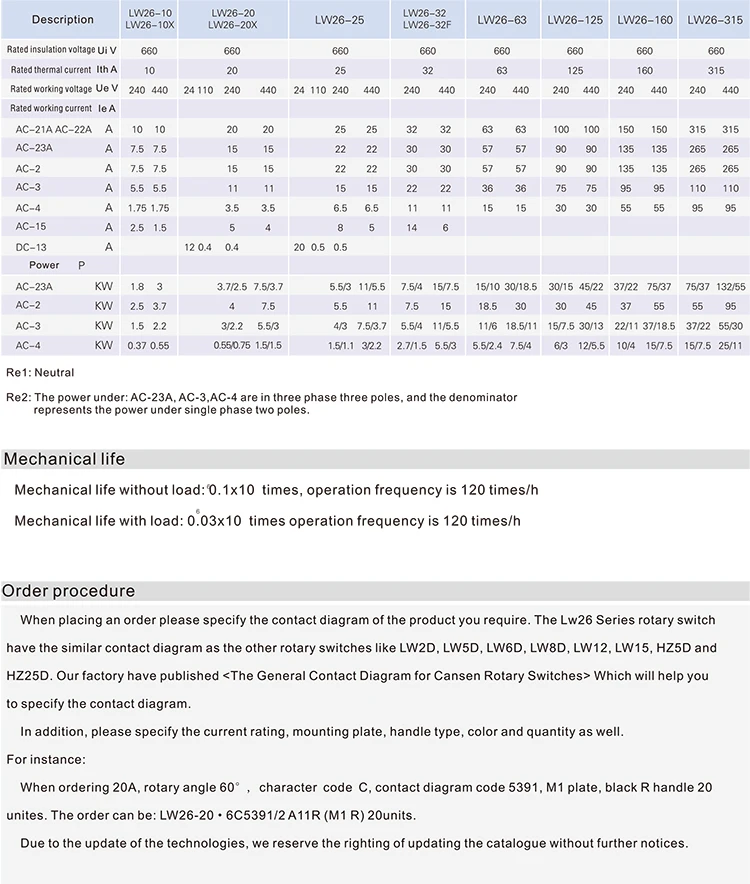

The LW26 series have 8 current ratings:10A,20A,25A,32A,63A,125A,160A and 315A. They were designed for multiple functions, wide variety of applications

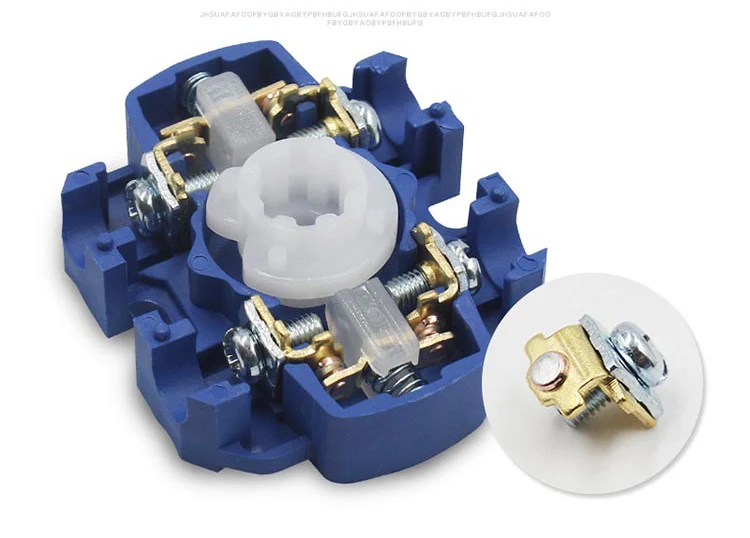

The LW26-10,LW26-20,LW26-25 and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5,HZ10 and HZ12
