CIMC Qingdao Port trailer/spreader trailer
- Category: >>>
- Supplier: Qingdao Cimc Special Vehicles Co. Ltd.
Share on (1600196775366):
Product Overview
Description

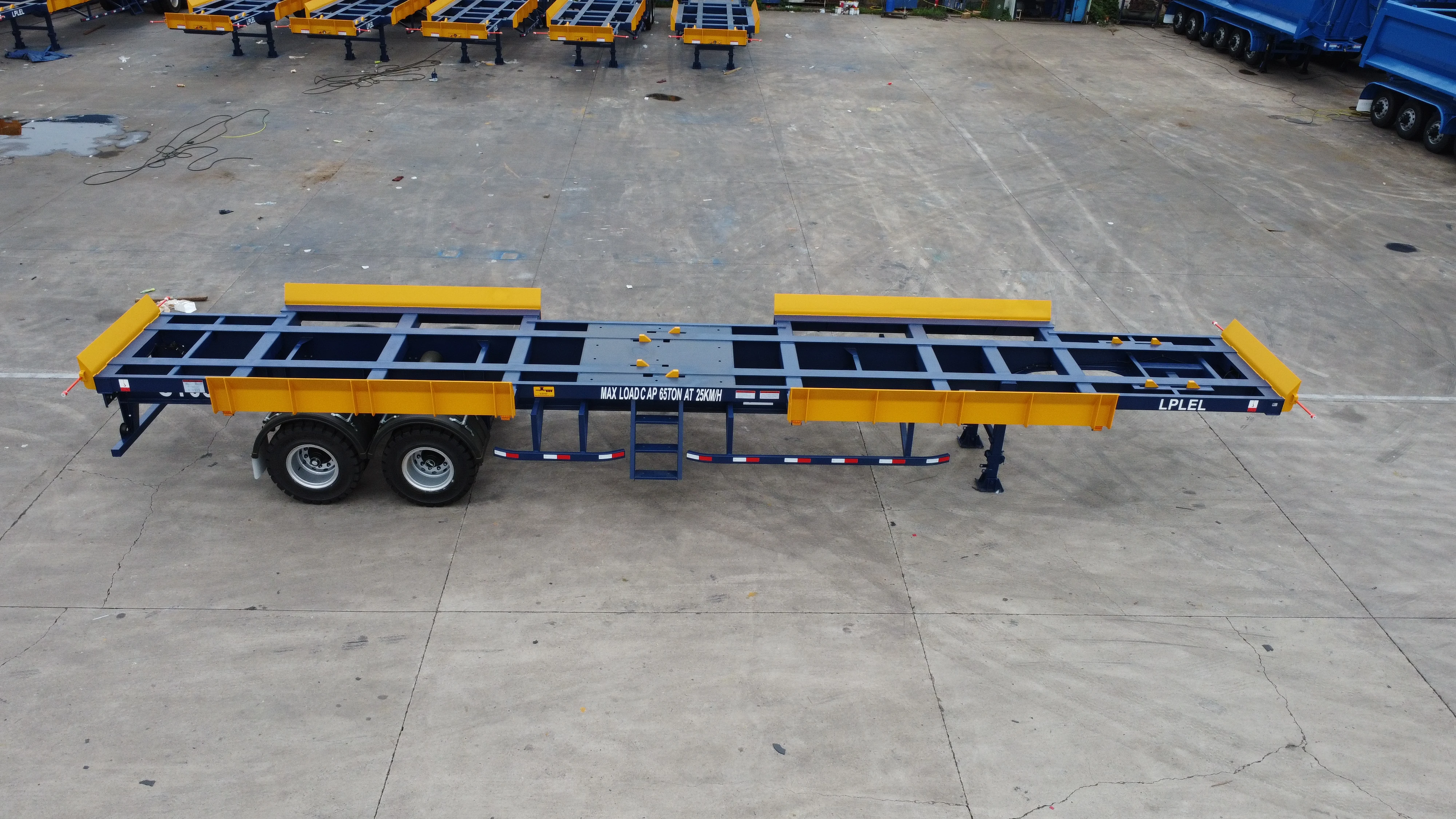

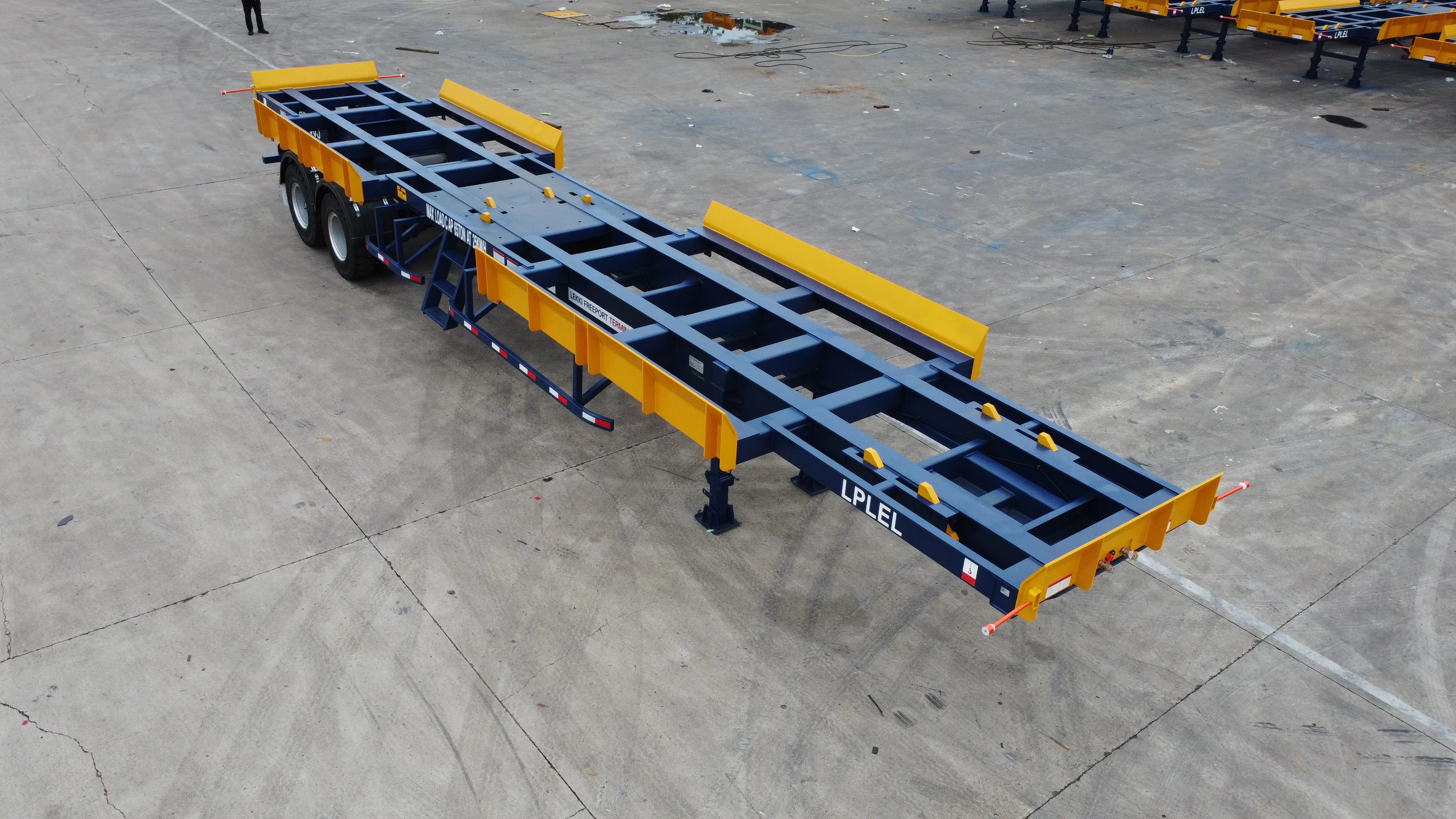

CIMC 45ft Port Terminal Trailer
Qingdao CIMC is official CIMC group factory, which is the No.1 manufacturer in China for semi trailers, with a history of 40 years.
Axle: FUWA 16 ton
Spring leaf: 8
Suspension: Baoming
Landing Gear: JOST
Tire: 11.00-20
Rim: 8.0-20
Kingpin:2 JOST bolting50#
Electrical System: 24V
Brake System: Without ABS
Spare Tire Carrier: Equipped one set per chassis without spare tire.
Tool Box: Equipped one set.
Painting: Color by customers requirement.
Spring leaf: 8
Suspension: Baoming
Landing Gear: JOST
Tire: 11.00-20
Rim: 8.0-20
Kingpin:2 JOST bolting50#
Electrical System: 24V
Brake System: Without ABS
Spare Tire Carrier: Equipped one set per chassis without spare tire.
Tool Box: Equipped one set.
Painting: Color by customers requirement.
Specification
Service Capacity | Carry 1x45Ft container 1x40ft container, or 2x20ft container, or 1x20ft container |
Overall Dimension(mm) | 12400x2500x1550 |
Suspension | Ordinary steel suspension system with leaf spring. |
Leaf spring | 10 pcs/set,4 sets/unit. |
King Pin | Size of 2'' |
Rim | 8.0-20, 8 pieces/unit. |
Twist lock | 12 pieces/unit. |
Chassis | Steel fabricated construction built on 2 longitudinal-beam. Skirting in roller steel section reinforcement at close pitch. |
Floor | Skeleton type. |
Axle | 2 x 13 Ton heavy duty axles |
Tire | 1100R20, 8 sets/unit |
Brake | Two-line air brake system |
Landing gear | Heavy-duty landing gear |
Electrical | 24 volts electrical system to international standards includes taillights, sidelights and direction indicators. |
7-pin socket fixed at the front of trailer. | |
Painting | Blasting before painting, one coat of primer then two coats of high quality paint. Color: according to customer. |

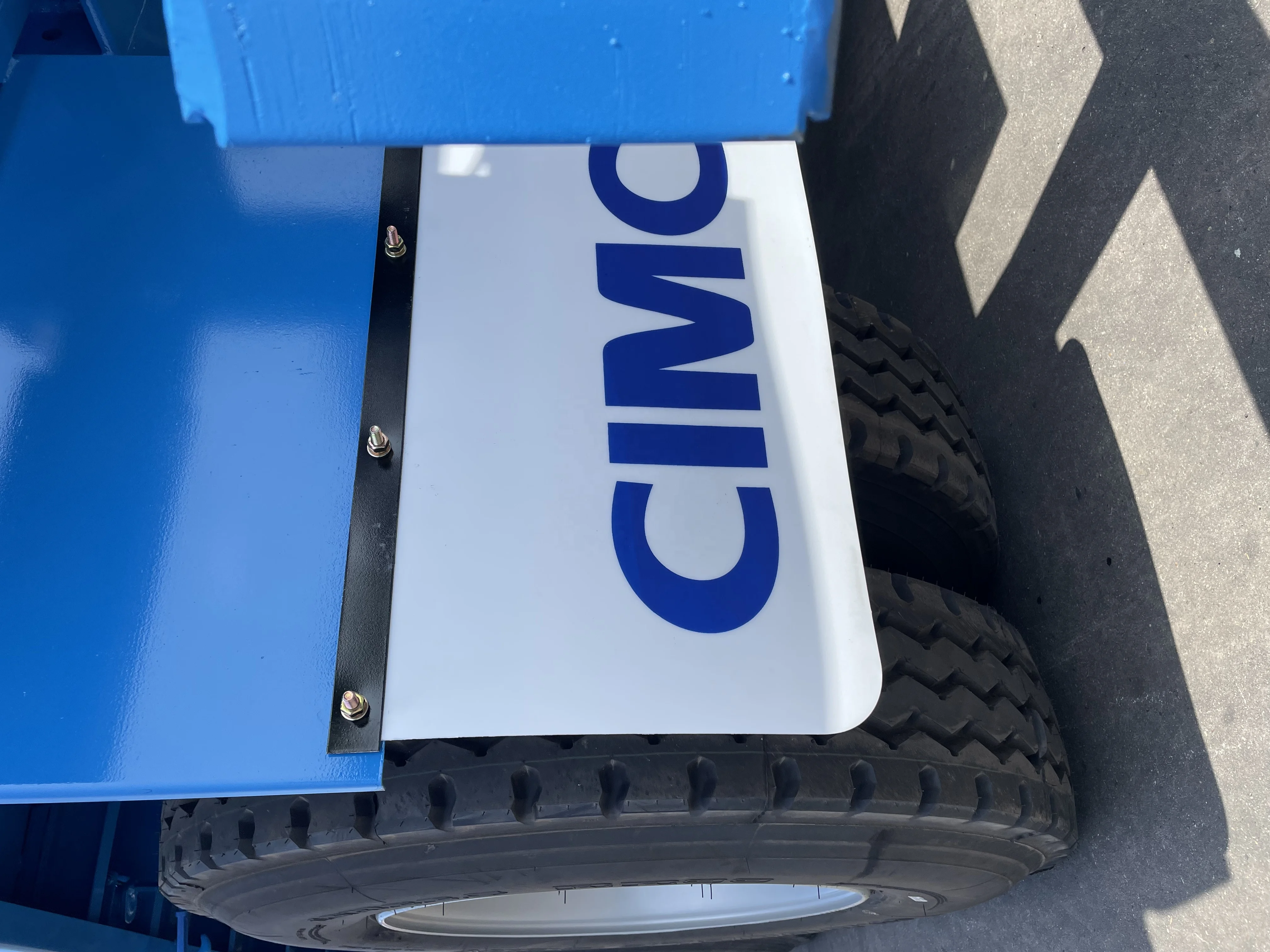

Others | a. One spare wheel carriers. b. Large toolbox with one set tools. c. Mudguards with mud flaps. |
Product Description
CIMC Port Terminal Trailer design.
We use both high strength and carbon steel after PRO E and finite element analysis, to ensure the longest life for our trailer, and also economical for our client.
CIMC Trailer USE Fuwa Axles
CIMC Port Terminal Trailer use world famous axles and suspensions for our trailer, such as fuwa, bpw etc, reduce client cost for frequent maintenance and replacement wear parts cost.

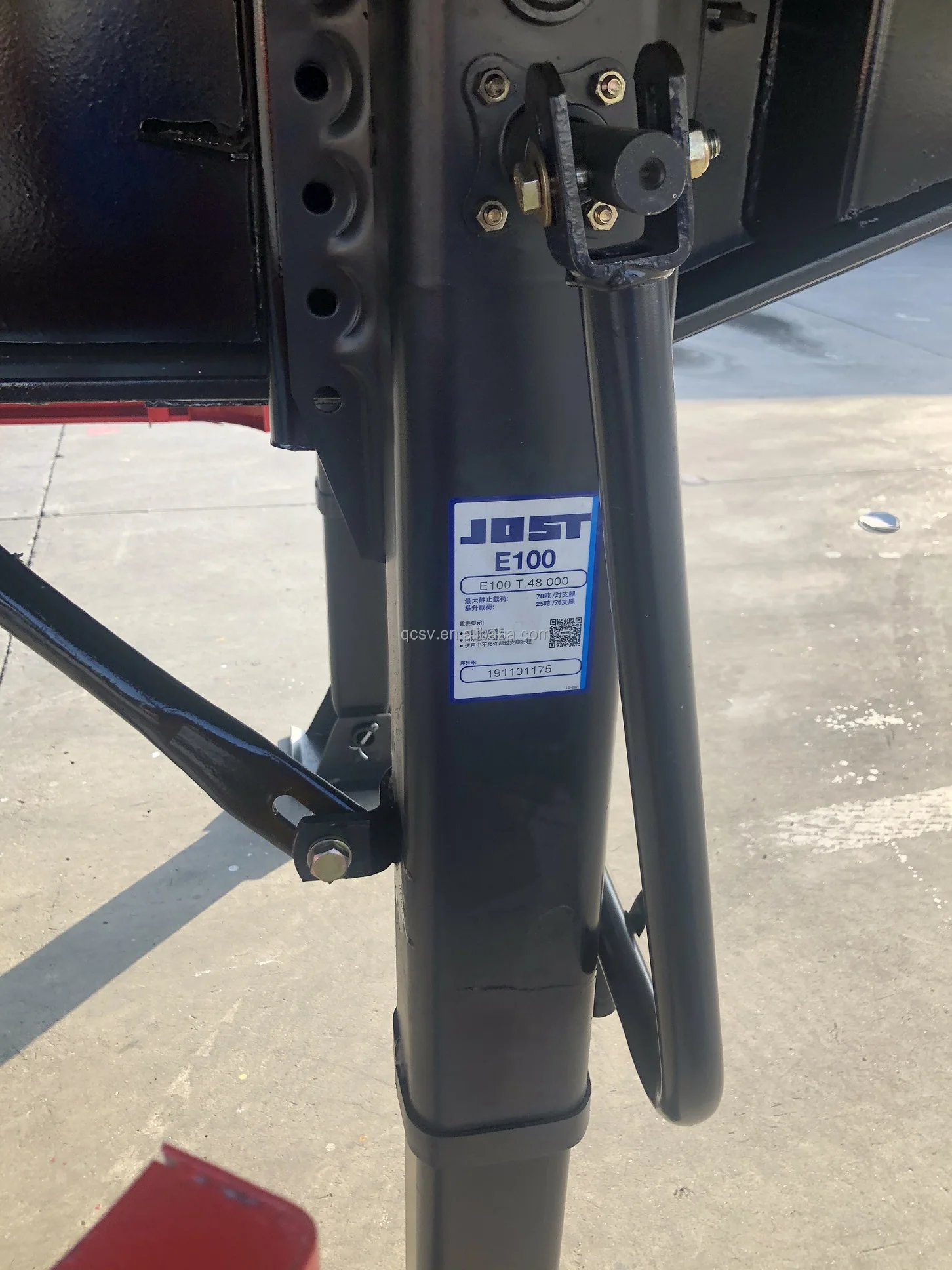

CIMC Port Terminal Trailer landing legs.
CIMC 40ft Port Terminal Trailer use Jost, or CIMC landing legs, with double speed, one side operation or two sides operation as per client habit and market need, famous landing legs ensure the safety for drop and pull transport
CIMC Port Terminal Trailer tires
CIMC 40ft Port Terminal Trailer use double coin, triangle, linglong tires, for the flatbed trailer the most common sizes are 11R22.5, 12R22.5,13R22.5, 11.00R20, 12.00R20 suit different market need.
Packing & Delivery
CIMC have agreement contract with the main shipping companies, such as MAERSK, NYK and CMA, COSCO etc ensuring the timely and most economical transportation of each order.
And also we have a 10pcs transportation team with years experiences which can help client to choose the best delivery way, and the smallest packing volume, to supply the best shipping solution, timely, safety, and low cost.
And also we have a 10pcs transportation team with years experiences which can help client to choose the best delivery way, and the smallest packing volume, to supply the best shipping solution, timely, safety, and low cost.
Company Profile
About our factory
2.We are the whole subsidary of CIMC Group, the largest semi trailer and container manufacturer in the world.
3. CIMC have a history of 35 years.
4.Our products include: Flatbed trailer, Skeletal Trailer, Tipper Trailer, Side wall fence trailer, low bed trailer, swap body.
5. More details for Qingdao CIMC.
CIMC Qingdao Vehicle Base is located at Qingdao. which is the subsidiary of CIMC Group, the largest trailer and container
manufacturer in the world. Covering an area of over 20 hectares and close to Qingdao Port,
with a total investment of 115 million RMB and 62.88 million RMB as registered capital, Qingdao CIMC Special Vehicles Co., Ltd is equipped with the manufacturing capacity of 20000 special vehicles per year
FAQ
1.Are you CIMC factory?
Yes, we are CIMC Brand official factory, 100% subsidiary, with a history of 40 years. and a yearly production of 30000pcs semi trailers.
2. what is your service time?
Yes, we are CIMC Brand official factory, 100% subsidiary, with a history of 40 years. and a yearly production of 30000pcs semi trailers.
2. what is your service time?
7*24H Service Provide Professional Fast Response
3.Do you offer Customize trailers:
CIMC Qingdao have a professional technical team of 40 persons, Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
4.Parts Support:
CIMC Qingdao have spare parts stock for most use one, and we can supply both flatbed trailers and spare parts, such as axles, suspensions, landing legs, tires, wheel rims, landing legs, kingpin, brake system, and lights.
CIMC Qingdao have a professional technical team of 40 persons, Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
4.Parts Support:
CIMC Qingdao have spare parts stock for most use one, and we can supply both flatbed trailers and spare parts, such as axles, suspensions, landing legs, tires, wheel rims, landing legs, kingpin, brake system, and lights.
Recommend Products
Contact US
Contact us for more products details, and more semi trailers， latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair feel free to contact CIMC Qingdao, we will try our best to support you.
Any questions about sales, maintain and repair feel free to contact CIMC Qingdao, we will try our best to support you.
24h Hotline:008613792498773(whatsapp and wechat)
