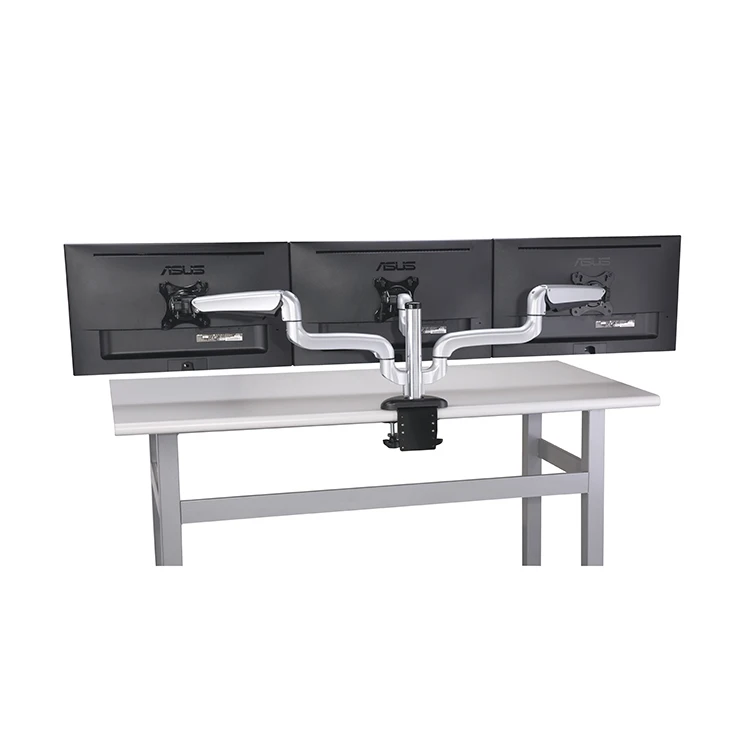

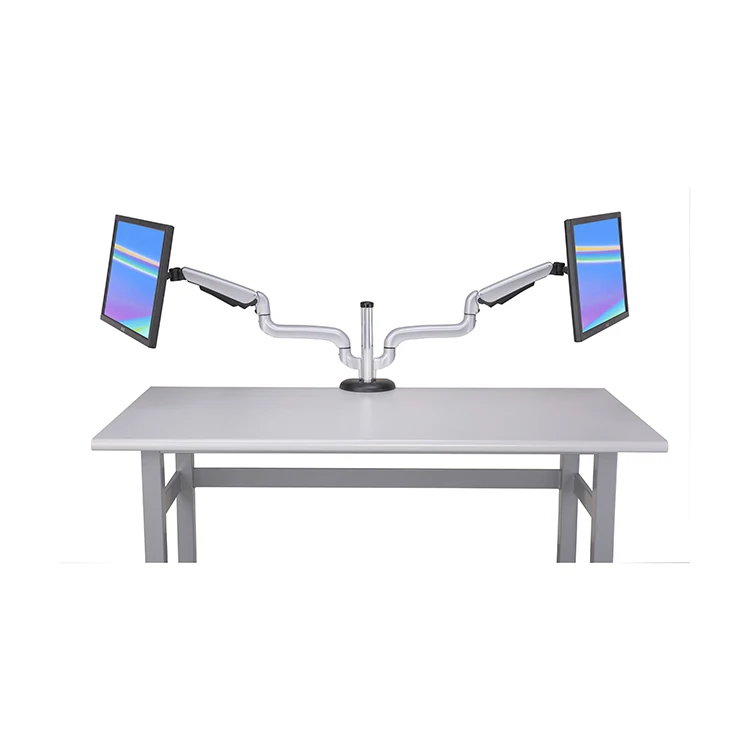

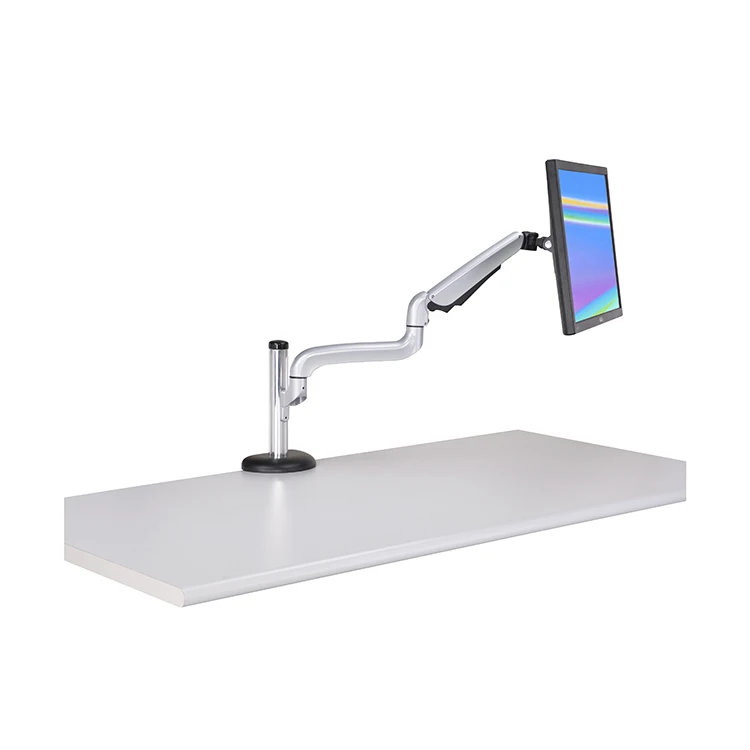

Gas Spring Single or Multiple Monitor Arm w/Sliding Tracks & 3 Types of Arm
- Category: >>>
- Supplier: C.D. GREAT FURNITURE CO. LTD.
Share on (1600196808643):
Product Overview
Description
Screen Compatibility | Suits the monitor ≦27"for single and dual Suits the monitor ≦24"for 3 to six monitors |
Vesa | 75x75 mm, 100x100 mm |
Monitor Capacity | 2-7.0 kgs/ 4.4-15.4 lbs |
Tilt | UP 90°; Down 45° |
Pan | 180° |
Rotation | 360° |
Worktop Thickness | Standard Base: 5-55 mm / 0.2"-2.1" Heavy Load Base: 18-90 mm / 0.7"-3.5" |
Base Options | Standard (1-2 screens) Heavy Load (3-6 Screens) |
Arm Option | A-Arm stem B-Adjustable Flexy Arm C-Extended Adjustable Arm |
Material | Aluminum articulating arm & pole Iron Base with Plastic Cover |
【Design】

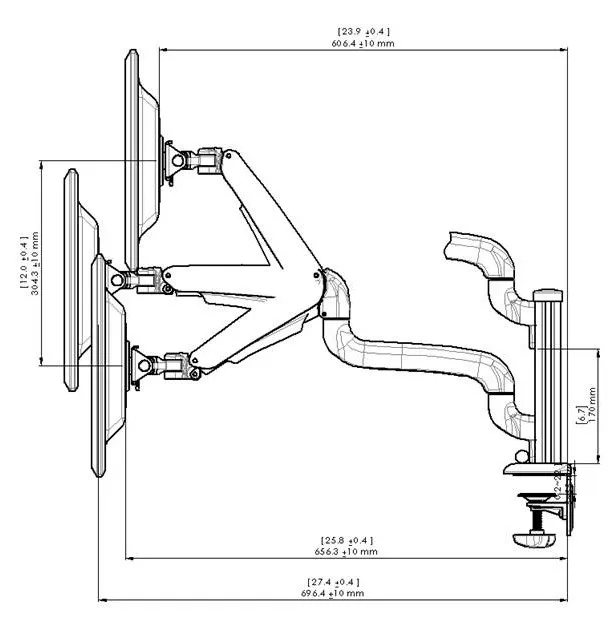

A=Arm Stem, B=Adjustable Flexy Arm, C=Extended Adjustable Arm All types of Arms can install on Wall, Wandklem and Desk mounts.
A=Arm Stem, B=Adjustable Flexy Arm, C=Extended Adjustable Arm All types of Arms can install on Wall, Wandklem and Desk mounts.

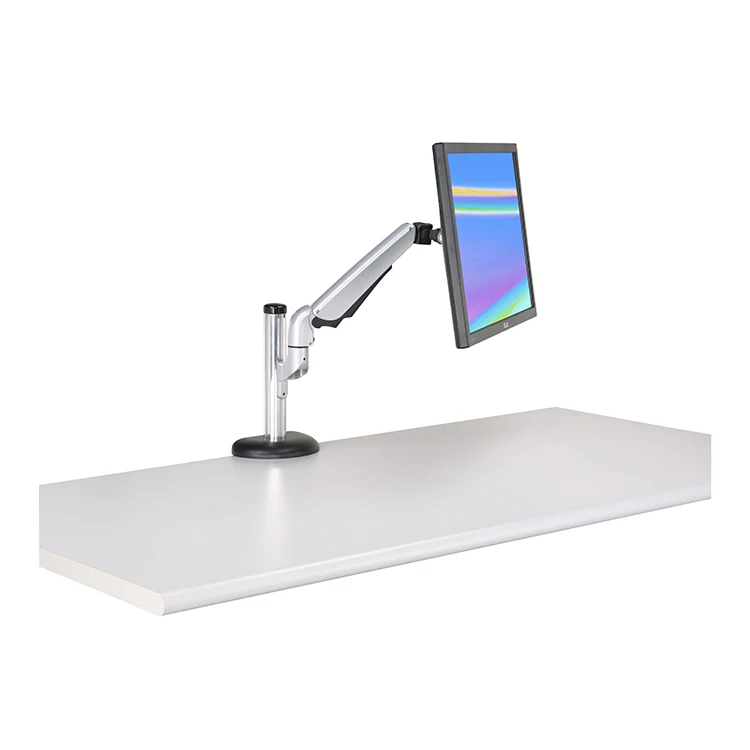

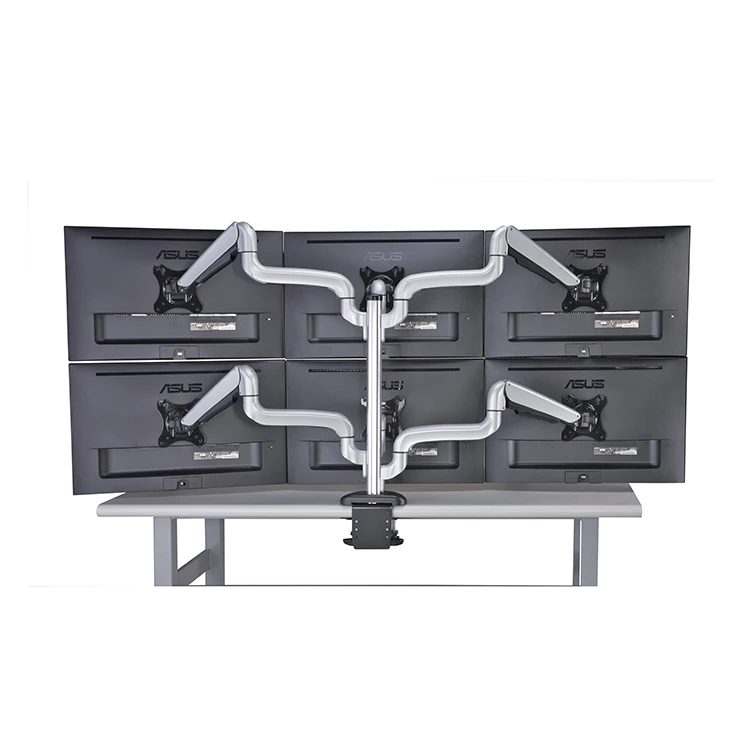

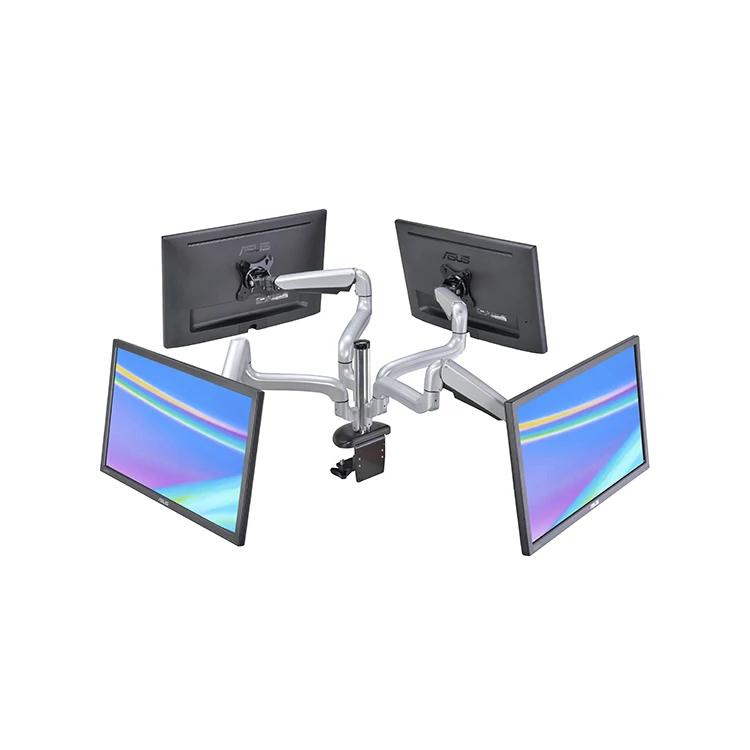

Gas Spring Monitor Arm w/Sliding Tracks (1-4, 6 monitors)
PC702 desk monitor mount features gas spring-assisted pivot for the monitor which makes adjustment outstandingly easy. Sliding Tracks make 4-direction installation possible. Offering solutions from one to four, and six monitors and compatible with three types of arms, the type A, B and C. (Scroll down this page to obtain information of arms)
The mounting options include desk clamp and grommet base.
The mounting options include desk clamp and grommet base.
【Mechanism】
☑Manual Adjustment.☑Stay still where positioned.
☑No electricity required.
☑Environmentally-friendly.
C.D. Great Furniture (CDG) was founded in 2002 with a focus on high-quality ergonomic furniture that improve people's wellness, comfort and productivity. We have experience, capability, and R&D resources to develop OEM & ODM service that supplies the worldwide market with ready-to-assemble furniture.
Professional OEM Partner
We provide comprehensive solutions for our clients to refine the design, streamline the manufacturing process to reduce costs, making designs possible for manufacturing and appropriate for marketing.
Variety Solutions to Move You Forward
CDG design and manufacture human-centered furniture that add flexibility, ergonomic and comfort to life. Upgrade your workspace for transformation with monitor arms, height-adjustable desks (standing desks), sit-stand workstation, tablet holders, and other accessories.
Professional OEM Partner
We provide comprehensive solutions for our clients to refine the design, streamline the manufacturing process to reduce costs, making designs possible for manufacturing and appropriate for marketing.
Variety Solutions to Move You Forward
CDG design and manufacture human-centered furniture that add flexibility, ergonomic and comfort to life. Upgrade your workspace for transformation with monitor arms, height-adjustable desks (standing desks), sit-stand workstation, tablet holders, and other accessories.
Rich Resources
CDG located in Taichung City where there is furniture industrial cluster that allow us easy access to specialty vendors and resources who conform same high standards we shared.
With mature and sufficient supply chain capabilities, we are able to respond quickly to each customer's special request and provide flexible service and products to meet customers' requirements.
Quality Ensured

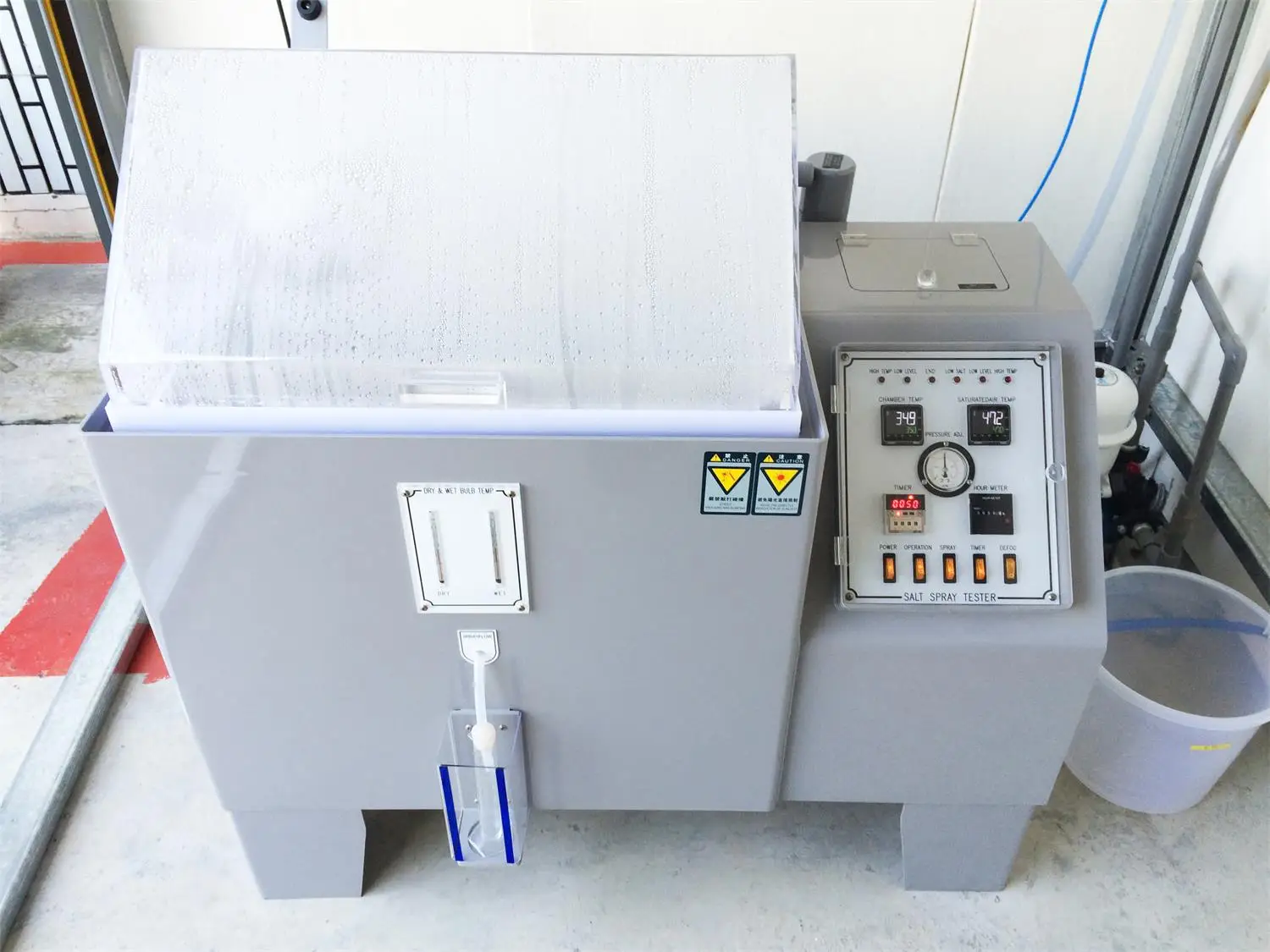

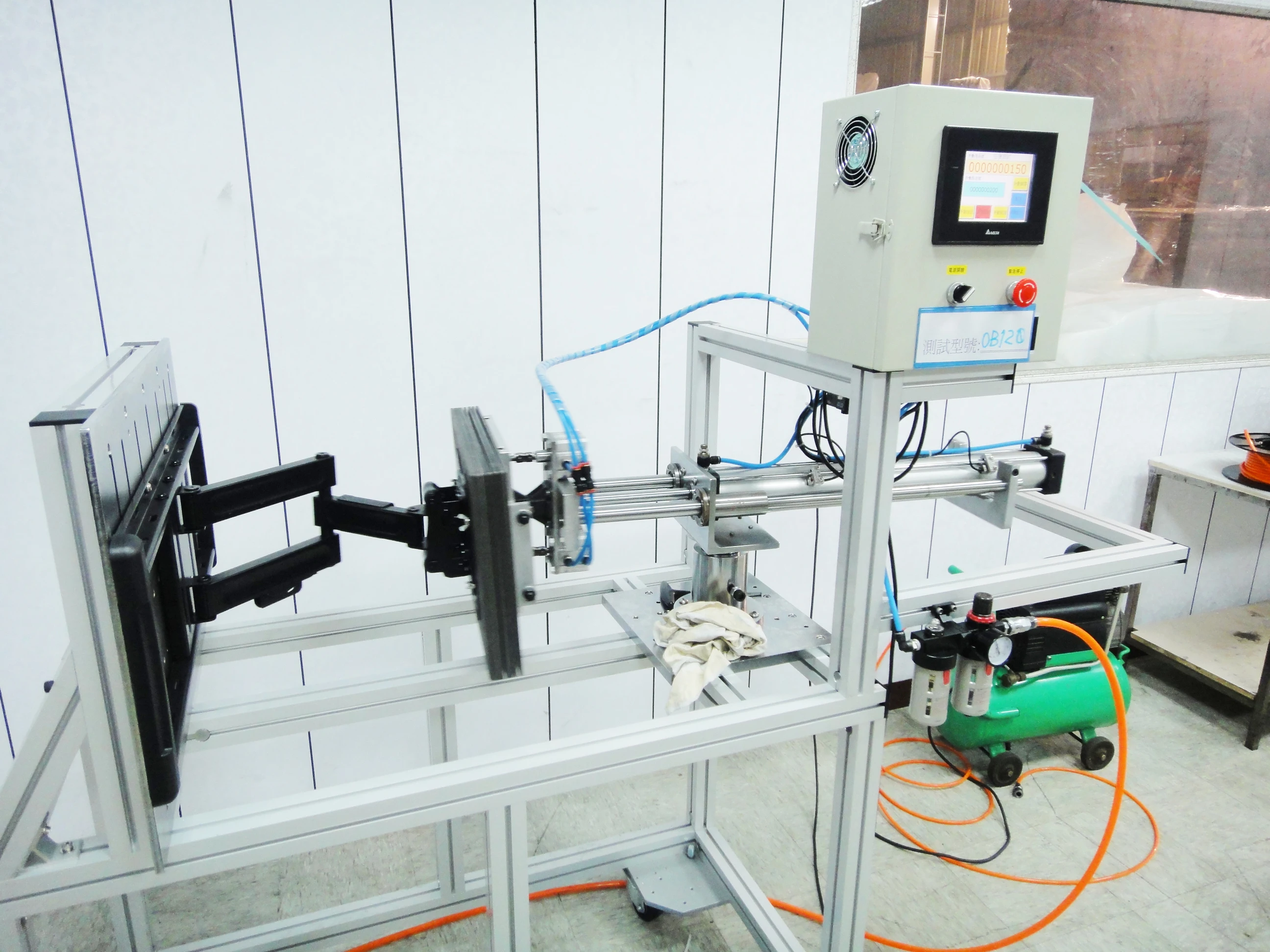

Our Testing Lab facilities equipped with Projection comparator, RoHS Analyzer, fatigue, hardness, endurance and hoisting capability testers. Additionally, every step of the manufacturing process is monitored under supervision to ensure the best quality provided.
CDG located in Taichung City where there is furniture industrial cluster that allow us easy access to specialty vendors and resources who conform same high standards we shared.
With mature and sufficient supply chain capabilities, we are able to respond quickly to each customer's special request and provide flexible service and products to meet customers' requirements.
Quality Ensured
Our Testing Lab facilities equipped with Projection comparator, RoHS Analyzer, fatigue, hardness, endurance and hoisting capability testers. Additionally, every step of the manufacturing process is monitored under supervision to ensure the best quality provided.
Payment Term
T/T or L/C before Shipment.
Delivery Time
45-60 days after receipt of T/T or L/C payment. The accurate time varies for each order.
Delivery Way
AIR/SEA/UPS/FedEx/DHL
T/T or L/C before Shipment.
Delivery Time
45-60 days after receipt of T/T or L/C payment. The accurate time varies for each order.
Delivery Way
AIR/SEA/UPS/FedEx/DHL
【Standard Pack】
PC702-DC-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole clamp mount set x 1pc
PC702-DG-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole grommet mount set x 1pc
【Optional】
Arm Type: A, B, C
Desk Mount: Clamp or Grommet
【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Wandklem mount
PC702-A Arm Stem
PC702-B Adjustable Flexy Arm
PC702-C Extended Adjustable Arm
PC702-DC-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole clamp mount set x 1pc
PC702-DG-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole grommet mount set x 1pc
【Optional】
Arm Type: A, B, C
Desk Mount: Clamp or Grommet
【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Wandklem mount
PC702-A Arm Stem
PC702-B Adjustable Flexy Arm
PC702-C Extended Adjustable Arm
How long is the lead time in general?
Lead time will vary depending on the complexity of the design. For CDG’s collection, the general lead time is between 45-60 days, shipping time excluded. For customized designs, lead time may take longer for the 1st order, taking molding or tooling time into account, and will then maintain the general lead time as 45-60 calendar days as a norm.
What trade terms does CDG normally offer?
As stated in our quotation, CDG’s quotes are primarily based on FOB –Taichung terms with FCL or LCL shipments. Other charges may apply if any other port of departure is assigned by the purchaser. EX-work terms can also be requested for any POs as long as MOQ requirement is fulfilled.
To which destination will CDG ship the order?
We have been shipping goods to customers in North America, Europe, and Oceania for more than a decade. We will keep expanding the customer base to serve global users and consumers.
What MOQ does CDG apply?
MOQ may vary with various products but 300 sets (pcs) per design or Full Container Load amount is the general principle which applies to mostly everything.
What warranty does CDG offer?
CDG offers 2-year warranty across all our product range.
Are CDG’s products eco-friendly?
CDG makes sure to use raw materials and adopt processing methods compliant with the RoHS standards. CDG is also equipped with a RoHS analyzer, with which our staff can confirm and verify that the raw materials are RoHS compliant. On top of these, we try to source almost everything locally to minimize energy wastes and CO2 emissions. Internally, we care about our employees’ welfare by replacing diesel forklift trucks with batteries-powered ones to protect our staff from daily exposure to exhaust gases.
Over years of close partnership with upstream suppliers, CDG could provide a variety of related products other than on the website and in the catalog.
If you would like to request for more information, please reach out to us. We appreciate your time and will get back to you ASAP. We are looking forward to hearing from you!
Lead time will vary depending on the complexity of the design. For CDG’s collection, the general lead time is between 45-60 days, shipping time excluded. For customized designs, lead time may take longer for the 1st order, taking molding or tooling time into account, and will then maintain the general lead time as 45-60 calendar days as a norm.
What trade terms does CDG normally offer?
As stated in our quotation, CDG’s quotes are primarily based on FOB –Taichung terms with FCL or LCL shipments. Other charges may apply if any other port of departure is assigned by the purchaser. EX-work terms can also be requested for any POs as long as MOQ requirement is fulfilled.
To which destination will CDG ship the order?
We have been shipping goods to customers in North America, Europe, and Oceania for more than a decade. We will keep expanding the customer base to serve global users and consumers.
What MOQ does CDG apply?
MOQ may vary with various products but 300 sets (pcs) per design or Full Container Load amount is the general principle which applies to mostly everything.
What warranty does CDG offer?
CDG offers 2-year warranty across all our product range.
Are CDG’s products eco-friendly?
CDG makes sure to use raw materials and adopt processing methods compliant with the RoHS standards. CDG is also equipped with a RoHS analyzer, with which our staff can confirm and verify that the raw materials are RoHS compliant. On top of these, we try to source almost everything locally to minimize energy wastes and CO2 emissions. Internally, we care about our employees’ welfare by replacing diesel forklift trucks with batteries-powered ones to protect our staff from daily exposure to exhaust gases.
Over years of close partnership with upstream suppliers, CDG could provide a variety of related products other than on the website and in the catalog.
If you would like to request for more information, please reach out to us. We appreciate your time and will get back to you ASAP. We are looking forward to hearing from you!
