Superior Quality Concrete Batching Machine Mixer Machine
- Category: >>>
- Supplier: Fujian Qunfeng Machinery Co. Ltd.
Share on (1600196827484):
Product Overview
Description
Product Description

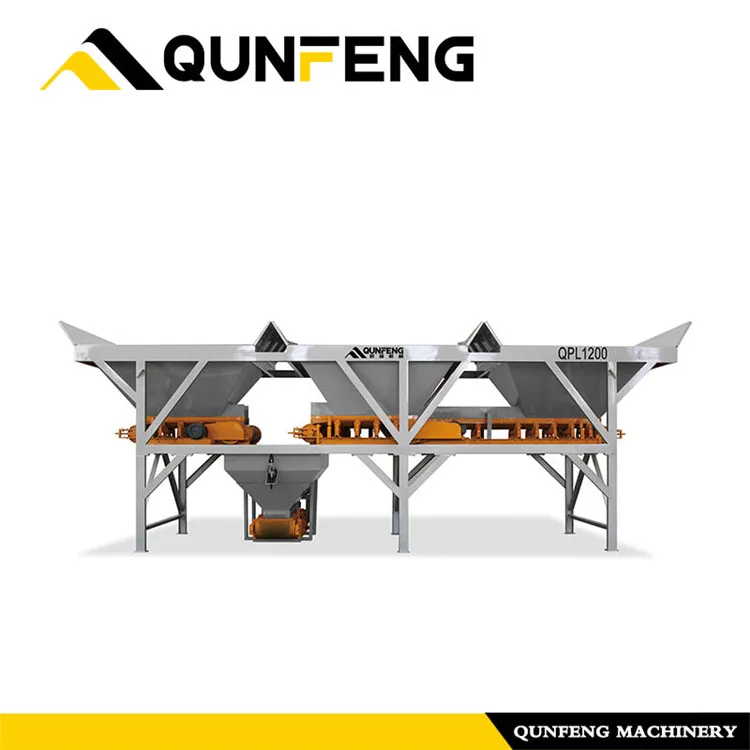

QPL800-1200 Batching Machine
QPL Series Concrete Batching Machine and mixer are both fully-automatic type designed.The batching machine adopts electronic cumulative measurement,PLC centralized control,digital display.It is with high measurement prexision,mixing speed,handling and higher reliability. Feeding equipment is compatible is compatible with various equipments,for instance,loading machine ,belt conveyor,grab bucket,horizontal pushing and so on.
Technical data
Model | QPL800 | QPL1200 |
Cubage of weighing hopper(m³) | 0.8 | 1.2 |
Cubage of reserve hopper( m³) | 2×2 | 3×4 |
Productivity(m³/h) | 48 | 72 |
Batching precision(%) | ±2 | ±2 |
Max. Metage(kg) | 1500 | 1800 |
Batching category | 2 | 3 |
Loading height(mm) | 2633 | 2500 |
Measurement | Electronic | Electronic |
Power(kW) | 7.1 | 10.35 |
Weight(kg) | ≈2300 | ≈4000 |
Dimension(L×W×H)(mm) | 5500×1897×2983 | 8640×2490×2900 |
