Round bottle ampoule bottle penicillin bottle solid glue oral liquid Automatic Vial Labeling Machine

Product Overview

Description

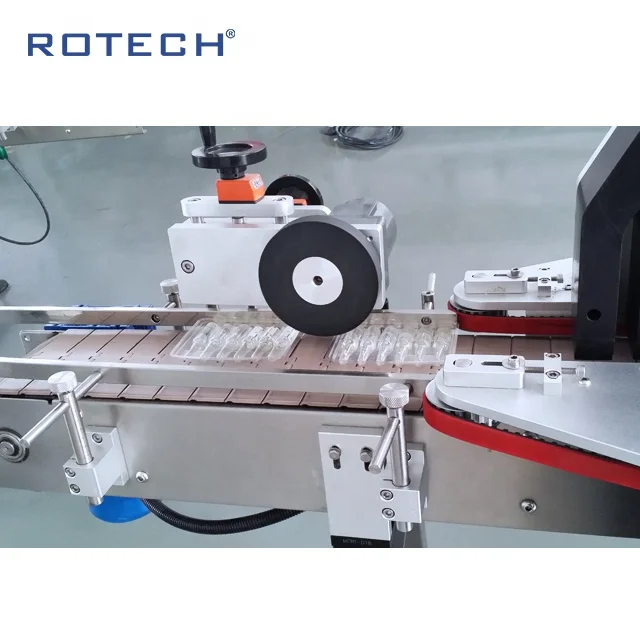

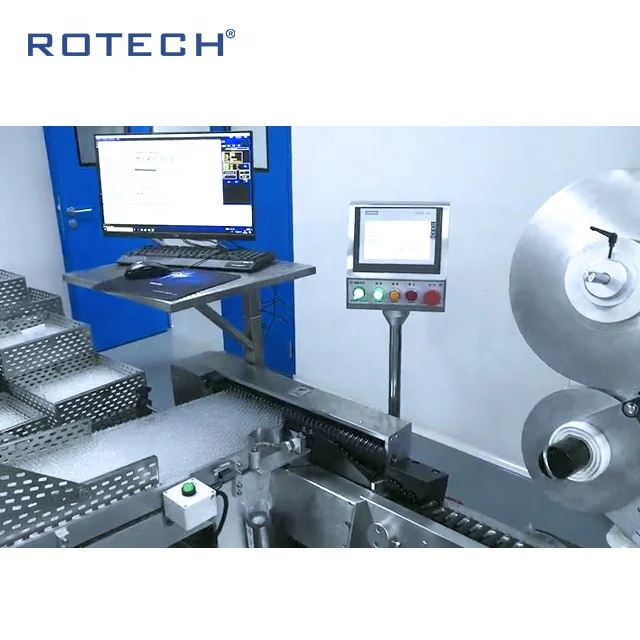

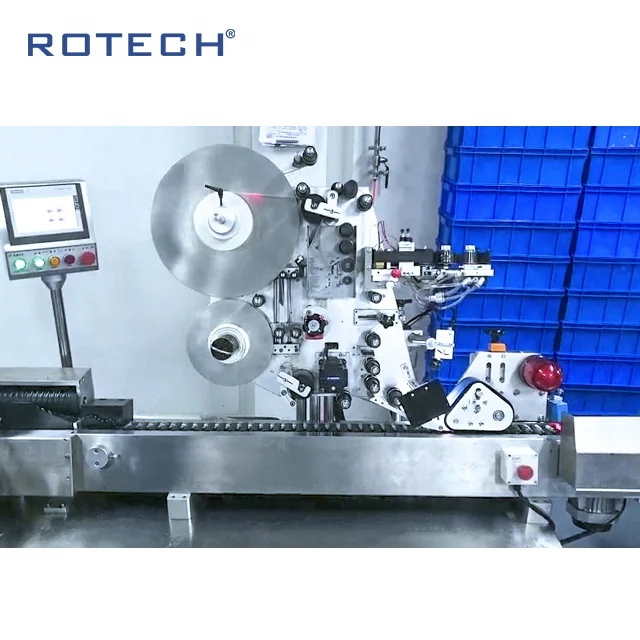

MC-810 Horizontal type labeling machine



Main description

MC-810 horizontal labeling machine is made of SUS304 stainless steel, A6061-T6, S45C, imported POM and other raw materials. It is processed by CNC machine tools, with good quality and high precision. The control components are selected from international brands: Siemens, Panasonic, Yaskawa, etc., It has better stability, longer use time and lower maintenance rate. The machine is compact in structure and stable in performance. It is mainly composed of "stainless steel chassis unit", "conveyor belt unit", "bottle unit", "labeling host unit", "host adjustment unit", "labeling wheel attachment unit", " Control equipment unit" constitutes. The model adopts a modular design, which is convenient for debugging and maintenance. Users can install other mechanisms according to their needs to meet their needs.



Main features

(1) The equipment is suitable for slender round bottle, ampoule bottle, penicillin bottle, solid glue, oral liquid, etc.

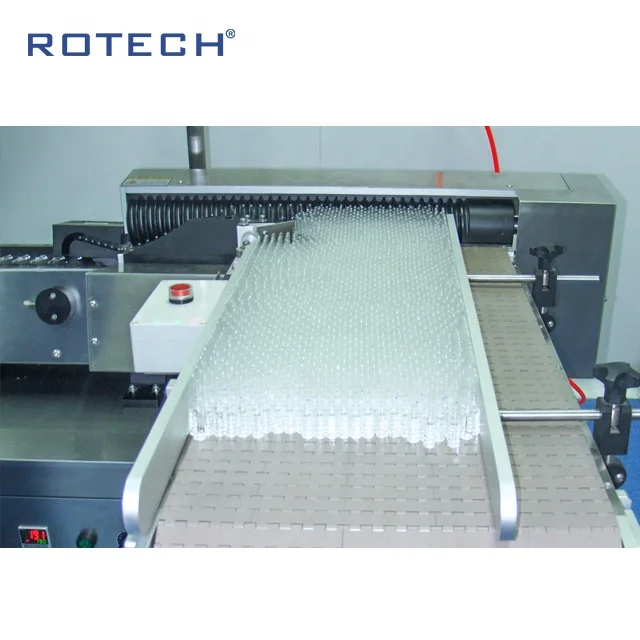

(2) Equipped with screw to transfer bottles which makes smoothly and safely.

(3) Infeed bottles in the direction of vertical horizontal to feed stability, use easy and low labor strength.

(4) Label positioning system makes the positioning accuracy.

(5) Equipped with servomotor to make high speed and good stability.

(6) Equipped with international well-known servo motor to make high speed and good stability.

(7) The patent of feeder sends the bottles in the direction of vertical horizontal. Compared with other products,

(8) Our machines are safer and more convenient and make the rate of bottle breakage be 1/200000 with lower labor cost and strength.

(9) Screw feeding system makes sure stable and the bottles will never be tipped over.



Technical parameters

Power supply	AC220v, 50/60HZ single phase
Power consumption	2.4kw
Labelling speed	600bottles/min
Labelling precision	+1mm (depends on label and bottle accuracy)
Air consumption to date batch coder	5kg/cm2
Applicable labels	Self-adhesive white glassine paper
Label roll inner diameter	Φ76.2mm
Maximum label roll external diameter	Φ400mm
Label bottom paper width	16~1800mm
Dimensions	2820×1560×1690 (H)
Container Size	Length:25-95mm, Diameter:12-28mm
Label size	Height:1 5 80mm, Length:10- 100mm
Max label size	Diameter:420mm Paper inner diameter :76mm
Interval between label and based paper	2mm
Weight	270 Kg
Use environment temperature	-10~50℃
Relative humidity	15~95%
