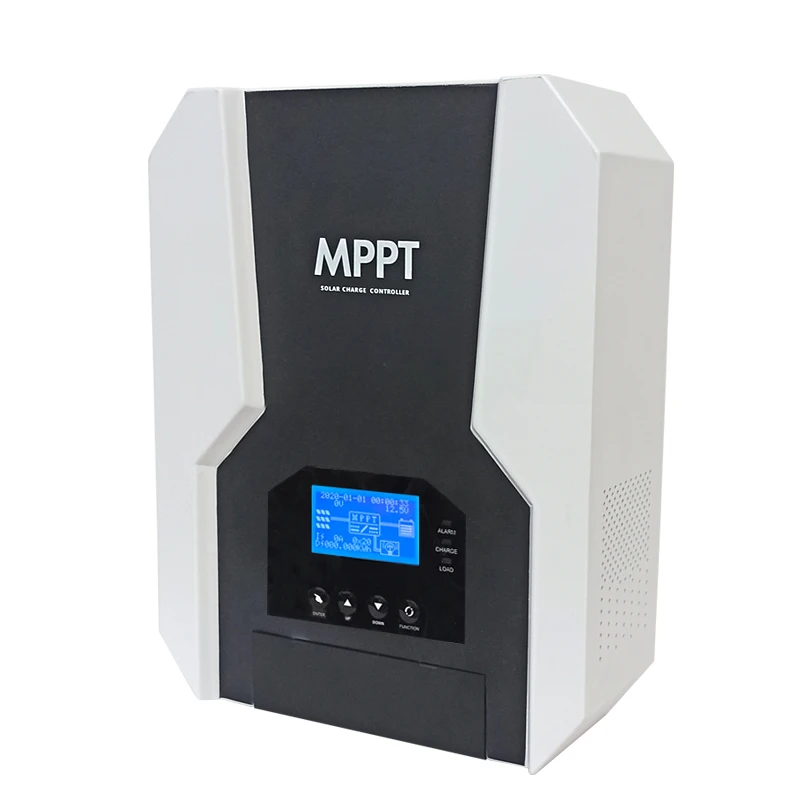

Wholesale 40 60 80 100 120A Lithiumn Regulators 12/24/36/48V Auto MPPT Solar Charger Controller for Solar System
- Category: >>>
- Supplier: Guangzhou Demuda Optoelectronics Technology Co. Ltd.
Share on (1600196859660):
Product Overview
Description
Product Description
Wholesale 40 60 80 100 120A Lithiumn Regulators 12/24/36/48V Auto MPPT Solar Charger Controller for Solar System
Parameter | MPPT-MAX 40A | MPPT-MAX 60A | MPPT-MAX 80A | MPPT-MAX 100A | MPPT-MAX 120A | |||||
System rated voltage | 12/24/36/48VDC or self-identification | |||||||||
Controller operating voltage range | 11~64V | |||||||||

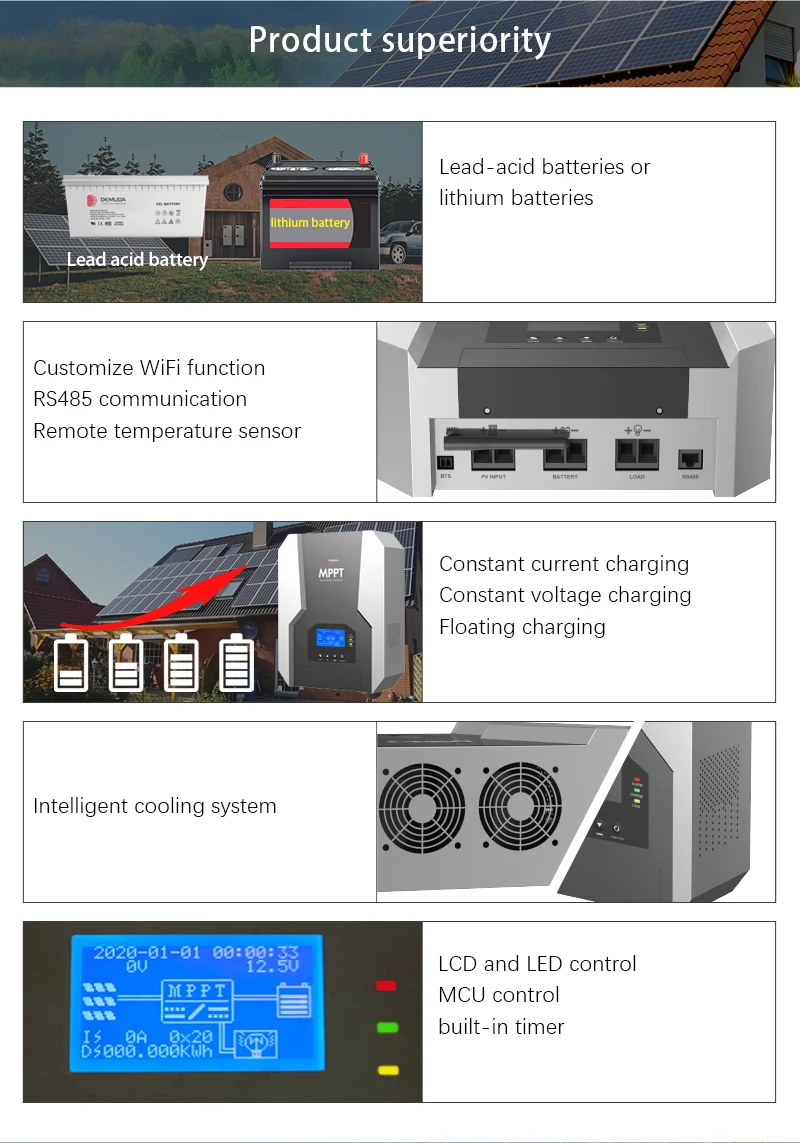

Lead-acid battery type | Maintenance-free(default)colloid/liquid/custom | |||||||||
Lithium battery type | Lithium Iron Phosphate/ Ternary Lithium/Custom | |||||||||
Rated charging current | 40A | 60A | 80A | 100A | 120A | |||||
Rated charging power | 540W/12V 1080W/24V 1620W/36V 2160W/48V | 800W/12V l600W/24V 2400W/36V 3200W/48V | 1080W/12V 2160W/24V 3240W/36V 4320W/48V | 1300W/12V 2600W/24V 3900W/36V 5200W/48V | 1560W/12V 3120W/24V 4680W/36V 6240W/48V | |||||
Maximum open circuit voltage of photovoltaic modules | 150V(under the lowest temperature condition) 138V(under 25℃ condition) | |||||||||
Maximum power point operating voltage range | (Battery voltage+5v)~138v(at25°C) | |||||||||
Tracking efficiency | ≥99.5% | |||||||||
Maximum conversion efficiency | 97.5% | |||||||||
Temperature compensation coefticient | —3m/℃/2V | |||||||||
Static loss | 700m/12V;300mA/24v;150mA/48v;100mA/96v | |||||||||
DC load output voltage | Can be turned on in 12/24V mode | |||||||||
DC load rated output current | 40A | |||||||||
DC load output control | Normally open normally closed mode/time control mode/light control mode | |||||||||
Protective function | PV input reverse connection protection, battery input reverse connection protection, battery overcharge protection, battery undervoltage protection, battery over temperature protection, machine over temperature protection | |||||||||
Cooling method | Wind cooling | |||||||||
Way of communication | RS485 | |||||||||
LCD backlight time | Default 60S. backlight mode can be set | |||||||||
Environmental parameters | ||||||||||
Working environment temperature range | —20℃+50℃ | |||||||||
Storage temperature range | —40℃+70℃ | |||||||||
Relative humidity range | 0~90%RH | |||||||||
Mechanical parameters | ||||||||||
Dimensions | 280*235*110mm | 280*235*110mm | 290*310*110mm | 290*310*110mm | 290*310*110mm | |||||
Recommended wiring | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 4AWG/25mm² | 4AWG/25mm² | |||||
Net weight | 3.5Kg | 3.5Kg | 6Kg | 6Kg | 6Kg | |||||
