S271 Modbus MQTT 4G LTE RTU 4DIN/4DO/4AIN Control System

The GSM 3G 4G M2M RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU).  It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module.

It provides 4 digital inputs, 4 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity. It can monitoring and operates the I/O

ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.

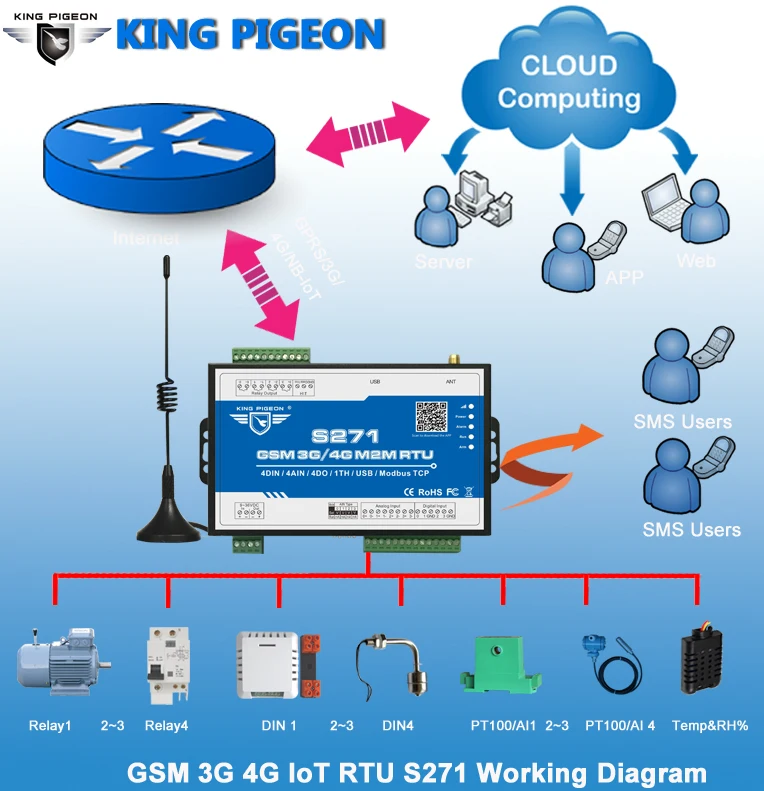

The GSM 3G 4G M2M RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications

according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.

The GSM 3G 4G M2M RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system,

BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

The GSM 3G 4G M2M RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance t

o save the time of traditional authorized .

The GSM 3G 4G M2M RTU performs as Modbus TCP Slave over GPRS/3G/4G/NB-IoT network.

Typically applications:

1. BTS Monitoring;

2. Security Alarm System applications;

3. Supervision and monitoring alarm systems;

4. Automatic monitoring system;

5. Vending Machines security protection;

6.  Pumping Stations, Tanks, Oil or Water levels;

7.  Buildings and Real Estate;

8.  Weather Stations;

9.  River Monitoring and Flood Control;

10.  Oil and gas pipelines;

11.  Corrosion protection

12.  Temperatures, water leakage applications;

13. Wellheads, boat, vehicle;

14.  Energy saving, street lights control system;

15.  Valve controls;

16. Transformer stations;

17. Unmanned machine rooms;

18. Control room application;

19. Automation System, M2M;

20. GSM Access Control System, etc.

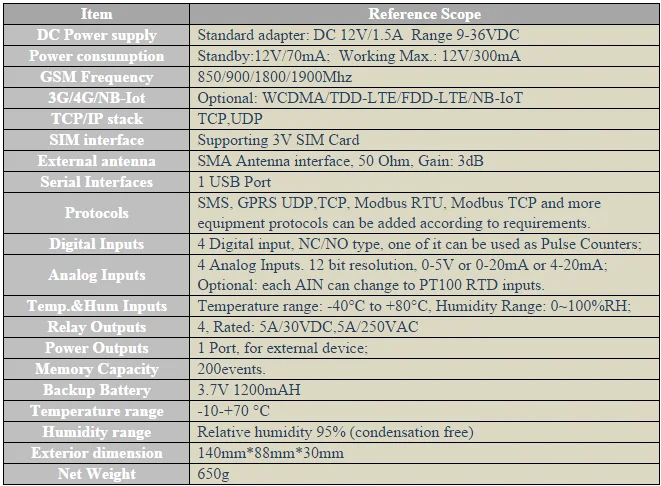

1. Can be operated from anywhere, no distance limitation;

2. Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.

3. 3G/4G/NB-IoT Modules are optional;

4. Modular design, can easily upgrade the cellular module if network upgrade;

 5. Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog;

6. Wide range power supply 9~36VDC with over voltage and phase-reversal protection;

7 .4 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter;

8. 4 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance Temperature Detectors;

9. 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs;

10. 1 ambient sensor input for monitoring onsite temperature and humidity;

11. Inbuilt inter-lock logic programmer and powerful timer program function;

12. Resend the data while communication failure and alert to users by SMS;

13. Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.

14. Supports Modbus TCP protocol over GPRS/3G/4G/NB-Iot networks, performs as Modbus Slave;

15. Supports SMS Alert when I/O triggered or recovery, and external power lost or recovery;

16. Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;

17. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message.

18.10 authorized numbers can switch on/off device with a free charge call at the specified time;

19. Inbuilt internal memory to save up to 200 historical data and events;

20. Inbuilt large capacity automatically rechargeable backup battery;

21.  Industrial class design suitable for long time work applications;

22. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

23.  L140 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

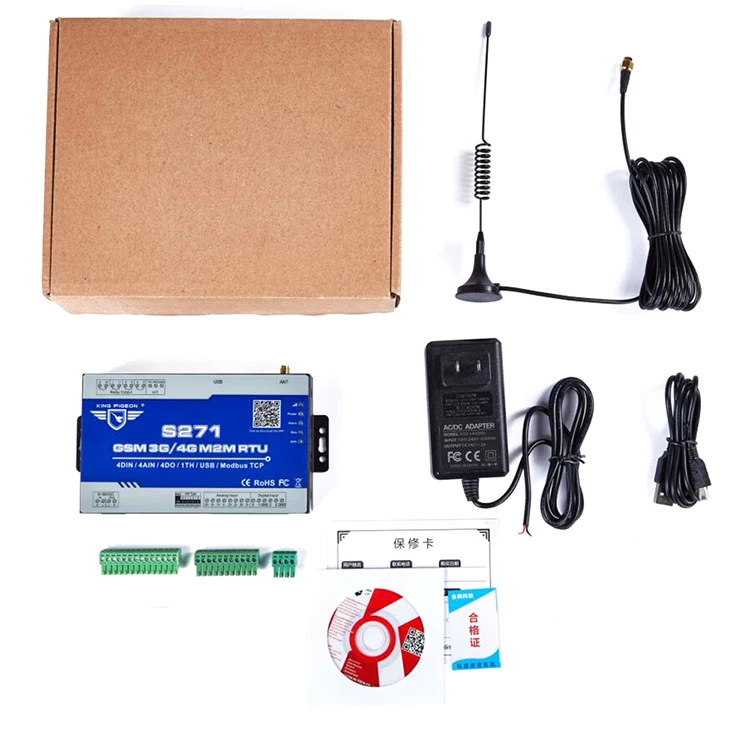

Standard Package:

RTU  X1

AC/DC AdaptorX1

GSM/3G/4G Antenna X1

User Manual X1

PC ConfiguratorX1
