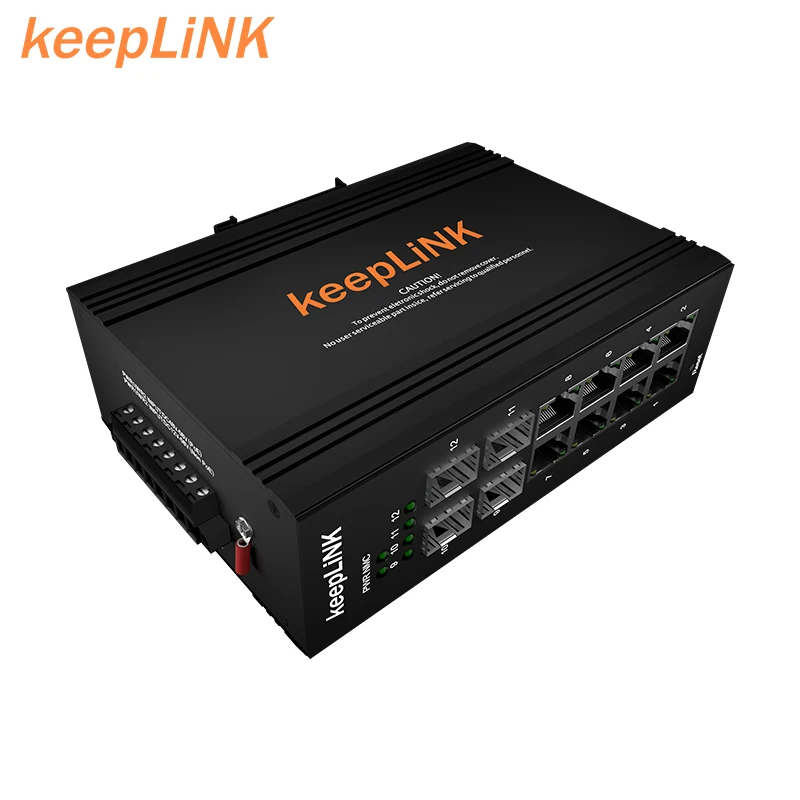

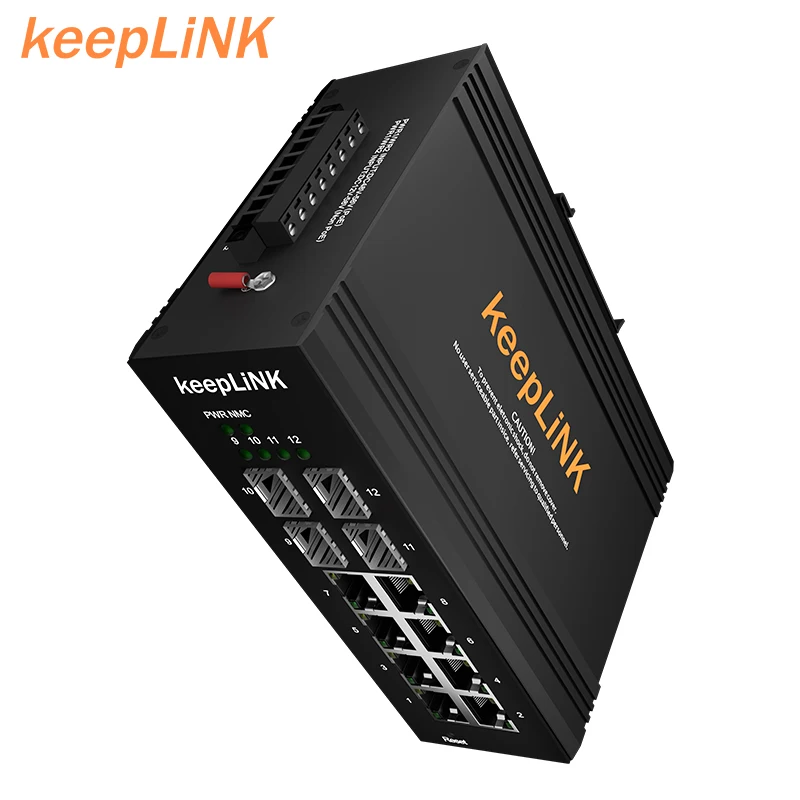

12 Port Industrial Gigabit PoE Light Layer2 Managed Ethernet Switch w/8*10/100/1000Tx (30W/Port) 4*100/1000 SFP Ports
- Category: Network Switches >>>
- Supplier: Shenzhen I-Hirsmann Technology Co. Ltd.
Share on (1600196872044):
Product Overview
Description
Product Description
12-Port Industrial Gigabit PoE+ Light Layer2 Managed Ethernet Switch w/8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Ports
Main Features
- DC12V-58(Non-PoE)/DC48~58V(PoE) redundant power supply
- Surge protection for power 6KV, for Ethernet port 4KV, anti-static 8KV~15KV
- Aluminum body, IP40, -40°C~75°C working temperature.
- PoE support 802.3af&at, 250m transmission distance is optional, support short circuit protection when PoE powered.
- Support undervoltage alarm(<12V), overvoltage alarm(>58V)
- More convenient to use and maintain with DIP Switch: C/D: Reserve; LGY: standard/Nonstandard PoE; VLAN: Port isolation; RST: Remote PD reset
DIP Switch | |
1 C/D | Reserve |
2 LGY | Stand/Non-standard PoE mode |
3 VLAN | Port isolation |
4 RST | Reset |
L2 Switching | |
Switching capacity | 1.4Gbps |
Packet forwarding rate | 1.0416Mpps |
MAC address table | 1K |
Forwarding delay | <5us |
Buffer | 512K |
MDX/MIDX | Support |
Flow control | Support |
Jumbo frame | Support 2048 bytes |
WatchDog | Support |
Electrical Specifications | |
Input voltage | DC12-58V(Non-PoE), DC48~58V(PoE) |
Power consumption | Without PoE<6W, With PoE<186W |
Voltage Alarm | Support |
Mechanical Structure | |
Housing | Metal material |
Weight | 0.5KG around |
Mounting | DIN-rail |
EMC & Ingress Protection | |
IP level | IP40 |
Surge protection of Power | IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
RS | IEC 61000-4-3 Level 3(10V/m) |
EFI | IEC 61000-4-4 Level 3(1V/2V) |
CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3(10V) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Free fall | 0.5m |
Environment | |
Operating temperature | -40℃~ +75℃ The device is tested for 4 hours at temperatures in 85℃ |
Storage temperature | -40℃~ +85℃ |
Relative humidity | 5%~95% (Non-condensing) |
Accessories | Equipment, Terminals, Instruction, Certificate, Power adapter(optional) |
Dimensions | |
| |
Company Information
Our Services
Packaging & Shipping
| Product Information | Fixed port | 5*10/100M RJ45, PoE |
| Packing | Net weight | 0.5KG/pcs |
| Gross weight | 0.8KG/pcs | |
| Packing list | Switch x1; Phoenix terminal x1; Certificate of inspection x1; Instructions&Warranty card x1 | |
| Shipping | Sample order is within 1~3 days, other quantity need to be negotiated | |
| Note: Power adapter and SFP transceivers are not included by default when place an order, please order separately | ||
| Optional models | KP-9000-65-5TP (8*10/100M Rj45, support PoE 802.3af&at) | |
FAQ
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM or OEM?
A: Yes.
Q: What is your minimum order quantity?
A: 1 PCS.
Q: What’s the payment method?
A: T/T, L/C, Western Union, Money Gram, Credit Card, Alipay, Cash.
Q: What are the accepted delivery terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, Express Delivery.
Q: How about the shipping time?
A: Within 3-15 days after receiving full payment, but if you need OEM/ODM, the shipping time depends on the specific specifications of the product.
Q: How about after-sales service?
A: We are 7*24 hours online and respond to user's field device problems in time.
Q: How about the warranty
5 years.
