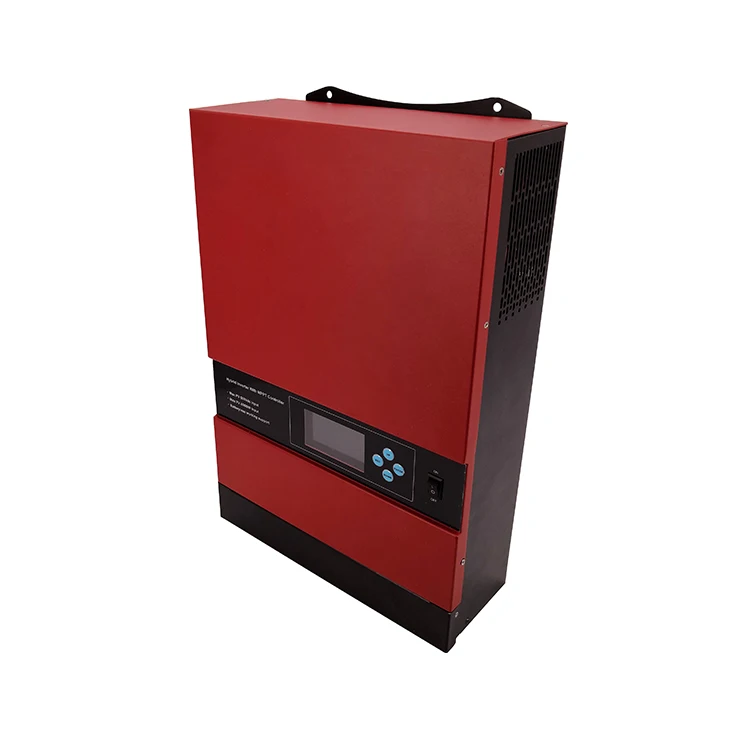

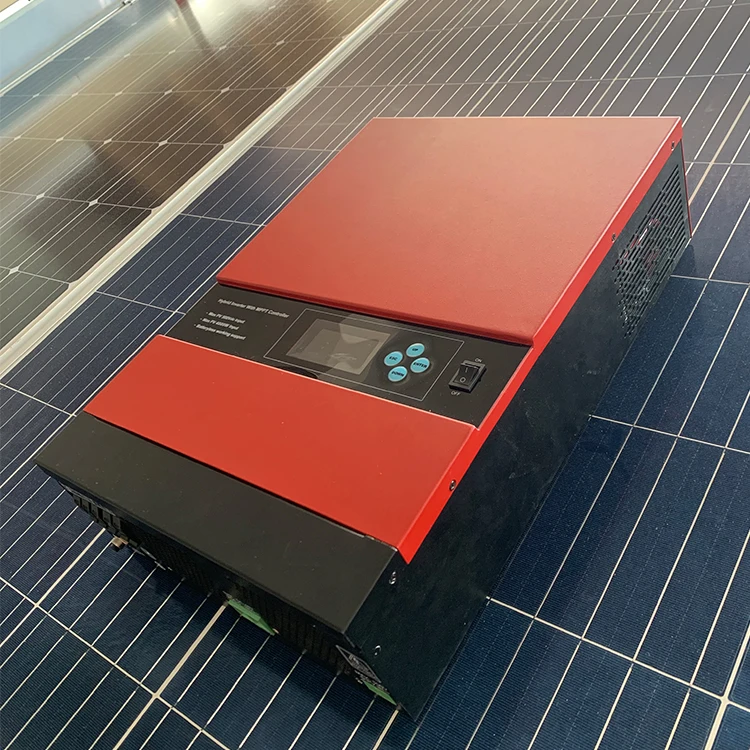

Vmaxpower 48V 230VAC Off Grid sine wave 4 kv solar hybrid inverter hybrid solar inverters with build in charger
- Category: >>>
- Supplier: Guangdong Multifit Solar Co. Ltd.
Share on (1600196893114):
Product Overview
Description
Product Description
Model | Sun Invm HF - Pro 3KW | Sun Invm HF - Pro 5KW | ||
Rated power | 3KVA/3KW | 5KVA/5KW | ||
PV Input(DC) | ||||
Max. PV array power | 4000W | |||
Nominal PV voltage | 240VDC | |||
PV array MPPT voltage range | 120-450VDC | |||
Max. PV array open circuit voltage | 500VDC | |||
Max. charging current(AC+solar) | 80Amp | |||
AC Input(AC) | ||||
Nominal input voltage | 230VAC | |||
Low loss voltage | 170VAC+7V(UPS), 90VAC+7V(applicance) | |||
Low loss return voltage | 180VAC+7V(UPS), 100VAC+7V(applicance) | |||
High loss voltage | 280VAC+7V | |||
High loss return voltage | 270VAC+7V | |||
Max. Ac input voltage | 300VAC | |||
Nominal input frequency | 50/60Hz(auto detection | |||
Transfer time | 10ms typical (UPS), 20ms typical (applicances) | |||
Battery mode output(AC) | ||||
Nominal output power | 3KVA/3KW | 5KVA/5KW | ||
Surge Power | 6000VA | 10000VA | ||
Nominal output voltage | 230VAC±5% | |||
Output waveform | Pure sine wave | |||
Efficiency(DC to AC / Peak) | 93% | |||
Utility Charger | ||||
Nominal DC voltage | 24VDC | 48VDC | ||
Maximun Charging current | 60Amp | |||
Bulk charging voltage | 29.2VDC | 58.4VDC | ||
Floating charging voltage | 27VDC | 54VDC | ||
Overcharge protection | 33VDC | 63VDC | ||
General | ||||
Dimension | 100X300X440mm | |||
Net weight | 9kg | 10kg | ||
Commuynication port | RS-232/USB | |||
Humidity | 5-95% RH(Non condensing) | |||
Working tempreture | -10 - 55℃ | |||
Altitude | 0-1000M | |||

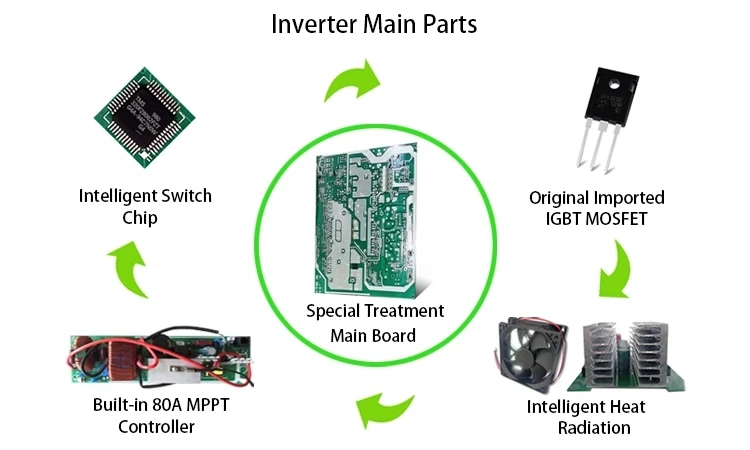

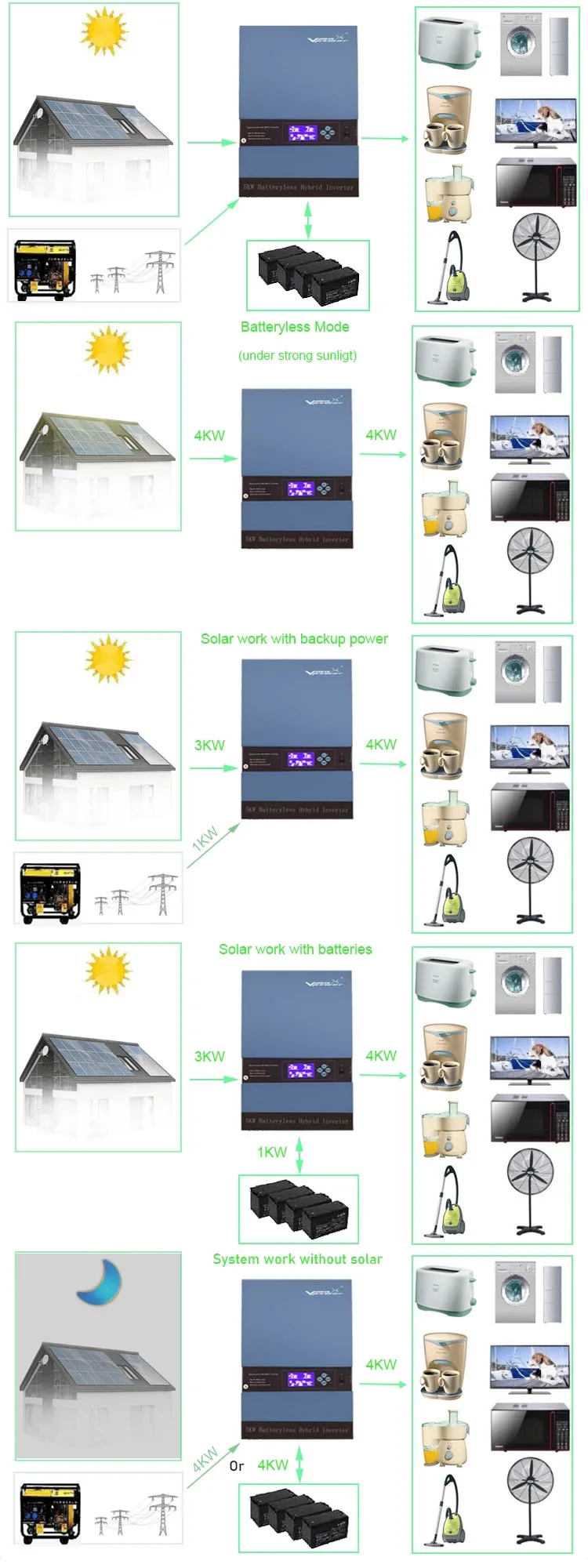

How It Work

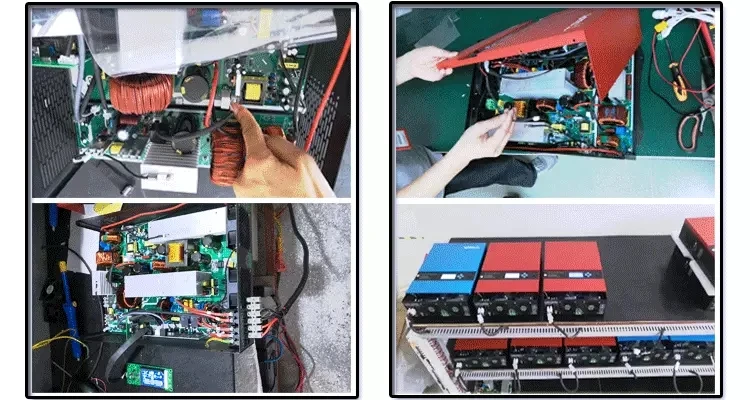

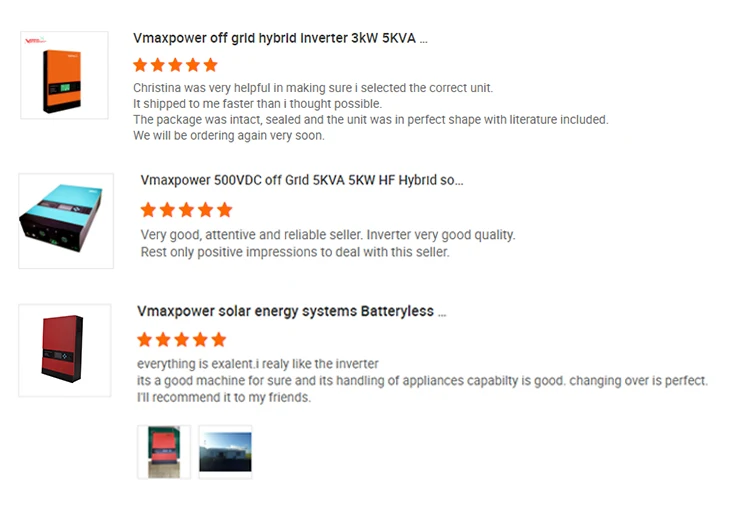

Success with Multifit
Related Products
Company Profile
Multifit was founded in 2009,Based on providing the world-class small-scale photovoltaic power plants for civilian solutions and innovative research and development of renewable energy electrical products,we have cultivated a group of sales and R&D teams with ideals, experience and technology.The product has obtained more than 10 patent certificates,Now it has been exported to Europe, America, Asia, Africa and Latin America and others,there are more than 50 countries and regions in the world.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory. Multifit Solar is an original design manufacturer of power inverter, the solar charge controller and solar
array box since 2009.
Q2: Where is your factory located? How can I visit there?
A: Our factories are located in BeiJing and Shantou City, Guangdong, China. Its takes half hours from Airport or Train Station.
Welcome to visit our technology development and production lines at your free time!
Q3: How can I get some samples?
A: We can provide you samples for quality checking.
Kindly contact us for getting more discount and profitable project solutions.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q5: Where is your loading port?
A: Multifit have 2 factories in Beijing and Shantou City Guangdong.
The loading port is TianJin/ Shanghai or Shenzhen/ Guangzhou for optional.
Q6: How long is your factory delivery time?
A: 3-7 days for sample order, 5-10 days for MOQ order,15-30 days for 20ft container.
Q7: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
A: We are a factory. Multifit Solar is an original design manufacturer of power inverter, the solar charge controller and solar
array box since 2009.
Q2: Where is your factory located? How can I visit there?
A: Our factories are located in BeiJing and Shantou City, Guangdong, China. Its takes half hours from Airport or Train Station.
Welcome to visit our technology development and production lines at your free time!
Q3: How can I get some samples?
A: We can provide you samples for quality checking.
Kindly contact us for getting more discount and profitable project solutions.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q5: Where is your loading port?
A: Multifit have 2 factories in Beijing and Shantou City Guangdong.
The loading port is TianJin/ Shanghai or Shenzhen/ Guangzhou for optional.
Q6: How long is your factory delivery time?
A: 3-7 days for sample order, 5-10 days for MOQ order,15-30 days for 20ft container.
Q7: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

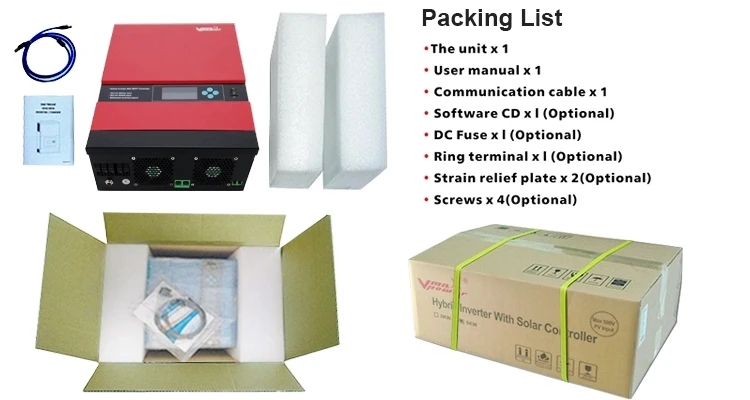

Packing & Delivery
