Automatic Liquid Ampoule Vial Oral Bottle Filling Production Line

Product Overview

Description

Ampoule filling line

Main machine composition

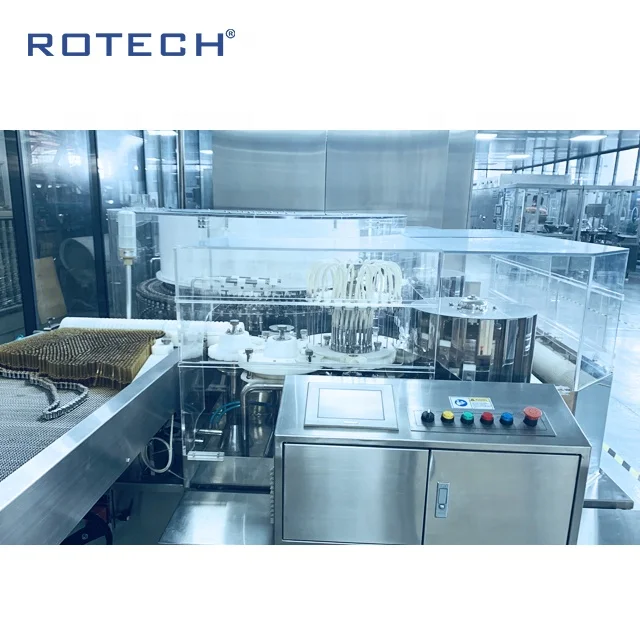

 Vertical Ultrasonic Washing Machine

 Hot Air Circulation Sterilizing Tunnel

 Ampoule Filling and Sealing Machine



Main description

 pharmaceutical ampoule filling sealing production line consists of this series vertical ultrasonic washing machine, this series hot air circulation sterilization tunnel, filling and sealing machine. The pharmaceutical ampoule filling sealing production line can be used in combination or in a single machine. The pharmaceutical ampoule filling sealing production line is an complete water spray filling, ultrasonic cleaning and flushing(internal and external),CA flushing(internal and external),preheating, drying and sterilization to remove heat source, cooling, before and after nitrogen, sealing after preheating, sealing and other processes.

 This pharmaceutical ampoule filling sealing production line can meet the size range from 1-20ml ampoule of washing, drying and sterilizing to remove heat source, filling and sealing requirements of the production process.



Main features

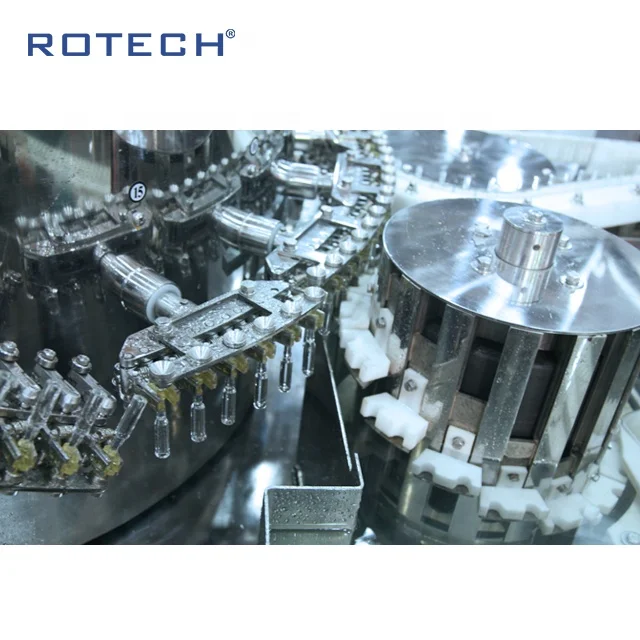

 Vertical ultrasonic washing machine of pharmaceutical ampoule filling sealing production line using ultrasonic rough washing, circulating water, WFI and clean compressed air spray and clean the container alternately. Cleaning clarity and visible material detection effect is ideal; it is the most popular cleaning machine in the world today.

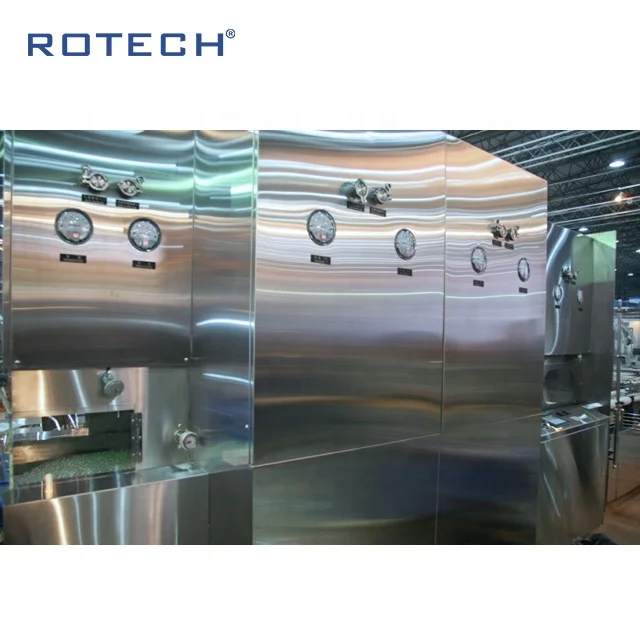

 The sterilization tunnel of pharmaceutical ampoule filling sealing production line adopts the principle of hot air laminar flow and high temperature sterilization process to preheat, dry, sterilize, remove heat and sterilization process. It is the most popular drying and sterilizing machine in the world.

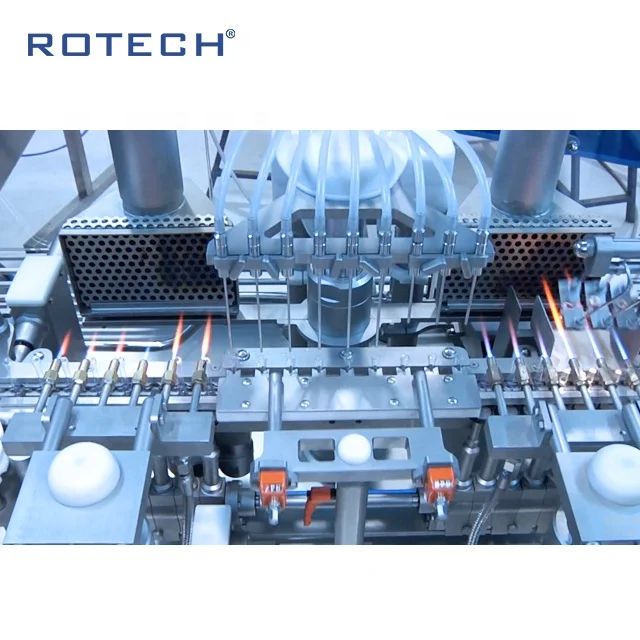

 Filling and sealing machine of pharmaceutical ampoule filling sealing production line adopts step-by-step bottle conveying, positioning filling, wire drawing and sealing. The sealing rate is high. It is the most popular filling and sealing machine in the world.

 The pharmaceutical ampoule filling sealing production line adopts PLC control and touch screen operation, which can be used for linkage control or stand-alone operation. The control runs stably and with high automation.

Technical parameters

					Product model	QCL100+ASMR620+AGF8/1-20	QCL120+ASMR620+ AGF10/1-20		QCL120+ASMR620+ AGF12/1-10
					Applications	1-20ml (GB standard ampoule)	1-20ml (GB standard ampoule)		1-10ml (GB standard ampoule)
					Capacity	1-2ml/22000pcs/h	1-2ml/24000pcs/h		1-2ml/28000-30000pcs/h
						5ml/16000pcs/h	5ml/18000pcs/h		5ml/20000pcs/h
						10ml/11000pcs/h	10ml/15000pcs/h		10ml/18000pcs/h
						20ml/6000pcs/h	20ml/8000pcs/h
					Clearness	>99%
					Qualified rate	More than 99%(standard solution)
					Quality error	According to National State Pharmacopoeias Standards of China
					Fresh water consumption and pressure	Consumption :0.4-1.0cbm/h Pressure:0.2Mpa
					Purified compressed air consumption and pressure	Consumption :30-75cbm/h Pressure:0.15Mpa
					Sterilizing temperature	300-350℃
					Air cleanness	100class
					Gas fuel consumption and pressure	Consumption :1.5-2.5cbm/h Pressure:0.2-0.3Mpa
					Oxygen consumption and pressure	Consumption :1.2-1.5cbm/h Pressure:0.2-0.3Mpa
					Power	380V/50Hz/71kw
					Dimension (L×W×H)	9713×2554×2307mm		10123×2260×2385mm
