Solid Wood Concrete Formwork h20 Timber Beam Formwork Yellow Wood H beam

Share on:

Price in USD:Details


Product Overview

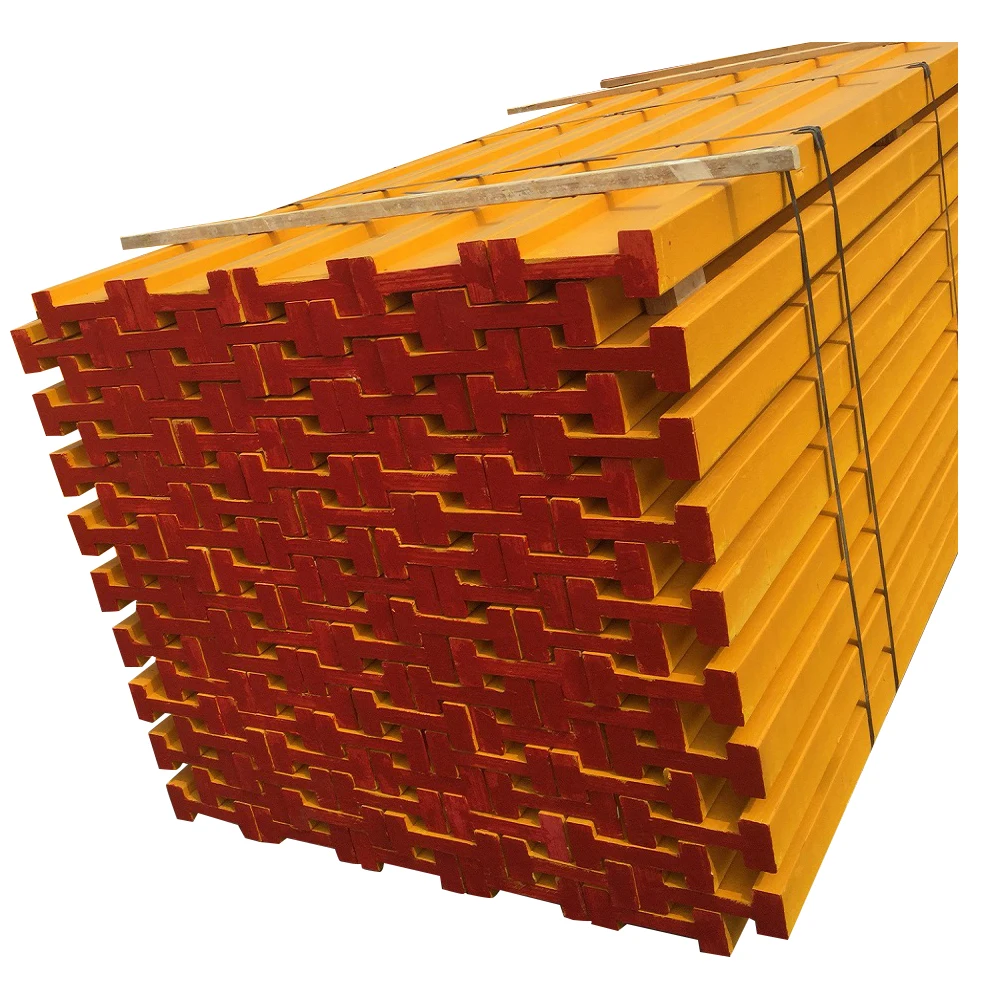

Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used in formwork
systems, construction systems parts, Falsework systems, timber structures and other bearing structures .
Formwork H20 Timber Beam is the strongest and lightest formwork beam made of engineered spruce wood. Our Formwork beam are
produced in various standard lengths.

Products Description

Product Name
H20 Beam / h 20 Wooden Beam Formwork for hydraulic automatic climbing formwork
Technical Specification
Flange: Radiate pine LVL from New Zealand
Web: Poplar core plywood
Glue: WBP glue
Weight: around 5.0 kg/m
Available length (m): 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
* Flange is made from imported radiate pin LVL, Finger-jointed into the web* Web is made from poplar core plywood with Melamine
WBP glue
* Two ends of each beam can be sealed with protective caps to protect them from moisture, reduce damage and increase service life
* Yellow water proof painting
* Monitoring as per EN13377 standard
Standard exporting package( bottom is pallet, covered with plastic film, around is carton, strengthen by steel tape with 3*6
Size Available
length:3000-6000mm, width:70-300mm
yellow waterproof painting or as per request
