IP65 Pressure Sensor / Pressure Transducer / Pressure Transmitter
- Category: >>>
- Supplier: Beijing Ifan Peng Instrument Co. Ltd.
Share on (1600197203605):
Product Overview
Description
Product Description
Specification
Product name | Pressure transmitter |
Model number | AF501 |
Measurement range | -0.1．．．0~0.01．．．~100MPa |
Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
Pressure type | Gauge, absolute, sealed gauge |
Accuracy | ±0.1%, ±0.25% (typical) |
Long term stability | ±0.3%F.S/year |
Zero temperature drift | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Span temperature range | ±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa） |
Operating temperature range | -20℃~80℃ |
Storage temperature range | -40℃~120℃ |
Power supply | 24V DC (15-30)V DC |
Analog output:4～20mA 0～10mA 1～5VDC 0～5VDC | |
Digit output: HART protocol RS485 protocol digit signal output | |

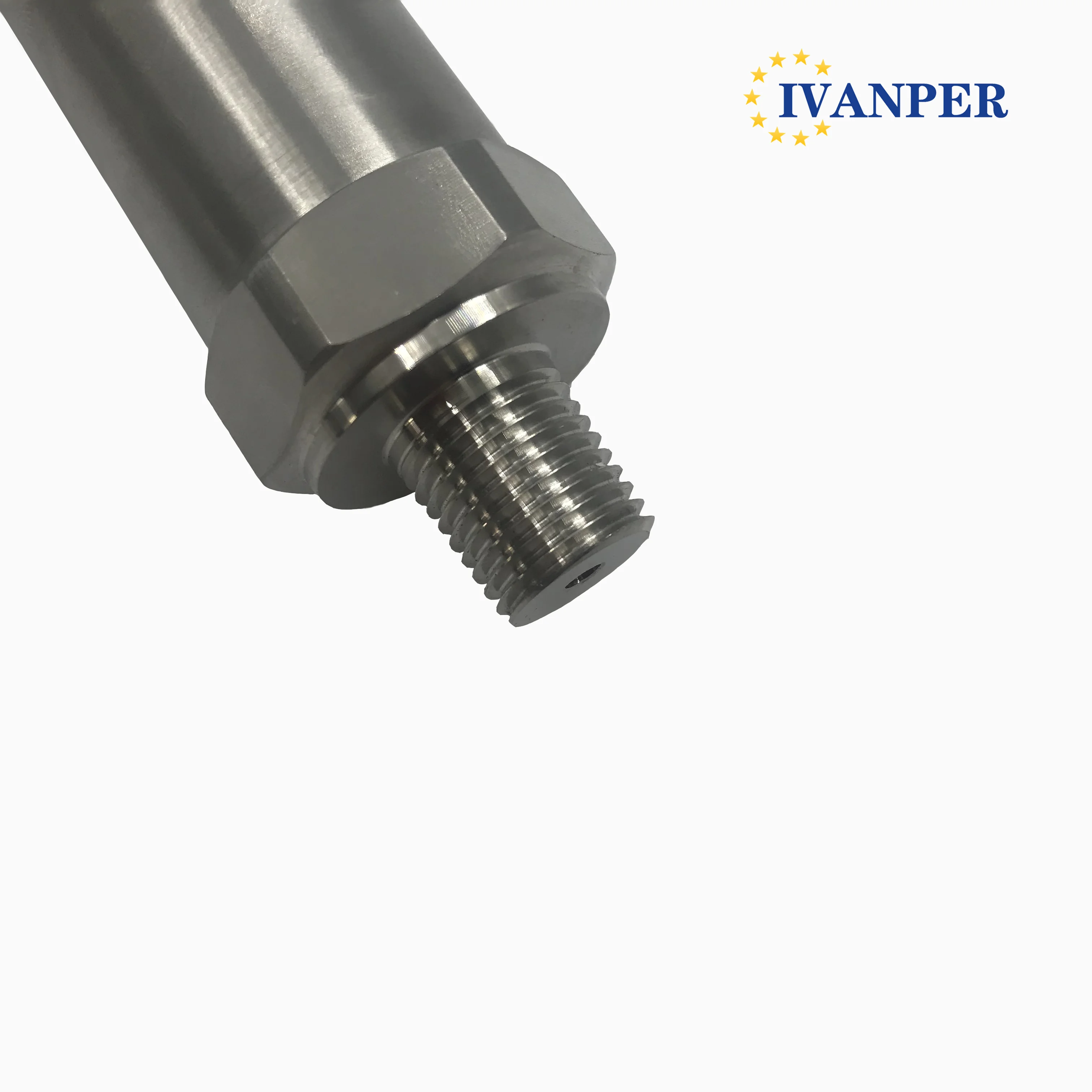

Pressure port | M20×1.5 , G1/2 or customized |
Display | -1999~9999 |
Main material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polythylene |
Insulation resistance | 100MΩ 100V DC |
Ingress protection | IP65 |
Recommend Products
Customer Visit
Certifications
Packing & Shipping
FAQ
Q1. Why choose us?
A: Founded in 2011, Beijing Ifpen Instrument Enterprise is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about the validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
A: Founded in 2011, Beijing Ifpen Instrument Enterprise is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about the validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
