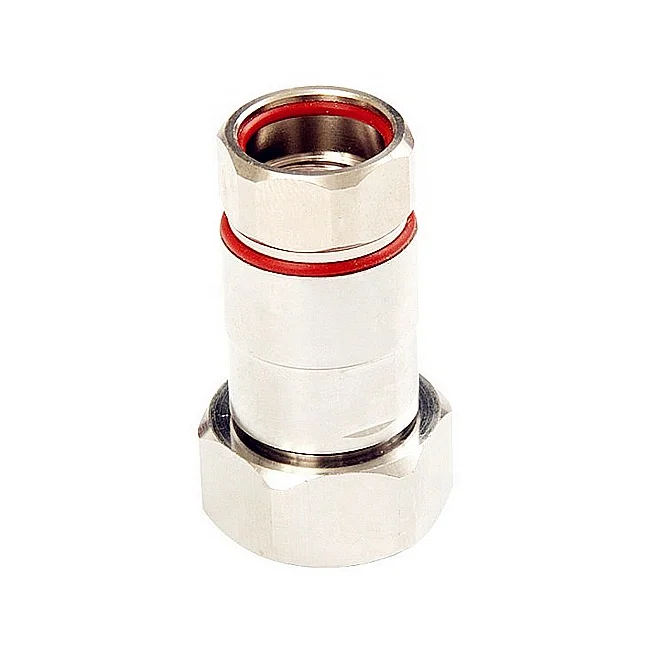

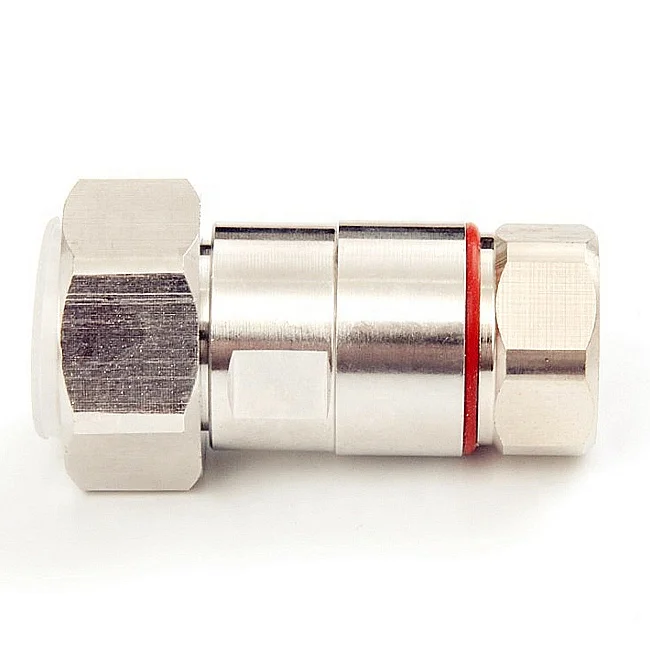

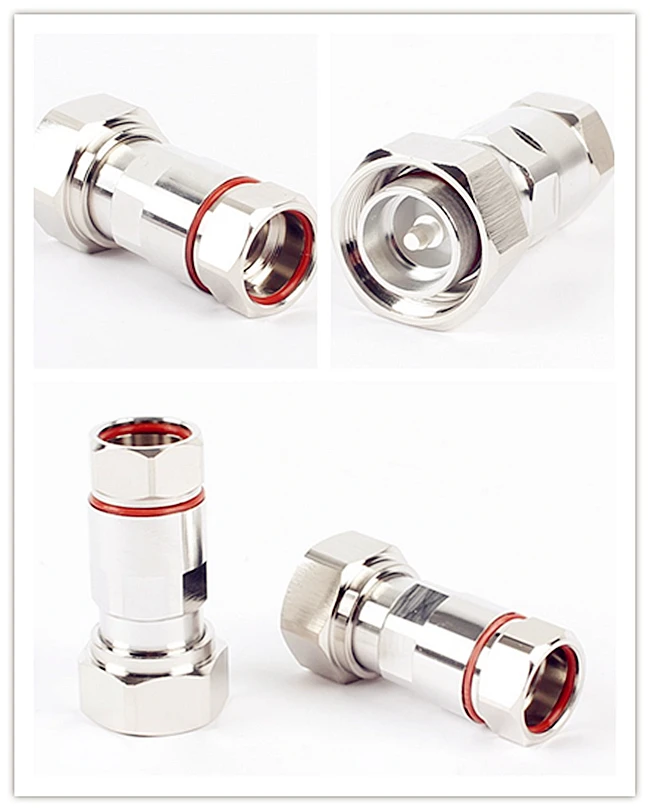

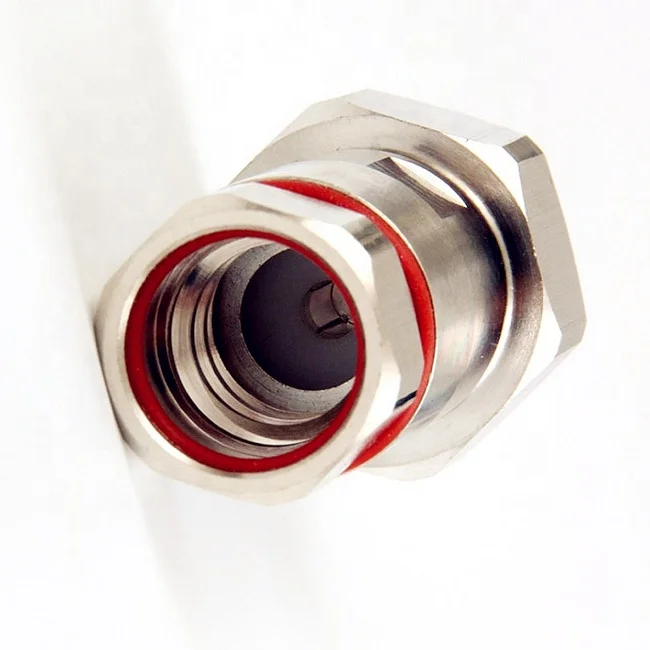

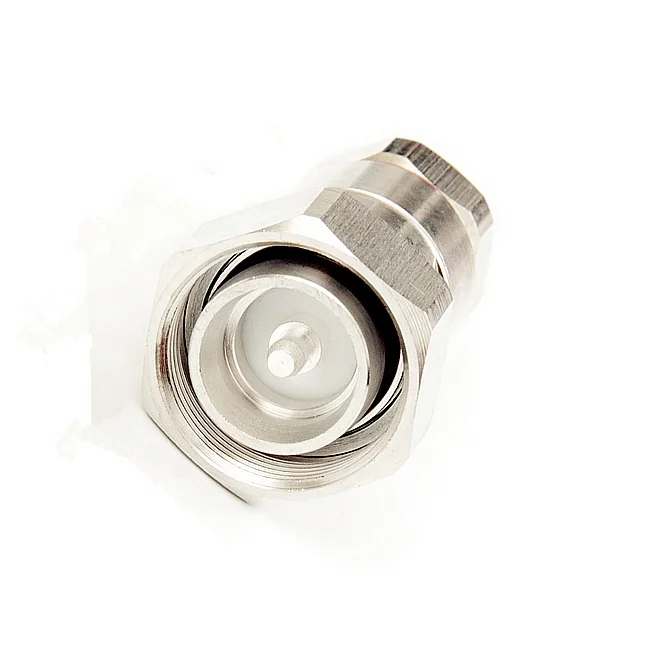

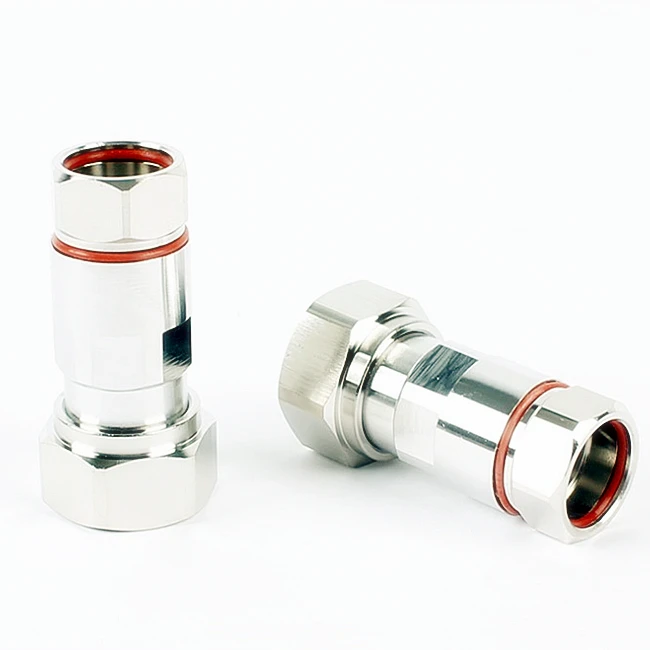

RF Coaxial 4.3-10 Mini DIN Male Plug Connector For 1/2'' Superflexible Cable




















































































































Straight 4.3-10 Mini Din male connector for 1/2SF Coax Feeder cable



Model number


4.3-10 Din-J1/2S


Interface


IEC 60169-16;MIL-C-39012;CECC-22210


Electrical



Characteristic Impedance


50ohm


Frequency Range


DC-11GHz


VSWR


≤1.15@DC-3000MHz


Insertion Losss


≤0.24dB(6GHz)


3rd Order IM (PIM3)


≤ -155dBc@2×20W


Working Vlotage


2700V RMS,50Hz,at sea level


Dielectric Withstanding Voltage


≥4000V RMS,50Hz,at sea level


Dielectric Resistance


≥10000MΩ


Mating


—


Mechanical



Durability


Mating cycles ≥500


Material and Plating


Parts Name


Material


Plating


Body


Brass


Tri-Alloy(CuZnSn)


Insulator


PTFE


—


Inner Conductor


Phosphor Bronze


Ag


Gasket


Silicone Rubber


—


Sealing Method


O-ring



Environmental


Operating Temperature


45 ℃-85 ℃


Weatherproof Rate


IP67


RoHs (2002/95/EC)


Compliant by exemption
