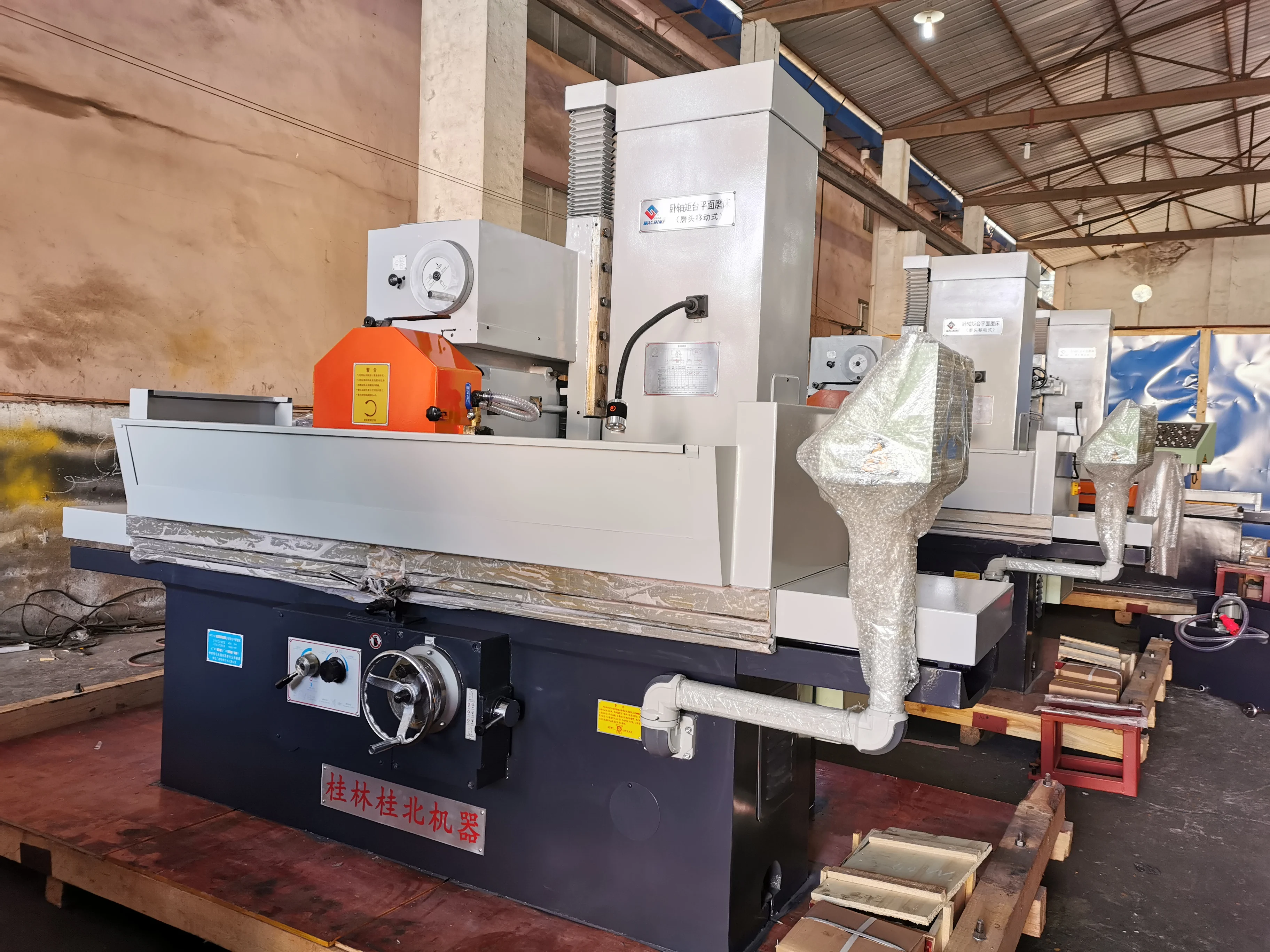

CNC PLC flat surface grinding machines with horizontal grinding wheel spindle and reciprocating table

Main Specifications

Unit

M7130G/FCK
M7130QF/CK

M7140/CK
M7140QF/CK
M7140/2

M7140/CK-GL

M7150×12/CK

M7160/CK
M7160/2CK
MK7160

M7163×12/CK
M7163×12/2CK
M7163×12

Size of working table (W×L)

mm

320*1000

400*1000

500*1250

600*1000

630*1000

Max.size of workpiece to be ground (W×L×H)

mm

320*1000*400

400*1000*400

500*1250*400

600*1000*400

630*1000*400

Table longitudinal travel (Hydraulic)

mm

200~1100

200~1350

180~600

200~1350

Max.Allowable weight of workpiece
(Including electromagnetic chuck)

kg

500

624

980

Max.Travel of wheel-head cross

mm

360

430

550

650

Wheel size (O.D×W×I.D)

mm

Φ400×50×Φ203

Grinding wheel motor
Rotational speed

KW
r/min

7.5
1440

9
1440

Working surface to base level parallelism

mm

 300:0.008

 300:0.005

 300:0.008

Surface roughness

μm

Ra0.63

Overall dimensions (L×W×H)

mm

3000*1712*2057

3000*1736*2280

3000*1782*2057

3540*2073*2280

3040*2073*2280

3540*2073*2280

Packing dimensions (L×W×H)

cm

261*167*242

360*191*258

304*190*230

383*228*280

343*228*280

383*228*280

N.W

kg

3200

4000

3750

4900

4800

4950
