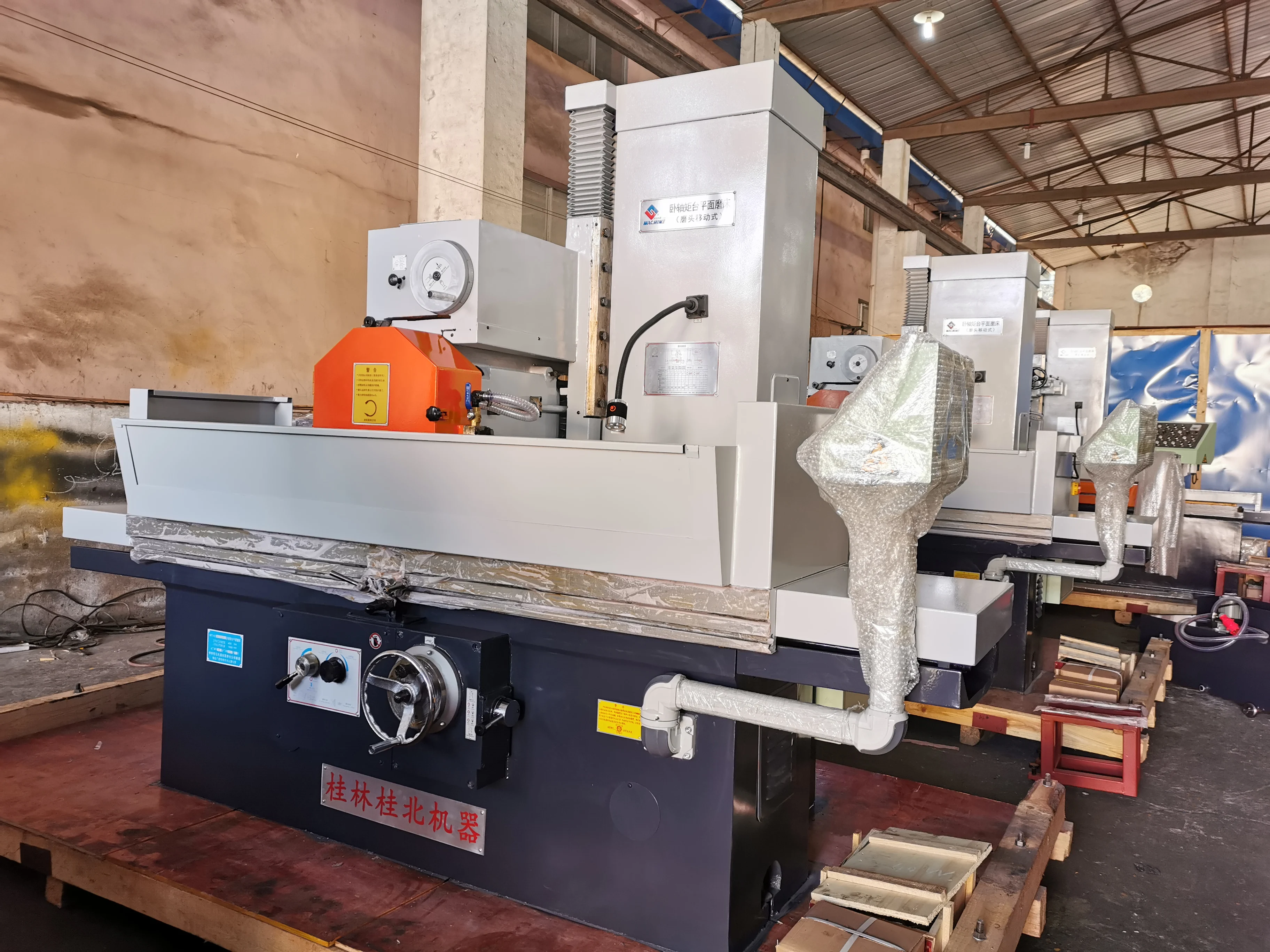

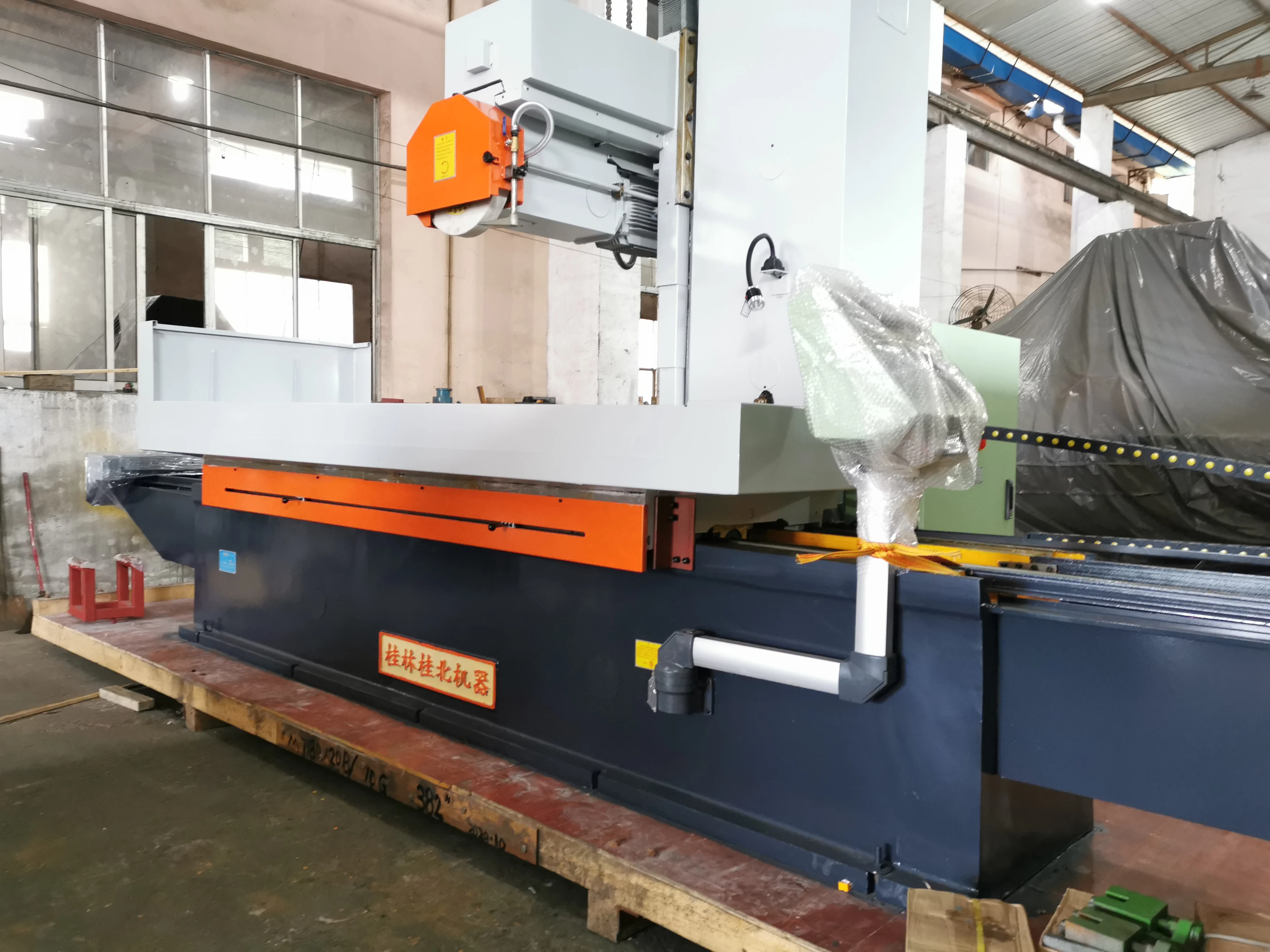

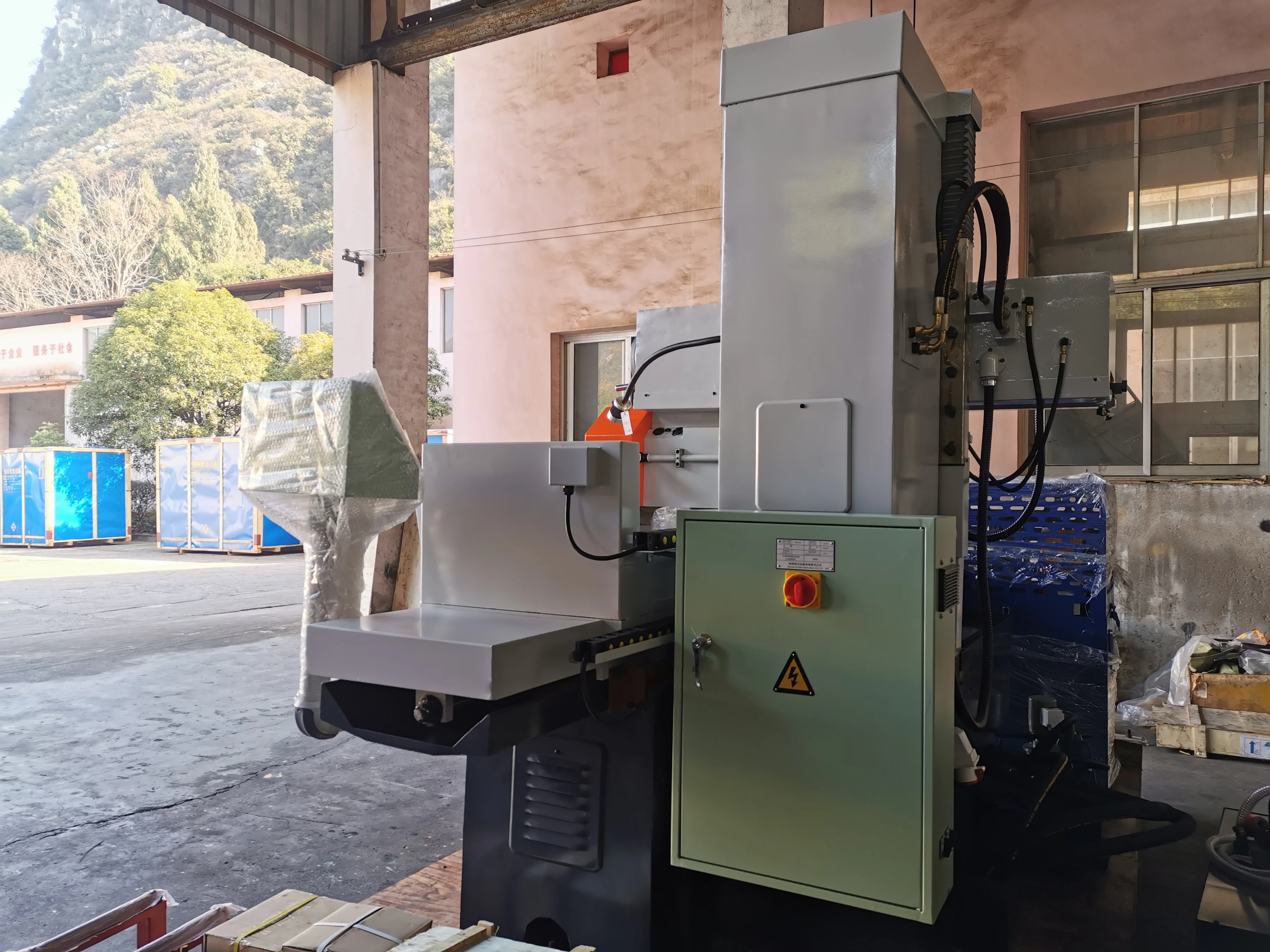

Высокоточный гидравлический станок с ЧПУ для шлифовки плоских поверхностей для металла и стали
- Category: Surface Grinding Machines >>>
- Supplier: Guilin Guibei Machine Co. Ltd.
Share on (1600197357331):
Product Overview
Description
Product Description
Main Specifications | Unit | M7130G/FCK | M7140/CK | M7140/CK-GL | M7150×12/CK | M7160/CK | M7163×12/CK |
Size of working table (W×L) | mm | 320*1000 | 400*1000 | 500*1250 | 600*1000 | 630*1000 | |
Max.size of workpiece to be ground (W×L×H) | mm | 320*1000*400 | 400*1000*400 | 500*1250*400 | 600*1000*400 | 630*1000*400 | |
Table longitudinal travel (Hydraulic) | mm | 200~1100 | 200~1350 | 180~600 | 200~1350 | ||
Max.Allowable weight of workpiece | kg | 500 | 624 | 980 | |||
Max.Travel of wheel-head cross | mm | 360 | 430 | 550 | 650 | ||
Wheel size (O.D×W×I.D) | mm | Φ400×50×Φ203 | |||||
Grinding wheel motor | KW | 7.5 | 9 | ||||
Working surface to base level parallelism | mm | 300:0.008 | 300:0.005 | 300:0.008 | |||
Surface roughness | μm | Ra0.63 | |||||
Overall dimensions (L×W×H) | mm | 3000*1712*2057 | 3000*1736*2280 | 3000*1782*2057 | 3540*2073*2280 | 3040*2073*2280 | 3540*2073*2280 |
Packing dimensions (L×W×H) | cm | 261*167*242 | 360*191*258 | 304*190*230 | 383*228*280 | 343*228*280 | 383*228*280 |
N.W | kg | 3200 | 4000 | 3750 | 4900 | 4800 | 4950 |

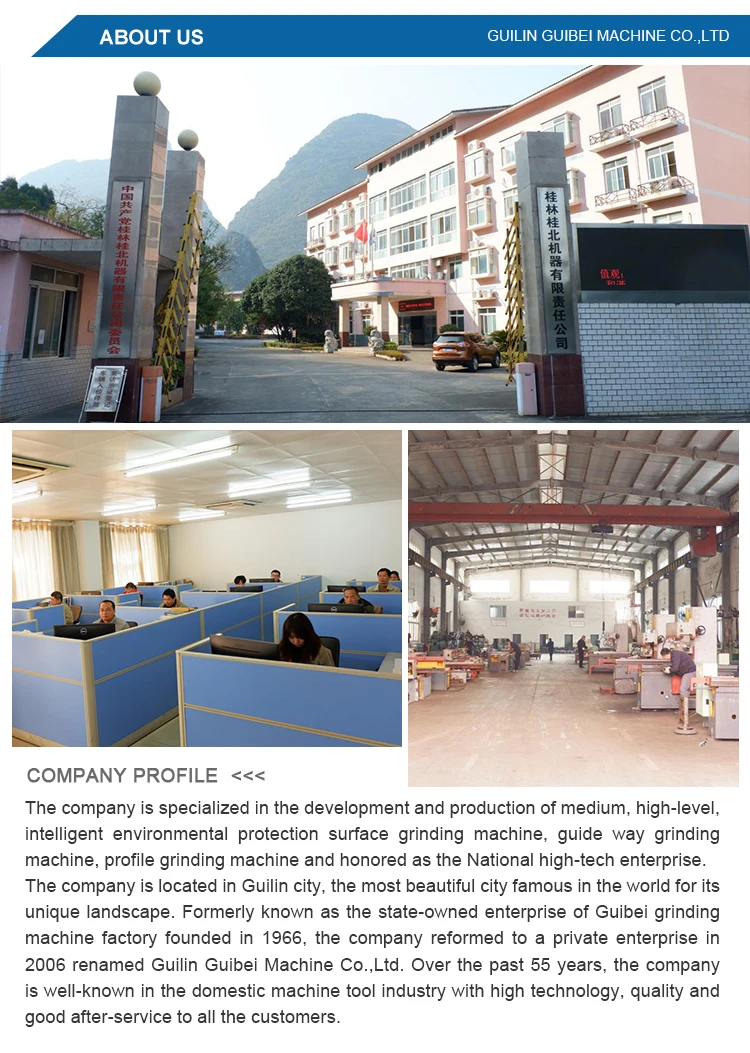

Company Information
