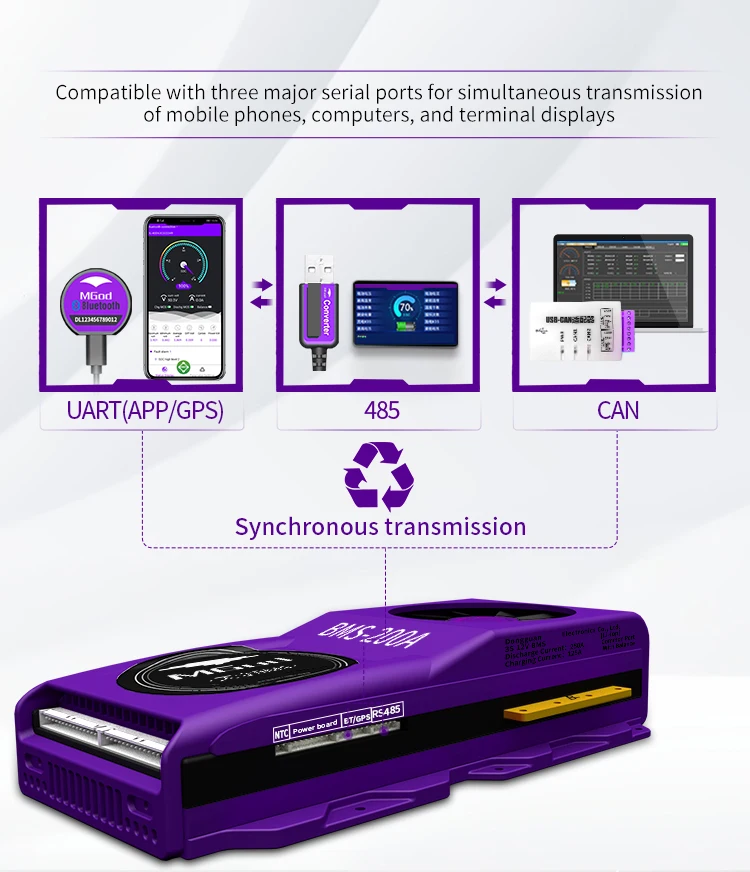

FAN Lifepo4 15S BT App UART RS485 CAN Communication Low Temp Cutoff For Electric Motorcycle Equalizer Balancer Smart BMS
- Category: >>>
- Supplier: Dongguan Tianshou Electronic Technology Co. Ltd.
Share on (1600197399261):
Product Overview
Description
Products Description

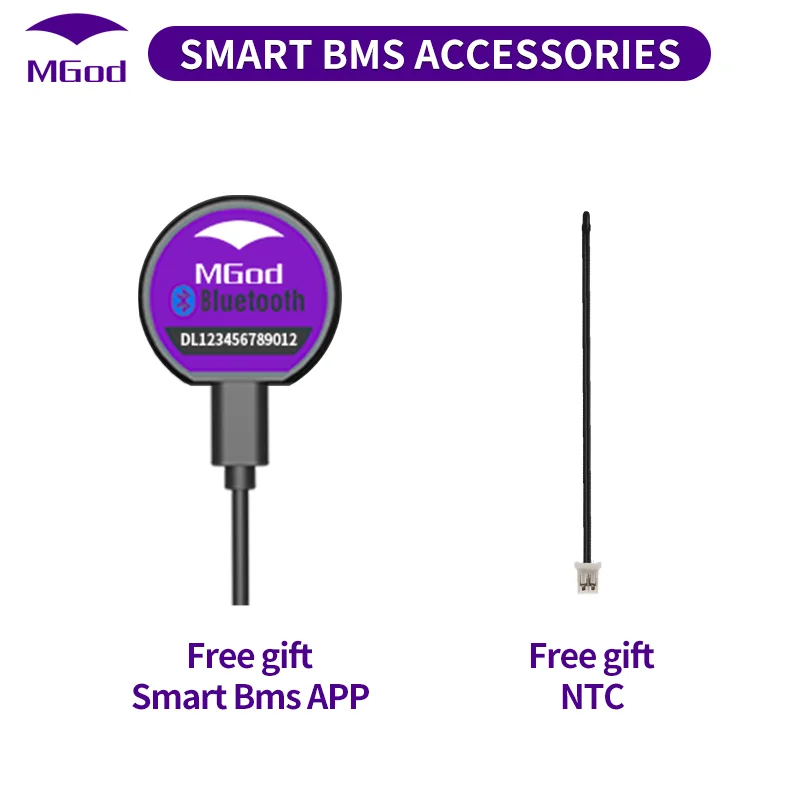

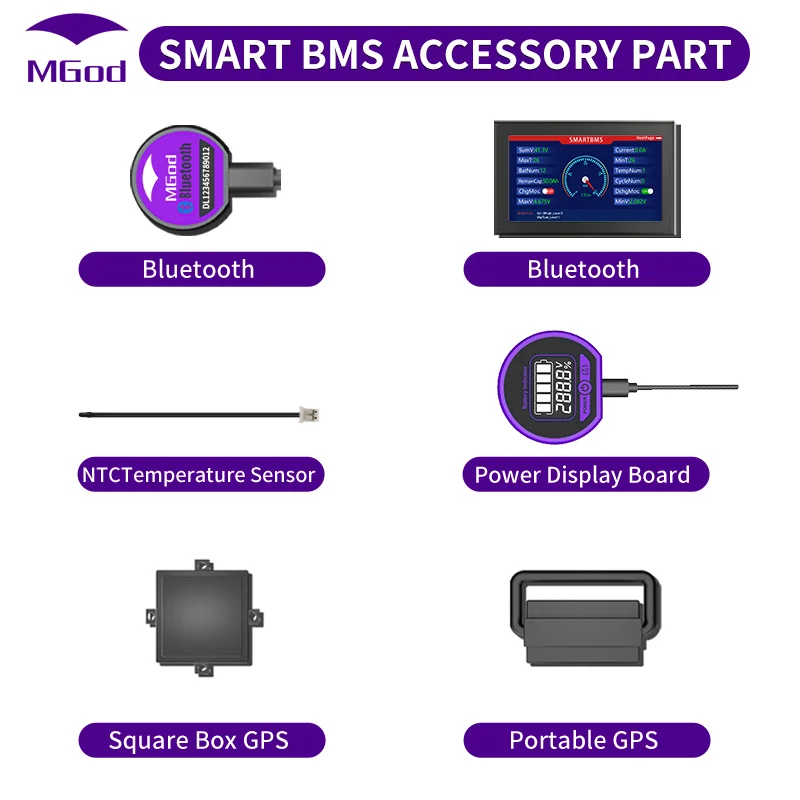

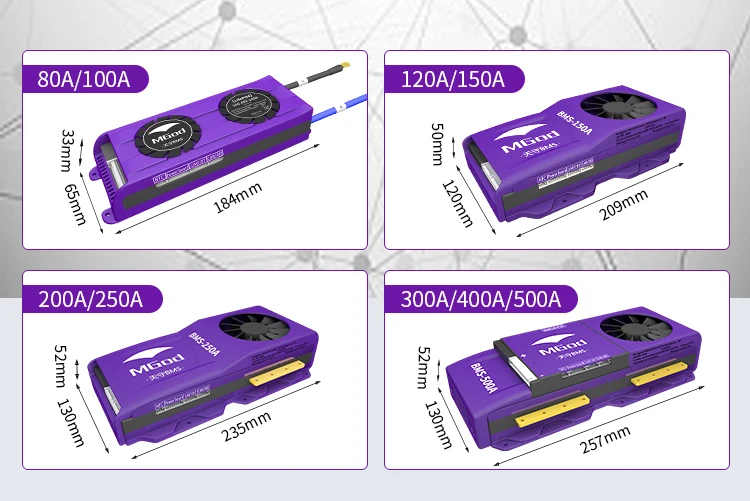

Smart BMS accessories

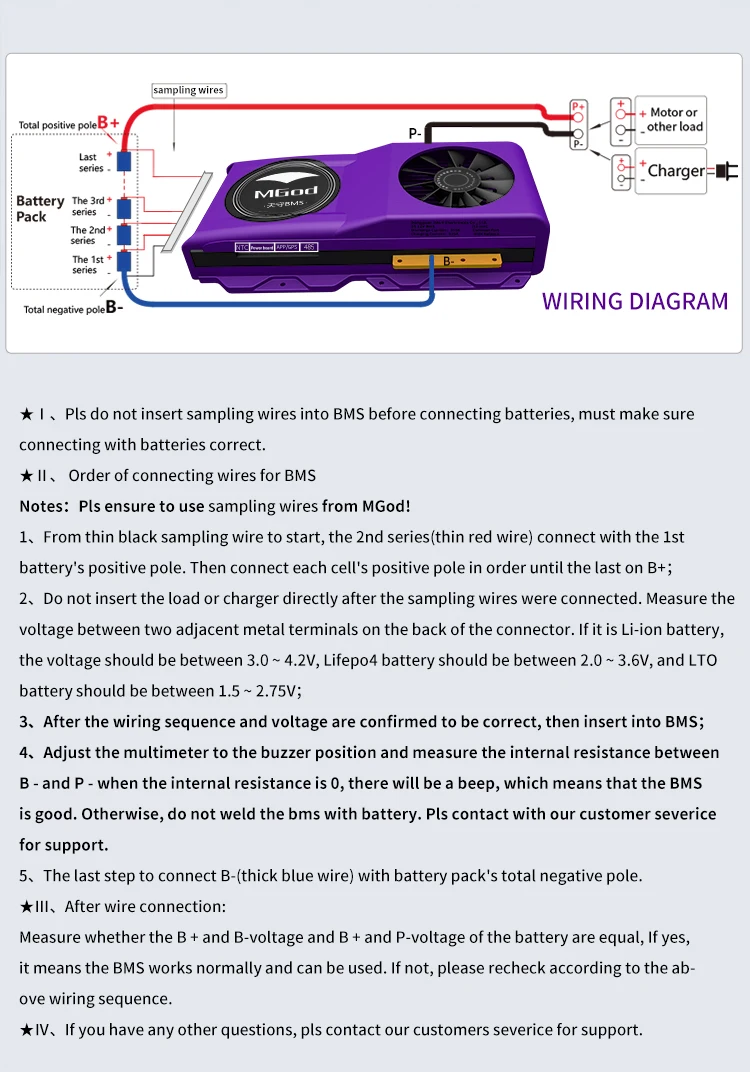

Wiring Diagram
Description | Lifepo4 | Unit | |
Over charge protection | Over charge detect voltage | String*3.75±0.05 | V |
Over charge protection delay | 1 | S | |
Over charge release voltage | String*3.75±0.05 | V | |
Balance | Balance detect voltage | 3.2 | V |
Balance release voltage | 3.2 | V | |
Balance current | 30±5 | mA | |
Over discharge protection | Over discharge detect voltage | String*2.2±0.05 | V |
Over discharge detect delay | 1 | S | |
Over discharge release voltage | String*2.3±0.05 | V | |
Over current protection | Over current detect voltage | 1 | - |
Over current detect delay | Off load | - | |
Short circuit protection | Short circuit protection condition | Short circuit of external load | - |
Short circuit detect delay | 320 | uS | |
Short circuit protection release condition | Off load | - | |
Temp protect | Temperature protect | Charge:-40~65℃ Discharge: -40~70℃ | ℃ |
Self consumption | Operating temperature | 20 | uA |
Sleeping current (when in discharge) | 200 | uA | |
Operating temperature | Temperature range | Low:-20℃ High:70℃ | ℃ |
Storage temperature | Temperature range | Low:-40℃ High:80℃ | ℃ |
Company Profile

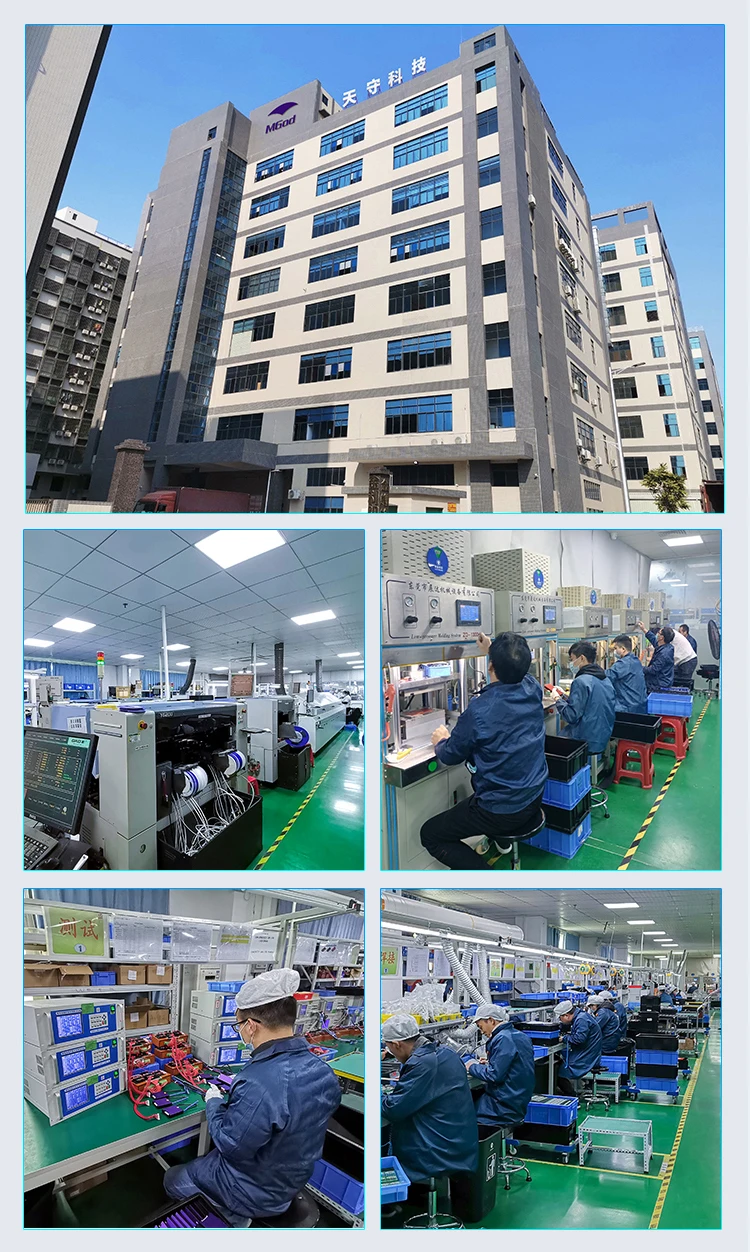

Dongguan MGOD Electronics Co., Ltd
Dongguan MGOD Electronics Co., Ltd. is located in Dongguan, the world factory. It is a high-tech enterprise recognized by Dongguan Science and Technology Commission. It is a high-tech company specializing in the R&D, production, and sales of lithium battery protection boards (BMS). "Only safety, not exist" is the quality policy that "MGOD" has always implemented. Our company has an internationally standardized quality management system, and pushes every product facing the market to a climax to achieve "MGOD Production Must Be Boutique". Have a high-quality R&D, production, and management team, with rich professional theoretical knowledge, product design, and production management experience. Our company also has several senior engineers and senior experts, who have been engaged in the battery management system (BMS) industry for more than ten years. They are committed to product development and participated in the preparation and preparation of lithium battery technology series. [Detailed description of lithium battery management system], [Lithium battery PACK encyclopedia and industry-related national standards (GB). Our company has a complete standard testing laboratory, dozens of lithium battery protection board testing, aging, reliability testing equipment, to provide reliable quality assurance for product testing and inspection. Adhering to the talent management concept of "people-oriented, talented and intelligent". ", adhering to the value concept of "learning ability is the future competitiveness". Mgod focuses on R&D customers through reliable protection boards. Lithium batteries have advanced production equipment, complete production lines, and an annual production capacity of 6 million pieces. The products are complete. Our products cover 3-32 series battery modules, and lithium battery protection and management systems with full working current within 500A. The company's leading products are waterproof purple plates and high-current plates, which are widely used in various types of power lithium Battery systems, such as electric bicycles, sightseeing cars, golf carts, RVs, low-speed electric vehicles, etc. Other industries such as wind energy storage systems, home energy storage systems, UPS backup power supplies, car startup power supplies, communication base station power supplies, mining emergency equipment, Solar street lights, and other fields. The business scope is based in China and radiates to Japan, South Korea, India, Russia, Spain, the United States, Italy, and other overseas countries, and is highly praised by customers all over the world. Welcome to visit the factory.
Certifications
Why Choose Us
Product Packing And Payment
FAQ
How do I know what material OR type my battery is?
Please look at the battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4.If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery, You can also ask the battery manufacturer for the material of the battery.
Is this BMS suit for my battery?
How many series your cell is in your battery pack? The BMS you buy must be the same series as your battery pack.
What material your battery is? Only the LiFePo4 battery has different electric parameters from other batteries, so if you need to buy the BMS for LiFePo4, Please let us know firstly.
What is the Common port and Separate port? what is the difference?
We take 13S 48V16A BMS as an example: common port 16A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current is the same as 16A. A separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current and discharge current are different, discharge current is 16A, charge current is 8A.
The relationship between battery capacity(AH or mAH) and BMS current(A)?
There is no direct relationship between battery capacity and BMS current, big capacity doesn't mean big current but rely on continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.
What type of charger should I choose?
Lithium battery must choose specific charger, don't use charger for a lead-acid battery, for lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect of BMS overcharge. LiFePo4 battery charger voltage = number of battery strings X 3.6V, while Li-ion battery charger voltage = number of battery strings X 4.2V.
Do you have a Minimum Order Requirement (MOQ)?
No, we don't have MOQ. different customers have different requirements, we can provide various capacity and size as per your requirements, also ODM / OEM is welcome.
Please look at the battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4.If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery, You can also ask the battery manufacturer for the material of the battery.
Is this BMS suit for my battery?
How many series your cell is in your battery pack? The BMS you buy must be the same series as your battery pack.
What material your battery is? Only the LiFePo4 battery has different electric parameters from other batteries, so if you need to buy the BMS for LiFePo4, Please let us know firstly.
What is the Common port and Separate port? what is the difference?
We take 13S 48V16A BMS as an example: common port 16A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current is the same as 16A. A separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current and discharge current are different, discharge current is 16A, charge current is 8A.
The relationship between battery capacity(AH or mAH) and BMS current(A)?
There is no direct relationship between battery capacity and BMS current, big capacity doesn't mean big current but rely on continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.
What type of charger should I choose?
Lithium battery must choose specific charger, don't use charger for a lead-acid battery, for lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect of BMS overcharge. LiFePo4 battery charger voltage = number of battery strings X 3.6V, while Li-ion battery charger voltage = number of battery strings X 4.2V.
Do you have a Minimum Order Requirement (MOQ)?
No, we don't have MOQ. different customers have different requirements, we can provide various capacity and size as per your requirements, also ODM / OEM is welcome.

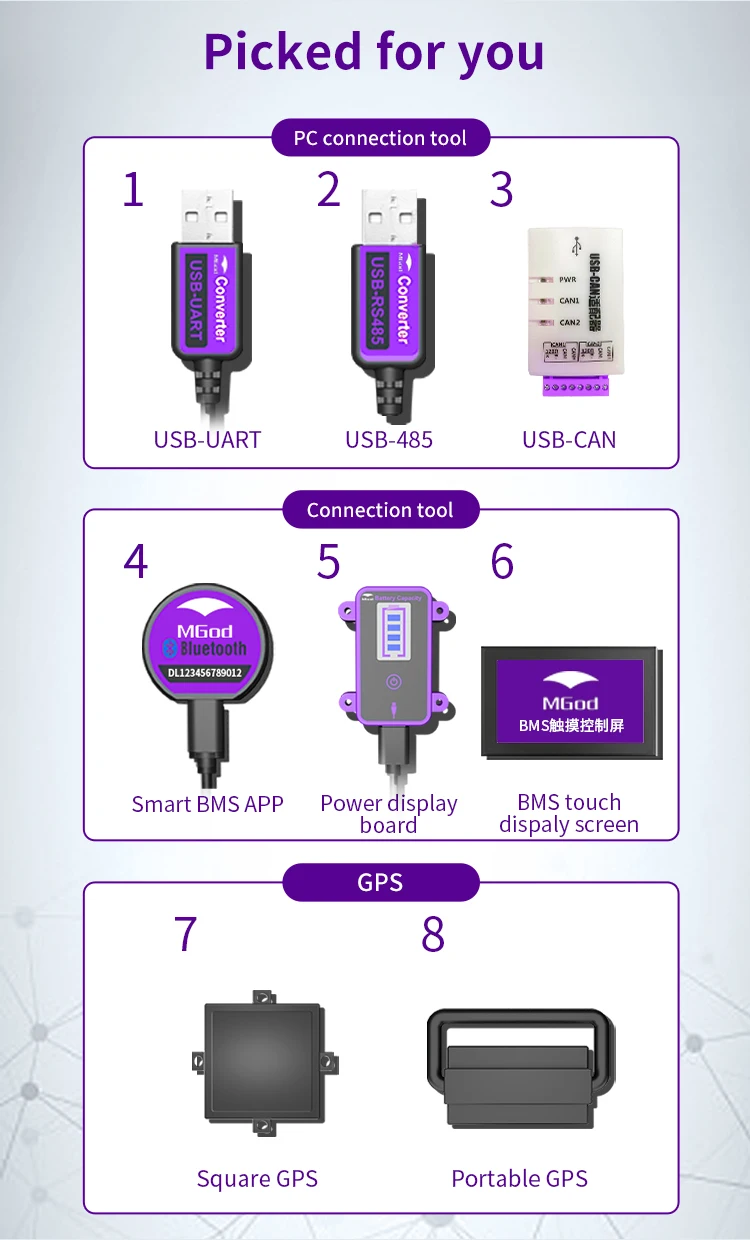

We Recommend
