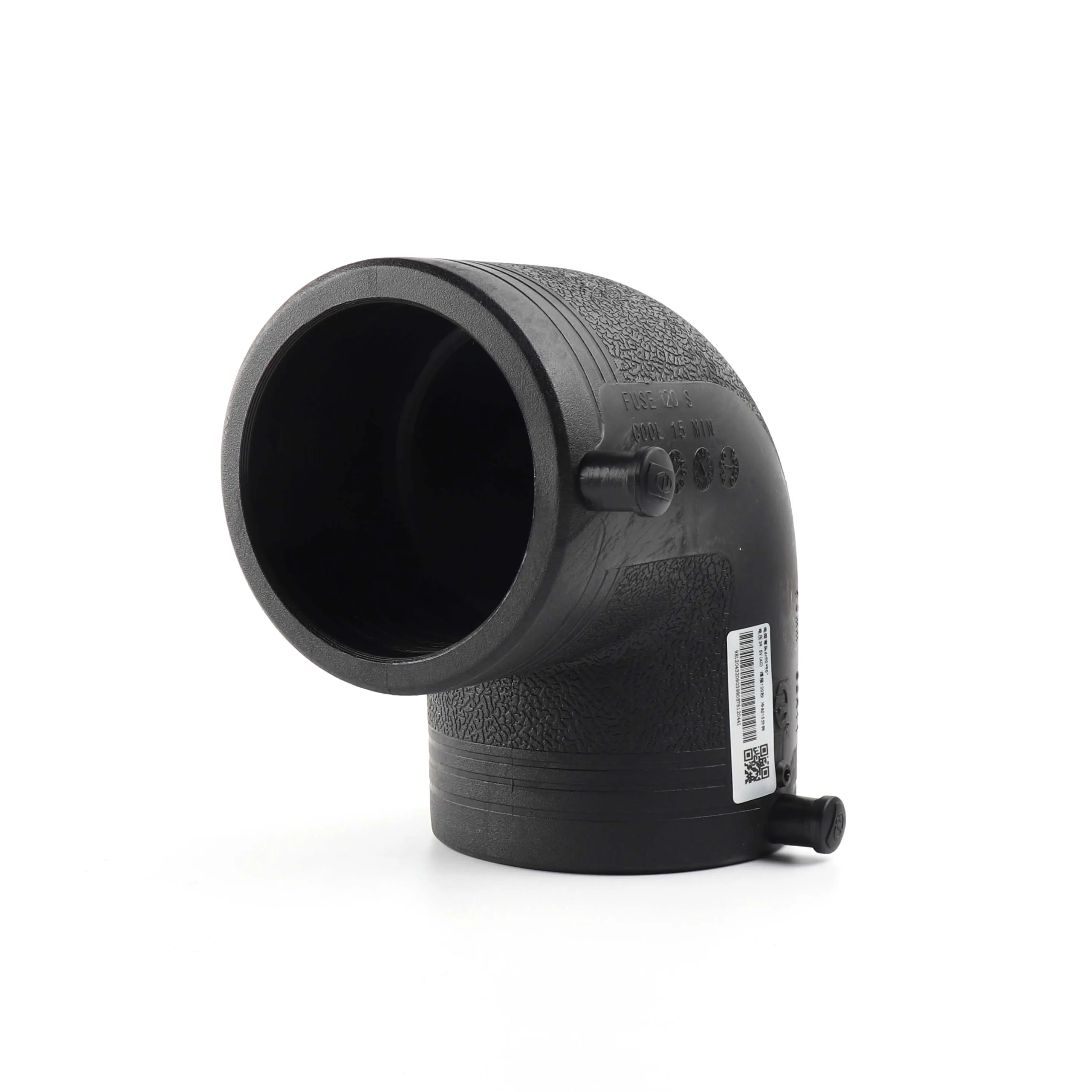

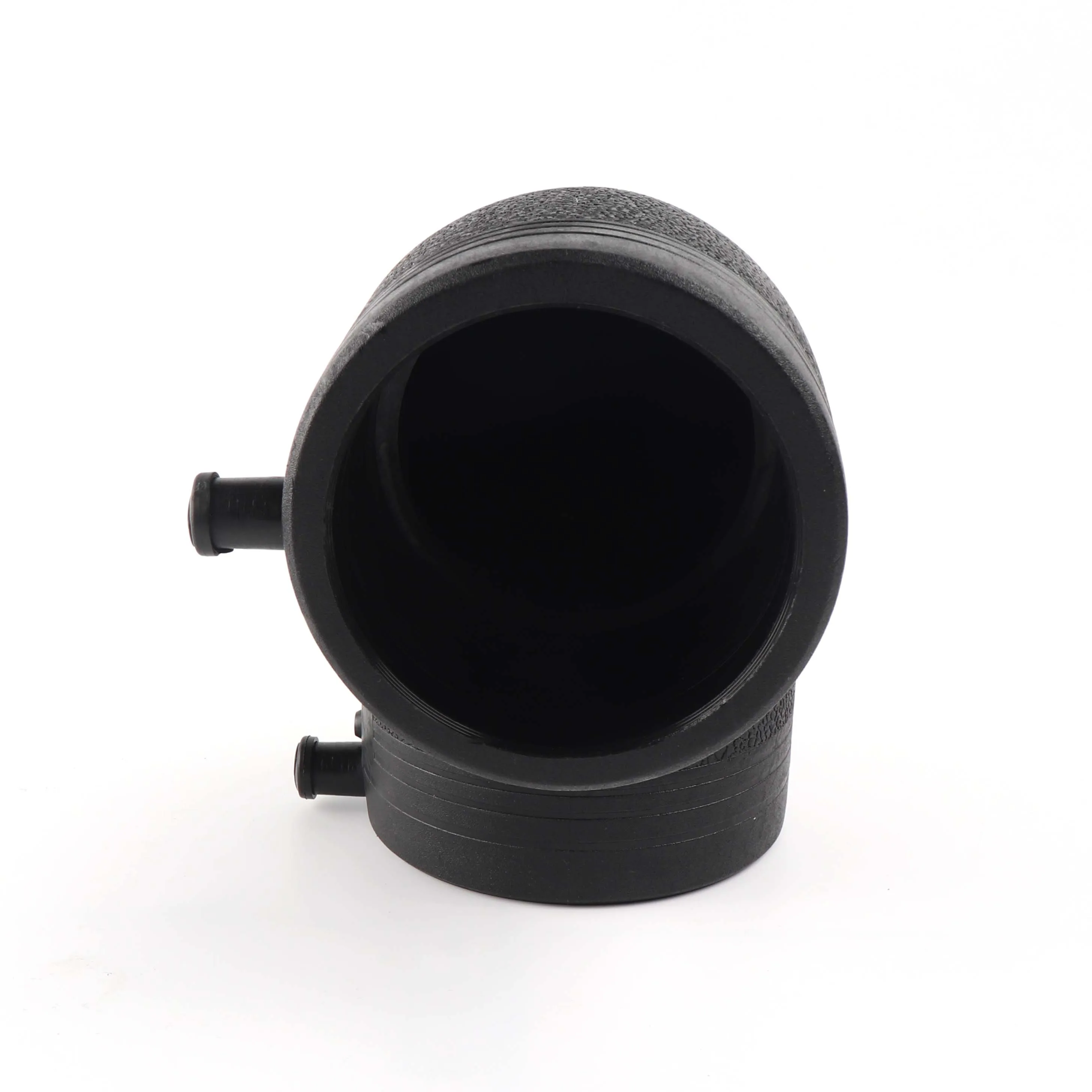

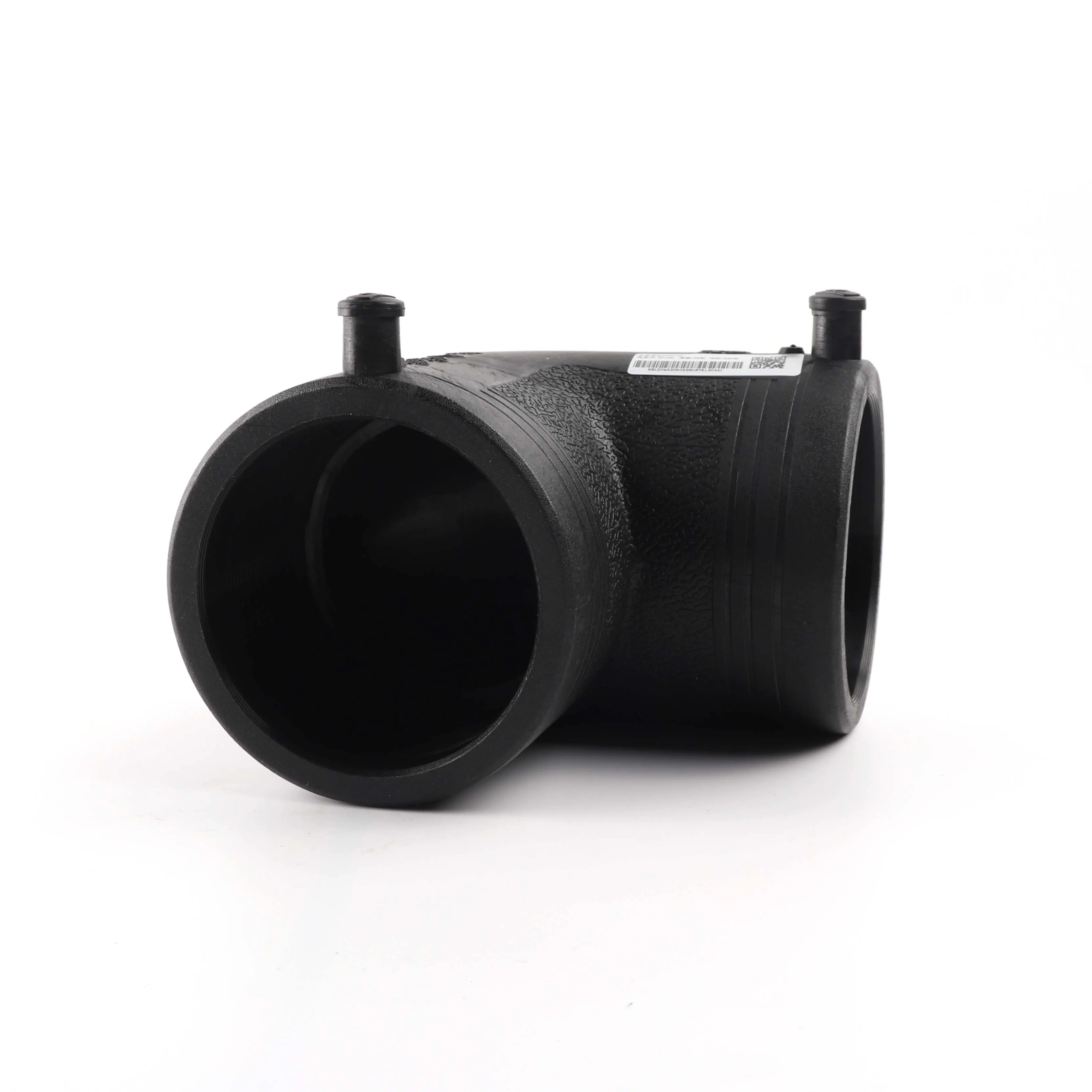

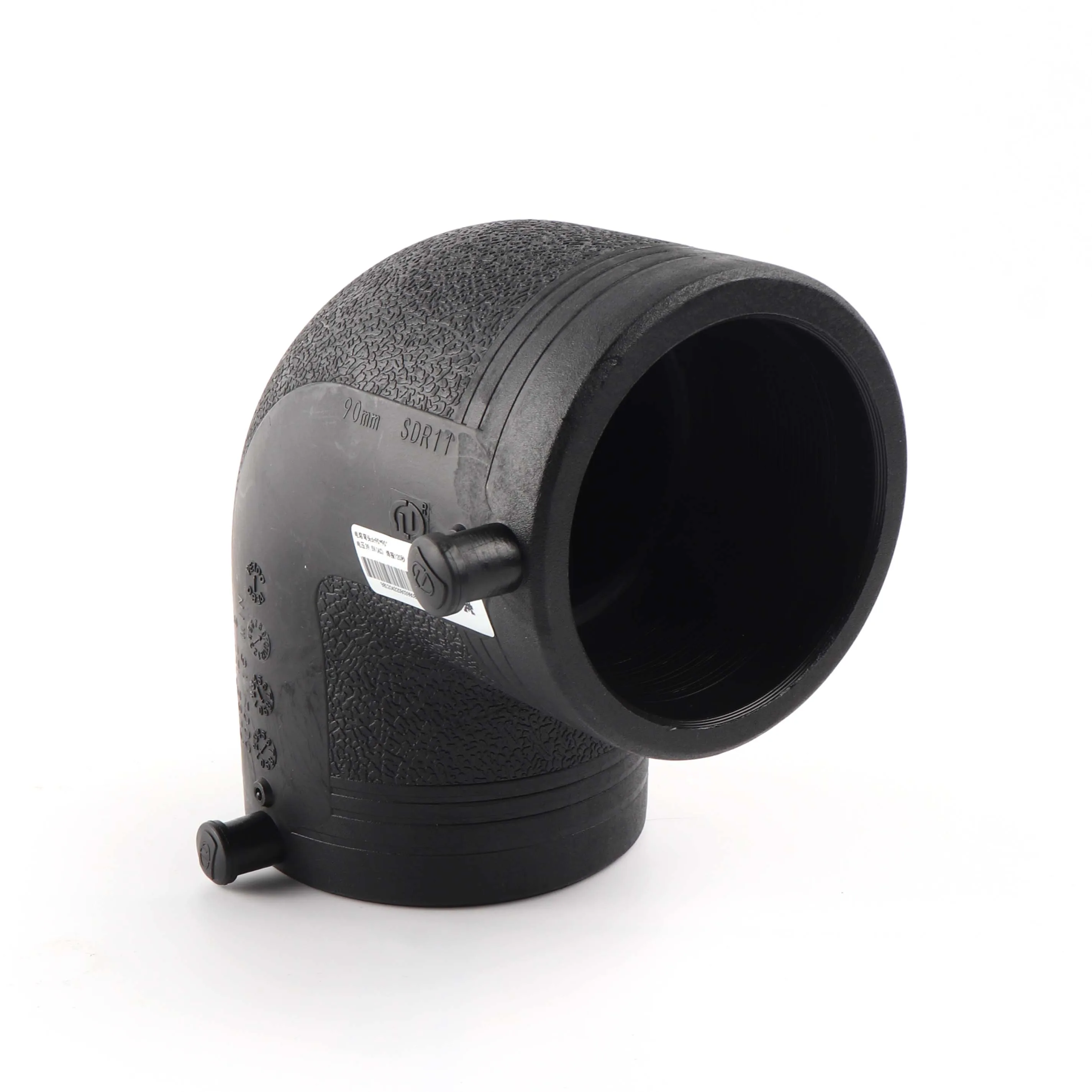

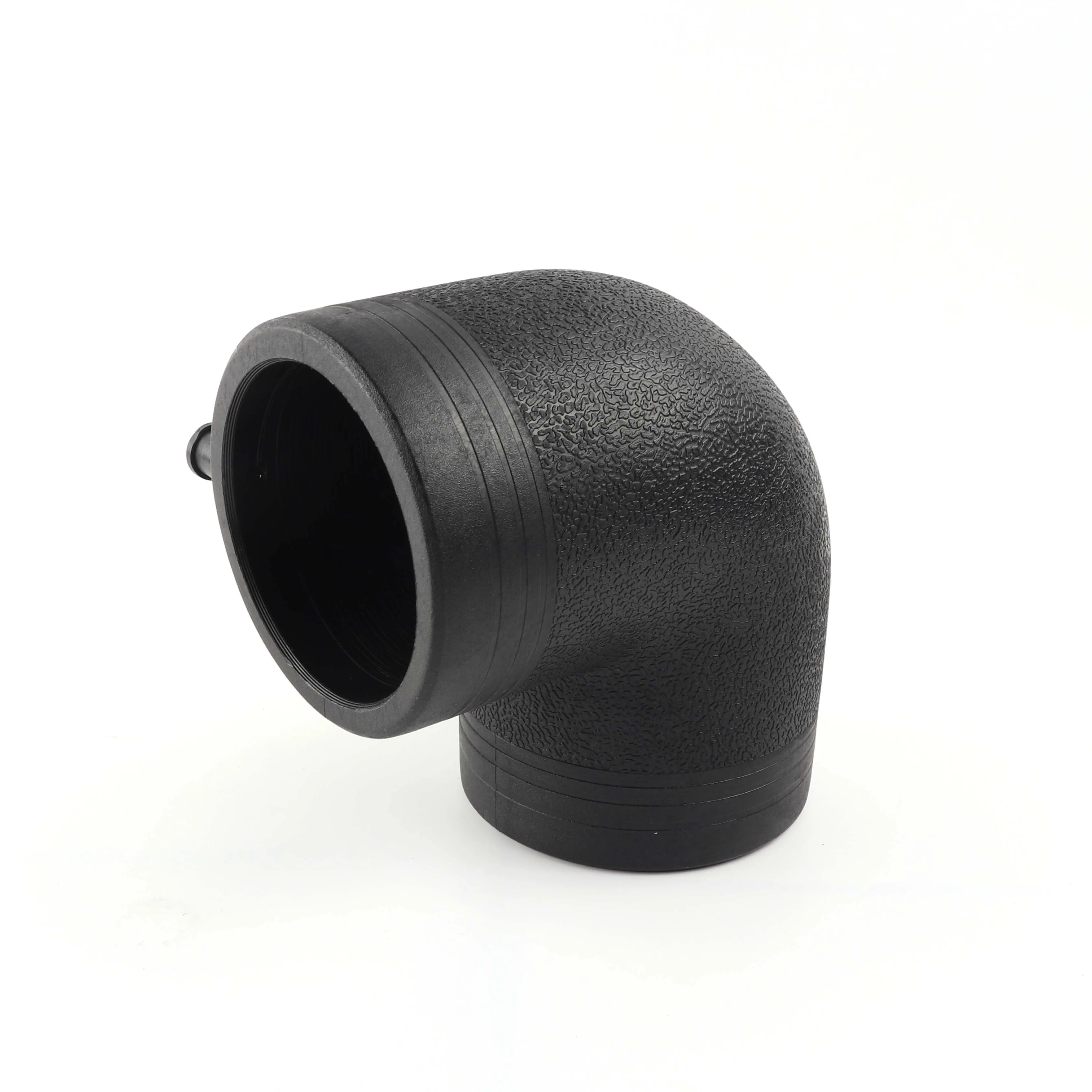

PE100 PE80 DN32 Hdpe Plastic Material 90 Degree Elbow Joining Hdpe Pipe Contractors
- Category: >>>
- Supplier: Ningbo Lianda Plastic Pipe Co. Ltd.Ningbo Ltd.
Share on (1600197552124):
Product Overview
Description
Product Description

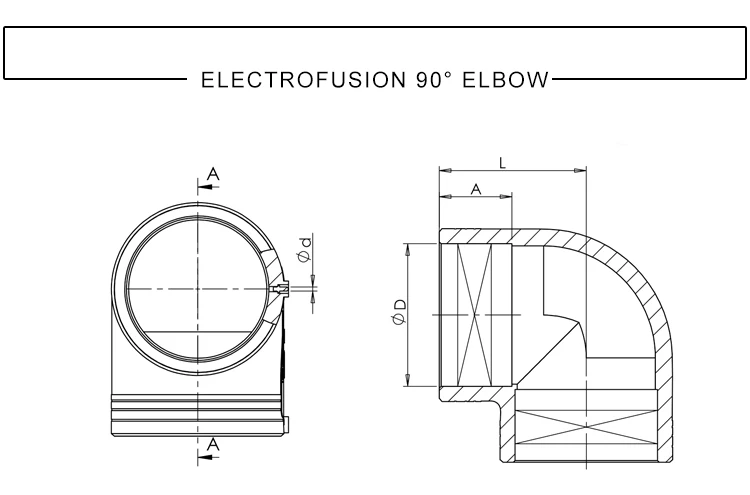

Items NO. | Spec. | D1 | L | Number / Box |
E90E20 | DN20 | 58 | 44 | 200 |
E90E25 | DN25 | 60 | 44 | 200 |
E90E32 | DN32 | 63 | 44 | 150 |
E90E40 | DN40 | 67 | 44 | 100 |
E90E50 | DN50 | 74 | 46 | 60 |
E90E63 | DN63 | 87 | 52 | 50 |
E90E75 | DN75 | 96 | 55 | 30 |
E90E90 | DN90 | 107 | 57 | 20 |
E90E110 | DN110 | 128 | 65 | 15 |
E90E160 | DN160 | 166 | 80 | 6 |
E90E200 | DN200 | 199 | 94 | 4 |
E90E250 | DN250 | 233 | 103 | 2 |
E90E315 | DN315 | 285 | 122 | 1 |
E90E400 | DN400 | 415 | 137 | 1 |
Technical requirements:
1. No shrinkage, deformation, porosity and other defects;
2. There is no overflow burr, and the heating wire is carried out according to the back cloth process;
3.FI φ 4.7 * 17 copper pin is fixed firmly and has good contact with heating wire;
4. The pointer of PE conversion seal and batch number seal can be rotated;
5. The dimensions not noted are shown in the digital model.
6. The product conforms to GB 15558.2-2005
1. No shrinkage, deformation, porosity and other defects;
2. There is no overflow burr, and the heating wire is carried out according to the back cloth process;
3.FI φ 4.7 * 17 copper pin is fixed firmly and has good contact with heating wire;
4. The pointer of PE conversion seal and batch number seal can be rotated;
5. The dimensions not noted are shown in the digital model.
6. The product conforms to GB 15558.2-2005

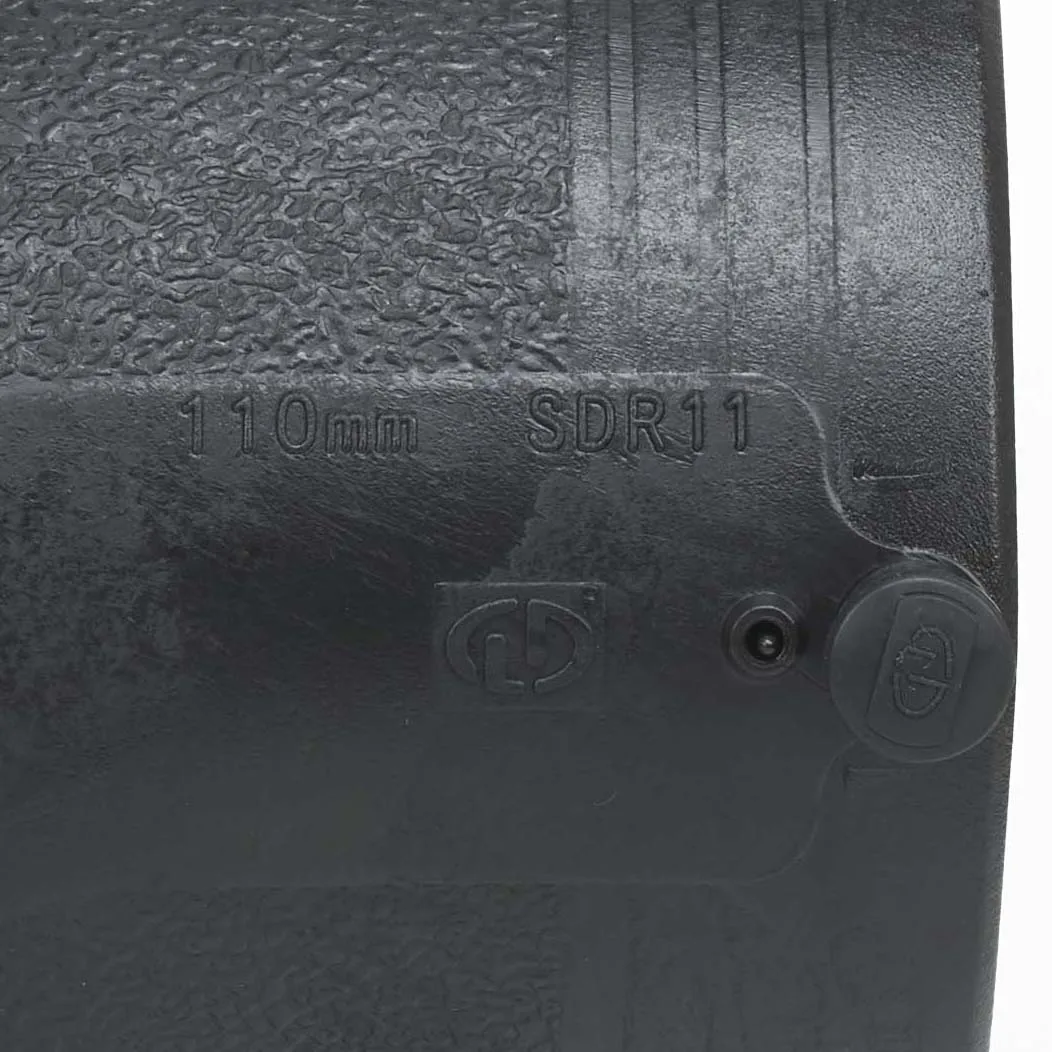

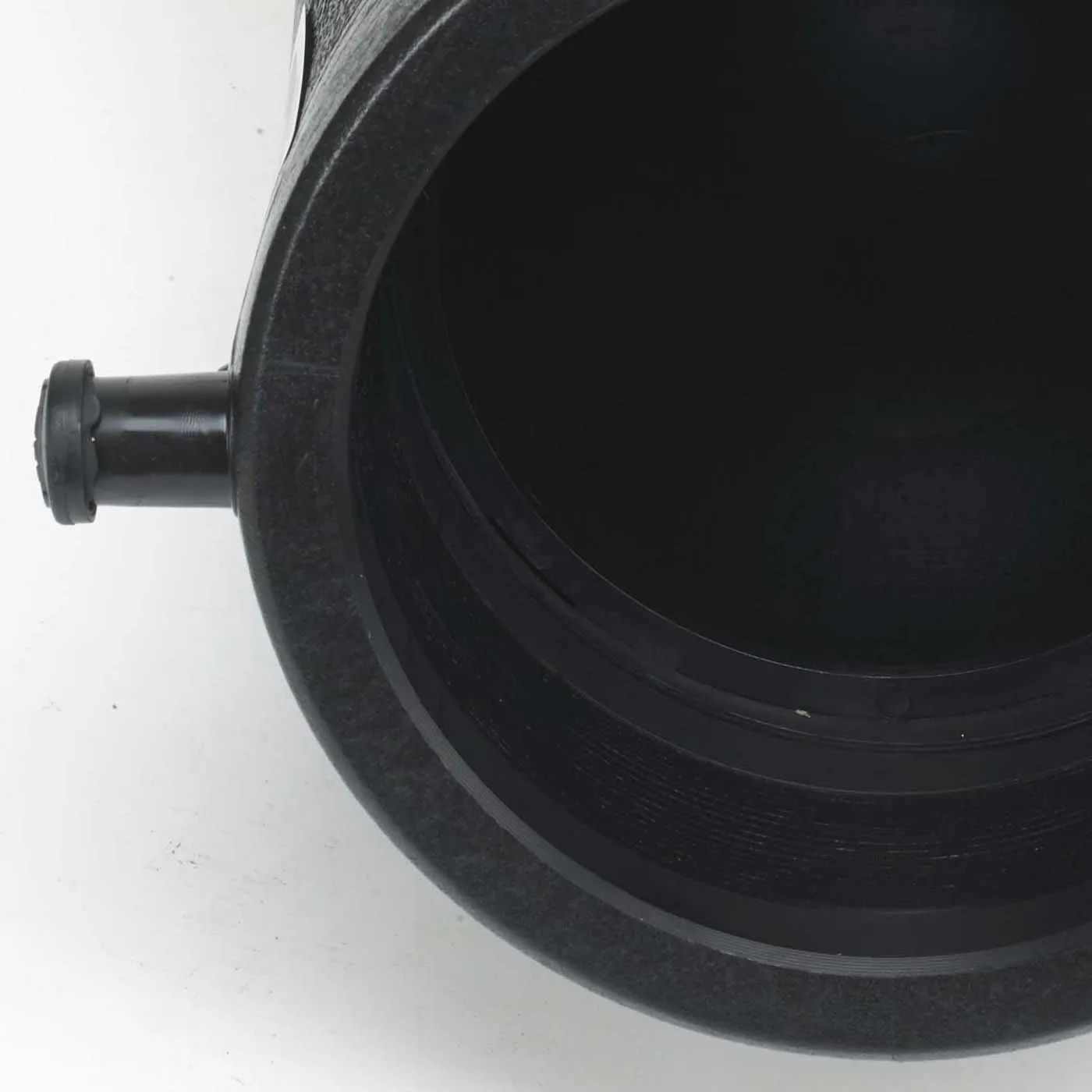

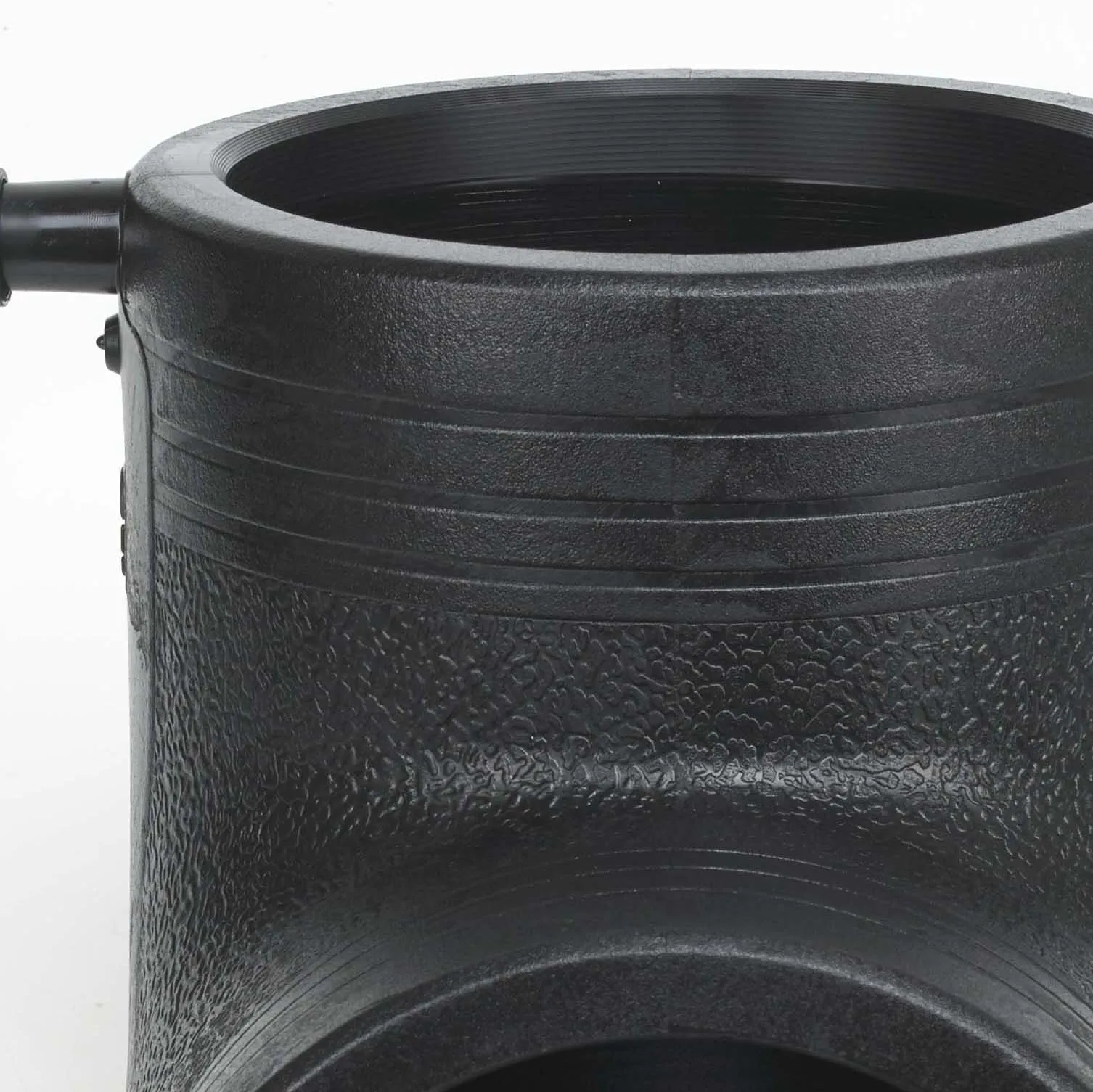

Detailed Images
