China Supply Drilling used mud sucker pump
Product Description

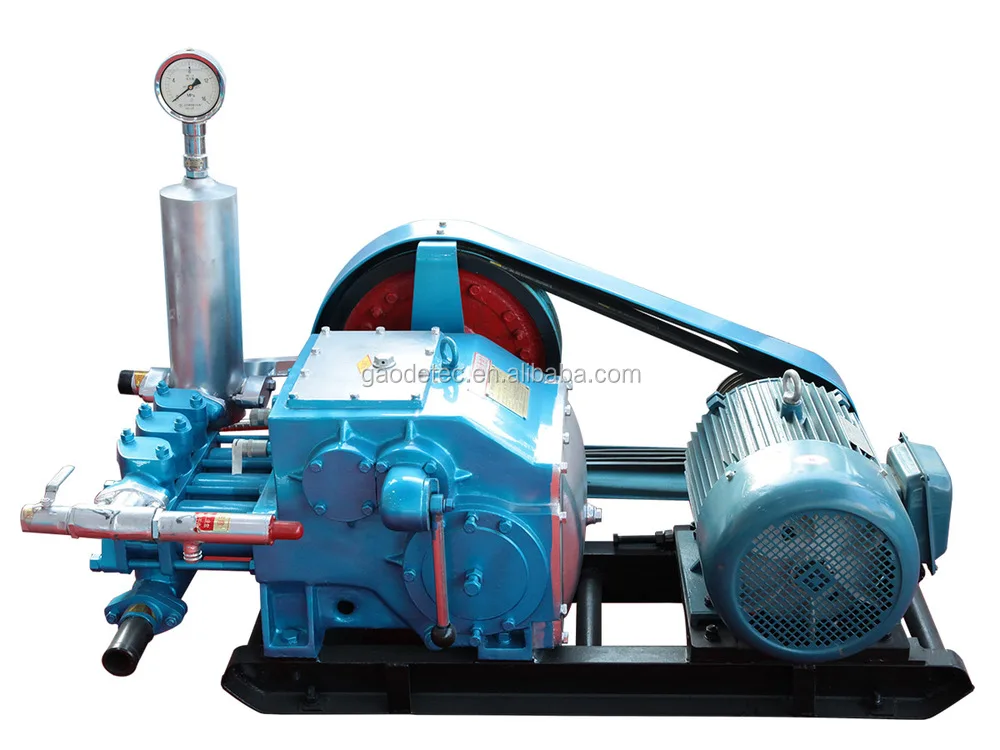

mud sucker pump is horizontal, tri-cylinder, recipocating single-acting piston pump, Can be transformed into four different pressure and flow .Its max pressure can reach 10 Mpa.
Technical Figures
Type | Horizontal tri-cylinder reciprocating |
Piston stroke | 70mm |
Inside diameter cylinder | 70mm |
Rated pressure(Mpa) | 2.5 4 6.5 10 |
Rated Flow(L/min) | 160 107 67 44 |
Volumetric efficiency | 95% |
Overall efficiency | 75% |
Power(KW) | 11 |
Triangle belt type specifications* number | B2050*4 |
Suction tube diameter(mm) | 51 |
Discharge pipe diameter(mm) | 32 |
Weight(kg) | 430 |
Size(mm) | 1450*745*970 |
Details

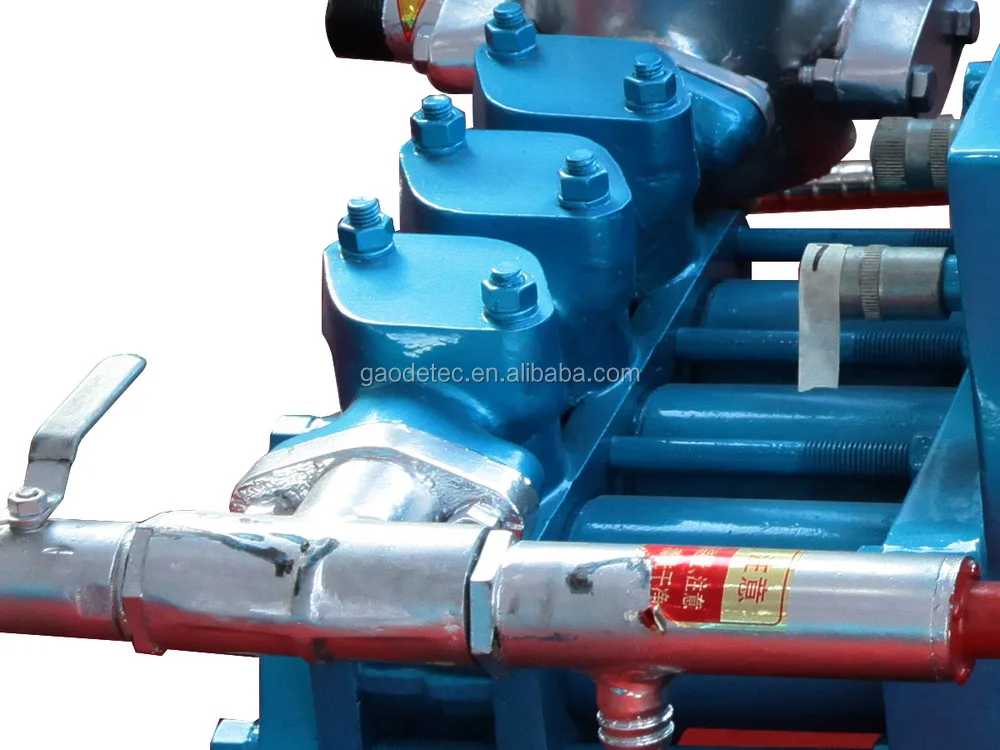

Cylinders:

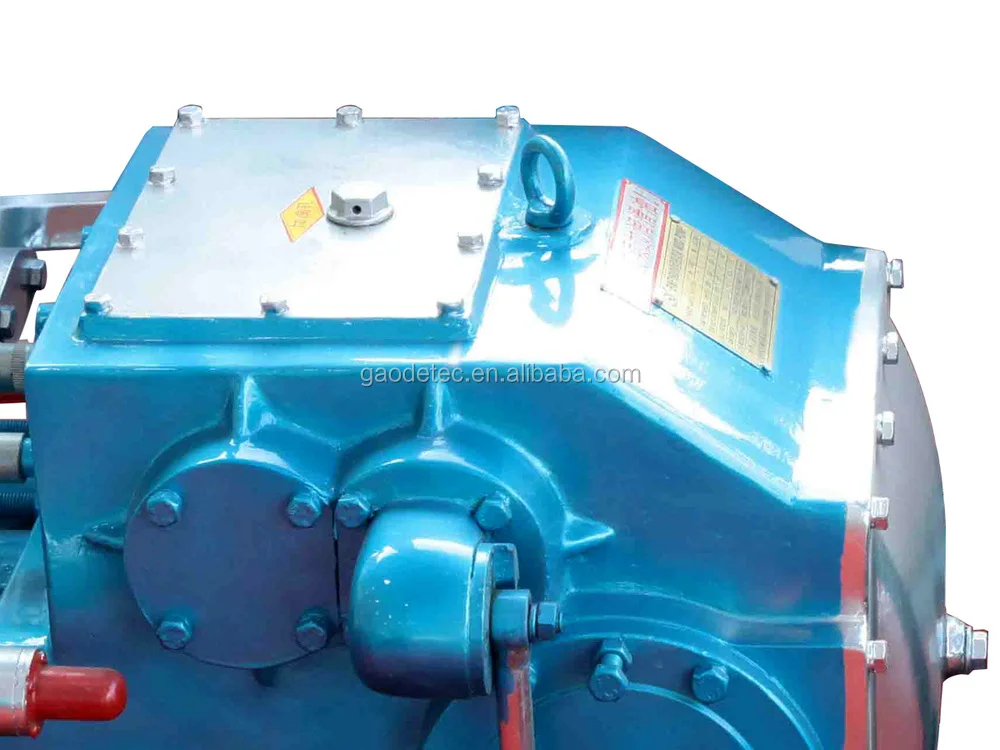

Pump Housing:
Valves:
Application

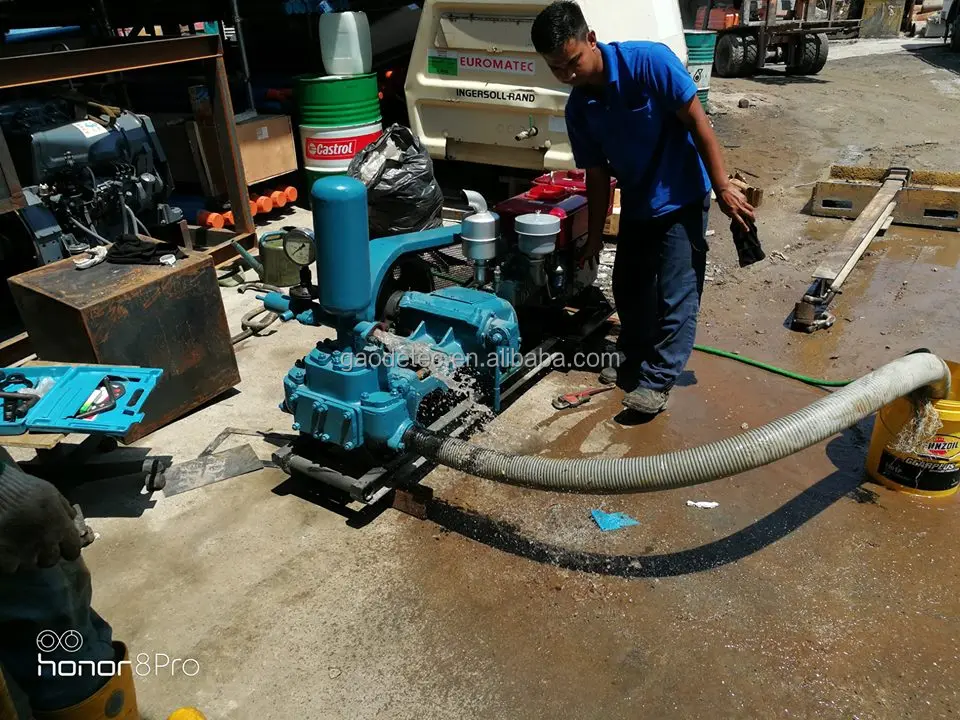

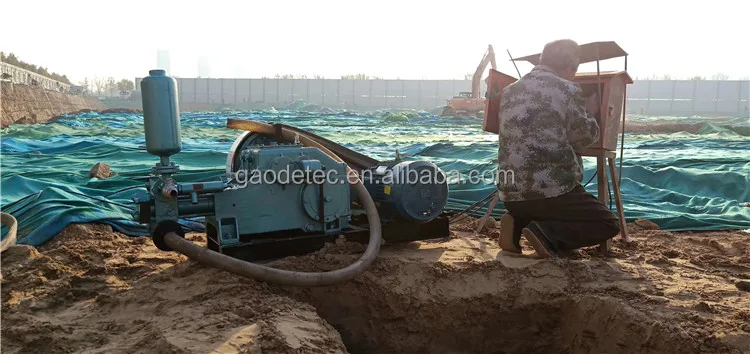

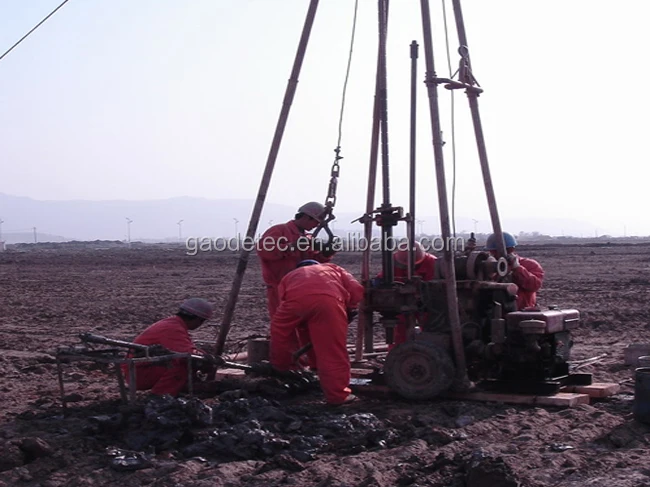

BW series mud pump is widely used to transfer water, mud and other flushing fluids when drilling in water well, oil and gas well area, such as mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges. It can be also used for high-rise buildings, foundation reinforcement works.
Packing and Shipping:

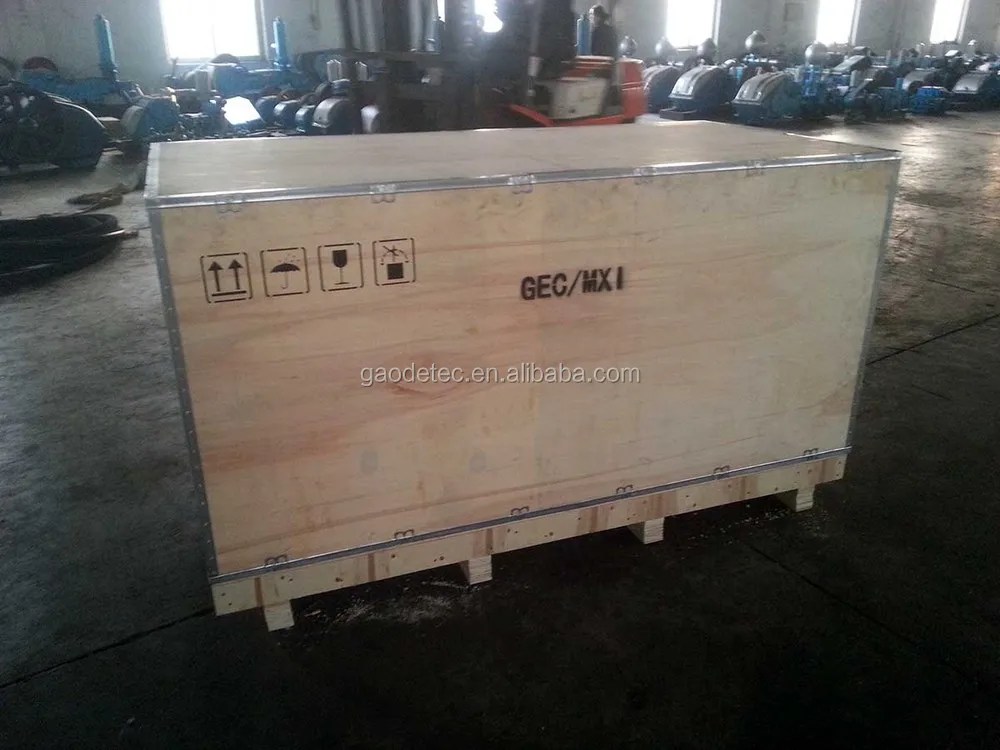

In order to protect our mud sucker pump and avoid damage during transportation, our mud pump is wrapped with plastic wrap, then shipped in plywood boxes. If you think this is not enough for you, we can also customized package for you.
Company Information

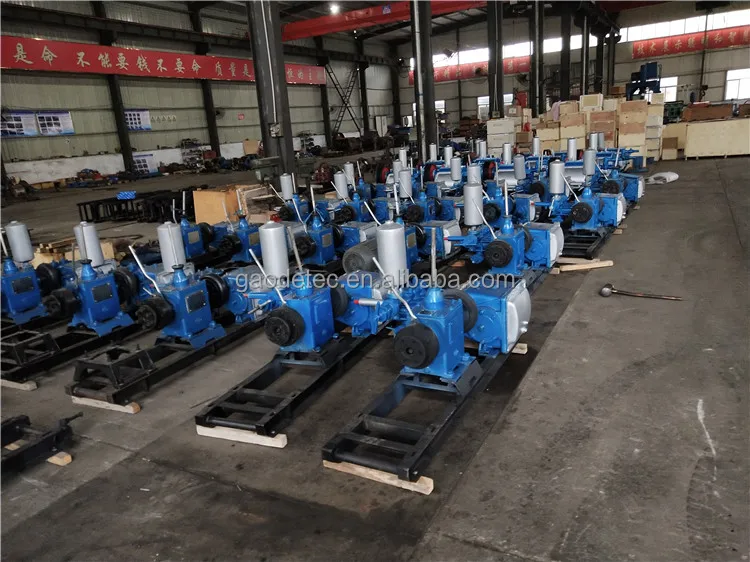

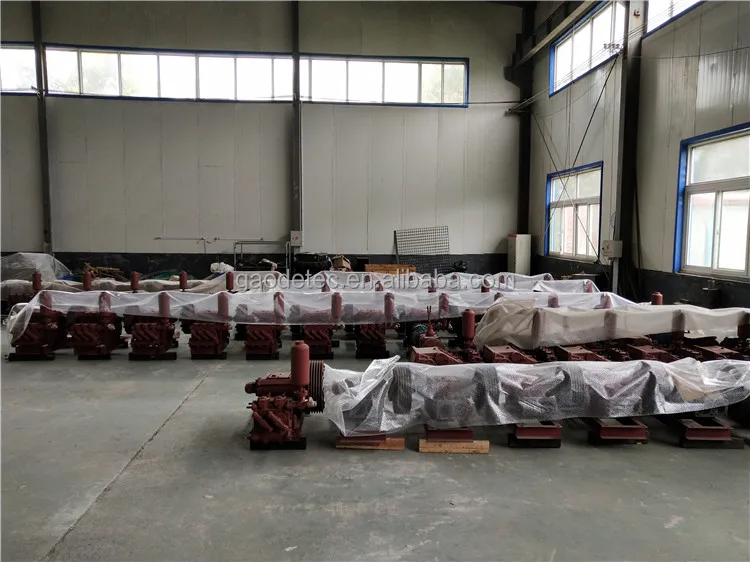

Our factory:

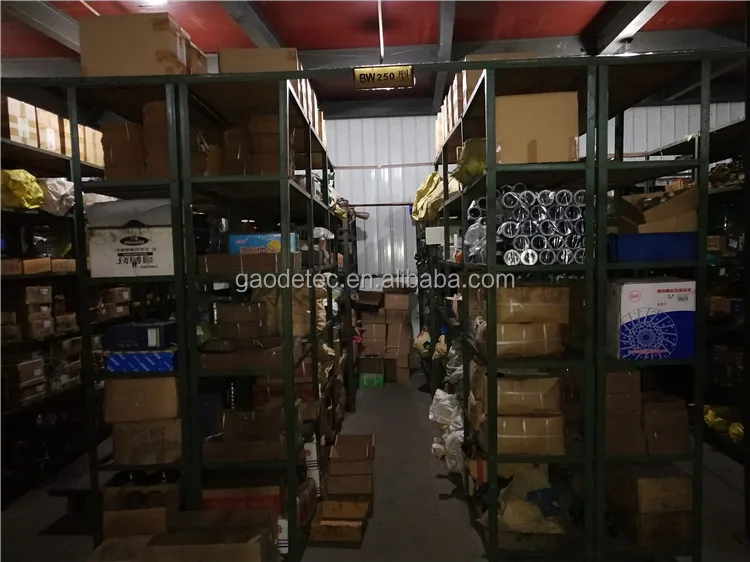

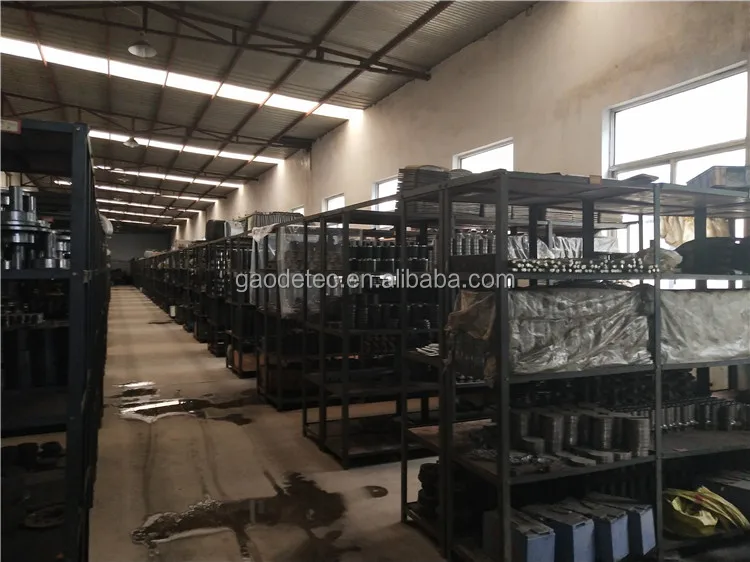

Our spare parts warehouse:
Our certificate:
Thank you for your time and Welcome to Visit our factory!
