HP DA Free tension Heavy duty bag making machine FFS poly bag making machine
- Category: Bag Making Machines >>>
- Supplier: Suzhou,Hanplas,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Specification
Model | HP-DA800 |
Bag width (mouth size) | 800MM |
Bag length (Bag depth) | 2000MM |
Max speed | 60pcs/min (Depend on bag length and thickness |
Max sealing thickness | 0.3MM/layer |
Weight | 2000kg |
Power | 380V, 50Hz, 3PHASE |
Dimension | 6500*1450*1600MM |
Product Description
Applications
Heavy duty bags, FFS POLY bags for plastic masterbatch, screw packaging etc.
Heavy duty bags, FFS POLY bags for plastic masterbatch, screw packaging etc.
Parts
* .The overall struction adopt steel plate :10mm thickness
* .Feeding motor adopt servo motor: Mitsubishi brand, Japan
* .Coopersealer: single line sealer ,silicone below sealing knife

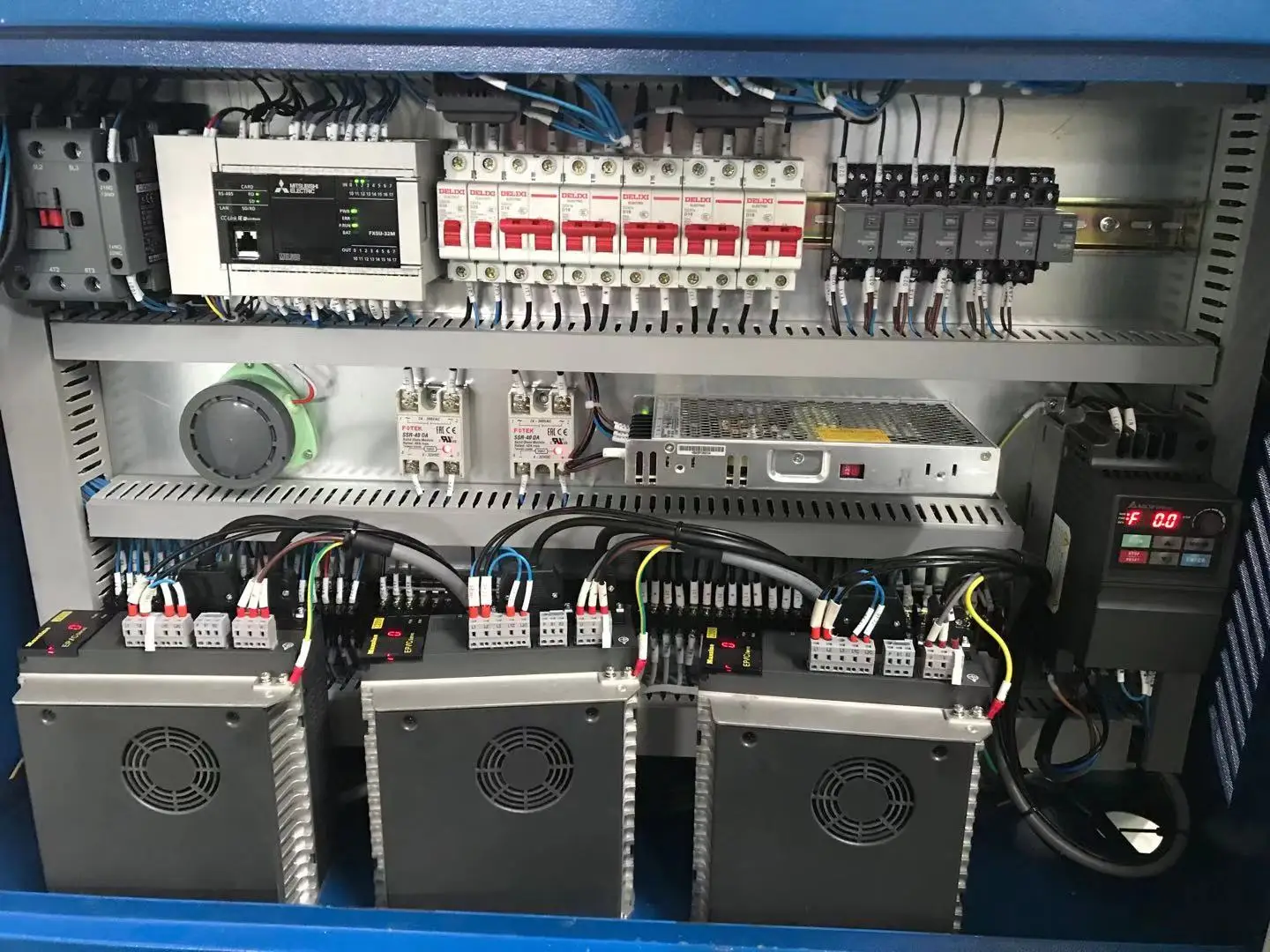

* .Controller:1 set, PLC, Japan brand; Touch screen : Weinview, Taiwan brand
* .One photoelectric for printing bag, SICK brand, Made in Germany
* .The machine color : white&blue, anti-static painting
* . Reinforce heating for extra film
* .The overall struction adopt steel plate :10mm thickness
* .Feeding motor adopt servo motor: Mitsubishi brand, Japan
* .Coopersealer: single line sealer ,silicone below sealing knife
* .Controller:1 set, PLC, Japan brand; Touch screen : Weinview, Taiwan brand
* .One photoelectric for printing bag, SICK brand, Made in Germany
* .The machine color : white&blue, anti-static painting
* . Reinforce heating for extra film
* .Transmission bearing adopt NSK brand, Japan
*. Flying knife cutting, imported from Japan
*. Flying knife cutting, imported from Japan
Features

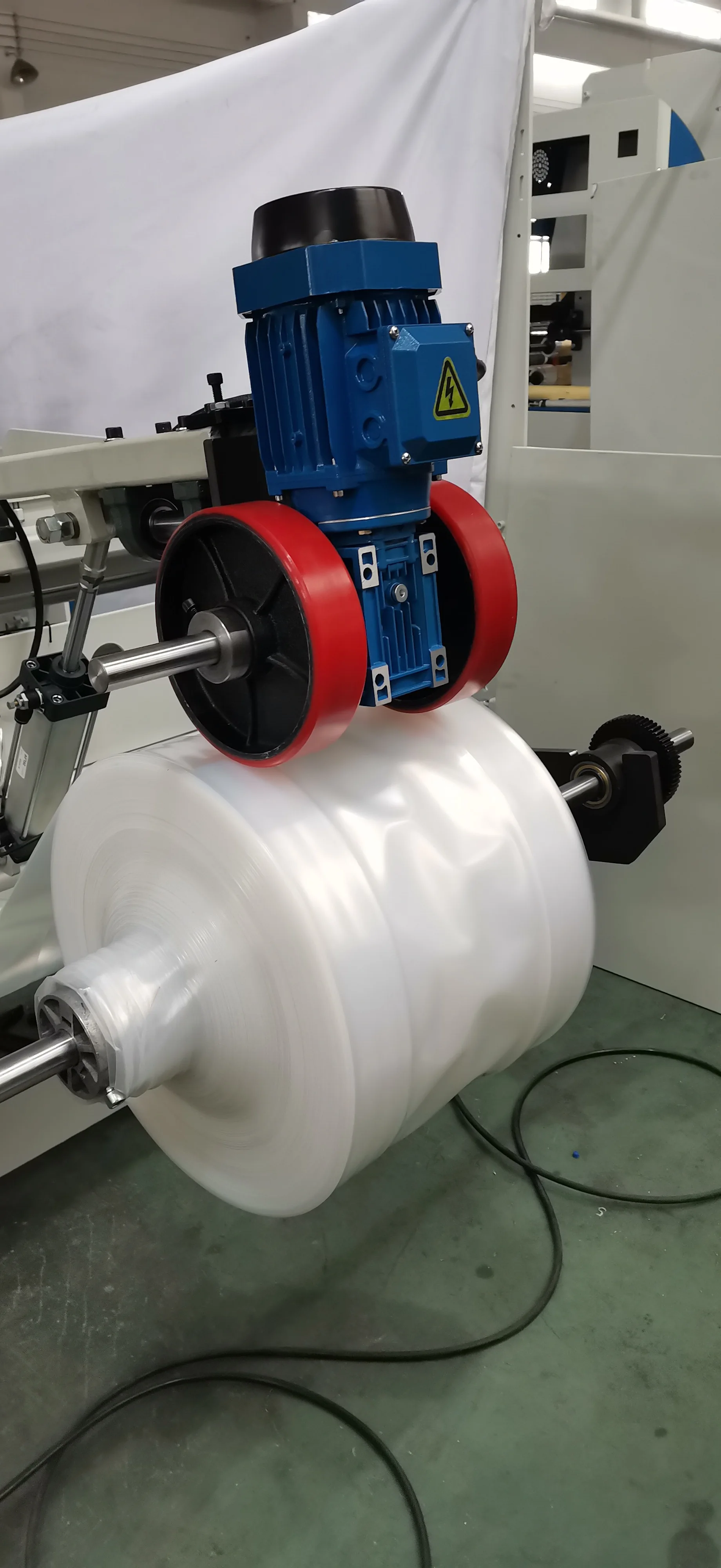

*. Free tension feeding
*. Photoelectric printing tracking control for accurate registration
*. Flying knife cutting, Taiwan style

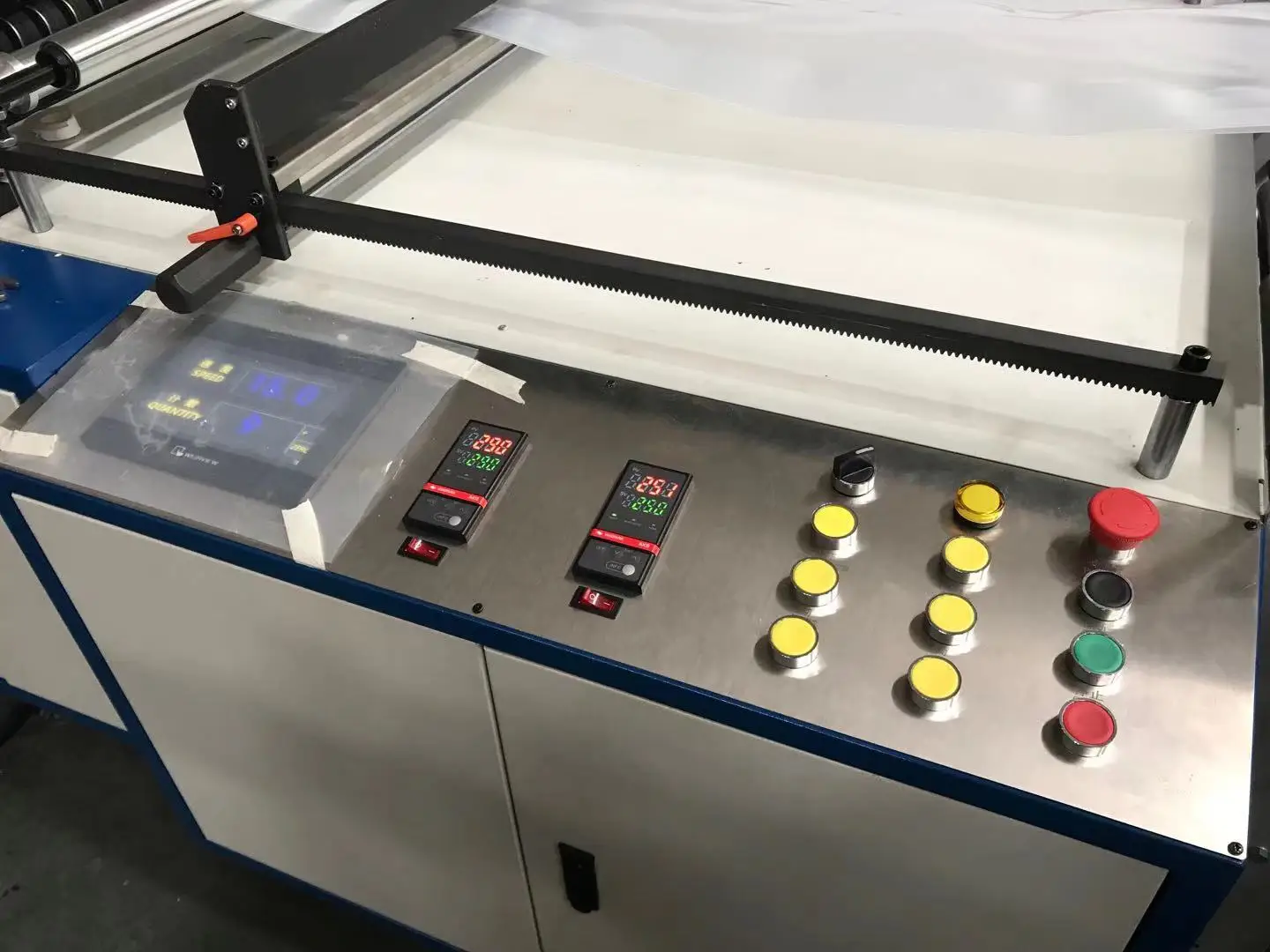

*. Computer control full automatically, touch screen and human-machine interface, easy for correction and fine adjustment
*. Free tension feeding
*. Photoelectric printing tracking control for accurate registration
*. Flying knife cutting, Taiwan style
*. Computer control full automatically, touch screen and human-machine interface, easy for correction and fine adjustment
