China Manufacturer RS485/WiFi Remote Control DC/AC Mcb Smart Air Miniature Circuit Breaker
- Category: Low Voltage Products >>>
- Supplier: Chengdu Hop Telecom Co. Ltd.
Share on (1600197814869):
Product Overview
Description
Products Description

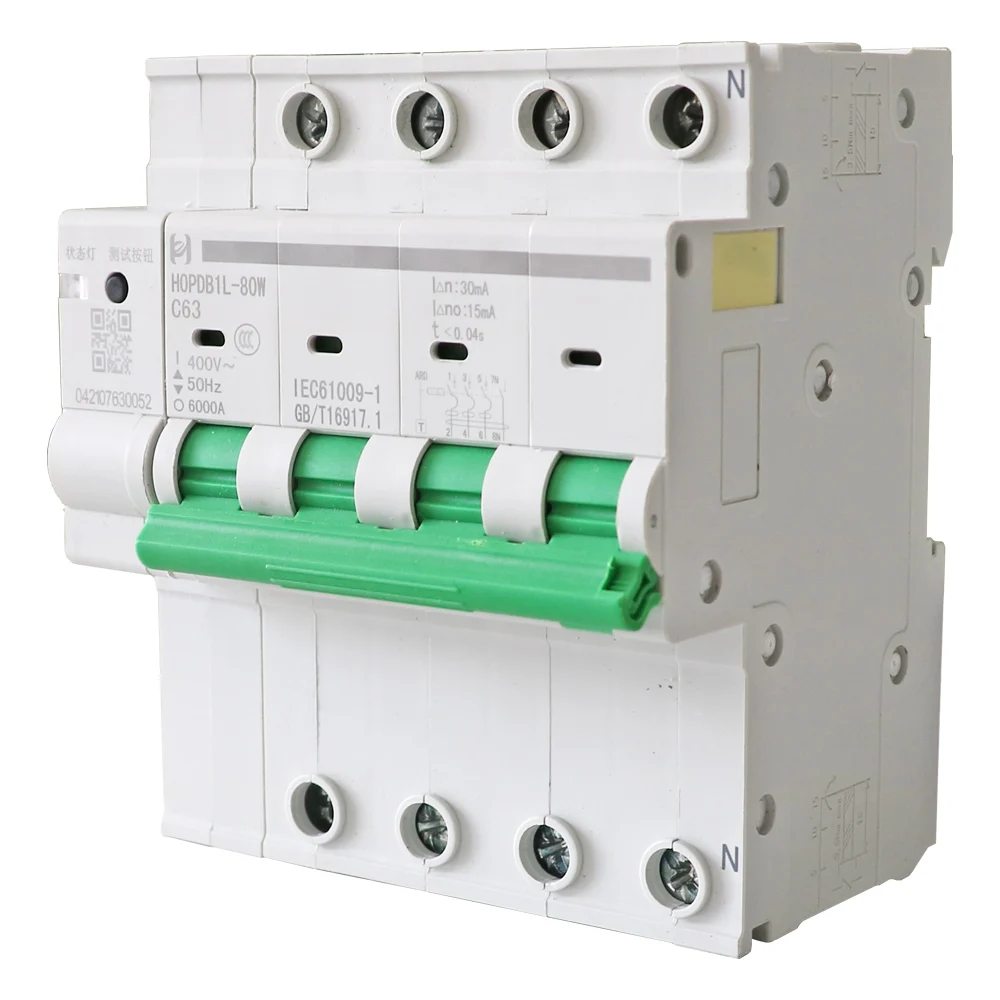

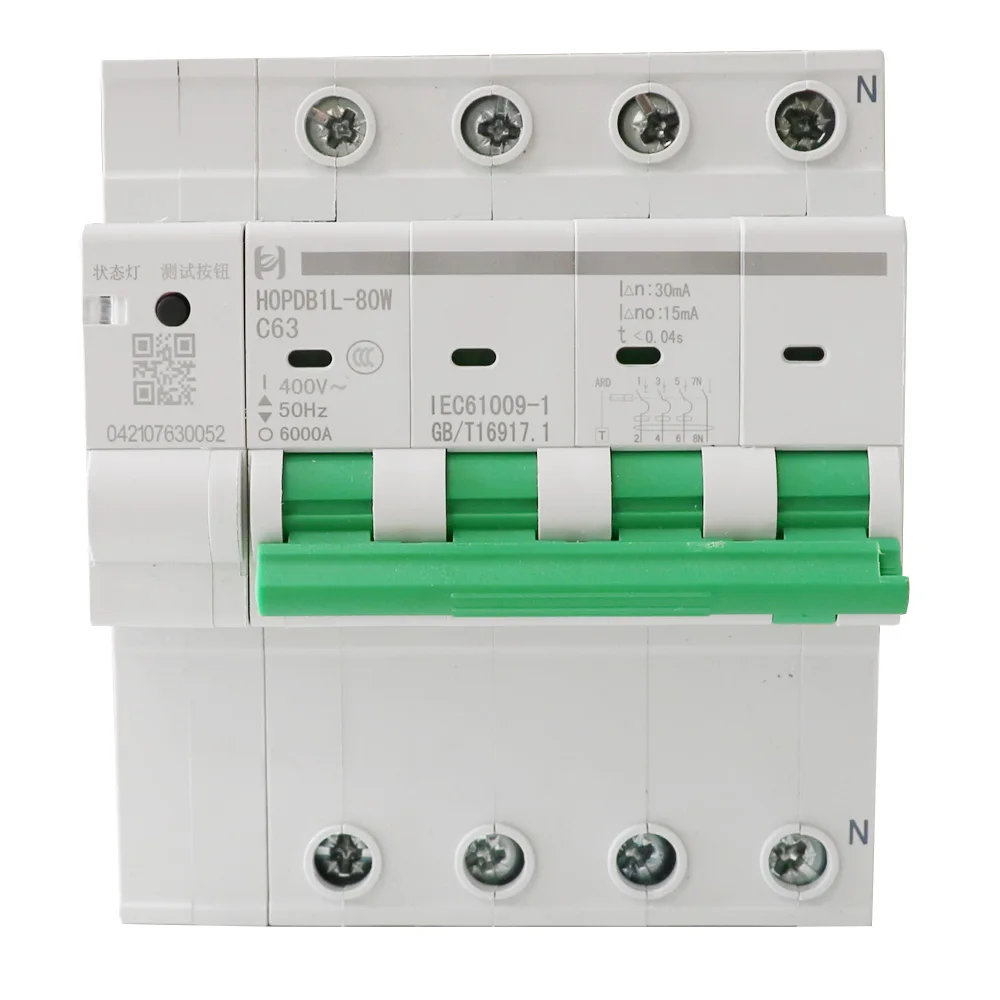

HOPDB series RS485 smart circuit breaker, suitable for AC 50HZ/60HZ, rated voltage 230V to 400V, rated current to 125A.
Function
1. Remote opening and closing

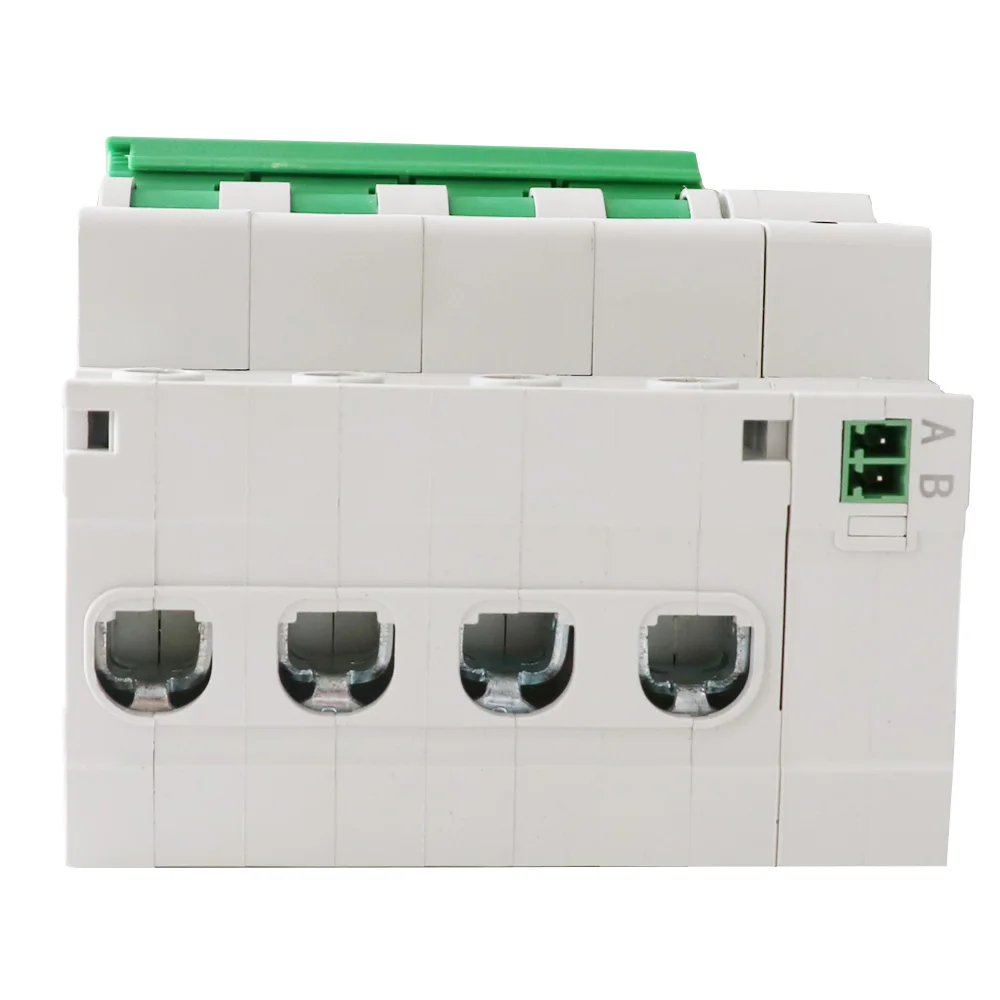

Communication Interface：RS485/ Moubus-RTU;
3. Short circuit protection
4. Overvoltage protection
5. Loss of pressure protection
6. Undervoltage protection
Product Paramenters
Rated voltage Ue | 1P+N/2P AC230V/50HZ/60HZ 3P+N/4P AC400V/50HZ/60HZ |
Number of poles | 1P+N/2P/3P+N/4P |
Rated current In | 6A/10A/16A/20A/25A/32A/40A/50A/63A/80A/100A/125A |
Trip type | C/D |
Breaking capacity | 6kA/10kA |
Electrical life | ≥ 6000 times |
Mechanical life | ≥ 15000 times |
Rated impulse withstand voltage (Uimp) | ≥ 6KV |
Dielectric strength | 2000V |
Automatic closing time tc | ≤ 3s |
Operating temperature | Operating environment temperature -40℃-70℃; average no more than +35℃ within 24 hours |
relative humidity | The relative humidity does not exceed 50% when the maximum temperature is +40℃, and the relative humidity does not exceed 90% when the average minimum temperature of the wettest month does not exceed +20℃ |
Protection level | IP20 |
Company Profile
Certifications
Packaging&Shipping
FAQ
Q: Do you have APP for the energy meter?
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the smart energy meter support wireless communication?
A: Yes, our wall mounted energy meter is with built-in communication modem; and din rail energy meter need to be connected to an external data collector/DTU with communication modem.
Q: Can you put our logo on the smart energy meter, DTU and software?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
Q: Can I confirm whether the communication is successful through the indicators light on the meter?
A: Yes. From the two status indicators of the meter, you can identify the communication status of the meter network; When the green light flashes, the communication module works normally.
Q: If the load of 100A needs to be switched off, can you achieve it with your electricity meter?
A: 100A load can be pulled, but the circuit breaker (outer pull) needs to be configured, and the 60A meter can be pulled by the internal relay breaker.
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the smart energy meter support wireless communication?
A: Yes, our wall mounted energy meter is with built-in communication modem; and din rail energy meter need to be connected to an external data collector/DTU with communication modem.
Q: Can you put our logo on the smart energy meter, DTU and software?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
Q: Can I confirm whether the communication is successful through the indicators light on the meter?
A: Yes. From the two status indicators of the meter, you can identify the communication status of the meter network; When the green light flashes, the communication module works normally.
Q: If the load of 100A needs to be switched off, can you achieve it with your electricity meter?
A: 100A load can be pulled, but the circuit breaker (outer pull) needs to be configured, and the 60A meter can be pulled by the internal relay breaker.
