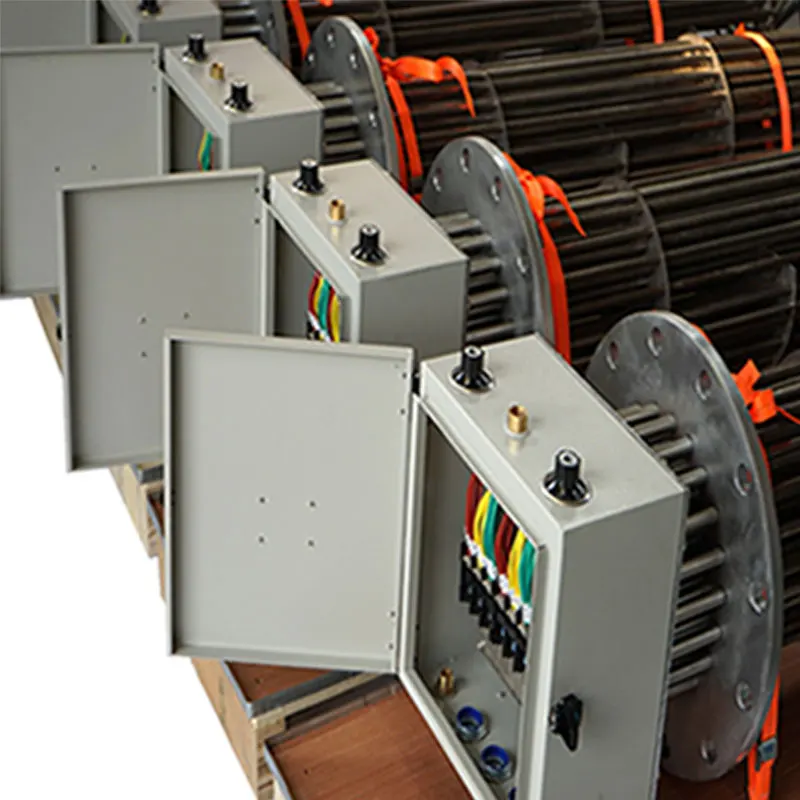

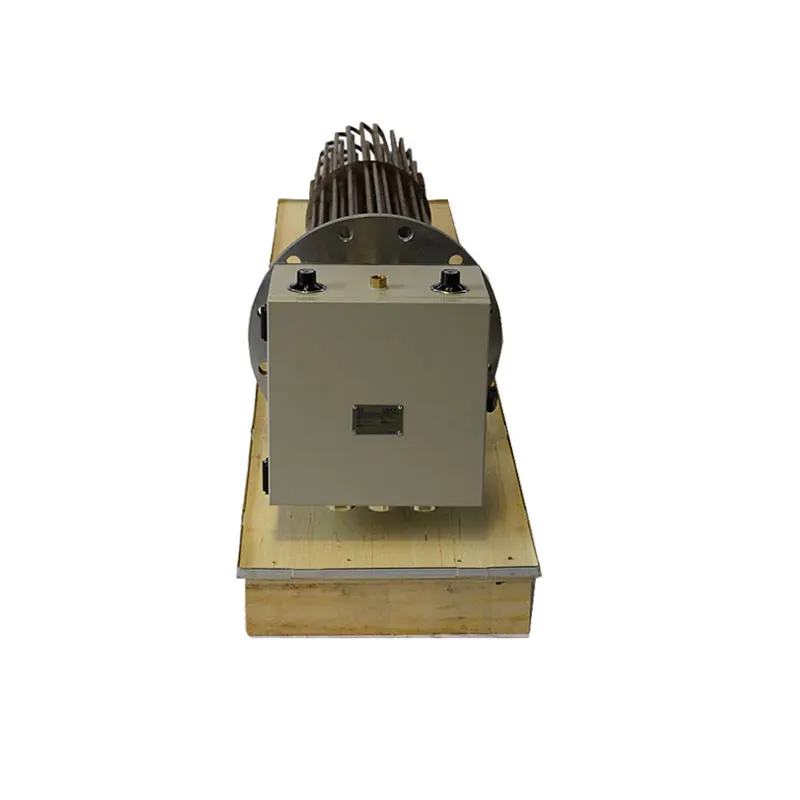

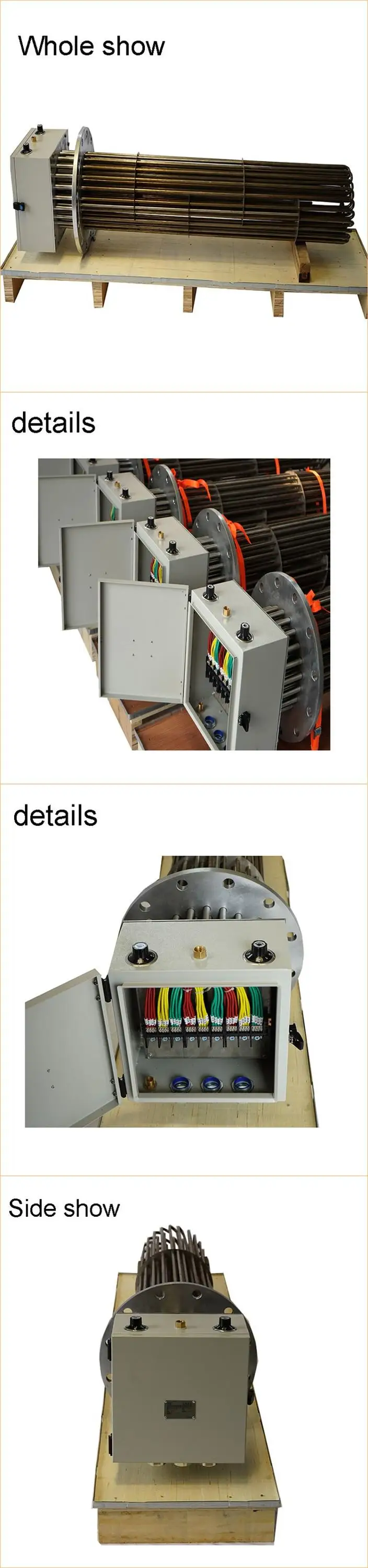

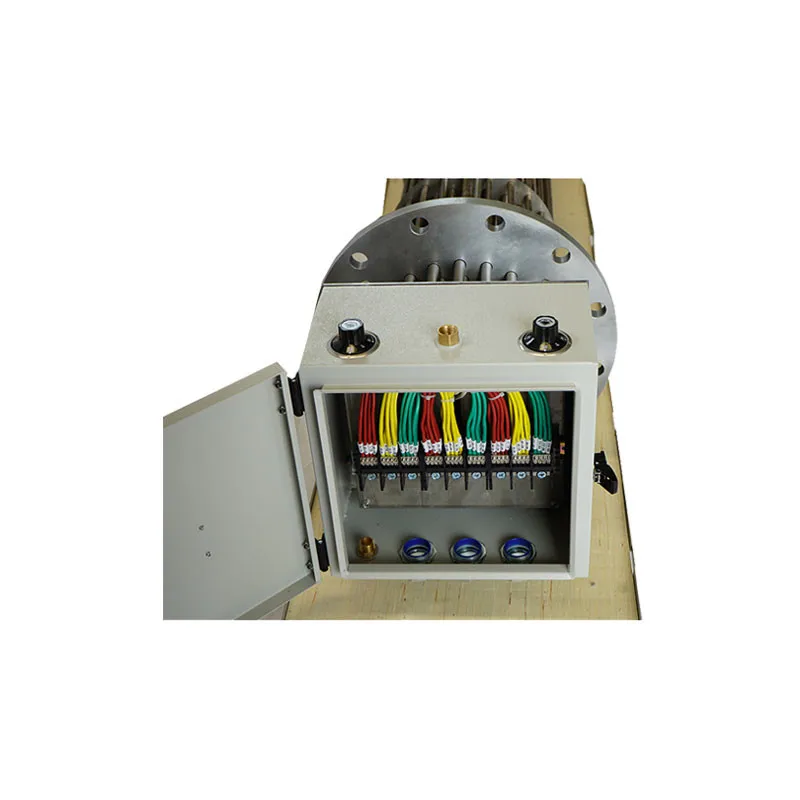

Flange Tubular Heater For High Viscosity Petroleum Oils With Temperature Control System
- Category: >>>
- Supplier: Yangzhong Xianglong Electrical Equipment Co. Ltd.
Share on (1600197815686):
Product Overview
Description
Product Description
Flange Tubular Heater For High Viscosity Petroleum Oils With Temperature Control System

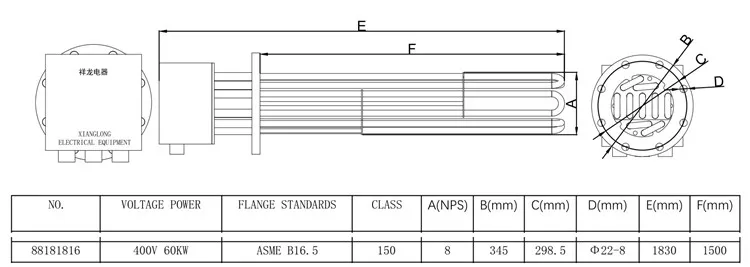

Model | |
type | Air Heater/Oil Heater |
Material of the flange | Q345R or customized |
Material of junction box | Q235 or customized |
Material of Heating pipe | SUS321 or customized |
INGRESS PROTECTION | IP65 |
Power Source | Electric |
VOLTAGE | |
POWER | 60KW |
12mm or customized | |
DIMENSION | As the form or customized |
CERTIFICATION | CE ISO9001 |
DELIVERY TIME | shipped in 10 days after payment |
PACKING | wooden case |
Flange heaters are manufactured with high-compression tubular heating elements.
Typical areas of application are the chemical industry, shipbuilding, railroad industry, plastics industry and the heat transfer technology.
Flange heaters ensure a long service life by employing process optimized tubular heating elements with GISO closure. They are uniquely suitable, both for liquid media such as water, various oils, caustic solution, etc. as well as for gases (air, nitrogen, smoke gases). Flange heaters are marked by a high degree of efficiency (direct heating of the medium) and minimum maintenance costs.
Product benefits:
Superb corrosion resistance through heating element materials that have been adapted to the process. High insulation properties in the long range when using the GISO closure.
Related products
 |  |  |
| Heating tube | Duct heater | Circulation heater |
 |  |  |
| Sulfur heater | High temperature and high pressure heater | Flanged liquid pipeline heater |
