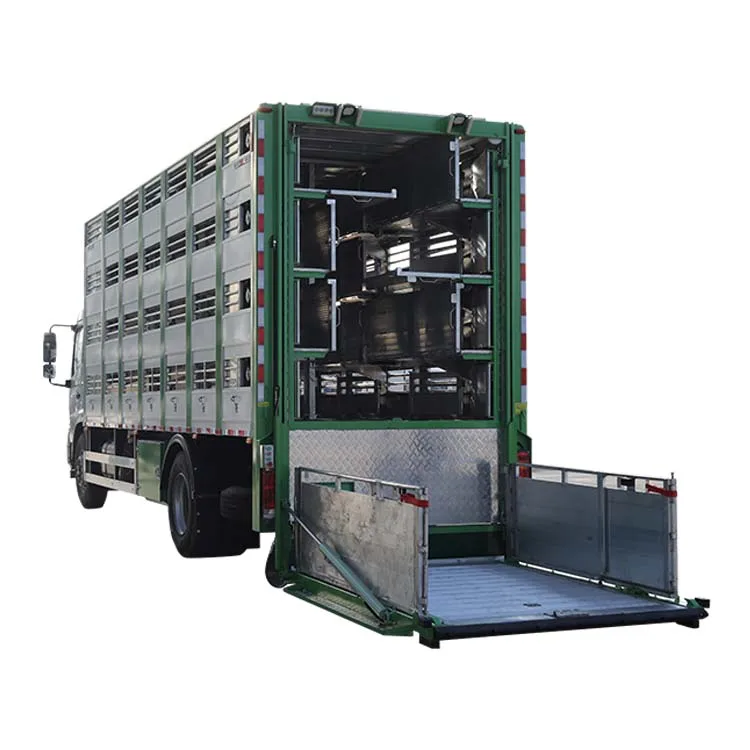

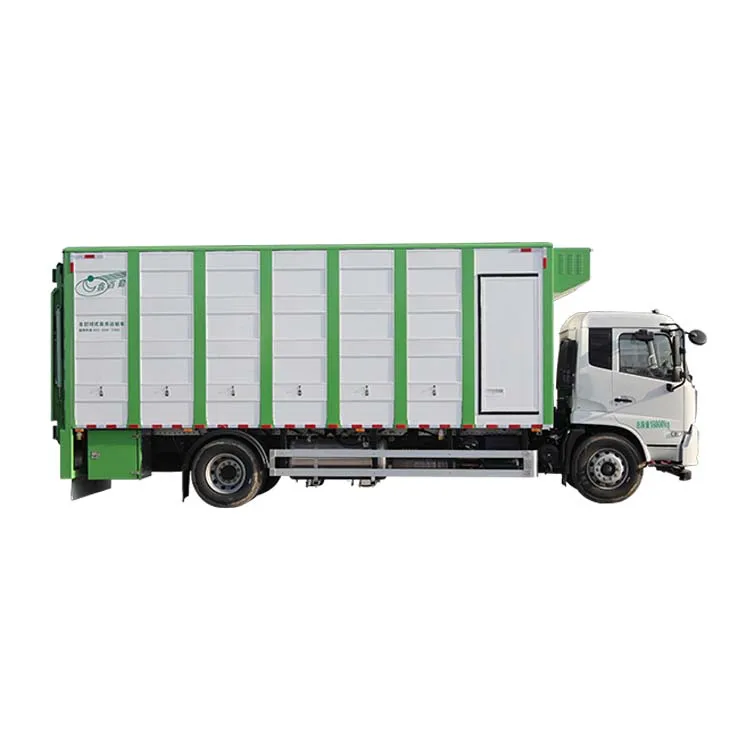

180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck

180 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck

Share on (1600197818684):


Price:$69,354.84 - $82,258.06

Quantity:


Product Overview

Description

















































































































Vehicle ParametersOverall Dimensions(L*W*H)(mm) 9685×2530×3950
 Total Mass(kg) 18000 Curb Weight(kg) 9950
 Bulletin loading(kg) 7855 Fuel consumption (l/100km) 24.1
 Max speed(km/h) 89 Minimum turning radius(m) 9
Chassis Parameters Chassis Model/ Manufacturer DFH5180XXYBX2DV /Dongfeng Trucks Company
 Engine model / manufacturerISB180 50 /Dongfeng Cummins Engine Co., Ltd
 Transmission model / manufacturer8JS85E/Shaanxi Fast Gear Co.,ltd
 Drive Mode: 4×2 rear wheel drive wheelbase(mm): 5600
 Engine capacity(ml) 5900 Maximum torque (n.m)/(r/min) 700/1500
 Rated power and rated speed(kw)/(r/min) 132/2500 Tire specifications 10.00R20 18PR
 Standard ConfigurationThe tank is designed with a fully enclosed structural frame, made of all-aluminum alloy profiles, with light weight, high strength and strong rust resistance.
Standard ConfigurationThe roof is equipped with an advanced umbrella top design that can be lifted up and down to facilitate temperature control during top loading, unloading, cleaning and disinfection.
The professional equipment imported from Dutch technology, adopts the tail lifting loading and unloading method, the internal double channel, can be turned up, easy to handle, clean and disinfect
Sliding windows are designed on both sides of the vehicle body for emergency use in high temperature and extreme weather.
Video surveillance and temperature monitoring in the tank
Area(m2)42
Number of compartments9
Voltage(V) 24 Spray tank volume(L) 350
 Layer height per floor (mm)  815/815/865
 Number of front fans(pc)/Air volume(m3/h)/pc   6/2730
 Number of rear fans(pc)/Air volume(m3/h)/pc   6/1300
High ConfigurationFlanged without partition MERV 15 filter systemPrevent infection of bacteria during transport of pigs
Water system or spray system can be installed on each floor
Insulation partitions are installed on both sides and top of the tank to effectively avoid high temperature conduction and control the internal temperature of the tank.
