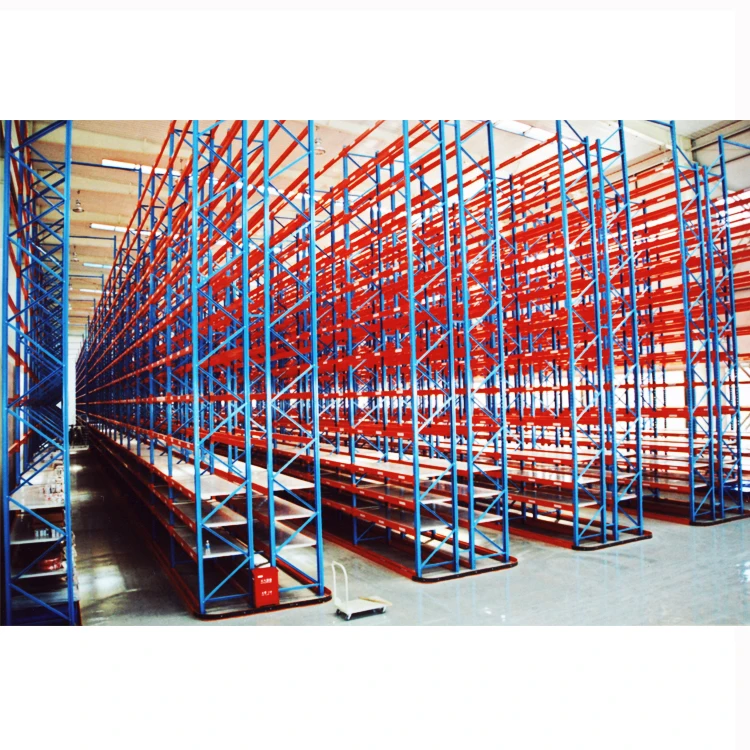

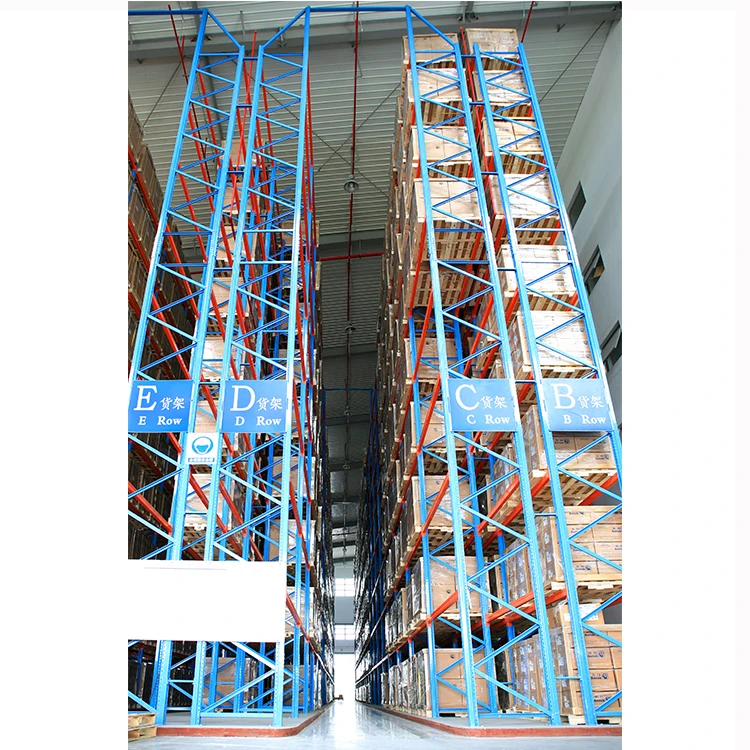

Heavy Duty Narrow Aisle Pallet Racking Steel Storage Racks For Warehouse

Product Overview

Description

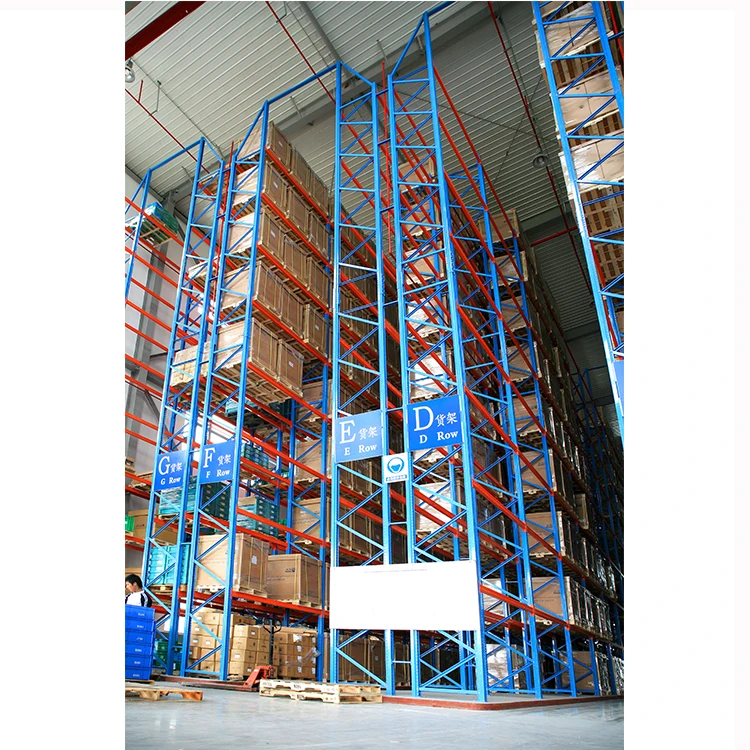

GLOBAL Narrow Aisle Pallet Rack or Very Narrow Aisle Pallet Rack

Narrow aisle pallet rack is one of the tipical selective pallet racking system.Its three direction stacking forklift slide guide is installed at the bottom of the shelf. Unequal angle steel is used in the guide rail. It applies a special three direction stacking forklift. The forklift slide along the setted guide rail. The lane of the racking system  is a little wider than the pallet cargoes, which realize high density storage. It at the same time has the feacture of selective racking system that the forklift can store any pallet of cargoes. The high effeciency and high density of storage brings great production rate and save the cost of the storage and  transport.

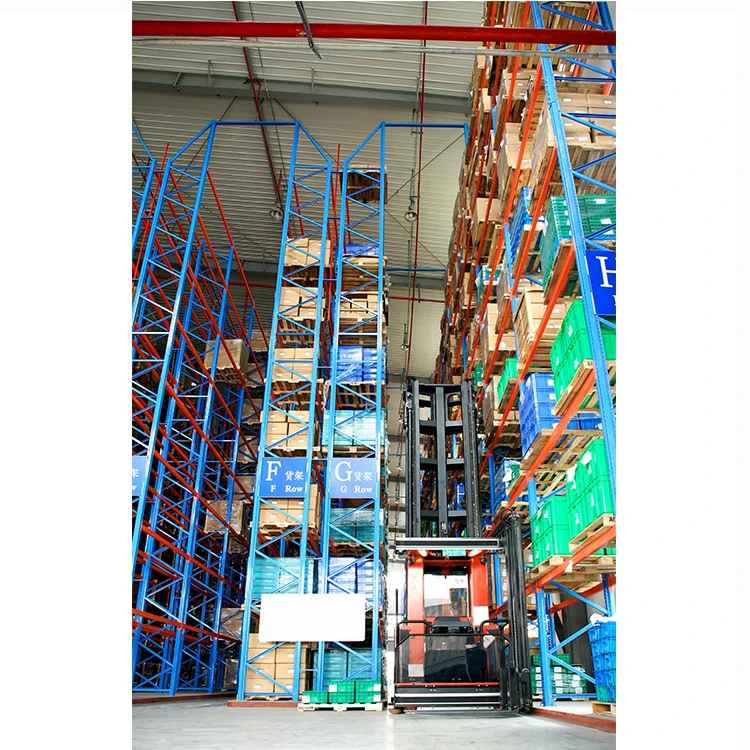

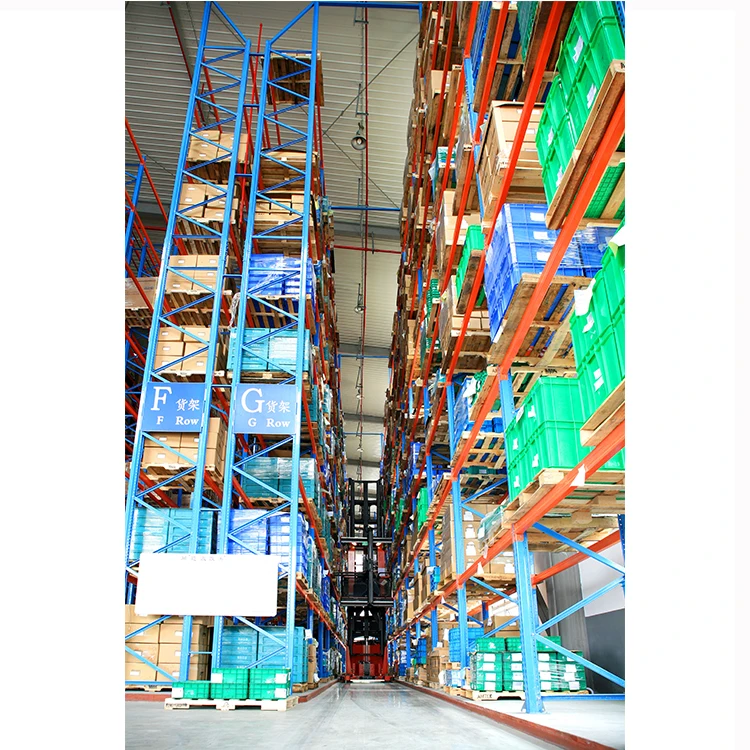

Very narrow aisle (VNA) racking systems allow warehouse operators to increase storage capacity by shrinking the aisles between each row of racks. Because VNA systems can employ aisles as narrow as 5.5′, these systems are typically installed in conjunction with a guidewire that is embedded into the concrete floor that serves to prevent human-steered machines from colliding with the racking. This wire provides tracking for wire-guided turret trucks or other wire-guided picking machines and ensures that these reach trucks travel only on a predefined path without reducing vehicle speed or efficiency. VNA racking is a terrific way to maximize usable storage space without sacrificing picking or put away productivity, but the cost of the wire-guided machines sometimes poses a bit of a financial hurdle.

The Main Advantages Of Narrow Aisle Systems Are:

·         Fast-order picking

·         Best utilization of space

·         100% accessibility to individual pallets

·         High level of throughput

·         Benefits Of Narrow Aisle Racking:

Narrow Aisle Racking Systems Are Particularly Suited To:

·         Pallets of uniform size

·         Warehouses with high roof and level floor

·         Automated systems

1. Item	Very narrow aisle pallet racking (VNA pallet rack)
2. Loading capacity	1000-4500 kgs /level
3. Finish	powder coated
4. Standard Color	blue, orange, green, yellow, grey
5. MOQ	10 units
6. Standard Packings	metal strip, film, paper board and master carton
7. Certification	AS4084:2012;ISO9001
8. Customized size accepted, Special color available

Q&A:

1. I like your design, but couldn't find the right model from the products list, is custom size available?

--Yes, we support OEM/ODM.

2. I would like to have my own design products and qty is not that big, is it ok?

--Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be diffferent.

3. I don' have drawing or picture available for th custom products, could you design it for me?

--Yes, we can make the best suitable design for you but do need know the details such as:
a) dimension
b) loading capacity
c) stackability
d) operation enviroment

4. What is the minimum quantity I can order?

--1x20'GP - qty is variable depend on the size.

5. What is your average production lead time?

--2-3 weeks against formal order and deposit.

6. Do I get any guarantee from your company?

--3~10 years warranty in acse of

a) Proper handling during operation, correctly forklift handling while stacking/ unstacking;

b) Overloading is prohibited;

c) Environment request- indoor, dry and not humid circumstance, do not contact with any

corrosive chemical material (for Zn plated and powder coated products, no limitation for hot dip galvanized );

7. What happen in case any quality problem is identified after arrival?

--We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
