Product Overview
Description
Products Description

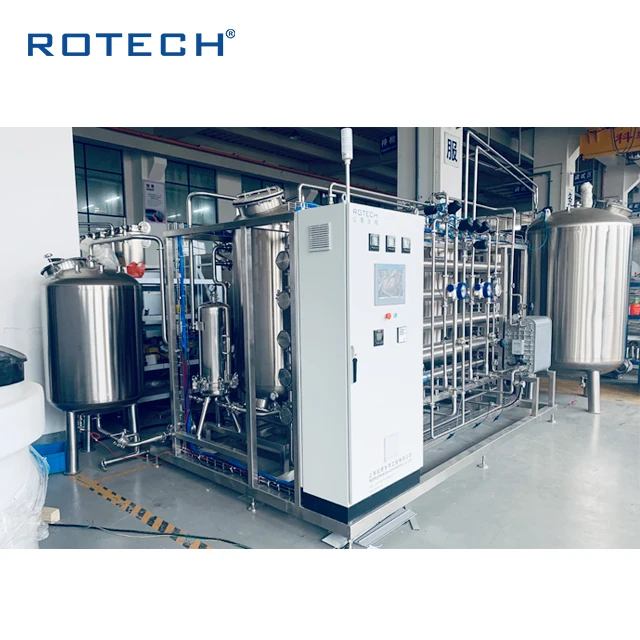

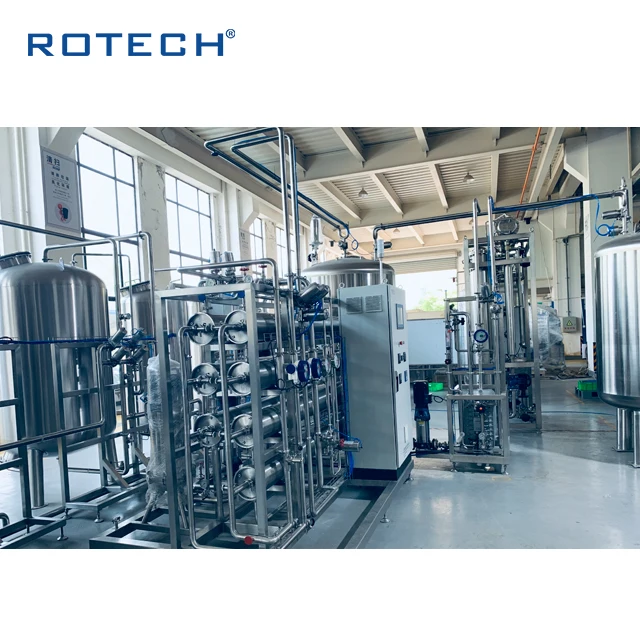

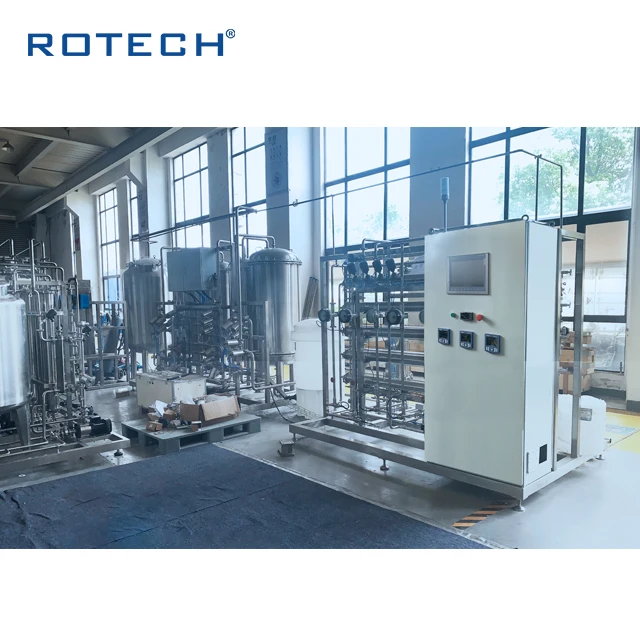

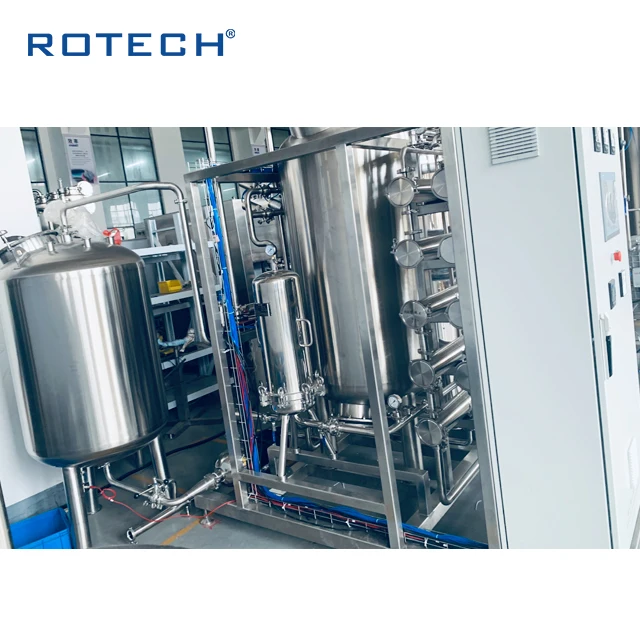

Purified Water System
Main description
This system is designed for the purified water project. Design the water source to master the worst water quality, and the production capacity is designed according to requirements. According to the different products, the effluent quality of the system meets the water requirements.
The design water source is based on municipal water.
The system is designed according to the user's raw water quality and the water quality requirements. The system configuration and settings can fully meet the requirements of water inlet conditions, with the principles of automatic, energy saving, simple operation, environmental protection and safety, and ensure the system can run stably for a long time.
The purified water system processes involve pretreatment via softening and microfiltration stage followed by a reverse osmosis stage and a final demineralization via the patented EDI module. This process technology meets current USP and European Pharmacopoeia requirements in a safe and reliable way. Each system is pre-qualified before shipment and undergoes a full functional FAT test at our factory.
Main description
This system is designed for the purified water project. Design the water source to master the worst water quality, and the production capacity is designed according to requirements. According to the different products, the effluent quality of the system meets the water requirements.
The design water source is based on municipal water.
The system is designed according to the user's raw water quality and the water quality requirements. The system configuration and settings can fully meet the requirements of water inlet conditions, with the principles of automatic, energy saving, simple operation, environmental protection and safety, and ensure the system can run stably for a long time.
The purified water system processes involve pretreatment via softening and microfiltration stage followed by a reverse osmosis stage and a final demineralization via the patented EDI module. This process technology meets current USP and European Pharmacopoeia requirements in a safe and reliable way. Each system is pre-qualified before shipment and undergoes a full functional FAT test at our factory.
Main performance and features
1.TOC＜100ppb
2.Conductivity ＜0.5us/cm
3.Microorganism＜100CFU/ML
4.Endotoxin ＜0.25EU/ml
5.Nitrate＜0.06ppm
6.Heavy metal ＜0.1ppm
*According to the water quality and customer’s requirements, the two stage RO or RO+EDI configurations are provided.
*Modular design, compact structure, convenient installation and operation
*Double-stage softener series operation, no spare equipment dead water risk.
*Multi-channel diaphragm valves replace multiple individual valves, reduce dead corners, facilitate emptying, reduce the amount of verification documents and reduce the number of welds.
*The wastewater discharge line is integrated into the frame, with less pipe and less weld, the optimum separation of purified water and waste water.
*The sampling points at each stage of the system are at their best, easy to maintain and sample.
*Frequency conversion control, dual pipeline water supply, non-water state low –frequency circulation, no intermediate water tank. Reduce the risk of microbial development.
*RO unit is developed regularly and the system can be chemically sterilized or pasteurized.
*Full automatic operation, unattended, remote control
1.TOC＜100ppb
2.Conductivity ＜0.5us/cm
3.Microorganism＜100CFU/ML
4.Endotoxin ＜0.25EU/ml
5.Nitrate＜0.06ppm
6.Heavy metal ＜0.1ppm
*According to the water quality and customer’s requirements, the two stage RO or RO+EDI configurations are provided.
*Modular design, compact structure, convenient installation and operation
*Double-stage softener series operation, no spare equipment dead water risk.
*Multi-channel diaphragm valves replace multiple individual valves, reduce dead corners, facilitate emptying, reduce the amount of verification documents and reduce the number of welds.
*The wastewater discharge line is integrated into the frame, with less pipe and less weld, the optimum separation of purified water and waste water.
*The sampling points at each stage of the system are at their best, easy to maintain and sample.
*Frequency conversion control, dual pipeline water supply, non-water state low –frequency circulation, no intermediate water tank. Reduce the risk of microbial development.
*RO unit is developed regularly and the system can be chemically sterilized or pasteurized.
*Full automatic operation, unattended, remote control
Name | Description |
Pre-treatment system | Pretreatment process contains traditional processes, such as multi-media filtration, activated carbon filtration, softening filter, dosing device, as well as ultra-filtration, residual chlorine removal UV, micro-filtration, etc. |
Double-stage RO system | Based on demands of raw water quality conditions and terminal water, double-stage RO can be used as terminal processing of PW generation system. If alkalinity of raw water is on the high side, degassing device can be chosen. The water quality conforms to requirements of Chinese pharmacopoeia, European pharmacopoeia and United States pharmacopoeia. |
Single-stage RO+EDI system | Based on demands of raw water quality conditions and terminal water, single-stage RO +EDI can be used as terminal processing of PW generation system. Quality of water produced by single-stage RO + EDI is stable, only slightly affected by fluctuation of raw water quality. The water quality conforms to requirements of Chinese pharmacopoeia, European pharmacopoeia and United States pharmacopoeia. |
Double-stage RO+EDI system | Adopting double-stage RO+EDI system as terminal processing of PW generation system, produced water will only be slightly affected by fluctuation of raw water quality. Quality of produced water is stable and highly above requirements of Pharmacopoeia. |
Residual chlorine removal UV system | UV system for residual CL removal, instead of activated carbon also can completely inactivate raw water microorganism, ensuring safety of microorganism and improving quality of supply water. It supports online UV intensity monitoring and dosage display, to accurately predict dechlorination effect and completely avoid troubles from activated carbon filter. |
Model | Capacity (kg/h) | Feed water (kg/h) | Industrial steam (kg/h) | Dimension(mm) | Weight (kg) |
PWG100 | 100 | 115 | 115 | 700*600*1600 | 270 |
PWG200 | 200 | 230 | 230 | 800*700*2000 | 360 |
PWG300 | 300 | 345 | 340 | 800*700*2300 | 420 |
PWG500 | 500 | 575 | 560 | 900*800*2900 | 670 |
PWG800 | 800 | 920 | 900 | 1200*1000*3300 | 790 |
PWG1000 | 1000 | 1150 | 1100 | 1200*1000*3500 | 870 |
PWG1500 | 1500 | 1725 | 1700 | 1300*1100*3700 | 960 |
PWG2000 | 2000 | 2300 | 2200 | 1400*1200*3800 | 1050 |
PWG3000 | 3000 | 3450 | 3400 | 1500*1200*4000 | 1120 |
More Products
Company View

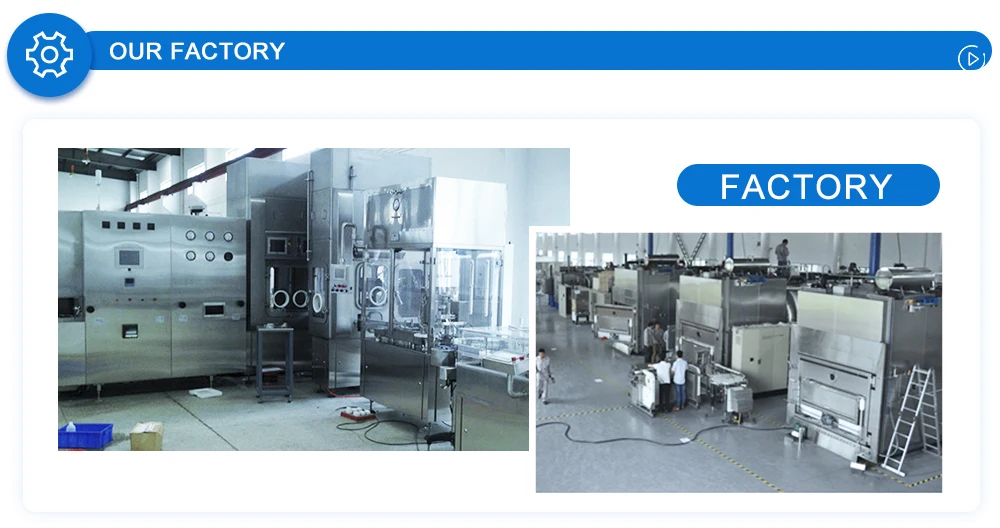

Our Factory

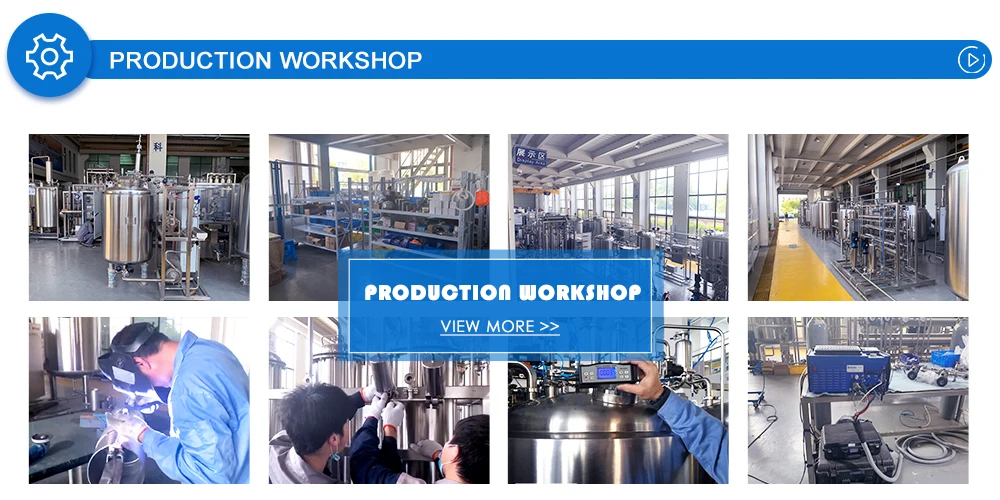

Production Workshop
Our Exhibition
Our Certificates
Packaging&Shipping
1.How about your after-sale service?
We will reply you within 24 hours by email or phone. lf we have local agent,we will arrange him to your site within24 hours to assist you to shoot the problem.
2.How about the staff training?
Normally,we will train your staffs during the installation in your site,you are also welcome to send your staff trainin our
factory.
3.which kind of after-sales service you can offer?
Except the regular service,we can also provide you know-how transfer ,and dispatch our qualified engineers tohelp you run the factory up to 6-12months.
4.When is the delivery time?
5.Can you customize the products?
Yes, of course.our products all have specific standards, customers can provide us with URs for customization.
6.What’s your payment method?
Paypal. T/T. L/C. western Unions. are available.
We will reply you within 24 hours by email or phone. lf we have local agent,we will arrange him to your site within24 hours to assist you to shoot the problem.
2.How about the staff training?
Normally,we will train your staffs during the installation in your site,you are also welcome to send your staff trainin our
factory.
3.which kind of after-sales service you can offer?
Except the regular service,we can also provide you know-how transfer ,and dispatch our qualified engineers tohelp you run the factory up to 6-12months.
4.When is the delivery time?
Delivery will occur 30-90 days from receipt of down payment. Faster delivery time can be arranged if needed.
5.Can you customize the products?
Yes, of course.our products all have specific standards, customers can provide us with URs for customization.
6.What’s your payment method?
Paypal. T/T. L/C. western Unions. are available.
