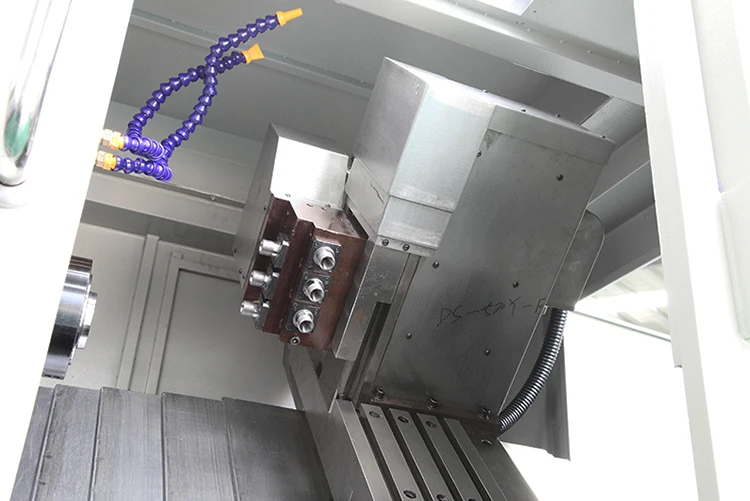

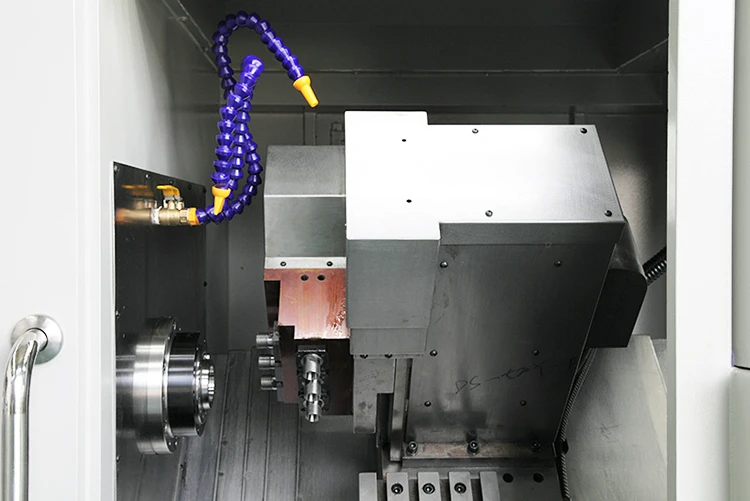

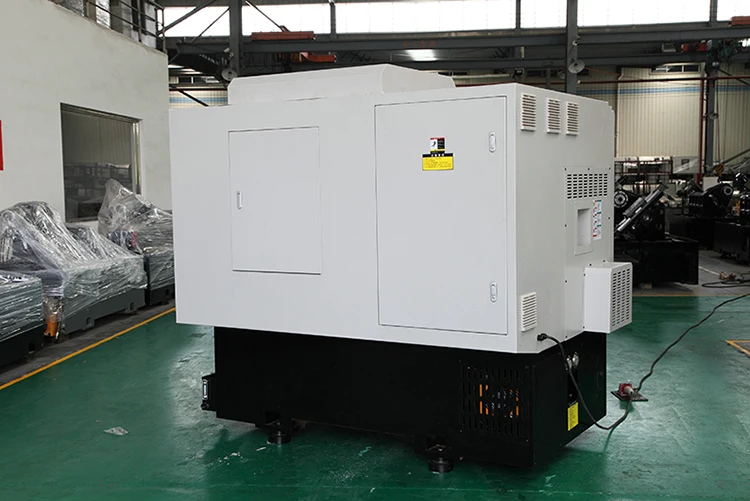

Wood turning milling slant bed lathe machine processing CNC lathe
- Category: >>>
- Supplier: Foshan Shunde Guoqiang Daosheng Industrial Co. Ltd.
Share on (1600197857976):
Product Overview
Description
Product Description

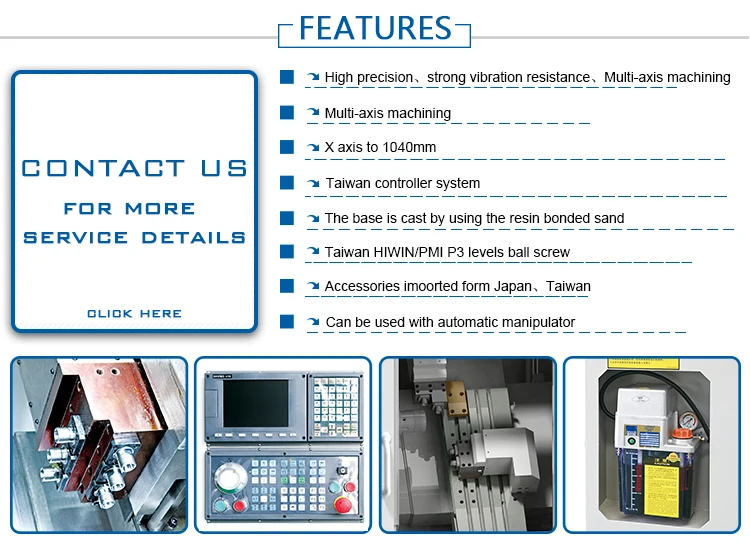

- Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity;
- High-precision main spindle of Taiwan; the spindle flange can be directly installed with Φ160 3-jaw self-centering oil-pressure chuck or other collets;
- Servo motor for spindle motor, more optimized performance;
- Accessories imported from Japan and Taiwan;

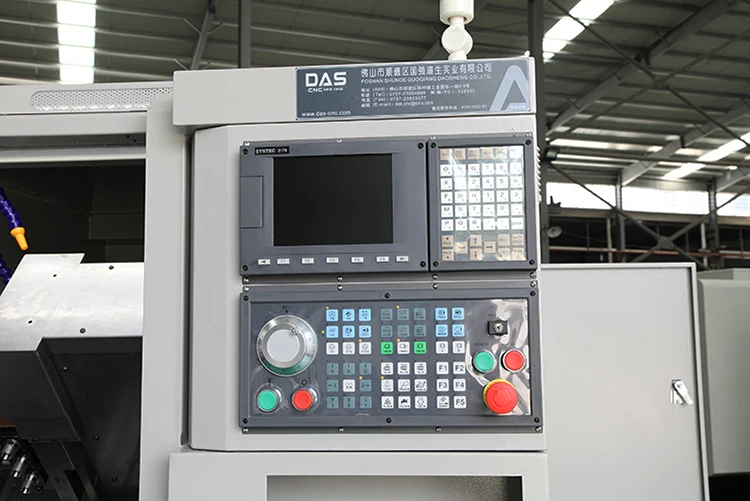

- Taiwan controller system, four-axis ; Or other controler opption;

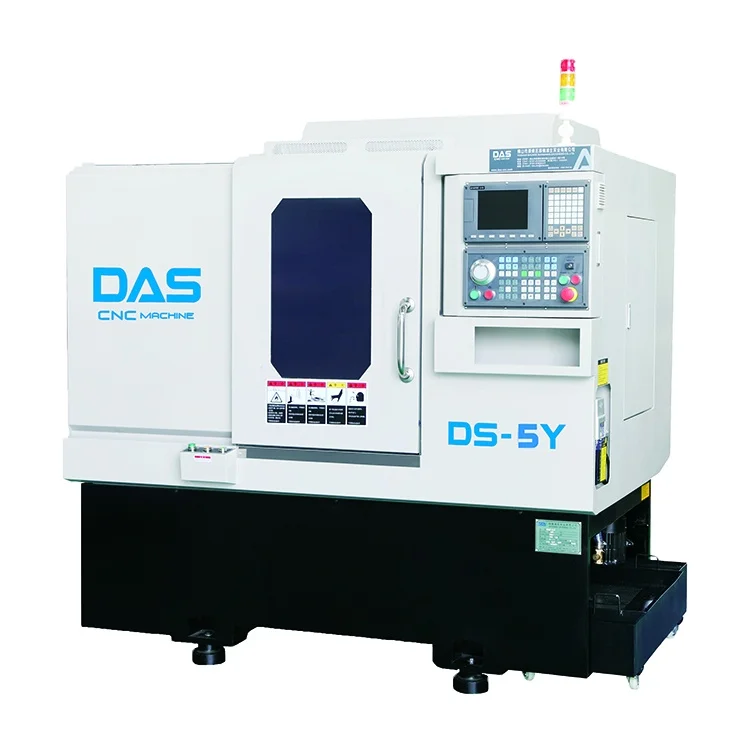

| Name | DS-5Y | DS-6Y |

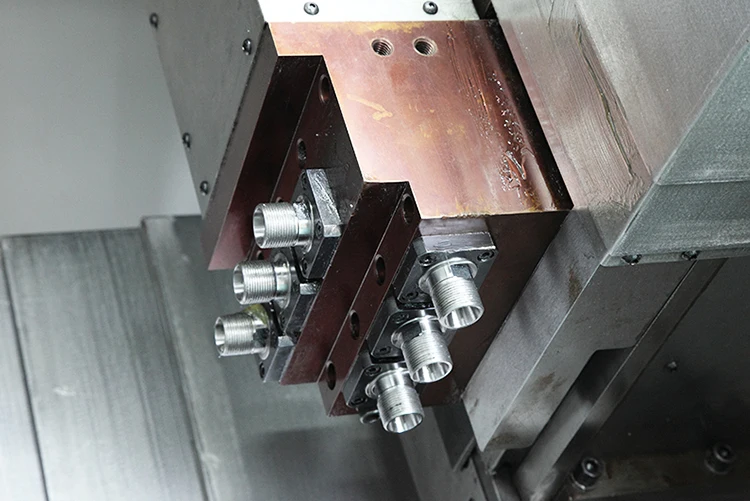

| The style of installation tool | Gang type+power head | Gang type+power head |
| Adjacent tool change time (s) | 0.3 | 0.3 |
| Tool change style | Random | Random |
| Square knife knife holder (mm) | 20X20 | 20X20 |
| Round hole knife holder (mm) | φ20 | φ20 |
| With chuck size | 5 Inch | 6 Inch |
| Spindle speed (r/min) | 1-4500 | 1-4500 |
| Spindle bore (mm) | φ46 | φ56 |
| Center height (mm) | 56 | 56 |
| The maximum diameter of rotation (mm) | 450 | 450 |
| Spindle motor power (KW) | 5.5 | 7.5 |
| Minimum system Resolution | 0.001 | 0.001 |
| X/Z Axis stroke (mm) | 1040/250 | 1040/250 |
| X/Z axis fast moving speed (m/min) | 24(Factory setting) | 24(Factory setting) |
| X/Z axis Repetitive positioning accuracy (mm) | ±0.003 | ±0.003 |
| Taper (mm) | ≤0.003/100 | ≤0.003/100 |
| Card position size (mm) | ≤0.003 | ≤0.003 |
| X servo-motor (KW) | 1.3 | 1.3 |
| Z servo-motor (KW) | 1.3 | 1.3 |
| Y axis shaft | 0.85 | 0.85 |
| Y shaft up and down | Synchronous belt | Synchronous belt |
| (Hydraulic station (KW) | 0.75 | 0.75 |
| Water tank motor power (KW) | 180W | 180W |
| Cooling water tank capacity (L) | 60 | 60 |
| structure of power head | 4*4 gear | 4*4 gear |
| Live tool servo-motor (KW) | 1.8 | 1.8 |
| Live tool speed (rpm) | 1-4500 | 1-4500 |
| power head motor torque (mm) | 5.5 | 5.5 |
| Maximum clamping diameter (mm) | φ13 | φ13 |
| Max drilling diameter (mm) | φ13 Copper and aluminum | φ13 Copper and aluminum |
| Maximum tapping diameter (mm) | M8 Copper/M6 General steel | M8 Copper/M6 General steel |
| Bar feeder center height (mm) | 1140 | 1140 |
| Weight (KG) | 2950 | 3000 |
| Size (L*W*H mm) | 2250x1500x1950 | 2250x1500x1950 |
Certifications
Hot Product

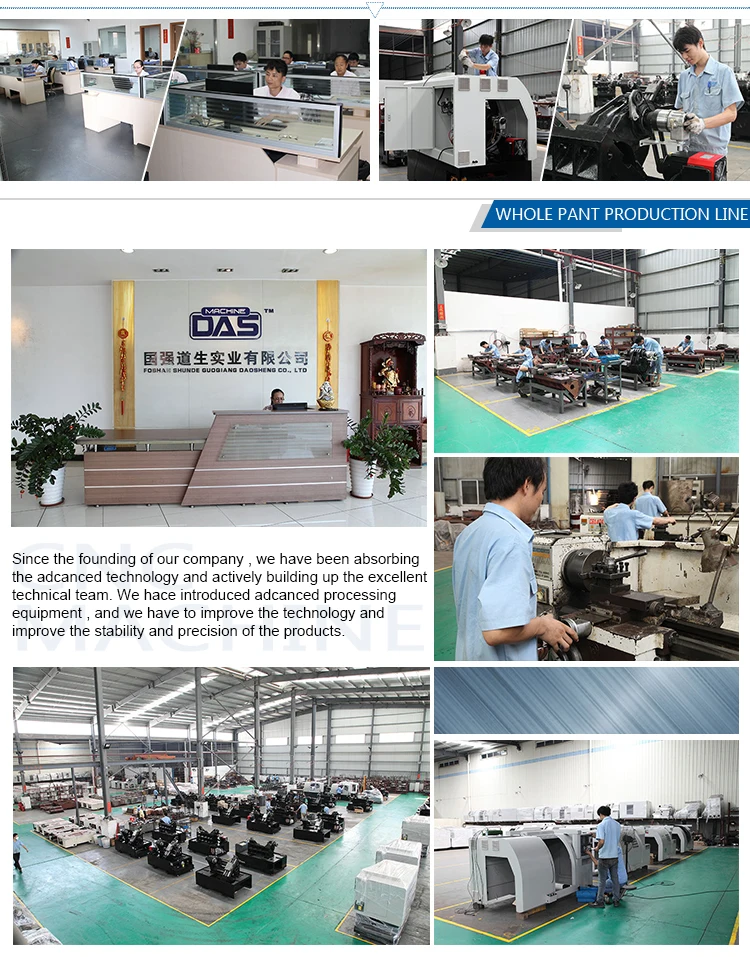

Company Information
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof, electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools.
Our Exhibition
Packaging & Shipping
FAQ
1. MOQ
A: 1set.
2. DeliveryTime
A: The delivery time will be confirmed by different machines with different configurations.Some models are in store , some models need about 2 months or moer.
3. Warranty Period
A: Since the Bill of Lading date ,out company implements the products` After-sale service.The warranty period is 12 months. During the warranty period , our company provides free
replacement parts if these parts or damages are out of machine itseif quality problems.Meantime ,the machine should be under normal operation according to the Operational Maunal
provided by the buyers.(Except for im-proper operation or man-made damage by the buyers).
4. Payment Tems
A: We prefer to do 100% T/T.
